About

Description

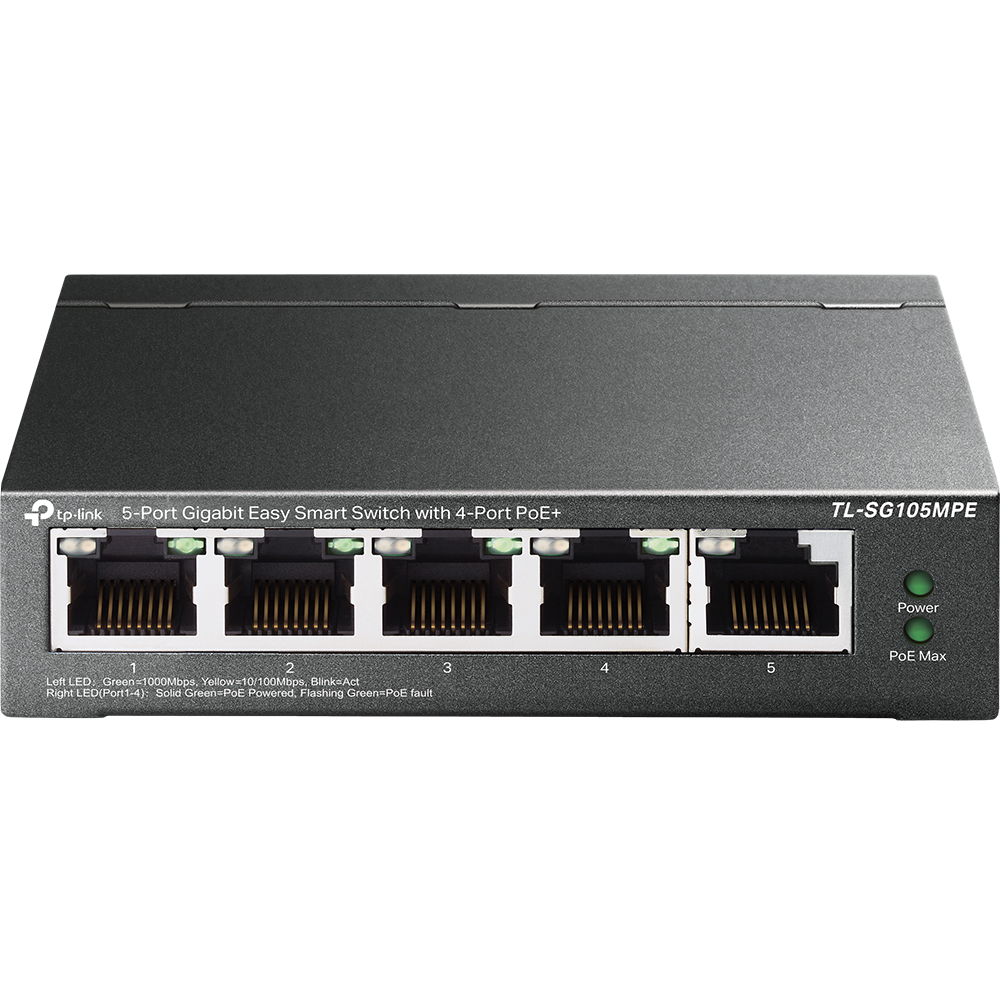

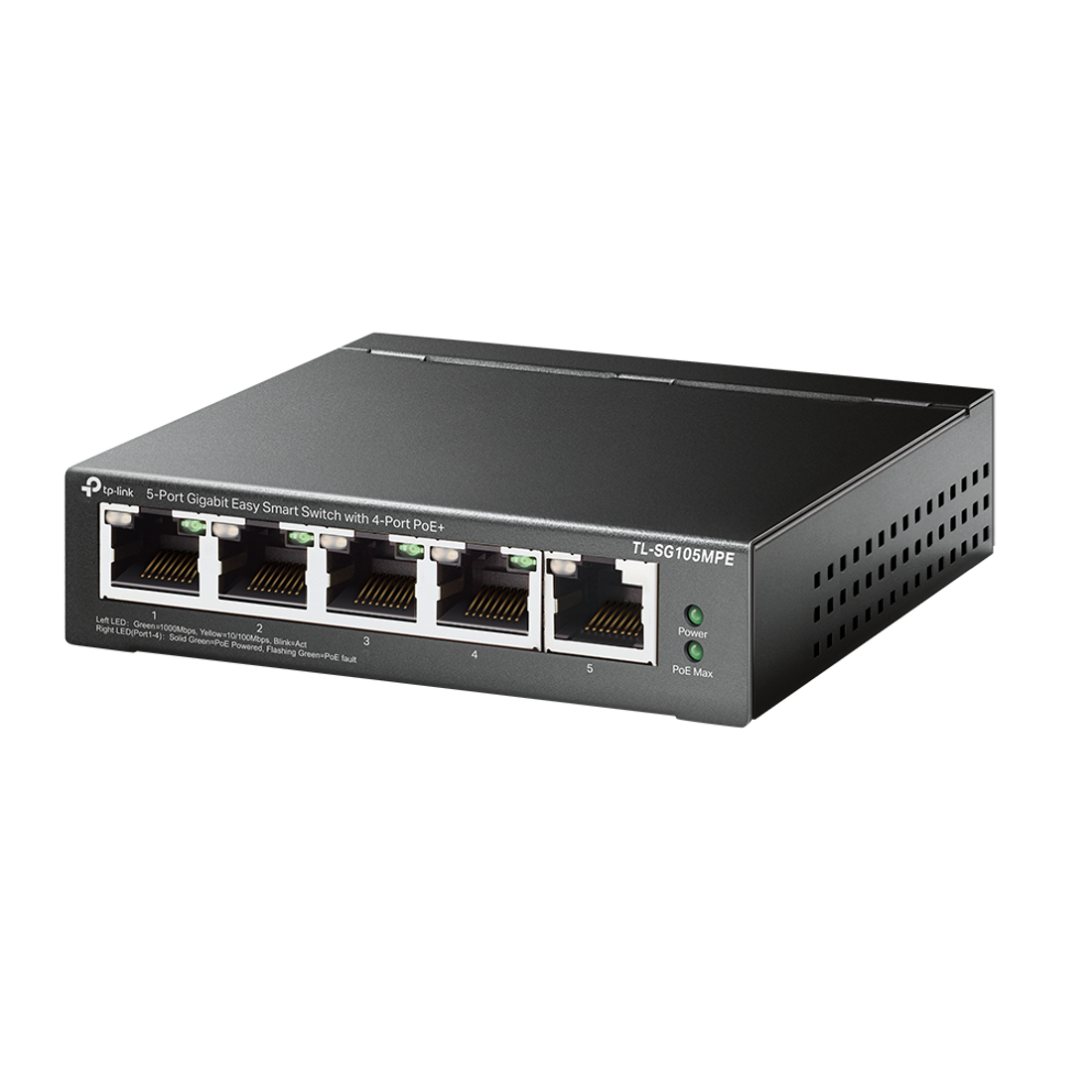

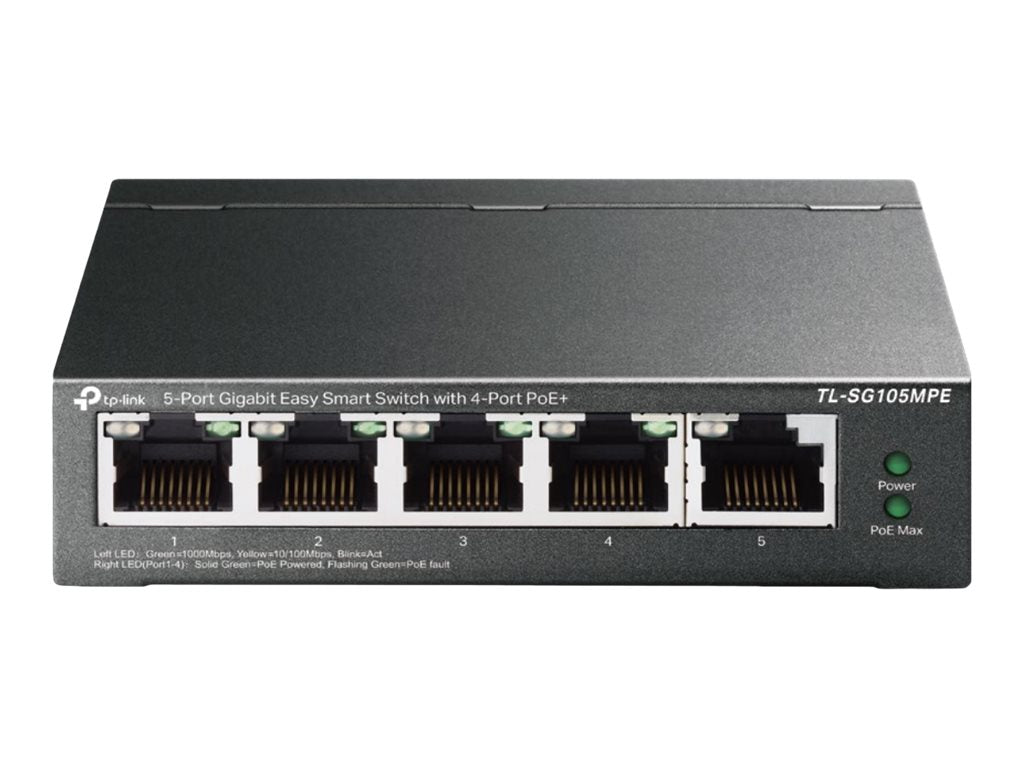

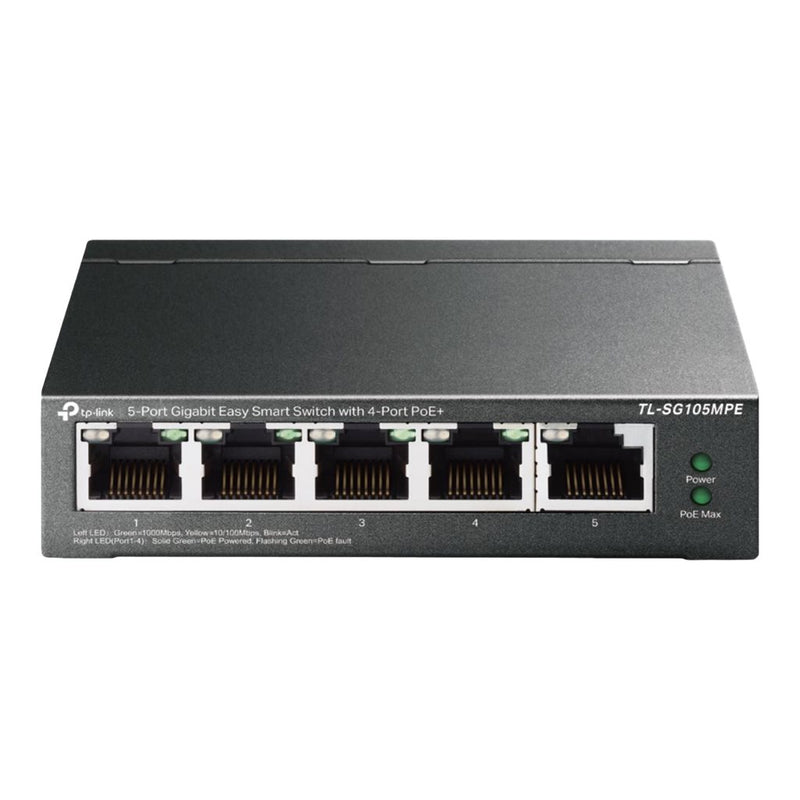

The TP-LINK TL-SG105MPE is a 5-Port Gigabit Easy Smart Switch designed for users needing efficient network management with Power over Ethernet (PoE) capabilities. Ideal for small businesses or home offices, it enables reliable and streamlined connections for multiple devices.

  • Equipped with five Gigabit Ethernet ports, this switch supports high-speed data transfer up to 1000 Mbps.
  • Four of the ports provide PoE+ capability, allowing you to power devices like IP cameras and access points directly through the Ethernet cable.
  • Web-based management tools give you control over your network settings, making it easier to manage traffic and performance.
  • Supports advanced features like port mirroring, broadcast storm control, and rate limiting for optimized network efficiency.
  • The built-in MAC address table can accommodate up to 2000 entries, ensuring smooth data handling for larger networks.
Specifications (2)
  • Producer product family: 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
  • Producer product name: TL-SG105MPE
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Managed L2
Technical details (2)
  • Warranty: 60 month(s)
  • Net weight: 1.70 kg
Ports & interfaces (4)
  • Ethernet LAN (RJ-45) ports: 5
  • Interface: Five 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • POE: PoE+ 802.3at/af
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Additional specifications (35)
  • Switch layer: L2
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Rack mounting: No
  • Product colour: Black
  • Power source: DC/PoE
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • DC input voltage: 53.5 V
  • Power consumption (max): 137.01 W
  • Power over Ethernet (PoE): Yes
  • Total Power over Ethernet (PoE) budget: 120 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 99.8 mm
  • Depth: 98 mm
  • Height: 25 mm
  • Cables included: LAN (RJ-45)
Description

The TP-LINK TL-SG105MPE is a 5-Port Gigabit Easy Smart Switch designed for users needing efficient network management with Power over Ethernet (PoE) capabilities. Ideal for small businesses or home offices, it enables reliable and streamlined connections for multiple devices.

  • Equipped with five Gigabit Ethernet ports, this switch supports high-speed data transfer up to 1000 Mbps.
  • Four of the ports provide PoE+ capability, allowing you to power devices like IP cameras and access points directly through the Ethernet cable.
  • Web-based management tools give you control over your network settings, making it easier to manage traffic and performance.
  • Supports advanced features like port mirroring, broadcast storm control, and rate limiting for optimized network efficiency.
  • The built-in MAC address table can accommodate up to 2000 entries, ensuring smooth data handling for larger networks.
Specifications (2)
  • Producer product family: 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
  • Producer product name: TL-SG105MPE
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Managed L2
Technical details (2)
  • Warranty: 60 month(s)
  • Net weight: 1.70 kg
Ports & interfaces (4)
  • Ethernet LAN (RJ-45) ports: 5
  • Interface: Five 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • POE: PoE+ 802.3at/af
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Additional specifications (35)
  • Switch layer: L2
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Rack mounting: No
  • Product colour: Black
  • Power source: DC/PoE
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • DC input voltage: 53.5 V
  • Power consumption (max): 137.01 W
  • Power over Ethernet (PoE): Yes
  • Total Power over Ethernet (PoE) budget: 120 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 99.8 mm
  • Depth: 98 mm
  • Height: 25 mm
  • Cables included: LAN (RJ-45)

TP-LINK TL-SG105MPE — 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Managed L2, Desktop, 60 month(s)

€88,03
€88,03
Tax included.
