Description

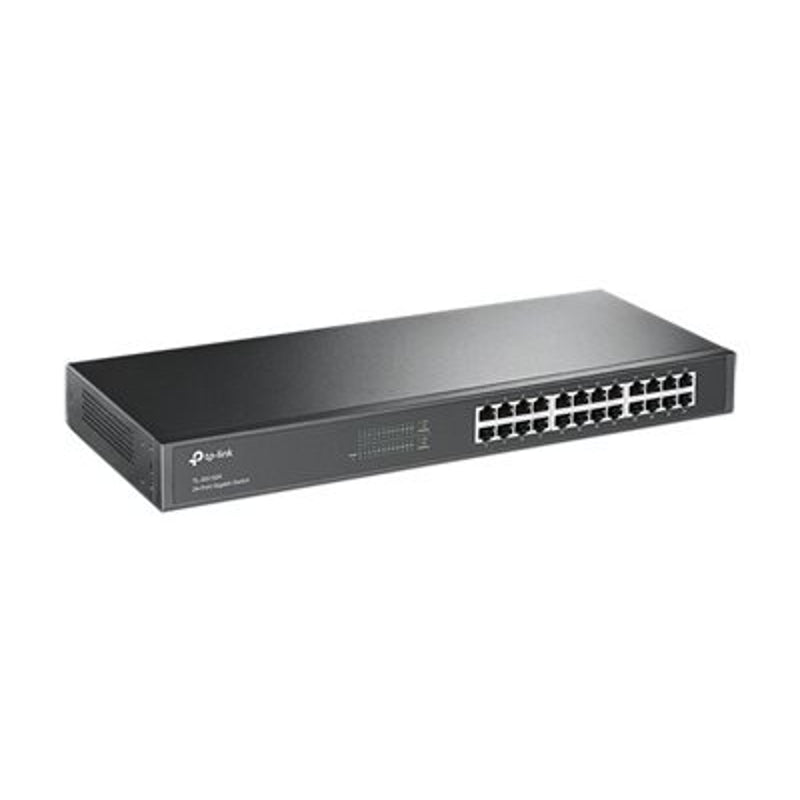

The TP-LINK 24-Port Gigabit Rackmount Switch, model TL-SG1024, is designed for businesses or home environments looking to manage network connections efficiently. This unmanaged switch offers a straightforward solution for connecting multiple devices in a rack-mounted setup.

  • Connect up to 24 devices with Gigabit Ethernet ports for high-speed data transfer.
  • Support for Quality of Service (QoS) ensures reliable data performance across your network.
  • Automatic MDI/MDI-X feature simplifies installation by eliminating the need for crossover cables.
  • A switching capacity of 48 Gbit/s allows for seamless communication between devices.
  • With a MAC address table of 8000 entries, this switch efficiently manages a large number of network devices.
Specifications (3)
  • Producer product family: 24-Port Gigabit Rackmount Switch
  • Producer product name: TL-SG1024
  • Warranty: 60 month(s)
Design (2)
  • Form factor: Rackmountable
  • Colour of product: Black
Management features (1)
  • Switch type: Unmanaged
Ports & interfaces (3)
  • Ethernet LAN (RJ-45) ports: 24
  • POE: No
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 2.402 kg
Additional specifications (45)
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Supported data transfer rates: 10/100/1000 Mbps
  • Switching capacity: 48 Gbit/s
  • Forwarding rate: 35.7 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Maximum data transfer rate: 1 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Supported network protocols: CSMA/CD, TCP/IP
  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Yes
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 13.62 W
  • Connectivity technology: Wired
  • Bandwidth: 48 Gbit/s
  • Connectivity LEDs: Y
  • Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 46.44 BTU/h
  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Certification: FCC, CE, RoHS
Description

The TP-LINK 24-Port Gigabit Rackmount Switch, model TL-SG1024, is designed for businesses or home environments looking to manage network connections efficiently. This unmanaged switch offers a straightforward solution for connecting multiple devices in a rack-mounted setup.

  • Connect up to 24 devices with Gigabit Ethernet ports for high-speed data transfer.
  • Support for Quality of Service (QoS) ensures reliable data performance across your network.
  • Automatic MDI/MDI-X feature simplifies installation by eliminating the need for crossover cables.
  • A switching capacity of 48 Gbit/s allows for seamless communication between devices.
  • With a MAC address table of 8000 entries, this switch efficiently manages a large number of network devices.
Specifications (3)
  • Producer product family: 24-Port Gigabit Rackmount Switch
  • Producer product name: TL-SG1024
  • Warranty: 60 month(s)
Design (2)
  • Form factor: Rackmountable
  • Colour of product: Black
Management features (1)
  • Switch type: Unmanaged
Ports & interfaces (3)
  • Ethernet LAN (RJ-45) ports: 24
  • POE: No
  • Predominant port type: 10/100/1000 Mbps (RJ-45)
Technical details (1)
  • Net weight: 2.402 kg
Additional specifications (45)
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Supported data transfer rates: 10/100/1000 Mbps
  • Switching capacity: 48 Gbit/s
  • Forwarding rate: 35.7 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Maximum data transfer rate: 1 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Supported network protocols: CSMA/CD, TCP/IP
  • Rack mounting: Yes
  • Product colour: Black
  • LED indicators: Yes
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 13.62 W
  • Connectivity technology: Wired
  • Bandwidth: 48 Gbit/s
  • Connectivity LEDs: Y
  • Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 46.44 BTU/h
  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Certification: FCC, CE, RoHS

TP-LINK TL-SG1024 — 24-Port Gigabit Rackmount Switch, Unmanaged, Rackmountable

€109,11
€109,11
Tax included.
