Description

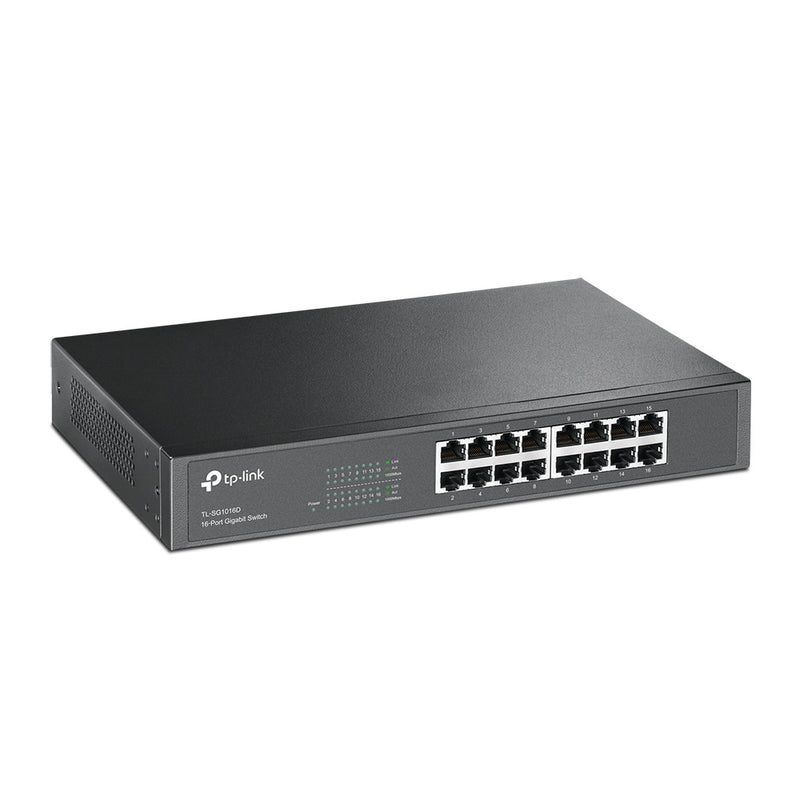

The TP-LINK 16-Port Gigabit Switch TL-SG1016D is an unmanaged switch ideal for small to medium-sized networks. It offers a reliable and efficient way to connect multiple devices, either on a desktop or mounted in a rack.
- Provides 16 Gigabit Ethernet ports for high-speed wired connections to multiple devices.
- Supports auto MDI/MDIX, eliminating the need for crossover cables and simplifying network setup.
- Fast switching capability with a capacity of 32 Gbit/s enhances data transfer speed across your network.
- Features MAC address self-learning, making it easy to add devices without complex configurations.
- Compact steel case design ensures durability and integration into various environments.
Specifications (3)
- Producer product family: 16-Port Gigabit Switch
- Producer product name: TL-SG1016D
- Warranty: 60 month(s)
Design (2)
- Form factor: Desktop/Rackmountable
- Case design: Steel case
Management features (1)
- Switch type: Unmanaged
Ports & interfaces (2)
- POE: No
- Predominant port type: 10/100/1000 Mbps (RJ-45)
Power over Ethernet (PoE) (1)
- Power over Ethernet (PoE): No
Technical details (2)
- Net weight: 1.347 kg
- Other features: Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Additional specifications (45)
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
- Power connector: AC-in jack
- Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Switching capacity: 32 Gbit/s
- Forwarding rate: 23.8 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Supported network protocols: CSMA/CD, TCP/IP
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
- Maximum cable length: 100 m
- Fanless: Yes
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 9.26 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 31.6 BTU/h
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Harmonized System (HS) code: 85176990
Description
The TP-LINK 16-Port Gigabit Switch TL-SG1016D is an unmanaged switch ideal for small to medium-sized networks. It offers a reliable and efficient way to connect multiple devices, either on a desktop or mounted in a rack.
- Provides 16 Gigabit Ethernet ports for high-speed wired connections to multiple devices.
- Supports auto MDI/MDIX, eliminating the need for crossover cables and simplifying network setup.
- Fast switching capability with a capacity of 32 Gbit/s enhances data transfer speed across your network.
- Features MAC address self-learning, making it easy to add devices without complex configurations.
- Compact steel case design ensures durability and integration into various environments.
Specifications (3)
- Producer product family: 16-Port Gigabit Switch
- Producer product name: TL-SG1016D
- Warranty: 60 month(s)
Design (2)
- Form factor: Desktop/Rackmountable
- Case design: Steel case
Management features (1)
- Switch type: Unmanaged
Ports & interfaces (2)
- POE: No
- Predominant port type: 10/100/1000 Mbps (RJ-45)
Power over Ethernet (PoE) (1)
- Power over Ethernet (PoE): No
Technical details (2)
- Net weight: 1.347 kg
- Other features: Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Additional specifications (45)
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
- Power connector: AC-in jack
- Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Switching capacity: 32 Gbit/s
- Forwarding rate: 23.8 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Supported network protocols: CSMA/CD, TCP/IP
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
- Maximum cable length: 100 m
- Fanless: Yes
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 9.26 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 31.6 BTU/h
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- Harmonized System (HS) code: 85176990
