Description

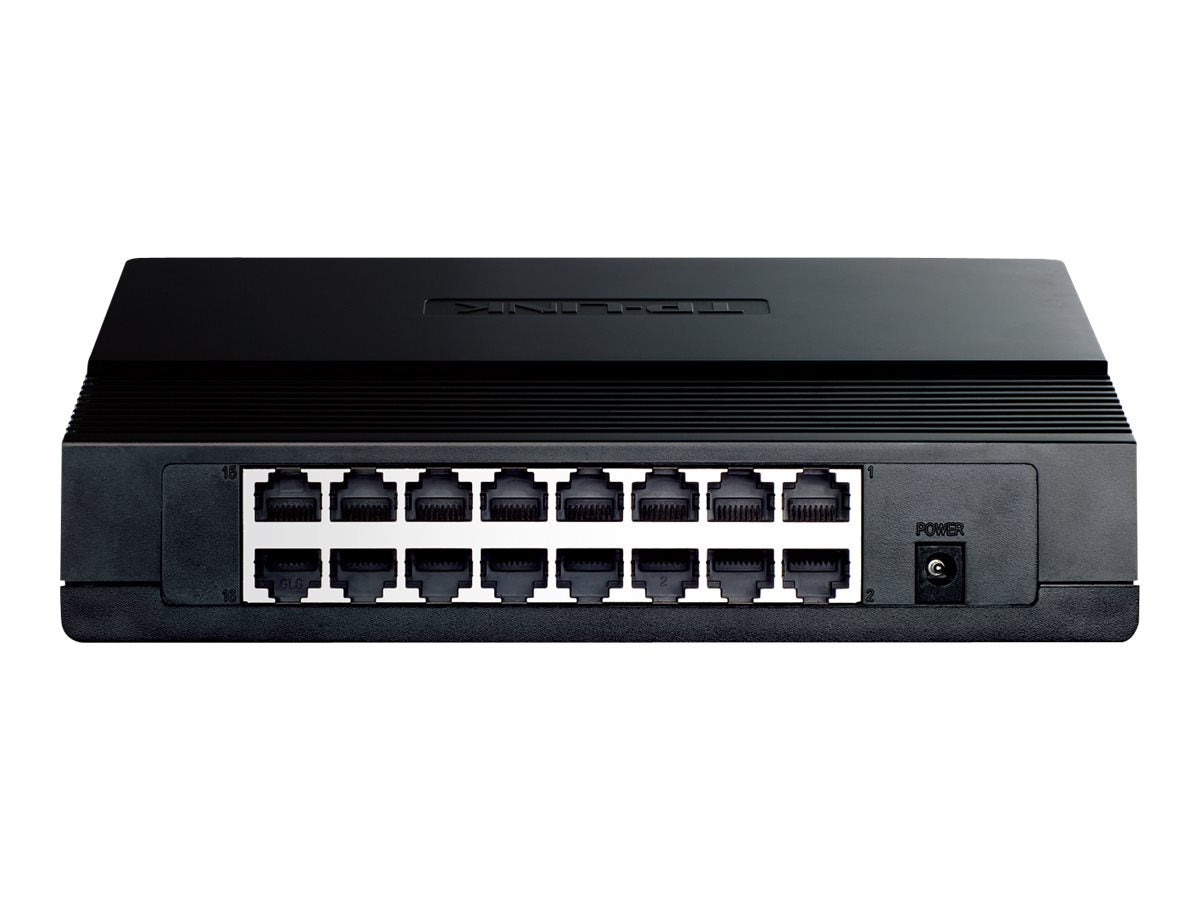

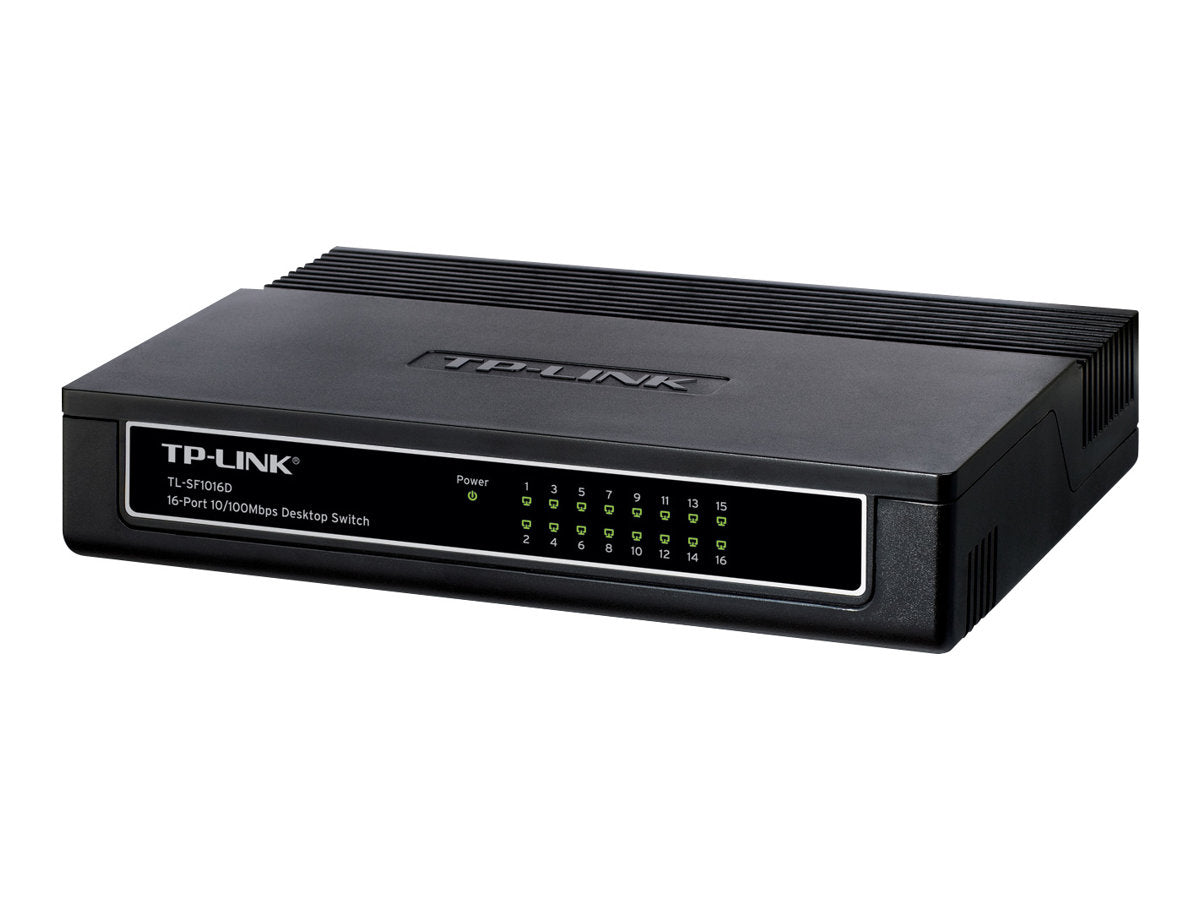

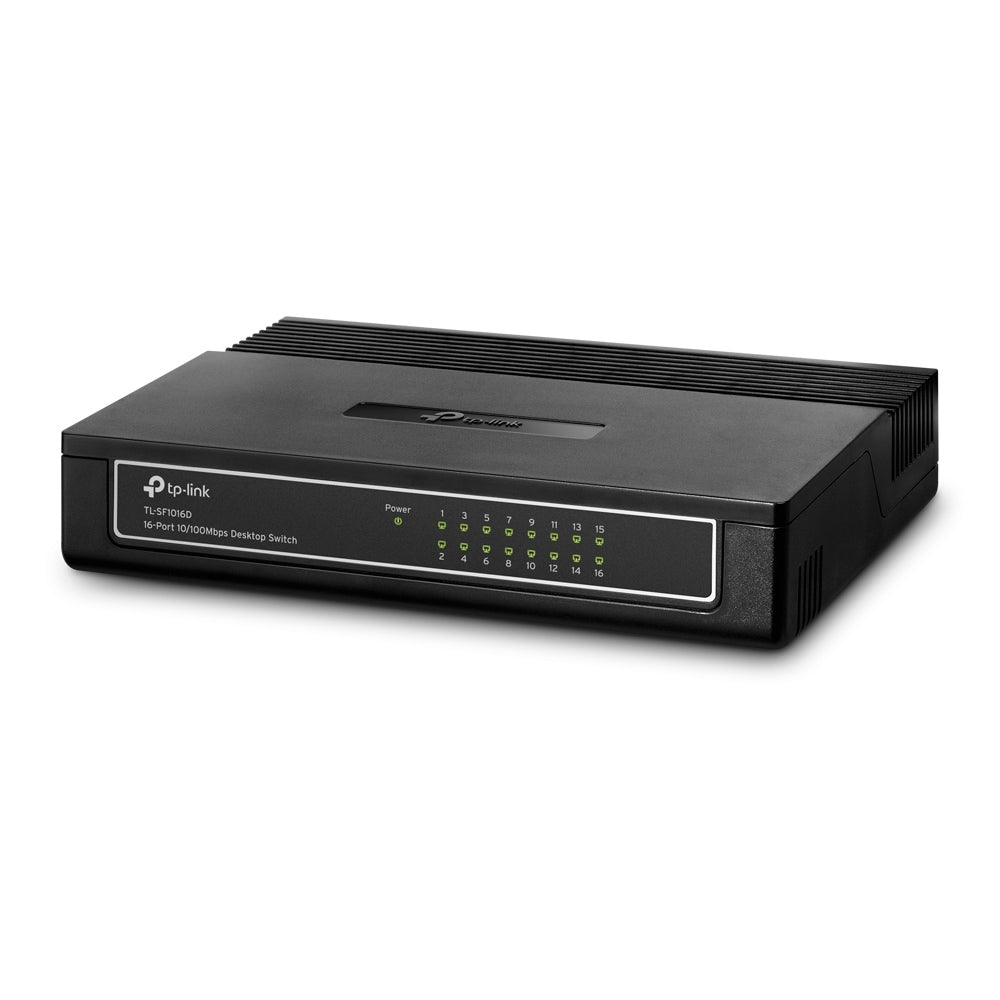

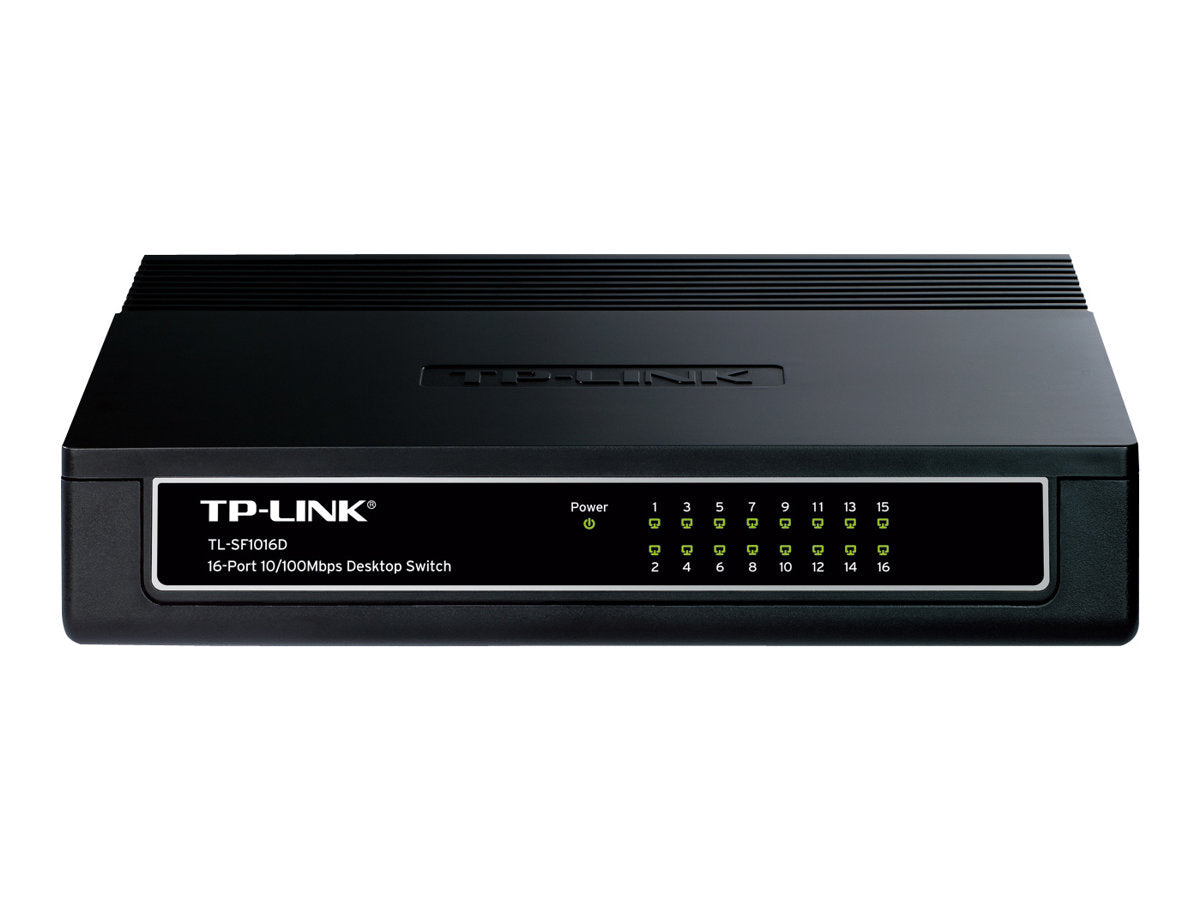

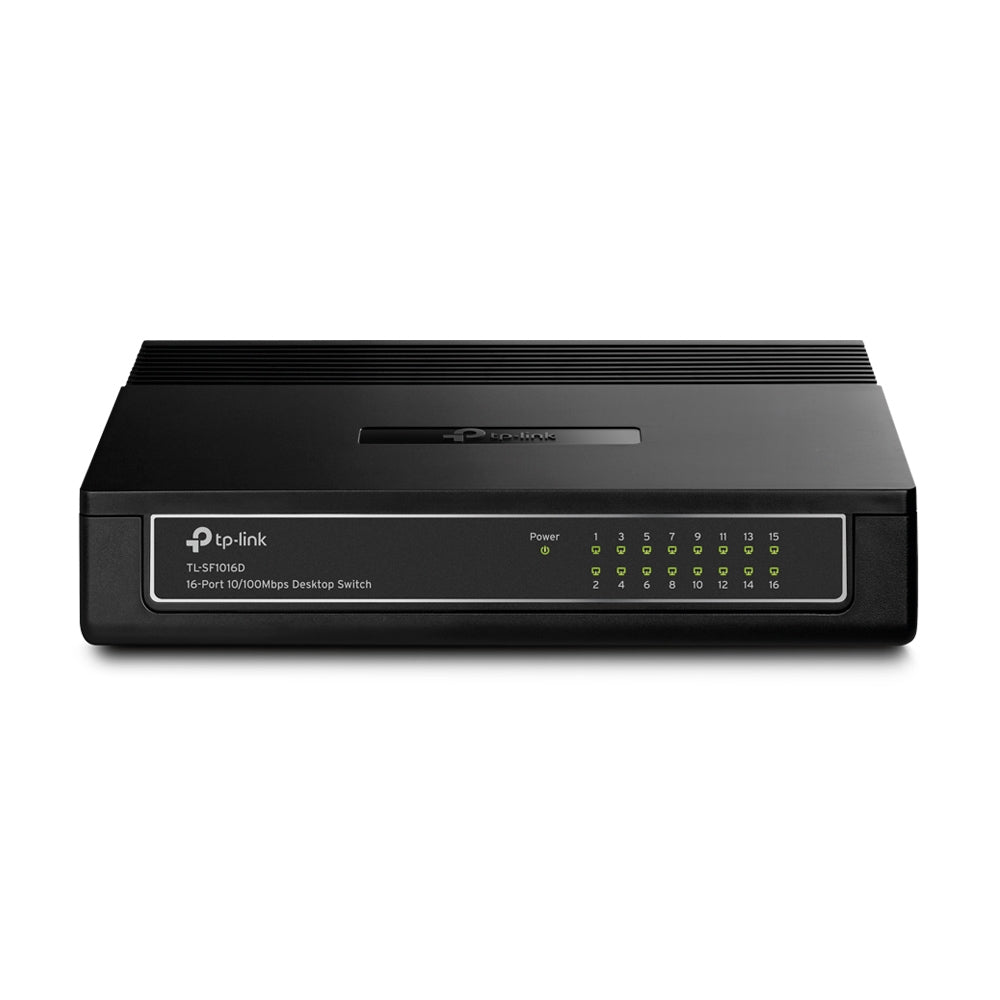

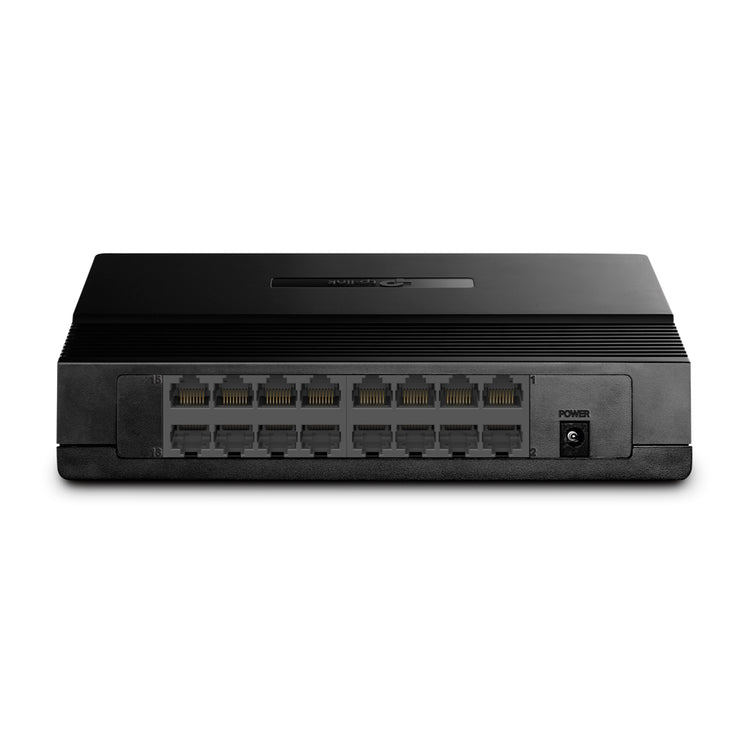

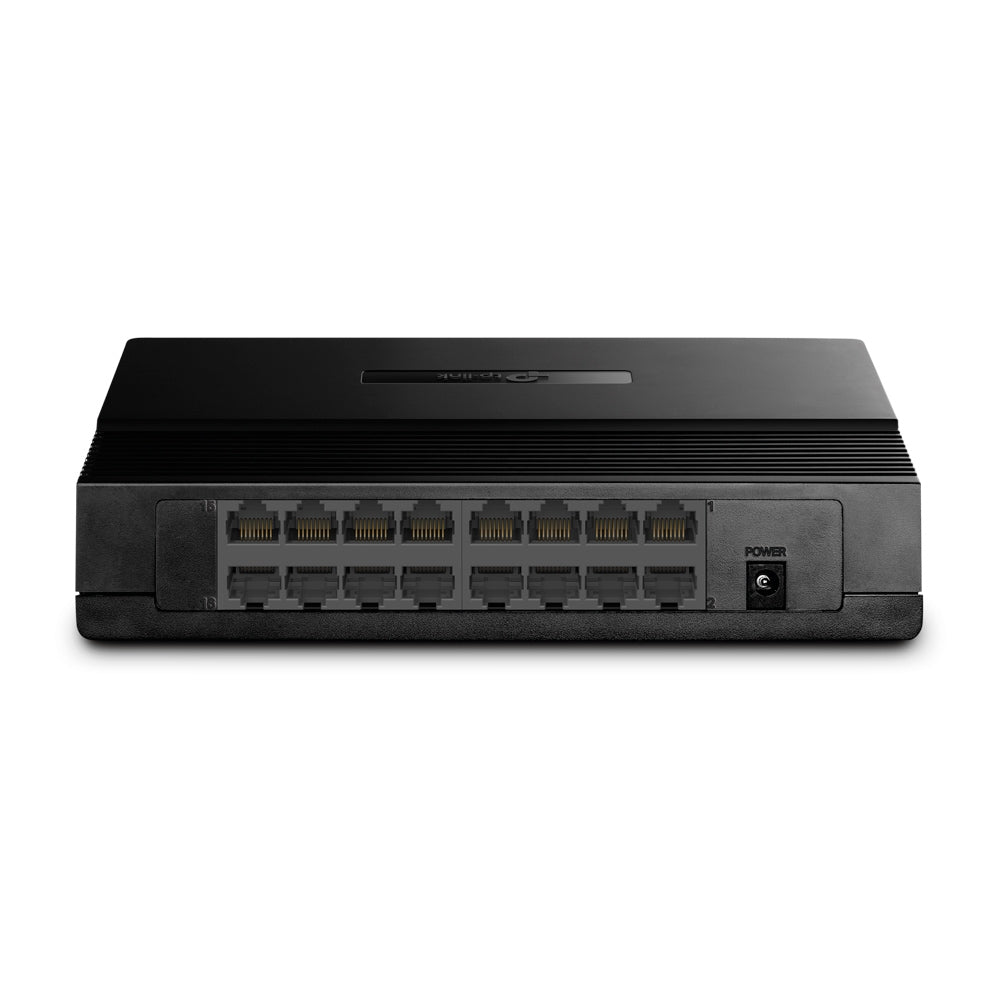

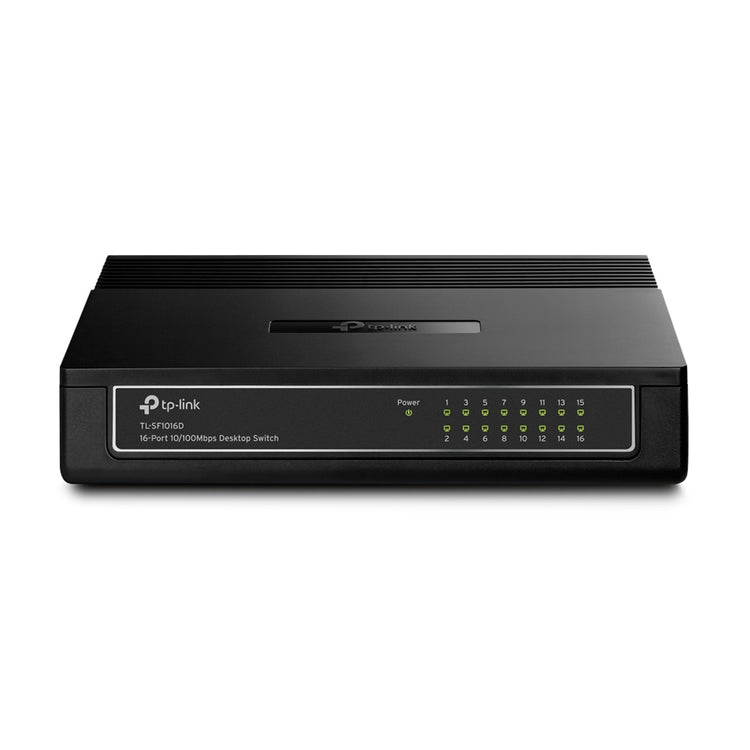

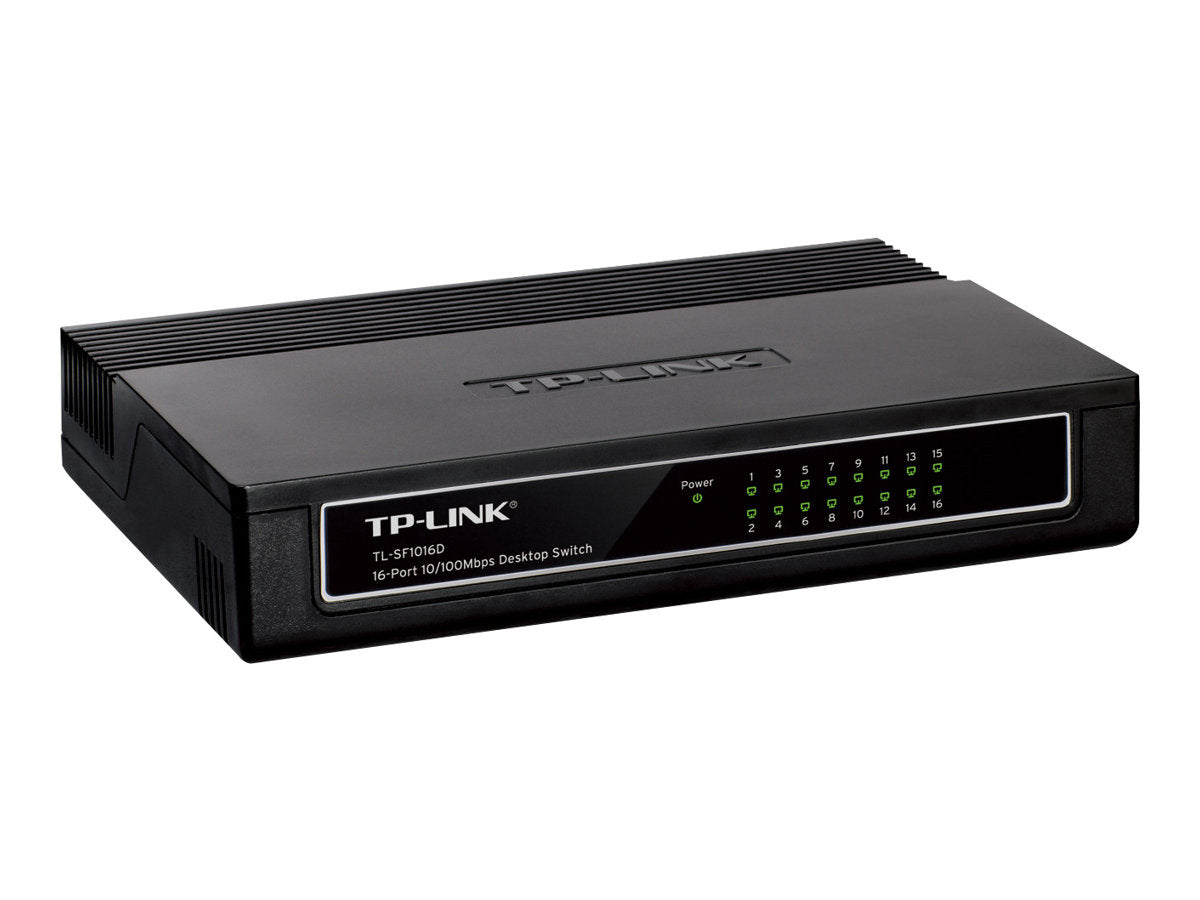

The TP-LINK TL-SF1016D is a desktop switch designed for users looking to expand their network connectivity. With 16 Fast Ethernet ports, this unmanaged switch is suitable for small offices and home networks needing reliable, high-speed connections.

  • Easily connect multiple devices with 16 Fast Ethernet ports, allowing for seamless networking.
  • Supports both full duplex and half duplex communication to maximize data flow efficiency.
  • Features auto-negotiation and auto-MDI/MDI-X for simple plug-and-play installation.
  • With a switching capacity of 3.2 Gbit/s, it ensures smooth performance for data transfer.
  • Built-in flow control support helps manage data traffic efficiently for stable connections.
Specifications (3)
  • Producer product family: Switch
  • Producer product name: TL-SF1016D
  • Warranty: 24 month(s)
Design (2)
  • Form factor: Desktop
  • Case design: Plastic case
Other features (1)
  • Power supply type: External
Ports & interfaces (3)

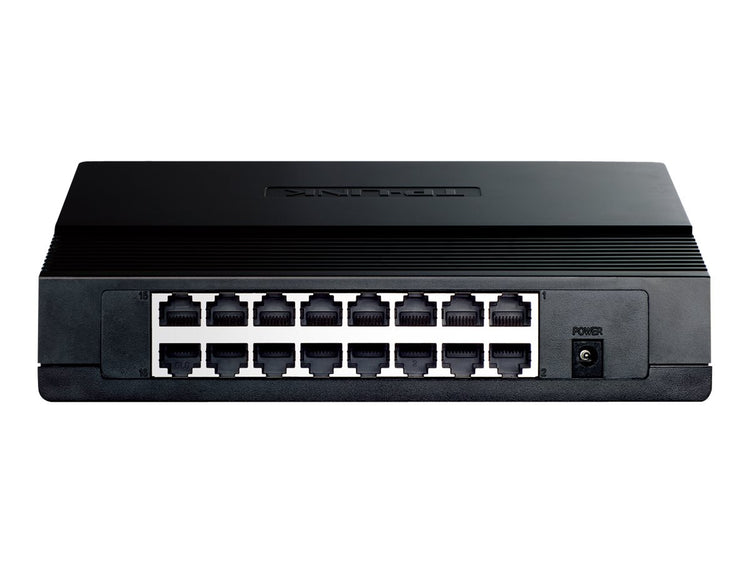

  • 10/100 Mbps (RJ-45) ports quantity: 16
  • POE: No
  • Predominant port type: 10/100 Mbps (RJ-45)
Technical details (2)
  • Net weight: 0.392 kg
  • Other features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward.
Additional specifications (42)
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 16
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 3.2 Gbit/s
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Rack mounting: Yes
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Wall mountable: Yes
  • Fanless: Yes
  • Minimum system requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (max): 3.23 W
  • Power over Ethernet (PoE): No
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 11.01 BTU/h
  • Width: 200 mm
  • Depth: 142 mm
  • Height: 40 mm
  • User guide: Yes
  • Sustainability compliance: Yes
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Description

The TP-LINK TL-SF1016D is a desktop switch designed for users looking to expand their network connectivity. With 16 Fast Ethernet ports, this unmanaged switch is suitable for small offices and home networks needing reliable, high-speed connections.

  • Easily connect multiple devices with 16 Fast Ethernet ports, allowing for seamless networking.
  • Supports both full duplex and half duplex communication to maximize data flow efficiency.
  • Features auto-negotiation and auto-MDI/MDI-X for simple plug-and-play installation.
  • With a switching capacity of 3.2 Gbit/s, it ensures smooth performance for data transfer.
  • Built-in flow control support helps manage data traffic efficiently for stable connections.
Specifications (3)
  • Producer product family: Switch
  • Producer product name: TL-SF1016D
  • Warranty: 24 month(s)
Design (2)
  • Form factor: Desktop
  • Case design: Plastic case
Other features (1)
  • Power supply type: External
Ports & interfaces (3)
  • 10/100 Mbps (RJ-45) ports quantity: 16
  • POE: No
  • Predominant port type: 10/100 Mbps (RJ-45)
Technical details (2)
  • Net weight: 0.392 kg
  • Other features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward.
Additional specifications (42)
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 16
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Auto-negotiation: Yes
  • MAC address auto-learning supported: Yes
  • Switching capacity: 3.2 Gbit/s
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Rack mounting: Yes
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Wall mountable: Yes
  • Fanless: Yes
  • Minimum system requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 9 V
  • Input current: 0.6 A
  • Power consumption (max): 3.23 W
  • Power over Ethernet (PoE): No
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 11.01 BTU/h
  • Width: 200 mm
  • Depth: 142 mm
  • Height: 40 mm
  • User guide: Yes
  • Sustainability compliance: Yes
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

TP-LINK Switch TL-SF1016D, Desktop, 10/100 Mbps (RJ-45) ports quantity 16, Power supply type External

€37,19
€37,19
Tax included.
