About

Description

The TP-LINK SG6654X Omada is a managed L3 switch designed for users who need robust networking capabilities for their organizations. It is ideal for medium to large businesses looking to enhance their network performance and management.

  • Offers 48 Gigabit Ethernet ports, providing ample connectivity for multiple devices.
  • Supports advanced features like VLANs, allowing for network segmentation and improved security.
  • Enables web-based and cloud management for easy configuration and monitoring from anywhere.
  • Includes 6 SFP+ slots for expanded network versatility and high-speed connections.
  • Features QoS support for optimized traffic management, ensuring timely delivery of critical data.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 8.16 kg
Additional specifications (63)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 6
  • Console port: RJ-45/USB Type-C
  • USB 2.0 ports quantity: 2
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 216 Gbit/s
  • Forwarding rate: 160.7 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 3 MB
  • DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • IGMP entries: 2048
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Authentication type: RADIUS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 4 fan(s)
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 39.8 W
  • Power over Ethernet (PoE): No
  • Operating temperature (T-T): -5 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 135.81 BTU/h
  • Width: 440 mm
  • Depth: 380 mm
  • Height: 44 mm
  • Cables included: AC, LAN (RJ-45)
  • Manual: Yes
Description

The TP-LINK SG6654X Omada is a managed L3 switch designed for users who need robust networking capabilities for their organizations. It is ideal for medium to large businesses looking to enhance their network performance and management.

  • Offers 48 Gigabit Ethernet ports, providing ample connectivity for multiple devices.
  • Supports advanced features like VLANs, allowing for network segmentation and improved security.
  • Enables web-based and cloud management for easy configuration and monitoring from anywhere.
  • Includes 6 SFP+ slots for expanded network versatility and high-speed connections.
  • Features QoS support for optimized traffic management, ensuring timely delivery of critical data.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 8.16 kg
Additional specifications (63)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 6
  • Console port: RJ-45/USB Type-C
  • USB 2.0 ports quantity: 2
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 216 Gbit/s
  • Forwarding rate: 160.7 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 3 MB
  • DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • IGMP entries: 2048
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Authentication type: RADIUS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 4 fan(s)
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 39.8 W
  • Power over Ethernet (PoE): No
  • Operating temperature (T-T): -5 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 135.81 BTU/h
  • Width: 440 mm
  • Depth: 380 mm
  • Height: 44 mm
  • Cables included: AC, LAN (RJ-45)
  • Manual: Yes

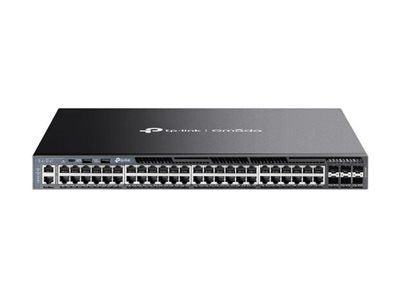

TP-LINK SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots

€2.513,47
€2.513,47
Tax included.
