Description

The TP-LINK SG6428XHP Omada is a managed PoE+ switch designed for businesses needing a reliable networking solution. It is suitable for environments requiring substantial connectivity and advanced management features.

  • Offers 24 Gigabit Ethernet ports for versatile connectivity options.
  • Supports up to 4000 VLANs, allowing for efficient network segmentation and management.
  • Includes 4 SFP+ slots for flexible network expansion and high-speed connections.
  • Features web and cloud-based management, enabling easy monitoring from anywhere.
  • Equipped with QoS support for prioritizing traffic and enhancing user experience.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 10.32 kg
Additional specifications (66)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45/USB Type-C
  • USB 2.0 ports quantity: 2
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 128 Gbit/s
  • Forwarding rate: 95.2 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 3 MB
  • DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • IGMP entries: 2048
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Authentication type: RADIUS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 4 fan(s)
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 916.4 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 720 W
  • Operating temperature (T-T): -5 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 3125.61 BTU/h
  • Width: 440 mm
  • Depth: 420 mm
  • Height: 44 mm
  • Cables included: AC, LAN (RJ-45)
  • Manual: Yes
Description

The TP-LINK SG6428XHP Omada is a managed PoE+ switch designed for businesses needing a reliable networking solution. It is suitable for environments requiring substantial connectivity and advanced management features.

  • Offers 24 Gigabit Ethernet ports for versatile connectivity options.
  • Supports up to 4000 VLANs, allowing for efficient network segmentation and management.
  • Includes 4 SFP+ slots for flexible network expansion and high-speed connections.
  • Features web and cloud-based management, enabling easy monitoring from anywhere.
  • Equipped with QoS support for prioritizing traffic and enhancing user experience.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 10.32 kg
Additional specifications (66)
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45/USB Type-C
  • USB 2.0 ports quantity: 2
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
  • 10G support: No
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 128 Gbit/s
  • Forwarding rate: 95.2 Mpps
  • MAC address table: 32000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 3 MB
  • DHCP features: DHCP relay, DHCP snooping, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • IGMP entries: 2048
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Authentication type: RADIUS
  • Multicast support: Yes
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 4 fan(s)
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 916.4 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 720 W
  • Operating temperature (T-T): -5 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 3125.61 BTU/h
  • Width: 440 mm
  • Depth: 420 mm
  • Height: 44 mm
  • Cables included: AC, LAN (RJ-45)
  • Manual: Yes

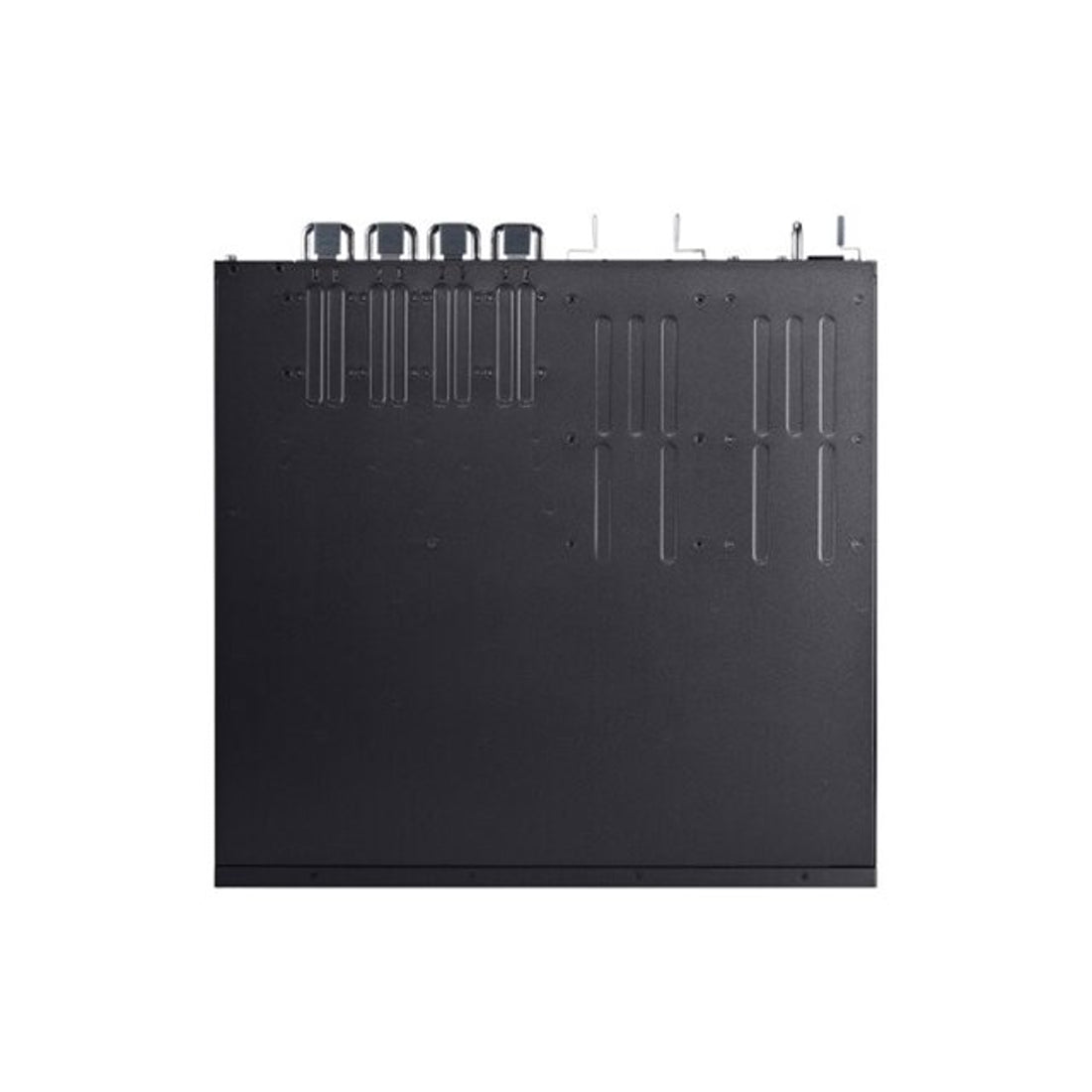

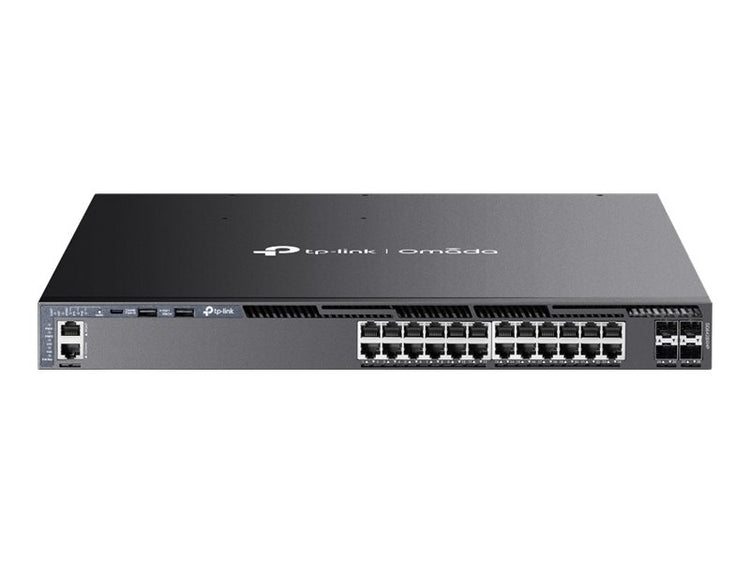

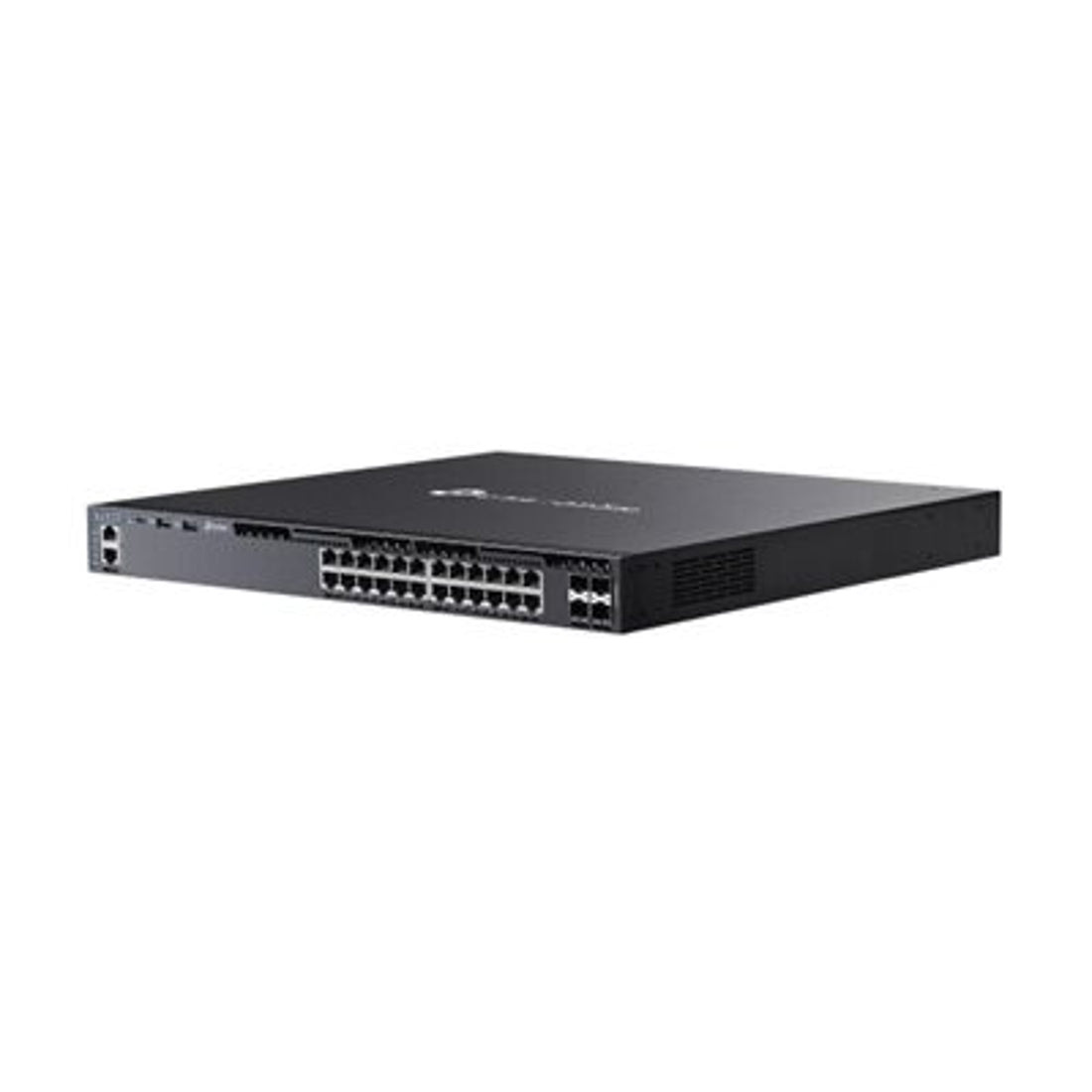

TP-LINK SG6428XHP Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots

€2.419,23
€2.419,23
Tax included.
