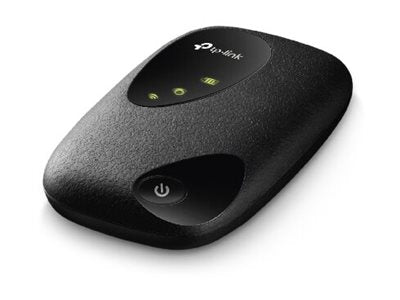

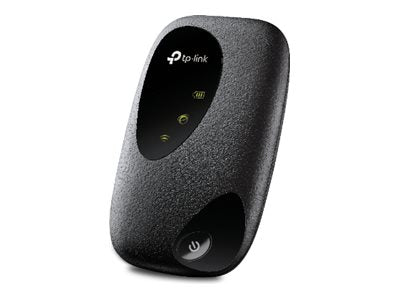

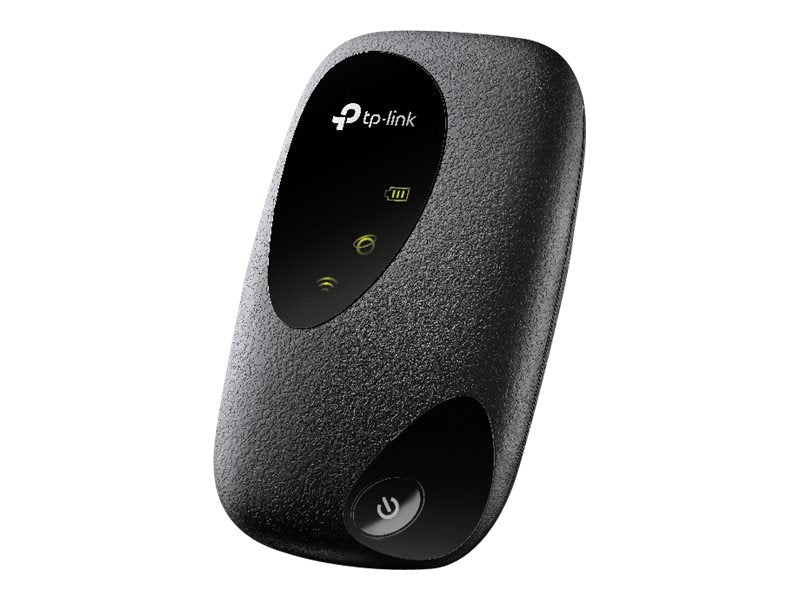

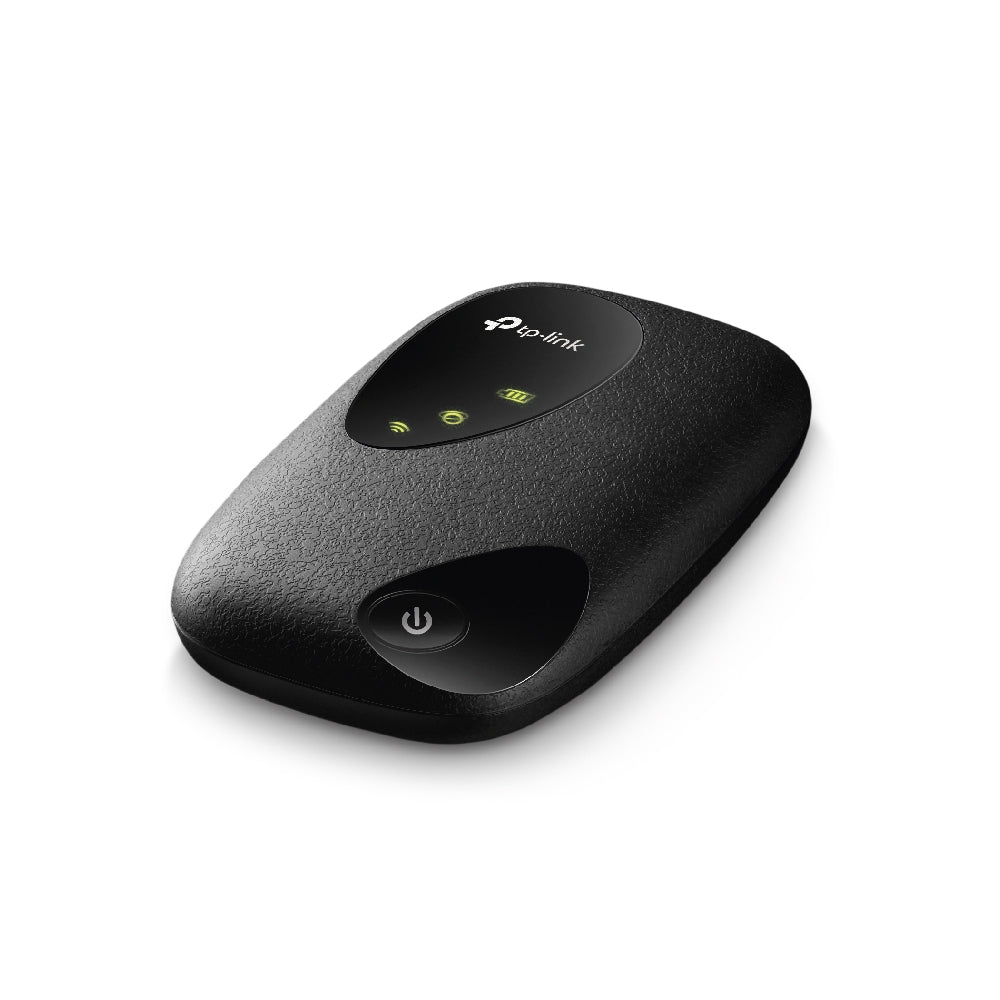

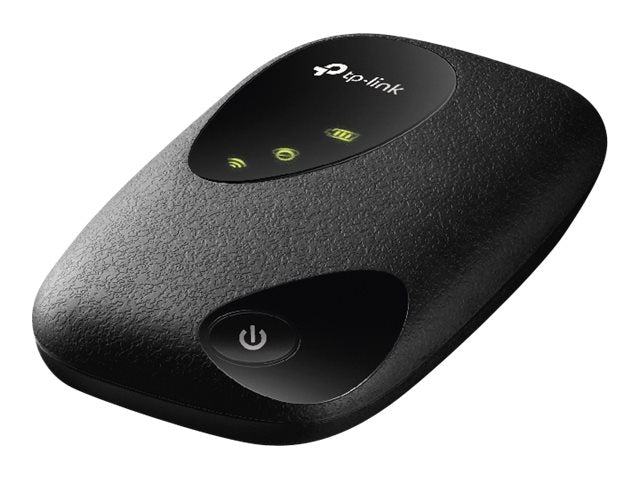

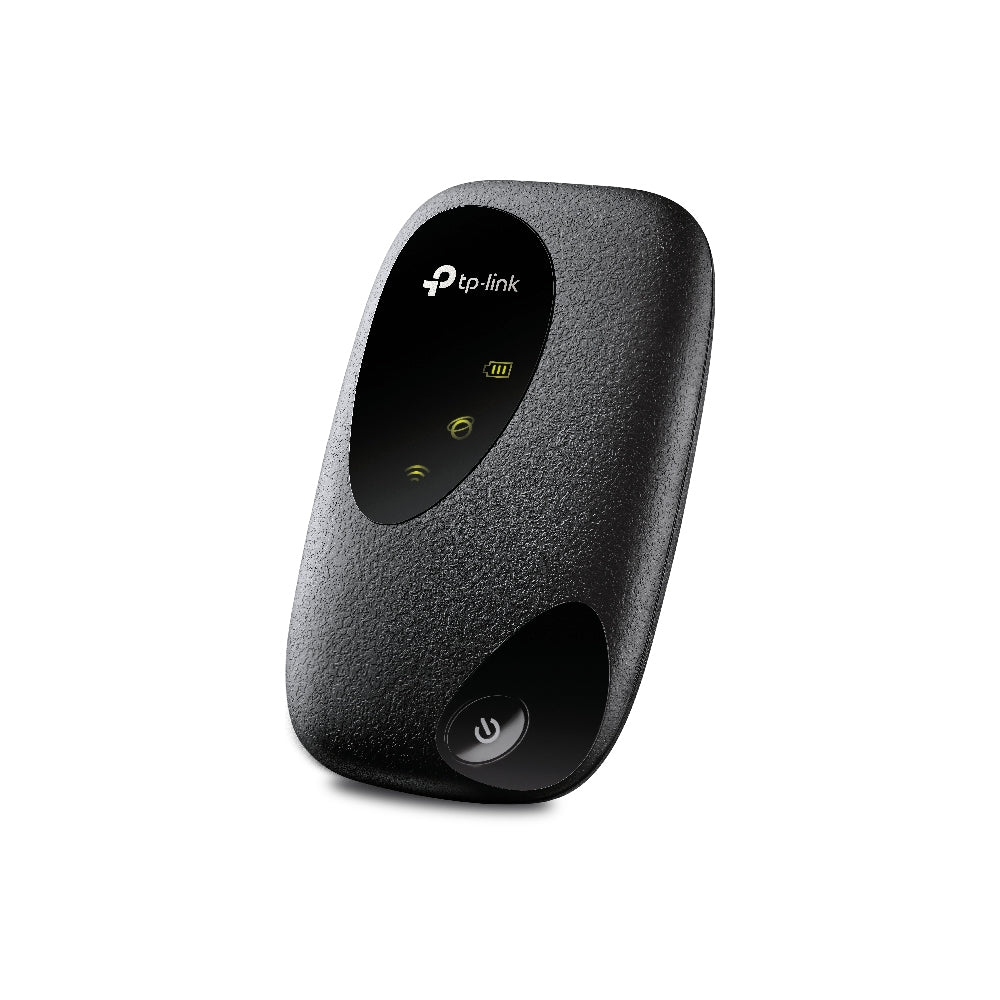

The TP-LINK M7000 is a 4G LTE Mobile Wi-Fi device that enables 3G/4G data sharing. Featuring an internal antenna and supporting Wi-Fi standards 802.11b/g/n, it provides a maximum Wi-Fi data rate of 150+50 Mbit/s.

• 3G and 4G data sharing capabilities
• Internal antenna for consistent connectivity
• One micro USB port
• Supports Wi-Fi standards 802.11b/g/n
• Reset button and LED indicators for easy management

Specifications

• Producer product family: 4G LTE Mobile Wi-Fi
• Producer product name: M7000
• Warranty: 24 month(s)

Antenna

• Antenna type: Internal

Features

• Mesh Support: No
• Mobile Broadband: 3G/4G data sharing
• MU-MiMO: No

Other features

• USB ports quantity: 1 x micro USB

Performance

• Wi-Fi data rate (max): 150+50 Mbit/s

Technical details

• Net weight: 0.162 kg

Wireless LAN features

• Wi-Fi standards: 802.11b/g/n

Additional specifications

• Device type: Cellular network router
• Product colour: Black
• Reset button: Yes
• LED indicators: Power, WLAN
• Ethernet LAN: No
• Ethernet LAN interface type: Not available
• Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• DHCP client: Yes
• DHCP server: Yes
• Wi-Fi: Yes
• WLAN data transfer rates supported: 300 Mbit/s
• Data network: 3G, 4G, LTE
• 3G standards: HSPA, HSPA+, UMTS
• 4G standard: LTE-FDD
• 3G bands supported: 850,900,2100 MHz
• 4G bands supported: 800,850,900,1800,2100,2300,2500,2600 MHz
• UMTS bands supported: 850,900,2100 MHz

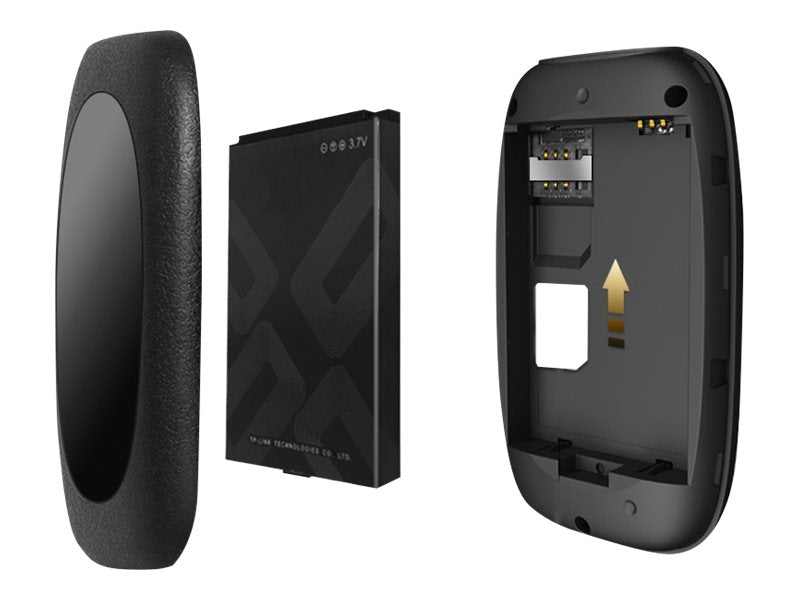

• SIM card type: MicroSIM
• USB port type: Micro-USB
• USB port: Yes
• Security algorithms: SSID, WPA-PSK, WPA2-PSK
• Certification: CE, RoHS
• Cables included: Micro-USB

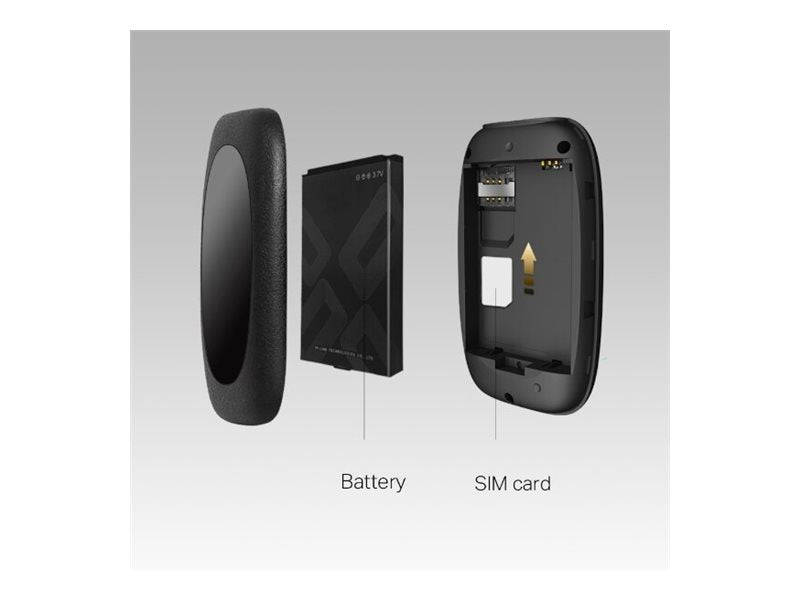

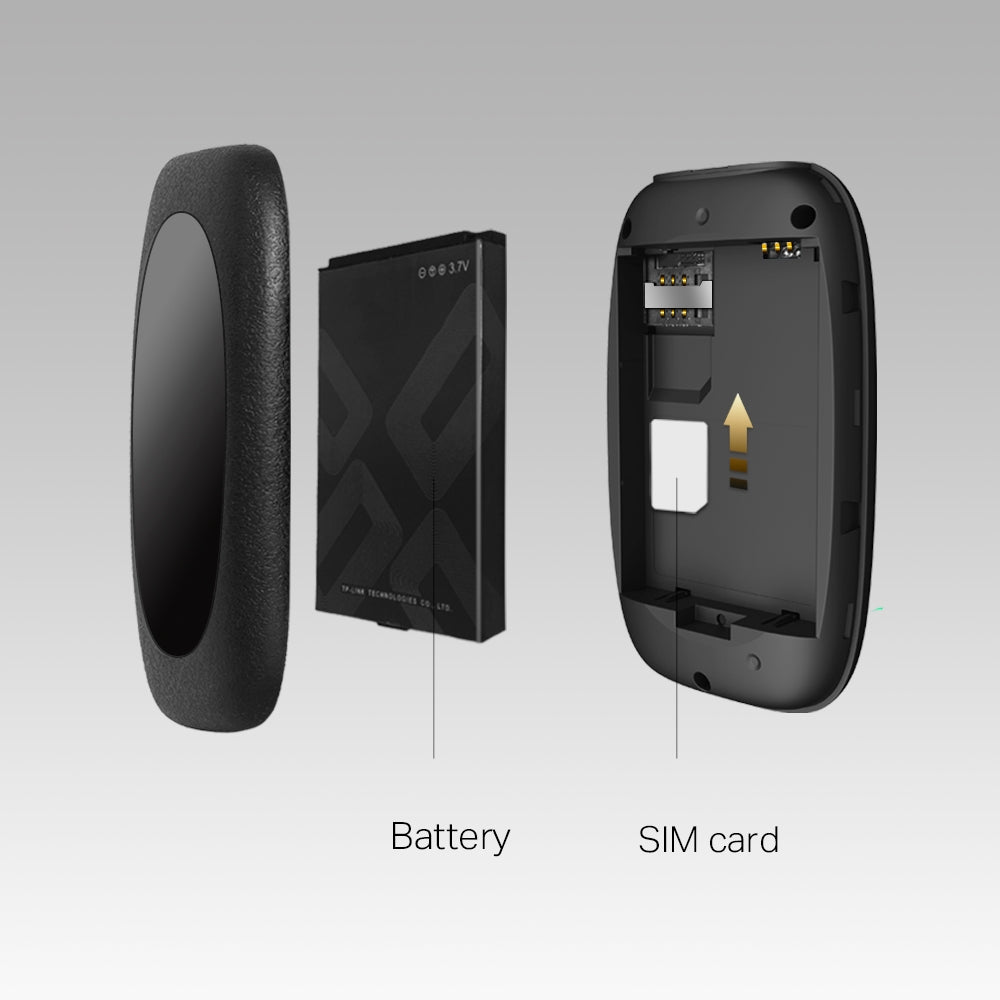

• Battery capacity: 2000 mAh
• Web-based management: Yes
• Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
• Mac operating systems supported: Yes
• Mobile operating systems supported: Android, Windows Phone, iOS
• Power source type: Battery
• Output voltage: 5 V
• Output current: 1 A
• Operating temperature (T-T): 0 - 35 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Width: 94 mm
• Depth: 56.6 mm
• Height: 19.7 mm
• Harmonized System (HS) code: 85176990
