Description

The TP-LINK ES220GMP is a managed switch designed for small to medium businesses needing reliable network connectivity. With 20 ports, including 16 PoE+ ports, it’s suitable for powering devices like IP cameras and access points while ensuring fast data transfer.

  • Offers 18 Gigabit Ethernet ports for high-speed connectivity to devices.
  • Includes advanced features like VLAN support for network segmentation.
  • Allows easy management through a web interface and cloud-based control.
  • Supports Quality of Service (QoS) for prioritizing network traffic.
  • Provides port mirroring and link aggregation capabilities for enhanced performance.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 3.00 kg
Additional specifications (67)
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Unified static configuration: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 18
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 18
  • SFP module slots quantity: 2
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Zero Touch Provisioning (ZTP): Yes
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Fast leave: Yes
  • VLAN support: Yes
  • Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 40 Gbit/s
  • Forwarding rate: 29.76 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 15000
  • Packet buffer memory: 4 MB
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Rack mounting: Yes
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Flash memory: 64 MB
  • Noise level: 41.5 dB
  • Firmware upgradeable: Yes
  • Mean time between failures (MTBF): 310550.7 h
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 289.7 W
  • Surge protection: Yes
  • Surge protection voltage: 6 kV
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: PoE+
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 250 W
  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 984.88 BTU/h
  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Description

The TP-LINK ES220GMP is a managed switch designed for small to medium businesses needing reliable network connectivity. With 20 ports, including 16 PoE+ ports, it’s suitable for powering devices like IP cameras and access points while ensuring fast data transfer.

  • Offers 18 Gigabit Ethernet ports for high-speed connectivity to devices.
  • Includes advanced features like VLAN support for network segmentation.
  • Allows easy management through a web interface and cloud-based control.
  • Supports Quality of Service (QoS) for prioritizing network traffic.
  • Provides port mirroring and link aggregation capabilities for enhanced performance.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 3.00 kg
Additional specifications (67)
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Unified static configuration: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 18
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 18
  • SFP module slots quantity: 2
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Zero Touch Provisioning (ZTP): Yes
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Fast leave: Yes
  • VLAN support: Yes
  • Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 40 Gbit/s
  • Forwarding rate: 29.76 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 15000
  • Packet buffer memory: 4 MB
  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Rack mounting: Yes
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Flash memory: 64 MB
  • Noise level: 41.5 dB
  • Firmware upgradeable: Yes
  • Mean time between failures (MTBF): 310550.7 h
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 289.7 W
  • Surge protection: Yes
  • Surge protection voltage: 6 kV
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: PoE+
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 250 W
  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 984.88 BTU/h
  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm
  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

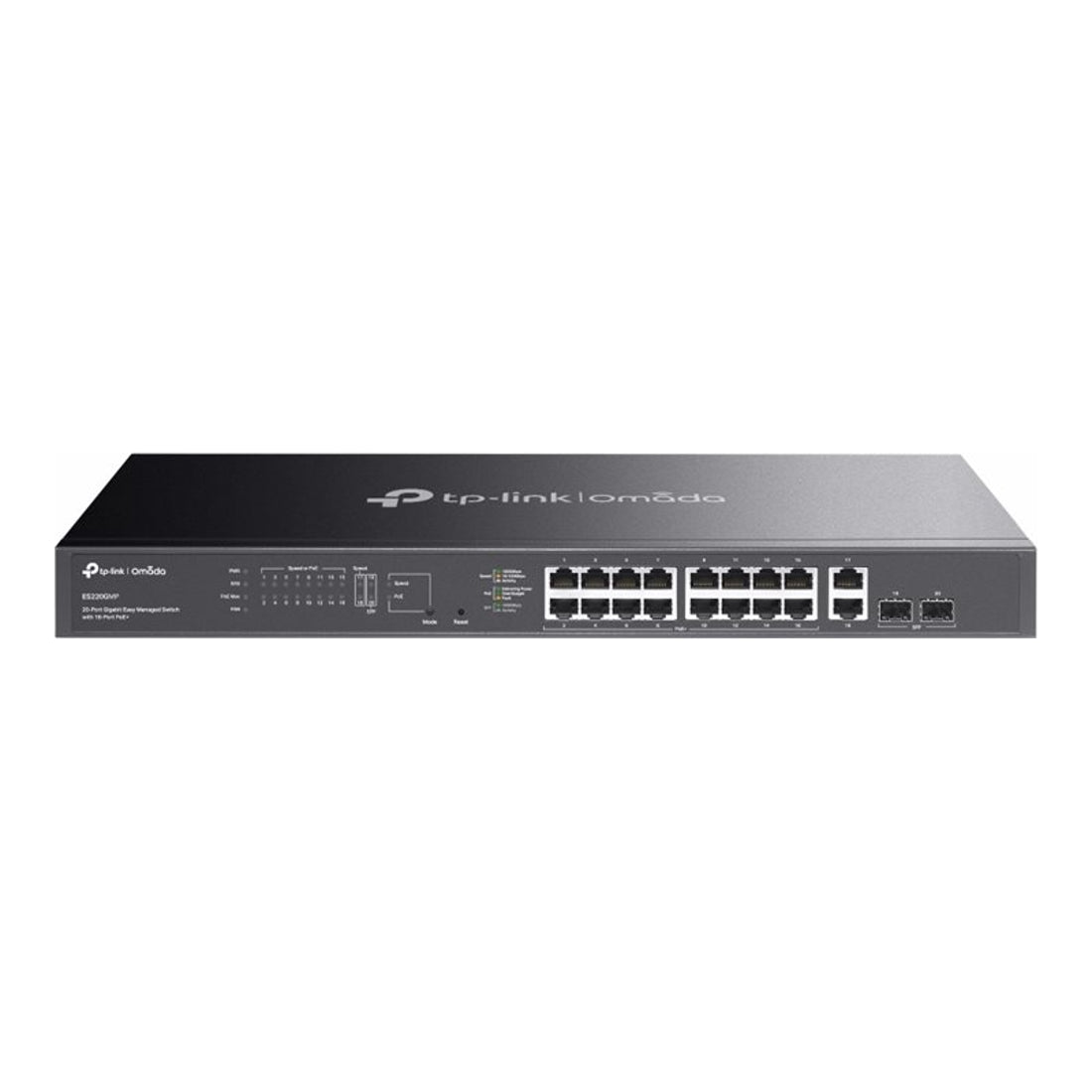

TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

€236,83
€236,83
Tax included.
