About

Description

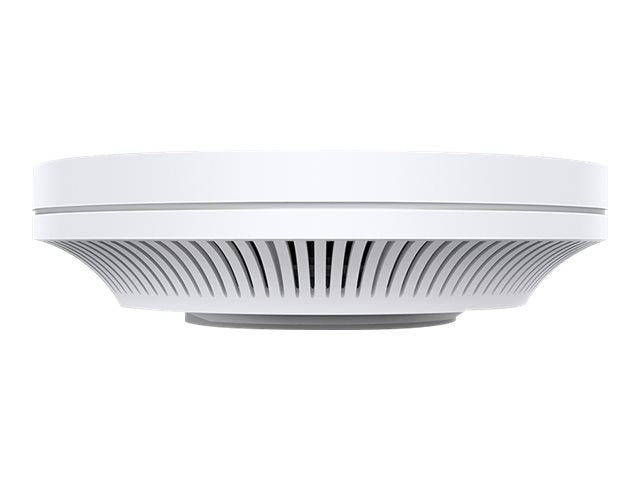

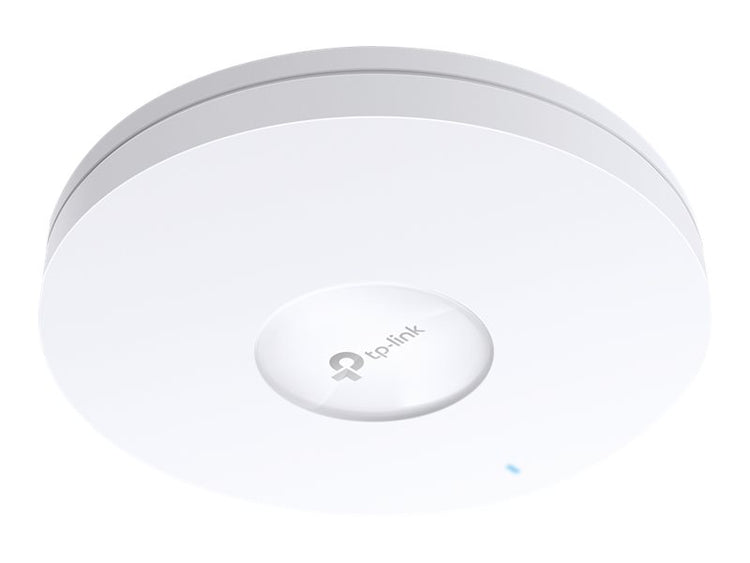

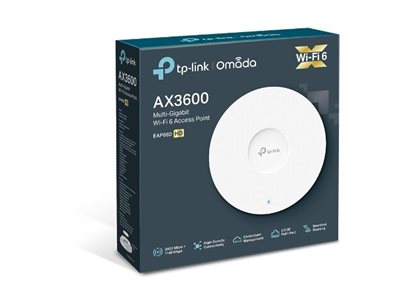

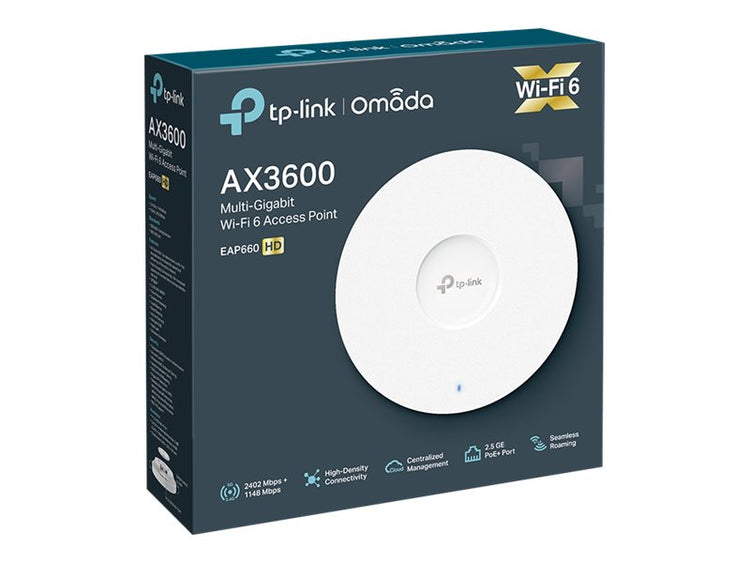

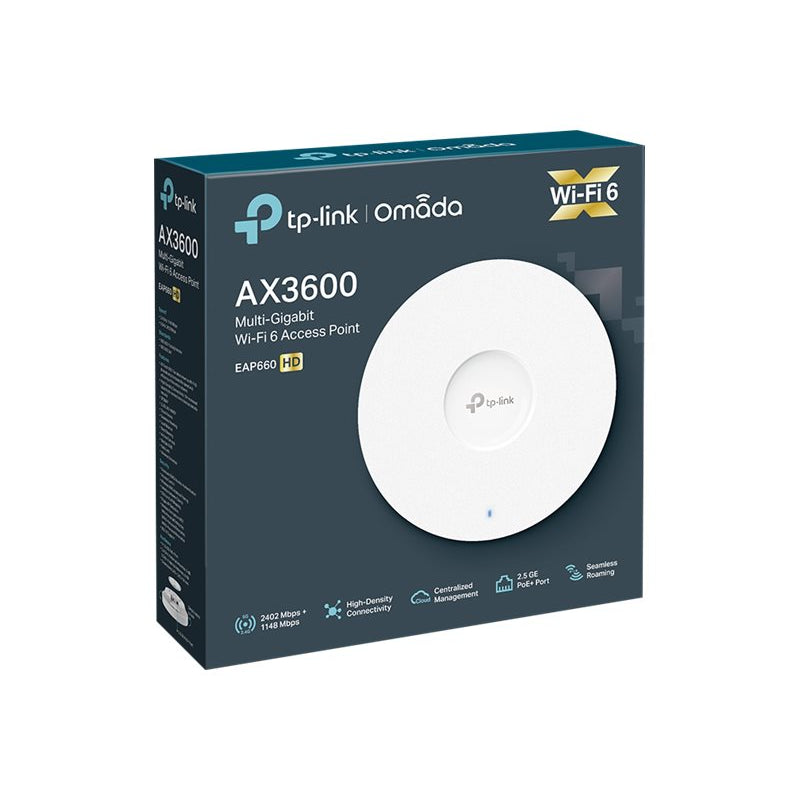

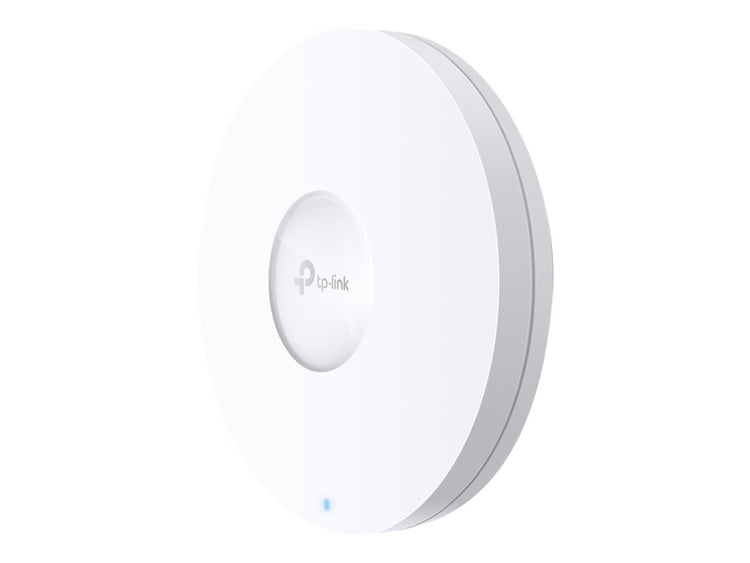

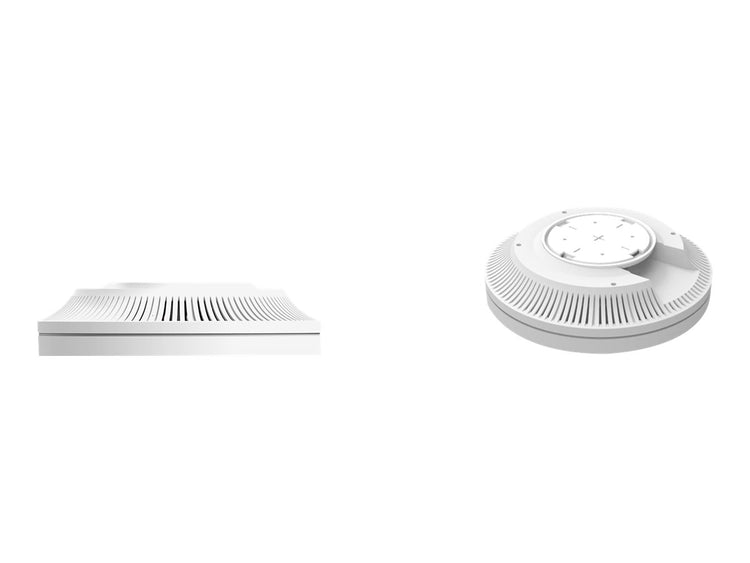

The TP-LINK EAP660 HD is a wireless dual-band ceiling mount access point designed for businesses and large spaces seeking enhanced Wi-Fi coverage. With advanced features and high data transfer rates, it is suitable for high-demand wireless environments.

  • Delivers high-speed Wi-Fi data rates of up to 2402 Mbit/s on 5 GHz and 1148 Mbit/s on 2.4 GHz, supporting multiple users simultaneously.
  • Equipped with MU-MIMO technology for efficient communication with multiple devices at once, improving overall network performance.
  • Features a single Ethernet LAN port capable of handling data rates of up to 2500 Mbit/s, facilitating a reliable wired connection.
  • Supports PoE, allowing for flexible placement without the need for additional power outlets.
  • Offers web-based management for easy setup and control of network settings, ensuring seamless operation.
Specifications (3)
  • Producer product family: Wireless Dual Band Ceiling Mount Access Point
  • Producer product name: EAP660 HD
  • Warranty: 60 month(s)
Antenna (1)
  • Antenna type: Internal
Features (1)
  • MU-MiMO: Yes
Other features (1)
  • Ethernet LAN (RJ-45) ports: 1
Performance (5)
  • Ethernet LAN data rates: 10/100/1000/2500 Mbit/s
  • Wi-Fi data rate (max): 2402+1148 Mbit/s
  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Web-based management: Yes
Ports & interfaces (1)
  • POE: PoE in
Wireless LAN features (2)
  • Wi-Fi band: 802.11ax
  • Wi-Fi standards: 802.11ax/ac/n/g/b/a
Networking (1)
  • Wi-Fi: Yes
Technical details (1)
  • Net weight: 1.2 kg
Additional specifications (37)
  • 6 GHz: No
  • Maximum data transfer rate: 2402 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
  • Maximum data transfer rate (5 GHz): 2402 Mbit/s
  • Frequency band: 2.4 - 5 GHz
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Automatic channel selection: Yes
  • Automatic channel scanning: Yes
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Wi-Fi roaming: Yes
  • VLAN support: Yes
  • Rate limiting: Yes
  • Wireless isolation: Yes
  • Airtime Fairness (ATF): Yes
  • Quality of Service (QoS) support: Yes
  • Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
  • MAC address filtering: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Remote Authentication Dial-In User Service (RADIUS): Yes
  • Syslog: Yes
  • DC-in jack: Yes
  • Power over Ethernet (PoE): Yes
  • Output voltage: 12 V
  • Output current: 2 A
  • Placement: Ceiling
  • Product colour: White
  • Width: 243 mm
  • Depth: 243 mm
  • Height: 64 mm
  • Mounting kit: Yes
  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 90%
  • Harmonized System (HS) code: 85176990
Description

The TP-LINK EAP660 HD is a wireless dual-band ceiling mount access point designed for businesses and large spaces seeking enhanced Wi-Fi coverage. With advanced features and high data transfer rates, it is suitable for high-demand wireless environments.

  • Delivers high-speed Wi-Fi data rates of up to 2402 Mbit/s on 5 GHz and 1148 Mbit/s on 2.4 GHz, supporting multiple users simultaneously.
  • Equipped with MU-MIMO technology for efficient communication with multiple devices at once, improving overall network performance.
  • Features a single Ethernet LAN port capable of handling data rates of up to 2500 Mbit/s, facilitating a reliable wired connection.
  • Supports PoE, allowing for flexible placement without the need for additional power outlets.
  • Offers web-based management for easy setup and control of network settings, ensuring seamless operation.
Specifications (3)
  • Producer product family: Wireless Dual Band Ceiling Mount Access Point
  • Producer product name: EAP660 HD
  • Warranty: 60 month(s)
Antenna (1)
  • Antenna type: Internal
Features (1)
  • MU-MiMO: Yes
Other features (1)
  • Ethernet LAN (RJ-45) ports: 1
Performance (5)
  • Ethernet LAN data rates: 10/100/1000/2500 Mbit/s
  • Wi-Fi data rate (max): 2402+1148 Mbit/s
  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Web-based management: Yes
Ports & interfaces (1)
  • POE: PoE in
Wireless LAN features (2)
  • Wi-Fi band: 802.11ax
  • Wi-Fi standards: 802.11ax/ac/n/g/b/a
Networking (1)
  • Wi-Fi: Yes
Technical details (1)
  • Net weight: 1.2 kg
Additional specifications (37)
  • 6 GHz: No
  • Maximum data transfer rate: 2402 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
  • Maximum data transfer rate (5 GHz): 2402 Mbit/s
  • Frequency band: 2.4 - 5 GHz
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Automatic channel selection: Yes
  • Automatic channel scanning: Yes
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Wi-Fi roaming: Yes
  • VLAN support: Yes
  • Rate limiting: Yes
  • Wireless isolation: Yes
  • Airtime Fairness (ATF): Yes
  • Quality of Service (QoS) support: Yes
  • Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
  • MAC address filtering: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Remote Authentication Dial-In User Service (RADIUS): Yes
  • Syslog: Yes
  • DC-in jack: Yes
  • Power over Ethernet (PoE): Yes
  • Output voltage: 12 V
  • Output current: 2 A
  • Placement: Ceiling
  • Product colour: White
  • Width: 243 mm
  • Depth: 243 mm
  • Height: 64 mm
  • Mounting kit: Yes
  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 90%
  • Harmonized System (HS) code: 85176990

TP-LINK EAP660 HD — Wireless Dual Band Ceiling Mount Access Point, 802.11ax, 2402+1148 Mbit/s, 10/100/1000/2500 Mbit/s

$284.00
