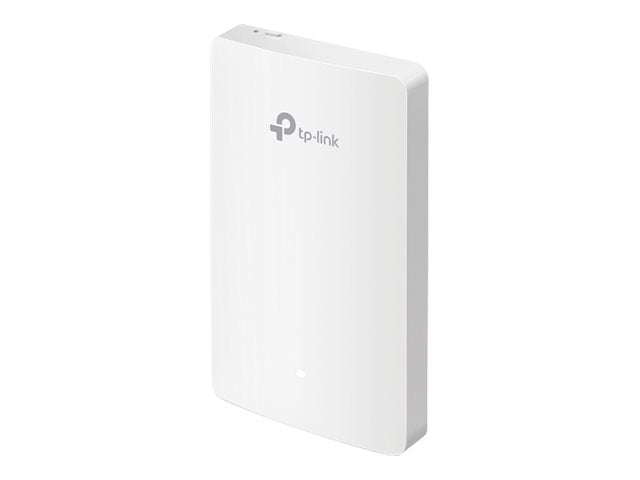

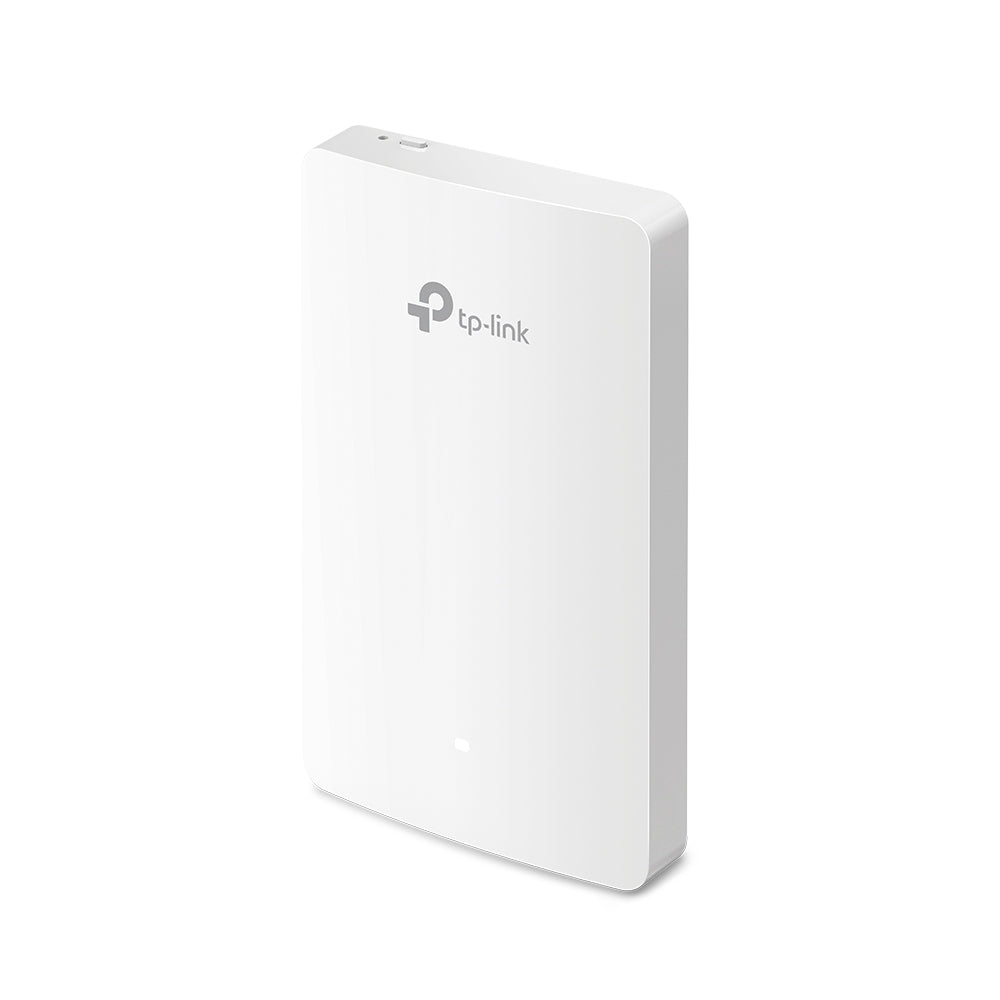

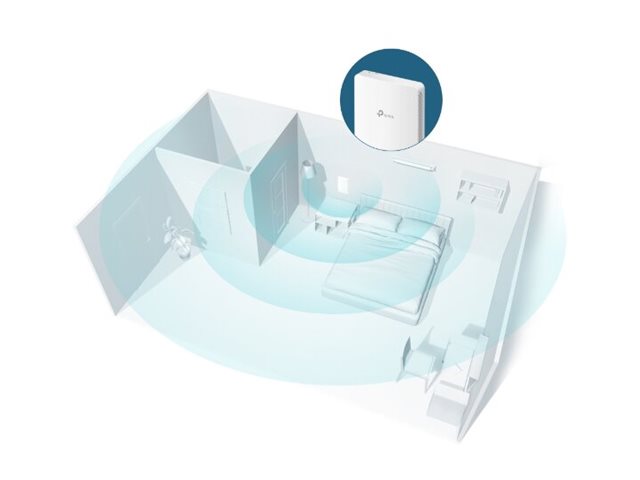

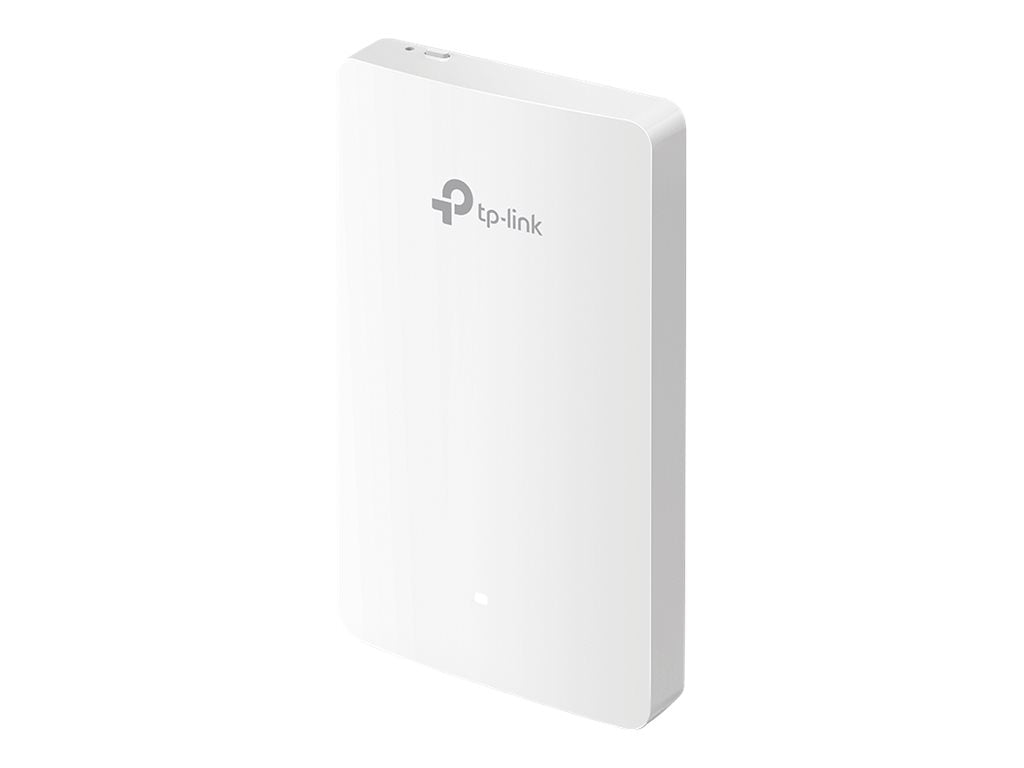

The TP-LINK Omada EAP235-Wall is a wall-mounted wireless access point suited for small to medium-sized businesses or homes seeking robust Wi-Fi coverage. Utilizing MU-MIMO technology, it supports multiple devices simultaneously for efficient internet access.

  • Dual-band support at 2.4 GHz and 5 GHz for flexible connectivity options.
  • Offers maximum Wi-Fi data rates of up to 1167 Mbit/s, ensuring fast internet performance.

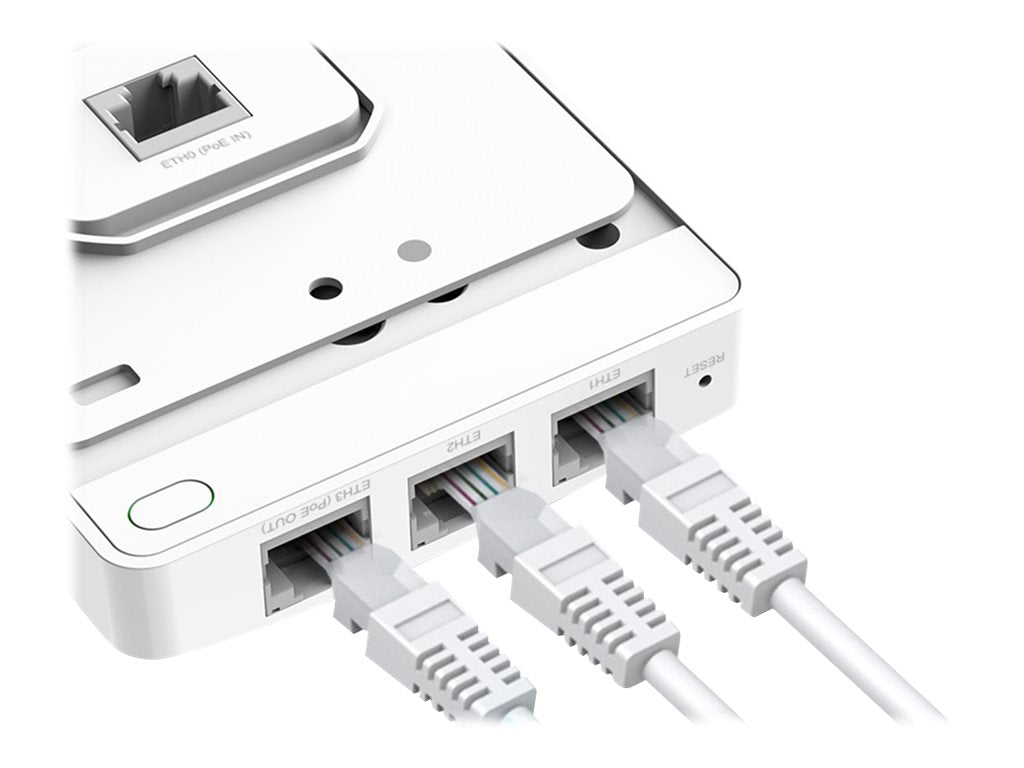

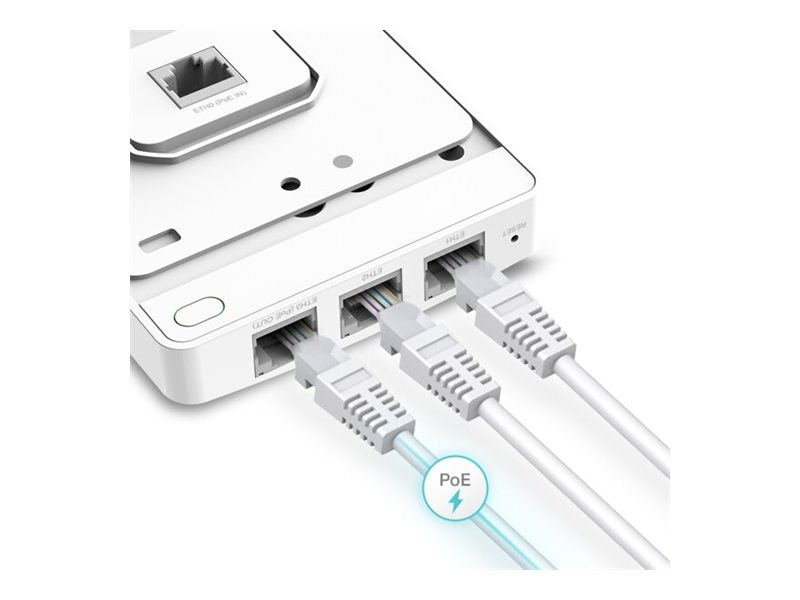

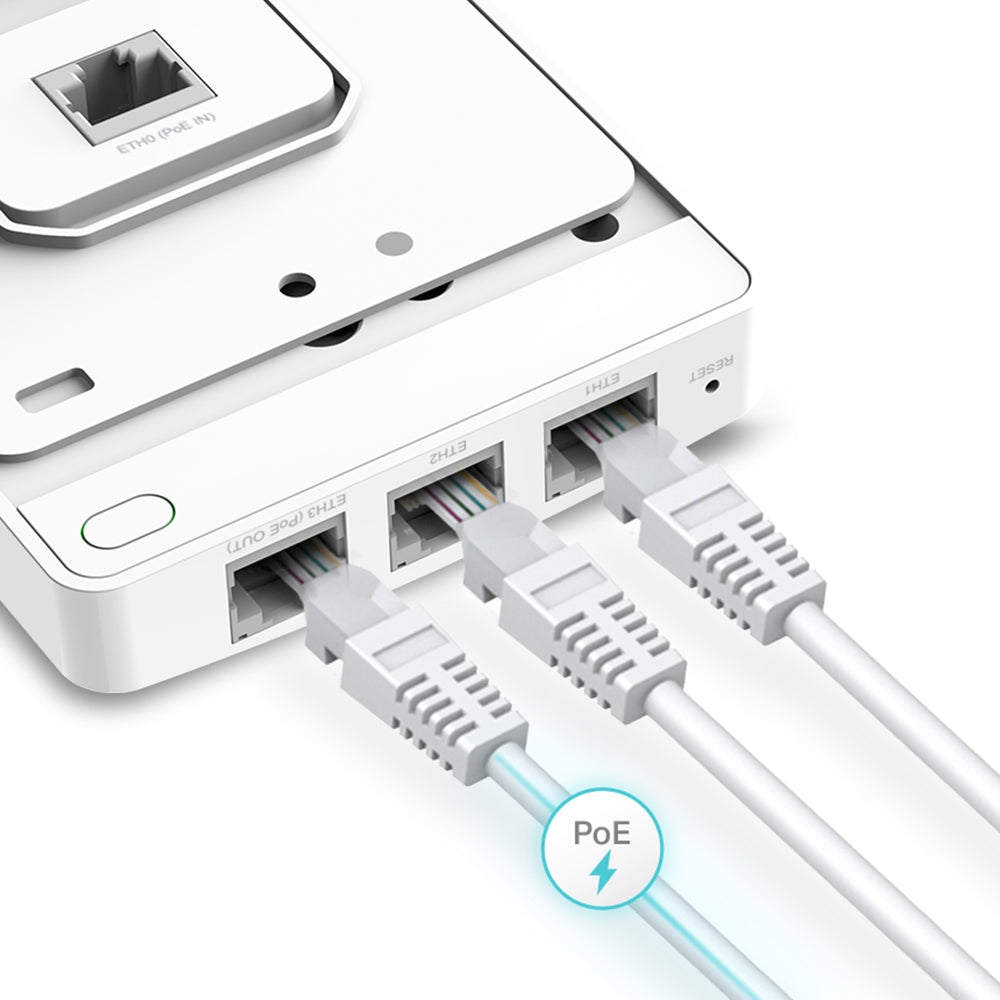

  • Includes four Gigabit Ethernet ports for high-speed wired connections, with one port featuring PoE pass-through functionality for added convenience.
  • Automatic channel selection and scanning help maintain optimal performance and reduce interference.
  • Wall plate design allows for easy installation, integrating seamlessly into your environment.
Specifications (3)
  • Producer product family: Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • Producer product name: EAP235-Wall
  • Warranty: 60 month(s)
Features (1)
  • MU-MiMO: Yes
Performance (3)
  • Ethernet LAN data rates: 10/100/1000 Mbit/s
  • Frequency band: 2.4 GHz/5 GHz
  • Wi-Fi data rate (max): 867+300 Mbit/s
Ports & interfaces (2)
  • Ethernet LAN (RJ-45) ports: 4
  • POE: PoE in
Wireless LAN features (1)
  • Wi-Fi band: 802.11ac
Design (1)
  • Mounting type: Wall Plate Mounting
Networking (1)
  • Wi-Fi: Yes
Power over Ethernet (PoE) (2)
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 1
Technical details (2)
  • Net weight: 0.31 kg
  • Other features: Wi-Fi Standard: 802.11a/b/g/n/ac; FCC, RoHS Certifications; 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices
Additional specifications (57)
  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate: 1167 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 300 Mbit/s
  • Maximum data transfer rate (5 GHz): 867 Mbit/s
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • Cabling technology: 10/100/1000Base-T(X)
  • Automatic channel selection: Yes
  • Automatic channel scanning: Yes
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, VLAN mapping
  • Rate limiting: Yes
  • Wireless isolation: Yes
  • Band steering: Yes
  • Quality of Service (QoS) support: Yes
  • BeamForming: Yes
  • Transmitting power (CE): 20 - 23 dBm
  • Transmitting power (FCC): 21 dBm
  • Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
  • MAC address filtering: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Number of SSID supported: 16
  • Remote Authentication Dial-In User Service (RADIUS): Yes
  • Access Control List (ACL): Yes
  • Universal Plug and Play (UPnP): Yes
  • Web-based management: Yes
  • Syslog: Yes
  • WAN connection: Ethernet (RJ-45)
  • Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
  • Power consumption (typical): 24.4 W
  • Placement: Wall
  • Product colour: White
  • Cable lock slot: Yes
  • Reset button: Yes
  • LED indicators: LAN, Power, Status, WAN, WLAN
  • Antenna type: Internal
  • Antenna features: Integrated antenna
  • Antennas quantity: 2
  • Antenna gain level (max): 4 dBi
  • Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Width: 143 mm
  • Depth: 86 mm
  • Height: 20 mm
  • Quantity per pack: 1 pc(s)
  • Mounting kit: Yes
  • Quick start guide: Yes
  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 90%
  • Sustainability compliance: Yes
  • Harmonized System (HS) code: 85176990

TP-LINK EAP235-Wall — Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, 802.11ac, 2.4 GHz/5 GHz, 867+300 Mbit/s

€83,07
€83,07
VAT included.
