Description

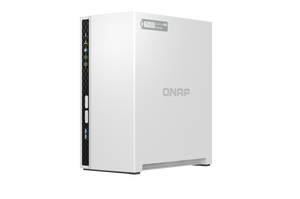

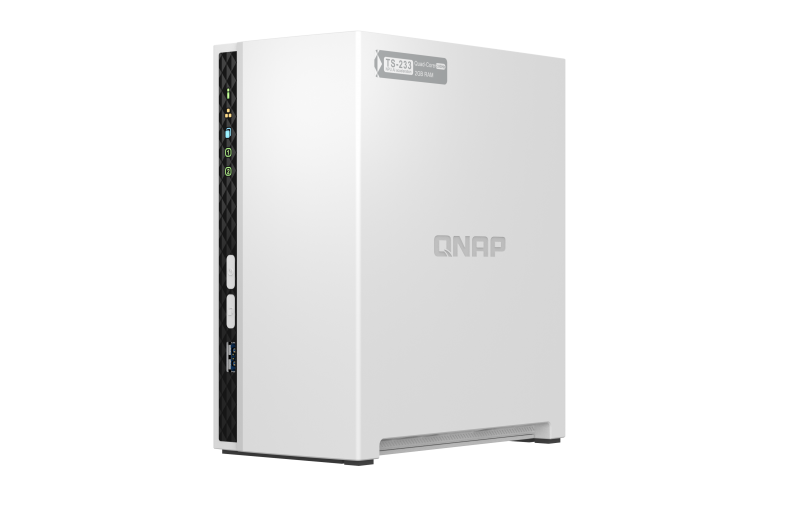

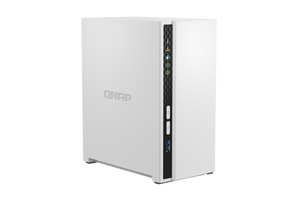

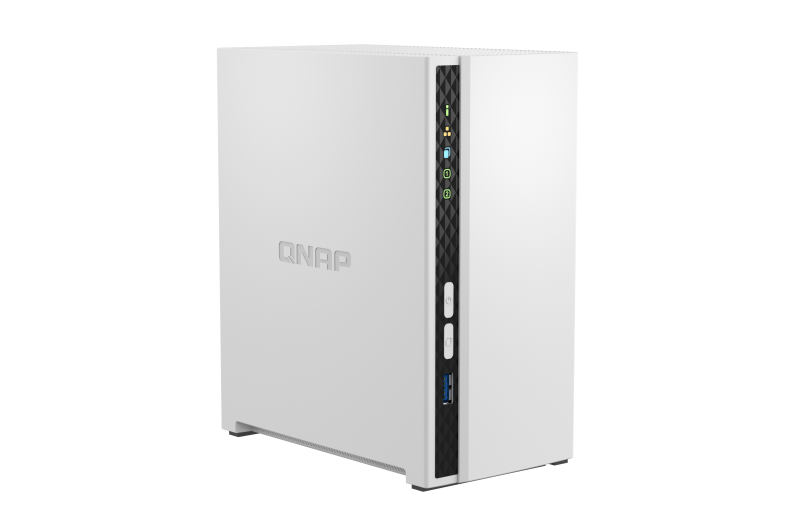

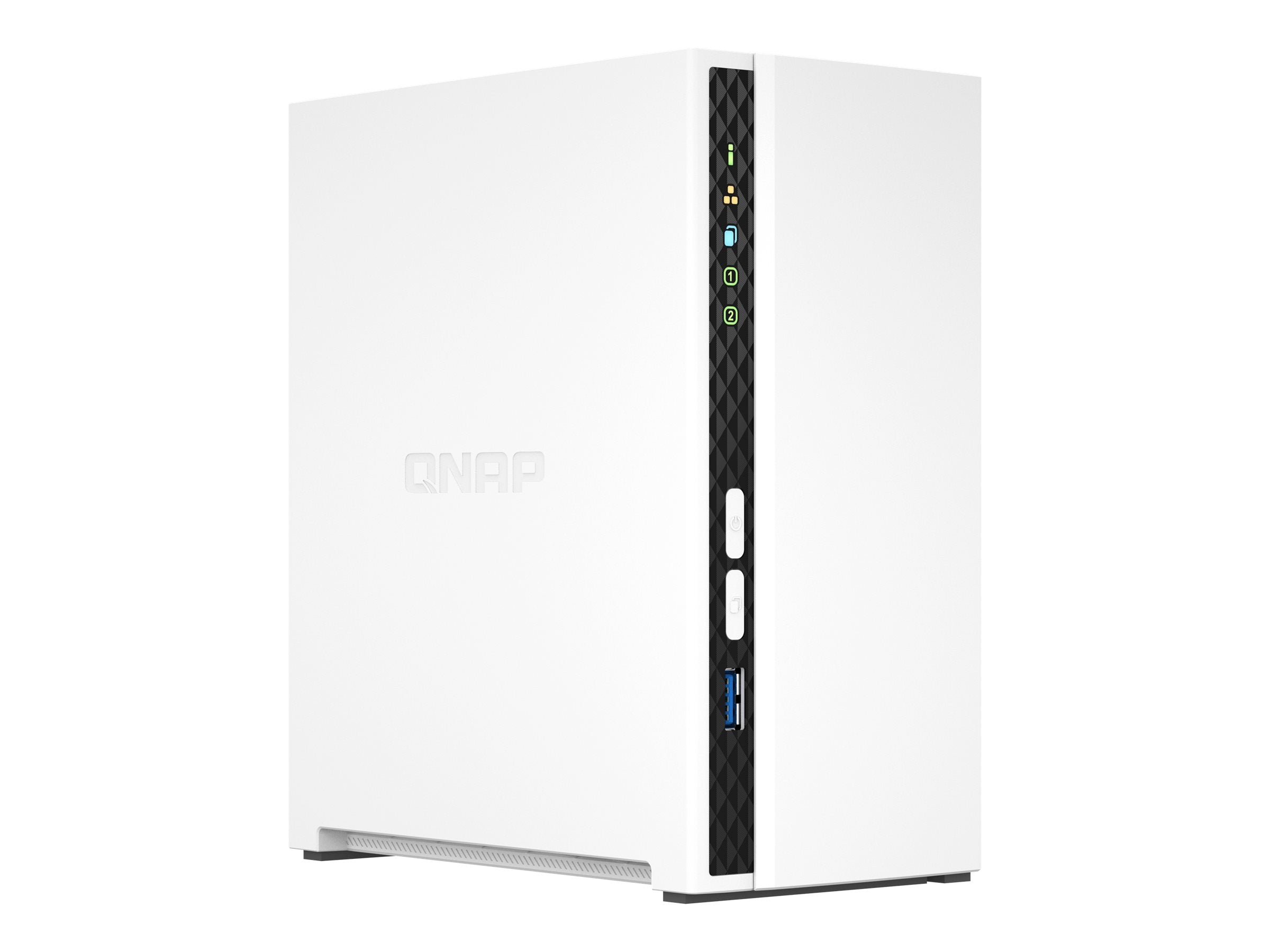

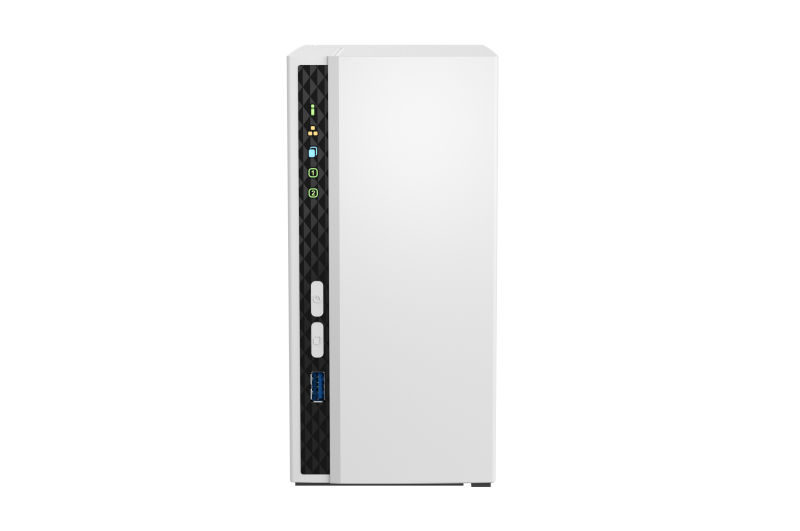

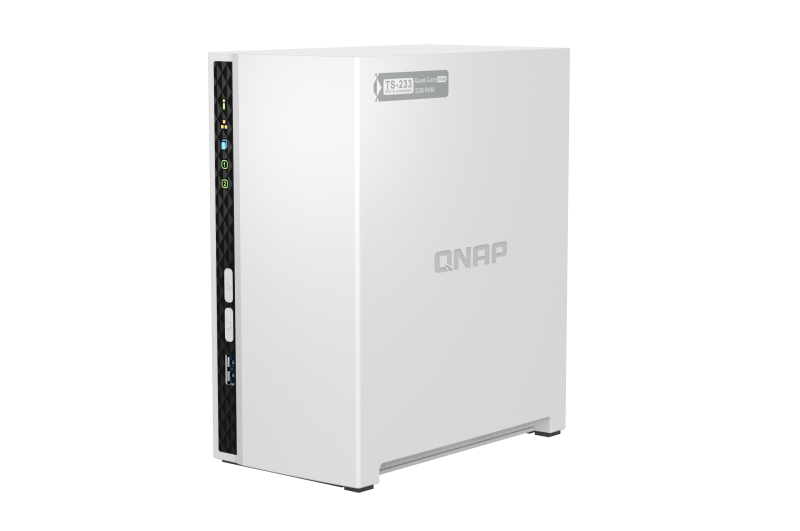

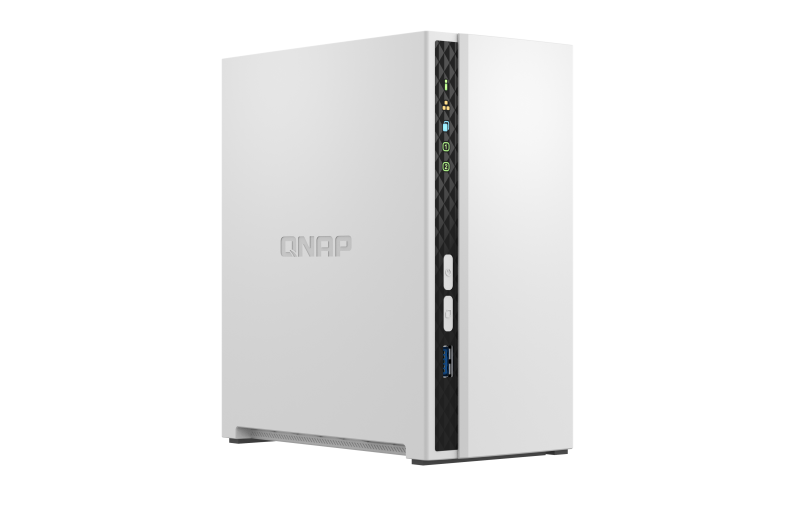

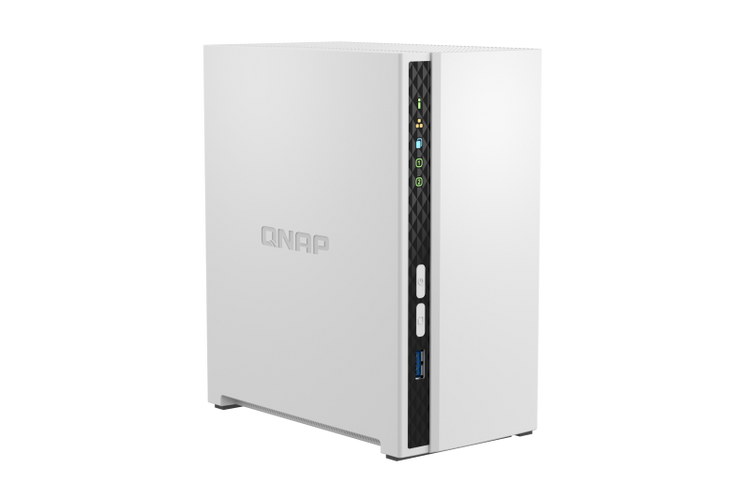

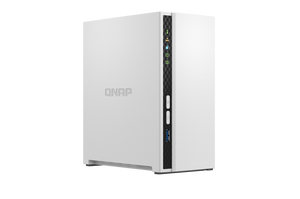

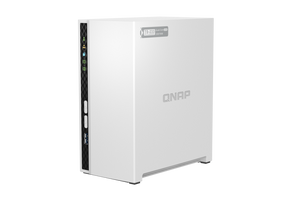

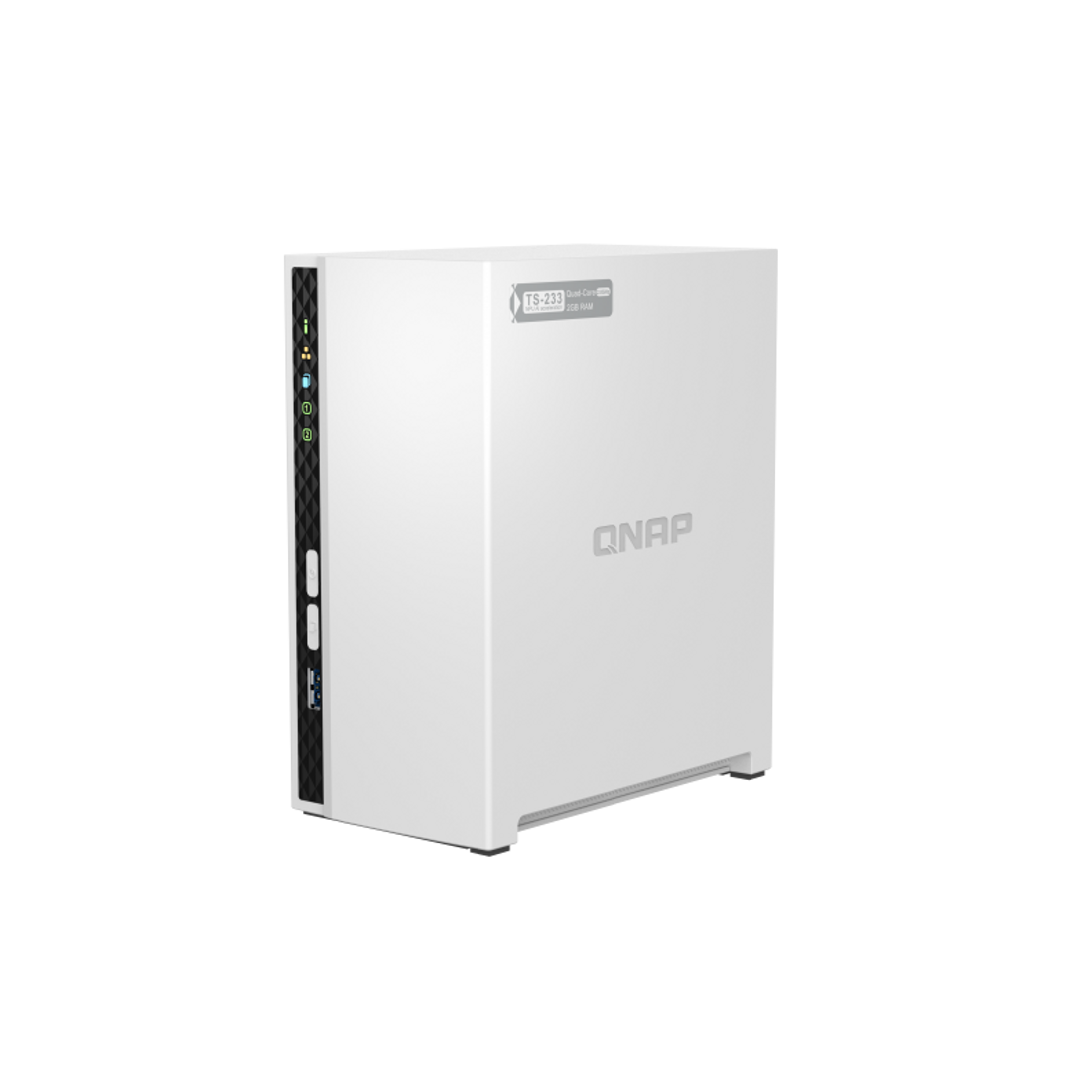

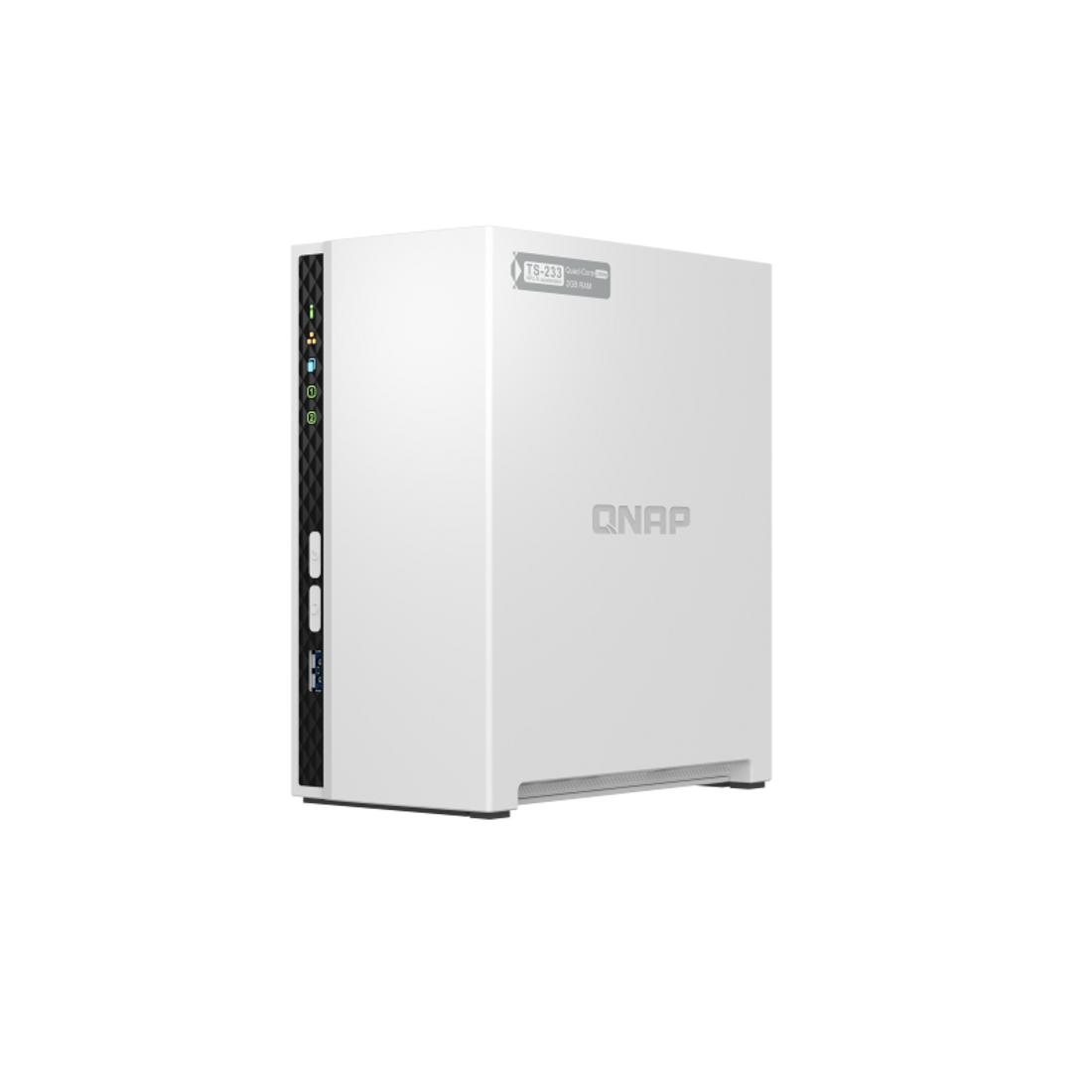

The QNAP TS-233 is a 2-bay network storage solution ideal for home users and small businesses looking for a reliable way to manage their data. With a robust ARM Cortex-A55 processor and support for RAID configurations, it offers flexible storage options suitable for various needs.

  • Supports up to 2 SATA drives, providing ample storage for your files.
  • Includes RAID support for data redundancy and performance enhancements.
  • Equipped with 2 GB of RAM for efficient multitasking and operation.
  • Features hot-swap drive bays, allowing for easy replacement or addition of drives without downtime.
  • Offers multiple USB ports and a Gigabit Ethernet connection for versatile connectivity options.
Specifications (3)
  • Producer product family: 2-Bay ARM
  • Producer product name: TS-233
  • Warranty: 36 month(s)
Memory (2)
  • Internal memory type: N/A
  • Internal RAM: 2 GB
Other features (2)
  • Ethernet LAN (RJ-45) ports: 1
  • Drive bays: 2
Processor (3)
  • Processor family: ARM 4-core
  • Processor frequency: 2.0 GHz
  • Processor model: Cortex-A55
Storage (1)
  • Number of storage drives supported: Up to 2 SATA 6Gb/s, 3Gb/s
Design (2)
  • Chassis type: Tower
  • Number of 3.5" bays: 2
Ports & interfaces (1)
  • Interface: 2 x USB 2.0, 1 x USB 3.2 Type-A; 1 x Gigabit Ethernet
Technical details (2)
  • Net weight: 1.695 kg
  • Other features: Fan 1 x 80mm, 12VDC; Power Supply Unit 65W Adapter, AC 100-240V
Additional specifications (88)
  • Storage drive interface: Serial ATA II, Serial ATA III
  • Supported storage drive interfaces: Serial ATA II, Serial ATA III
  • Storage drive sizes supported: 2.5,3.5"
  • System drive sizes supported: 2.5,3.5"
  • RAID support: Yes
  • RAID levels: 0, 1, JBOD
  • Online RAID migration: Yes
  • Online RAID expansion: Yes
  • RAID rebuild: Yes
  • Hot-swap drive bays: Yes
  • Supported file systems: FAT32, exFAT, HFS+, NTFS, ext3, ext4
  • Storage drives installed: No
  • Total installed storage capacity: 0 TB
  • Installed storage drive type: No
  • Supported storage drive types: HDD & SSD
  • Bad block scan: Yes
  • Disk roaming: Yes
  • Processor cores: 4
  • Number of processors supported: 1
  • Internal memory: 2 GB
  • Maximum RAM supported: 2 GB
  • Flash memory: 4000 MB
  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • DHCP server: Yes
  • Jumbo frames support: Yes
  • iSCSI support: Yes
  • Wake-on-LAN ready: Yes
  • Supported network protocols: IPv4, IPv6
  • Dynamic DNS (DDNS): Yes
  • USB port: Yes
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Cooling type: Active
  • Product colour: White
  • Number of fans: 1 fan(s)
  • Fan diameter: 8 cm
  • LED indicators: HDD, LAN, Status, USB
  • Type: NAS
  • Device class: Home & Home Office
  • Backup function: Yes
  • Backup features: Cloud, USB drive, iSCSI LUN
  • Buzzer: Yes
  • Multilingual support: Yes
  • Web-based management: Yes
  • Remote administration: PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt
  • Security algorithms: 256-bit AES, 802.1x RADIUS, FIPS 140-2, HTTPS, SSH, TTLS
  • Access Control List (ACL): Yes
  • Reset button: Yes
  • On/off switch: Yes
  • Built-in FTP server: Yes
  • Browser supported: Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
  • System log: Yes
  • Hot spare: Yes
  • Disk scan: Yes
  • S.M.A.R.T. support: Yes
  • USB copy function: Yes
  • Operating system installed: QNAP QTS
  • Operating system version: 5.0.0
  • Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
  • Power supply location: External
  • Power supply unit (PSU) capacity: 65 W
  • Number of power supply units: 1
  • Power consumption (typical): 10.81 W
  • Power consumption (sleep): 3.43 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Fan voltage: 12 V
  • Width: 90 mm
  • Depth: 156 mm
  • Height: 188 mm
  • Weight: 1.11 kg
  • Package width: 222 mm
  • Package depth: 100 mm
  • Package height: 265 mm
  • Package weight: 1.95 kg
  • External power adapter: Yes
  • Cables included: AC, LAN (RJ-45)
  • Power cables quantity: 1
  • Package type: Box
  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage temperature (T-T): -20 - 70 °C
  • Harmonized System (HS) code: 84714100
  • Warranty period: 2 year(s)
Description

The QNAP TS-233 is a 2-bay network storage solution ideal for home users and small businesses looking for a reliable way to manage their data. With a robust ARM Cortex-A55 processor and support for RAID configurations, it offers flexible storage options suitable for various needs.

  • Supports up to 2 SATA drives, providing ample storage for your files.
  • Includes RAID support for data redundancy and performance enhancements.
  • Equipped with 2 GB of RAM for efficient multitasking and operation.
  • Features hot-swap drive bays, allowing for easy replacement or addition of drives without downtime.
  • Offers multiple USB ports and a Gigabit Ethernet connection for versatile connectivity options.
Specifications (3)
  • Producer product family: 2-Bay ARM
  • Producer product name: TS-233
  • Warranty: 36 month(s)
Memory (2)
  • Internal memory type: N/A
  • Internal RAM: 2 GB
Other features (2)
  • Ethernet LAN (RJ-45) ports: 1
  • Drive bays: 2
Processor (3)
  • Processor family: ARM 4-core
  • Processor frequency: 2.0 GHz
  • Processor model: Cortex-A55
Storage (1)
  • Number of storage drives supported: Up to 2 SATA 6Gb/s, 3Gb/s
Design (2)
  • Chassis type: Tower
  • Number of 3.5" bays: 2
Ports & interfaces (1)
  • Interface: 2 x USB 2.0, 1 x USB 3.2 Type-A; 1 x Gigabit Ethernet
Technical details (2)
  • Net weight: 1.695 kg
  • Other features: Fan 1 x 80mm, 12VDC; Power Supply Unit 65W Adapter, AC 100-240V
Additional specifications (88)
  • Storage drive interface: Serial ATA II, Serial ATA III
  • Supported storage drive interfaces: Serial ATA II, Serial ATA III
  • Storage drive sizes supported: 2.5,3.5"
  • System drive sizes supported: 2.5,3.5"
  • RAID support: Yes
  • RAID levels: 0, 1, JBOD
  • Online RAID migration: Yes
  • Online RAID expansion: Yes
  • RAID rebuild: Yes
  • Hot-swap drive bays: Yes
  • Supported file systems: FAT32, exFAT, HFS+, NTFS, ext3, ext4
  • Storage drives installed: No
  • Total installed storage capacity: 0 TB
  • Installed storage drive type: No
  • Supported storage drive types: HDD & SSD
  • Bad block scan: Yes
  • Disk roaming: Yes
  • Processor cores: 4
  • Number of processors supported: 1
  • Internal memory: 2 GB
  • Maximum RAM supported: 2 GB
  • Flash memory: 4000 MB
  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • DHCP server: Yes
  • Jumbo frames support: Yes
  • iSCSI support: Yes
  • Wake-on-LAN ready: Yes
  • Supported network protocols: IPv4, IPv6
  • Dynamic DNS (DDNS): Yes
  • USB port: Yes
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Cooling type: Active
  • Product colour: White
  • Number of fans: 1 fan(s)
  • Fan diameter: 8 cm
  • LED indicators: HDD, LAN, Status, USB
  • Type: NAS
  • Device class: Home & Home Office
  • Backup function: Yes
  • Backup features: Cloud, USB drive, iSCSI LUN
  • Buzzer: Yes
  • Multilingual support: Yes
  • Web-based management: Yes
  • Remote administration: PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt
  • Security algorithms: 256-bit AES, 802.1x RADIUS, FIPS 140-2, HTTPS, SSH, TTLS
  • Access Control List (ACL): Yes
  • Reset button: Yes
  • On/off switch: Yes
  • Built-in FTP server: Yes
  • Browser supported: Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
  • System log: Yes
  • Hot spare: Yes
  • Disk scan: Yes
  • S.M.A.R.T. support: Yes
  • USB copy function: Yes
  • Operating system installed: QNAP QTS
  • Operating system version: 5.0.0
  • Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
  • Linux operating systems supported: Yes
  • Mac operating systems supported: Yes
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
  • Power supply location: External
  • Power supply unit (PSU) capacity: 65 W
  • Number of power supply units: 1
  • Power consumption (typical): 10.81 W
  • Power consumption (sleep): 3.43 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Fan voltage: 12 V
  • Width: 90 mm
  • Depth: 156 mm
  • Height: 188 mm
  • Weight: 1.11 kg
  • Package width: 222 mm
  • Package depth: 100 mm
  • Package height: 265 mm
  • Package weight: 1.95 kg
  • External power adapter: Yes
  • Cables included: AC, LAN (RJ-45)
  • Power cables quantity: 1
  • Package type: Box
  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage temperature (T-T): -20 - 70 °C
  • Harmonized System (HS) code: 84714100
  • Warranty period: 2 year(s)

QNAP TS-233 — 2-Bay ARM, Up to 2 SATA 6Gb/s, 3Gb/s, ARM 4-core, Cortex-A55

€295,11
€295,11
Tax included.
