New Genuine Bosch 1600A004L1 Armature assembly

Armature assembly

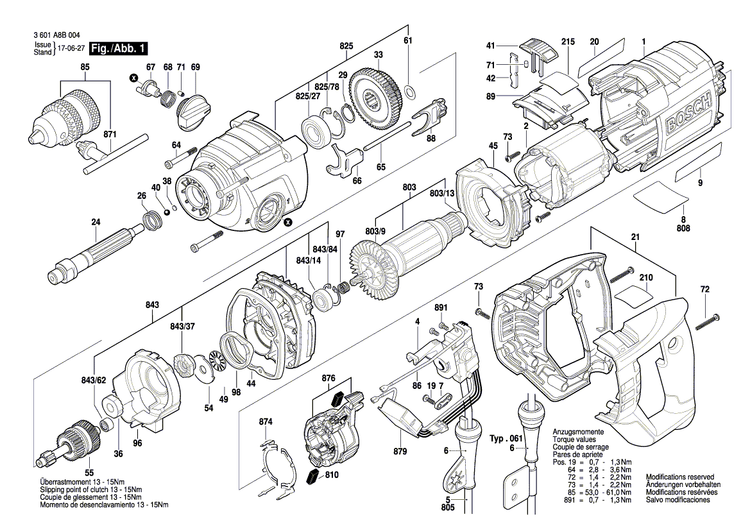

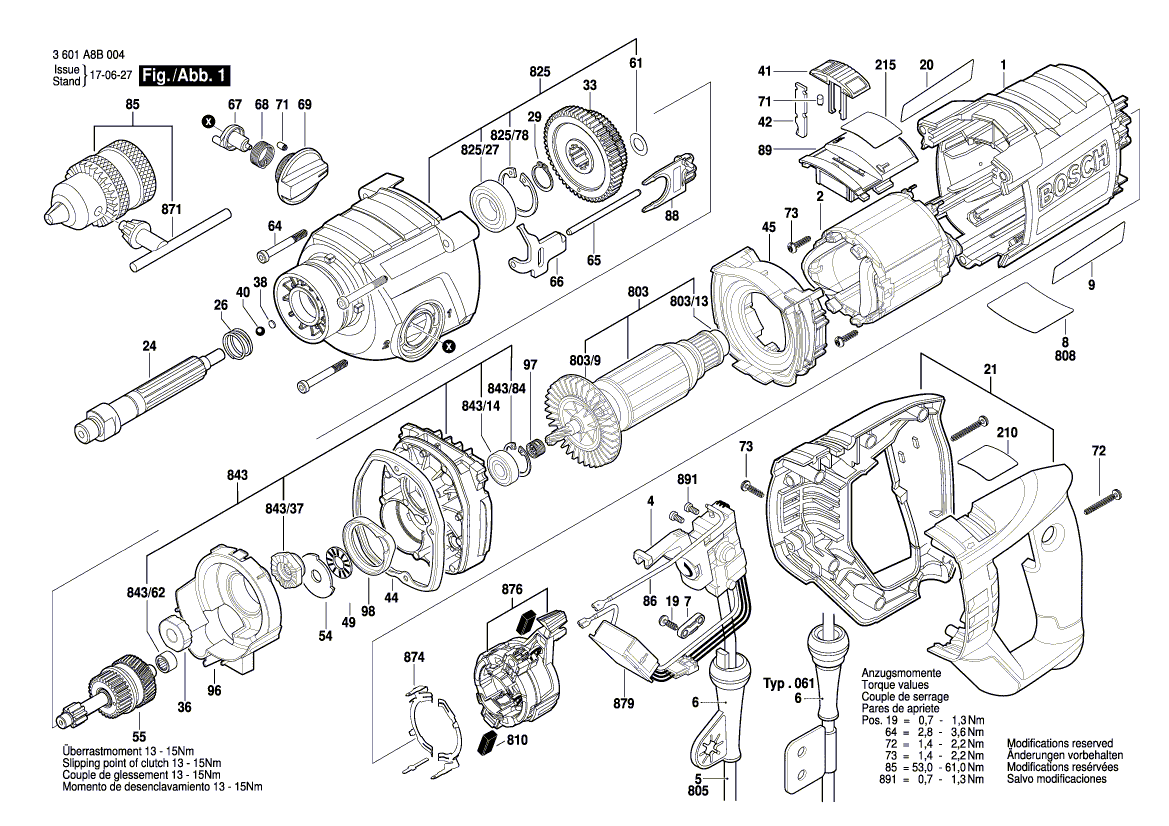

The spare part is represented in this diagram at position number 803

This part is compatible with many tools including the models listed below:

3601A8B000 GSB 162-2 RE Percussion Drill 230 V / EU
3601A8B001 GSB 162-2 RE Percussion Drill 230 V / EU
3601A8B002 GSB 162-2 RE Percussion Drill 230 V / EU
3601A8B003 GSB 162-2 RE Percussion Drill 230 V / EU
3601A8B004 GSB 162-2 Percussion Drill 230 V / EU
3601A8B030 GSB 162-2 RE Percussion Drill 230 V / CH
3601A8B031 GSB 162-2 RE Percussion Drill 230 V / CH
3601A8B032 GSB 162-2 RE Percussion Drill 230 V / CH
3601A8B033 GSB 162-2 RE Percussion Drill 230 V / CH
3601A8B034 GSB 162-2 Percussion Drill 230 V / CH
3601A8B040 GSB 162-2 RE Percussion Drill 240 V / AUS
3601A8B041 GSB 162-2 RE Percussion Drill 240 V / AUS
3601A8B042 GSB 162-2 RE Percussion Drill 240 V / AUS
3601A8B043 GSB 162-2 RE Percussion Drill 240 V / AUS
3601A8B044 GSB 162-2 Percussion Drill 240 V / AUS
3601A8B060 GSB 162-2 RE Percussion Drill 110 V / GB
3601A8B070 GSB 162-2 RE Percussion Drill 230 V / GB
3601A8B071 GSB 162-2 RE Percussion Drill 230 V / GB
3601A8B072 GSB 162-2 RE Percussion Drill 230 V / GB
3601A8B073 GSB 162-2 RE Percussion Drill 230 V / GB
3601A8B074 GSB 162-2 Percussion Drill 230 V / GB
3601A8B090 GSB 162-2 RE Percussion Drill 230 V / SMA
3601A8B091 GSB 162-2 RE Percussion Drill 230 V / SMA
3601A8B092 GSB 162-2 RE Percussion Drill 230 V / SMA
3601A8B093 GSB 162-2 RE Percussion Drill 230 V / SMA
3601A8B094 GSB 162-2 Percussion Drill 230 V / EU
