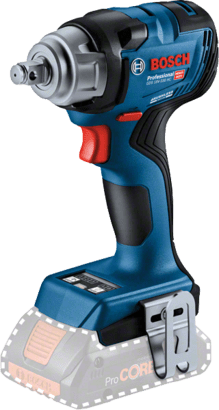

New Genuine Bosch 06019L5000 GDS 18V-330 HC Professional Cordless Impact Wrench

Cordless Impact Wrench

Technical data

The most important data

Torque adjustment range, min./max., 1st level 0/200 Nm

Torque adjustment range, min./max., 2nd level 0/260 Nm

Torque adjustment range, min./max., 3rd level 0/330 Nm

No-load speed* 0-2,800 rpm

No-load speed (1st level)* 0-1,200 rpm

No-load speed (2nd level)* 0-1,900 rpm

No-load speed (3rd level)* 0-2,800 rpm

Weight excl. battery* 1.2 kg

Torque, max.* 330 Nm

Impact rate 2,800 bpm

Impact rate (1st level)* 0-2,400 bpm

Impact rate (2nd level)* 0-3,100 bpm

Impact rate (3rd level)* 0-3,800 bpm

Battery voltage 18.0 V

Tool holder 1/2" square friction ring and thru hole

Breakaway torque, max. 560 Nm

Packaging dimensions (width x length x height) 0 x 0 x 0 mm

Total vibration values (Tightening screws and nuts of maximum permitted size)

Vibration emission value ah 13 m/s²

Uncertainty K 1.5 m/s²

GDS 18V-330 HC Professional: Further information

Product Highlights

The compact and lightweight GDS 18V-330 HC Professional cordless impact wrench makes work easier. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screwheads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be adjusted conveniently to a specific application via the Bosch Toolbox App. 330 Nm tightening and 560 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.
Equipment & Application
The impact wrench is ideal for metal workshops/locksmiths, industrial assembly, framing, and vehicle maintenance using metal bolts/nuts from M8-M18. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.

Additional Information
The GDS 18V-330 HC Professional comes with tool status indicator, LED light, and belt clip for added convenience.

Compact and lightweight impact wrench with adjustable modes for multi-purpose use

Two default screw modes for multi-purpose use. Each mode can be adjusted and individualised via the Bosch Toolbox App
Powerful 330 Nm tightening and 560 Nm breakaway torque performance
Versatile three-speed/torque settings for more flexibility and control

Brand: Bosch

SKU: 06019L5000

EAN: 4059952610528
