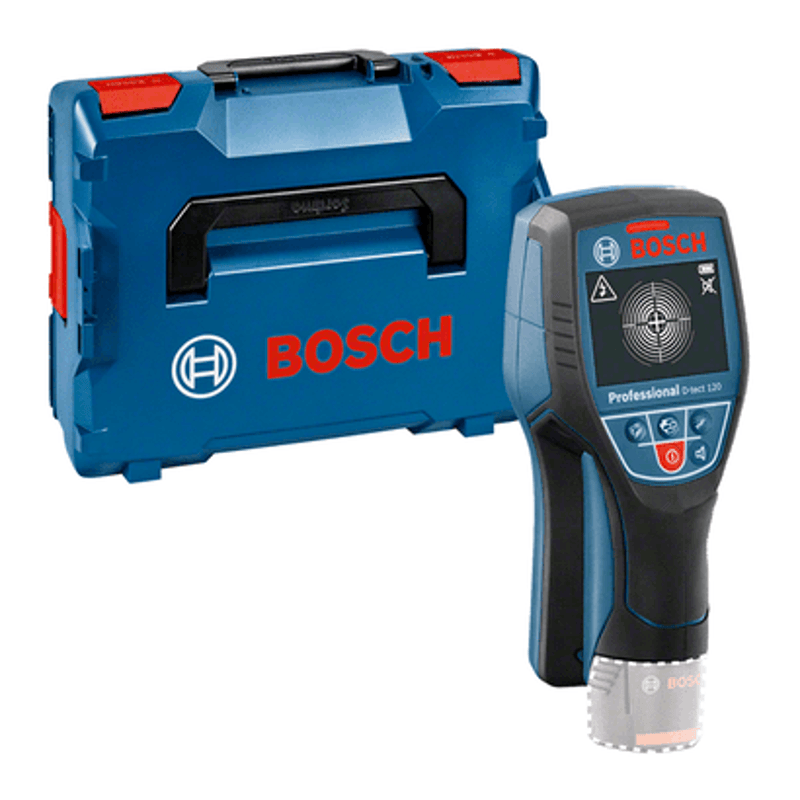

New Genuine Bosch 0601081308 D-tect 120 wallscanner Professional Detector

Detector

Technical data

The most important data

Battery voltage 12.0 V

Bosch Radar Technology yes

Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures

Max. detection depth 120 mm

Detection depth, magnetic metal, max. 120 mm

Detection depth, non-magnetic metal, max. 120 mm

Detection depth, live cables, max. 60 mm

Detection depth, wooden substructures, max. 38 mm

Accuracy* ± 10 mm* (*plus use-dependent deviation)

Views Spot view

Wall types Concrete, Drywall, Universal

Material identification Live cable

Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)

Automatic deactivation, approx. 5 minutes

Weight, approx.** 0.5 kg

Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

D-tect 120 wallscanner Professional: Further information

Product Highlights

The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.
Equipment & Application
It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

Additional Information
The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.

Intuitive radar scanner for almost all materials

Spot measurement provides accurate detection on narrow surfaces
Centre finder offers visual guidance, to clearly identify the precise location of the object's centre
Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Brand: Bosch

SKU: 0601081308

EAN: 3165140995191
