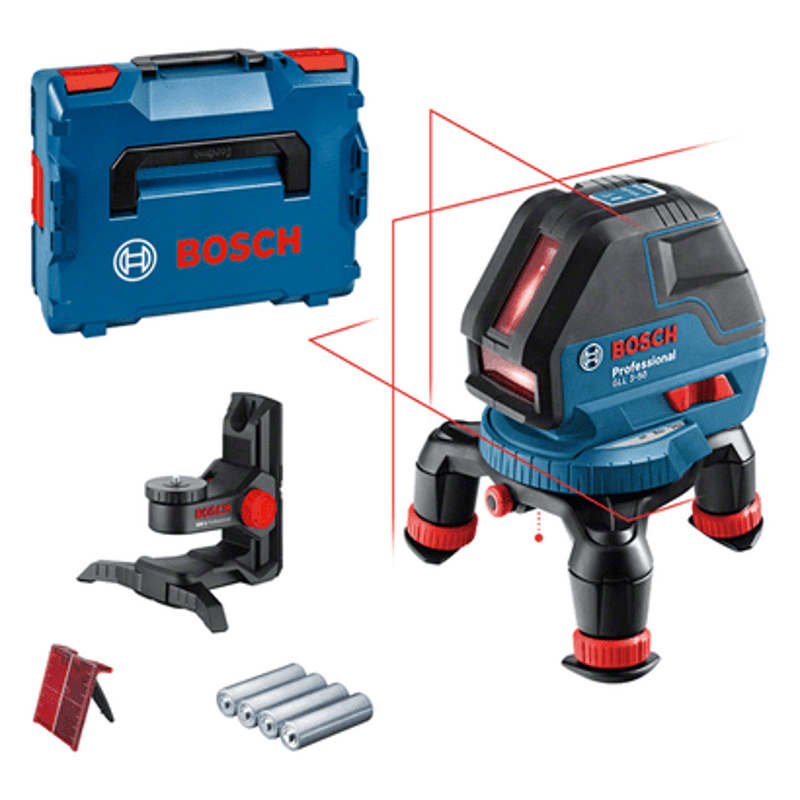

New Genuine Bosch 0601063802 GLL 3-50 Professional Line Laser Line Laser Technical data Additional data Working range with receiver, value 50 m Dust and splash protection IP 54 Working range, value 10 m Laser diode 630 - 650 nm, < 1mW Operating temperature -10 - 40 °C Storage temperature -20 - 70 °C Laser class 2 Working range up to 10 m Working range with receiver up to 50 m Accuracy ± 0.3 mm/m* (*plus use-dependent deviation) Working range of laser points, max. 5 m (bottom) Self-levelling range ± 4° Levelling time 4 s Power supply 4 x 1.5 V LR6 (AA) Operating time (max.) 6 h Tripod thread 1/4", 5/8" Weight, approx. 0.94 kg Colour of laser line red Color of plumb points red Projection 3 lines + 1 plumb point Plumb point accuracy ± 0.6 mm/m* (*plus use-dependent deviation) GLL 3-50 Professional: Further information Product Highlights Complex levelling made simple - the easy-to-use cross line laser GLL 3-50 Professional is designed for versatility across all standard levelling and transfer applications. The two vertical laser lines, a single horizontal laser line, and the plumb dot make it easy to tackle an impressive range of jobs. Compactly designed, the GLL 3-50 Professional offers comfortable handling and control. For convenient laser line positioning, it comes with a rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line. Equipment & Application It is suitable for various interior applications such as mounting shelves or windows, as well as installing drainage pipes or wall tiles. A second vertical laser line also makes it ideal for quick squaring. Additional Information The GLL 3-50 Professional offers laser lines with up to 10 m working range that can be extended up to 50 m by using the optional LR 2 Professional laser receiver. The plumb dot range is up to 5 m. This cross line laser self-levels in less than 4 seconds. It is robust with IP54 dust and splash water protection. The convenient solution for all standard levelling and transfer applications Two vertical laser lines, one horizontal laser line, one plumb dot: ideal for a wide range of jobs such as squaring Compact design makes handling simple Rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line offer great flexibility

Brand: Bosch

SKU: 0601063802

EAN: 3165140662482
