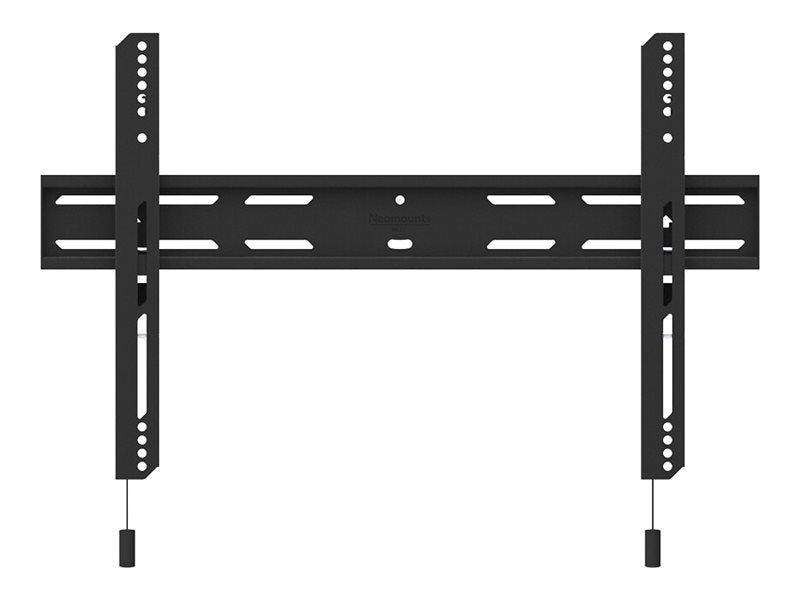

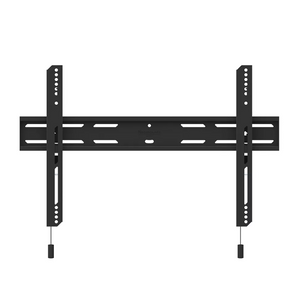

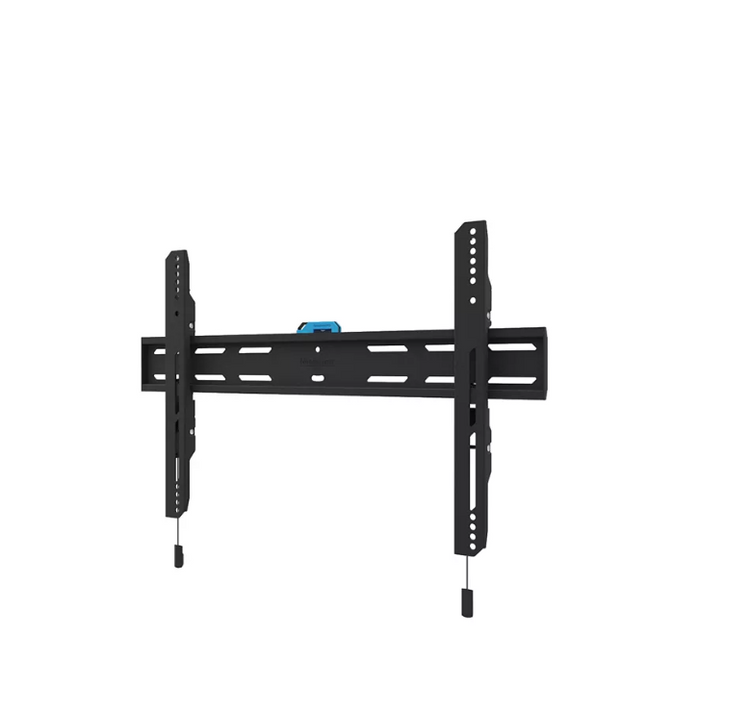

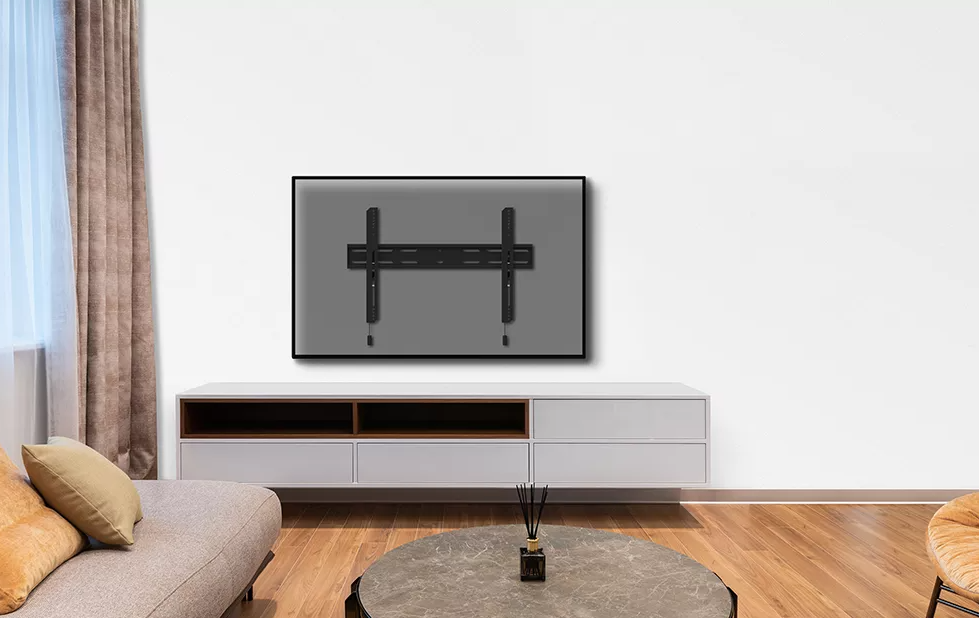

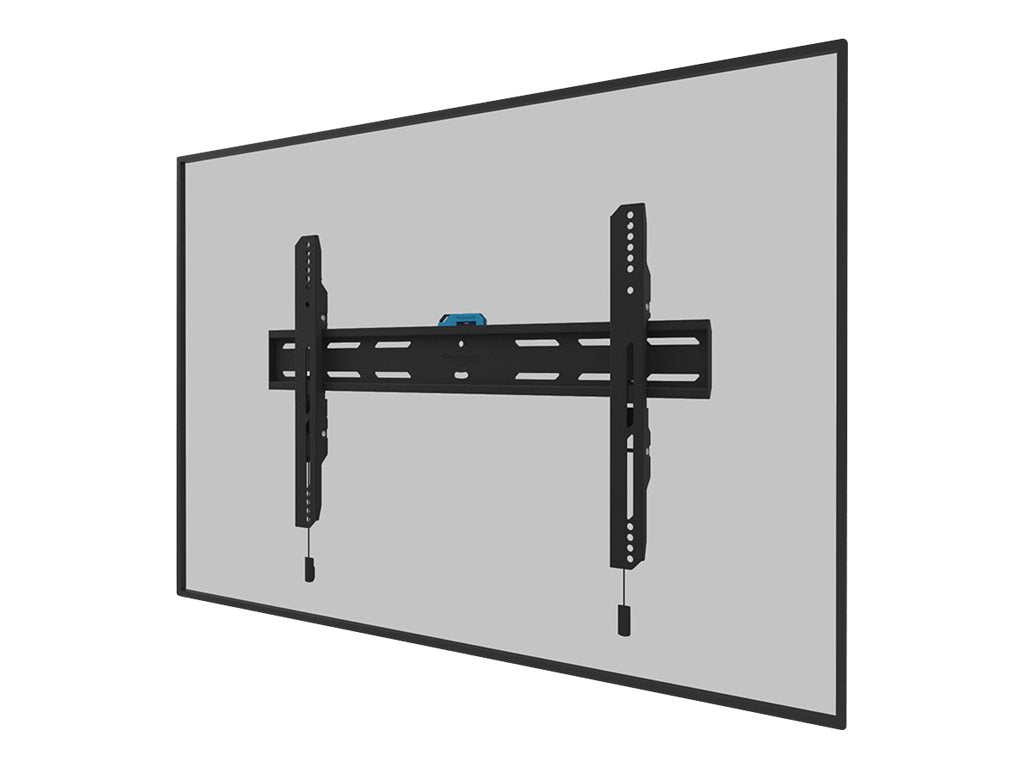

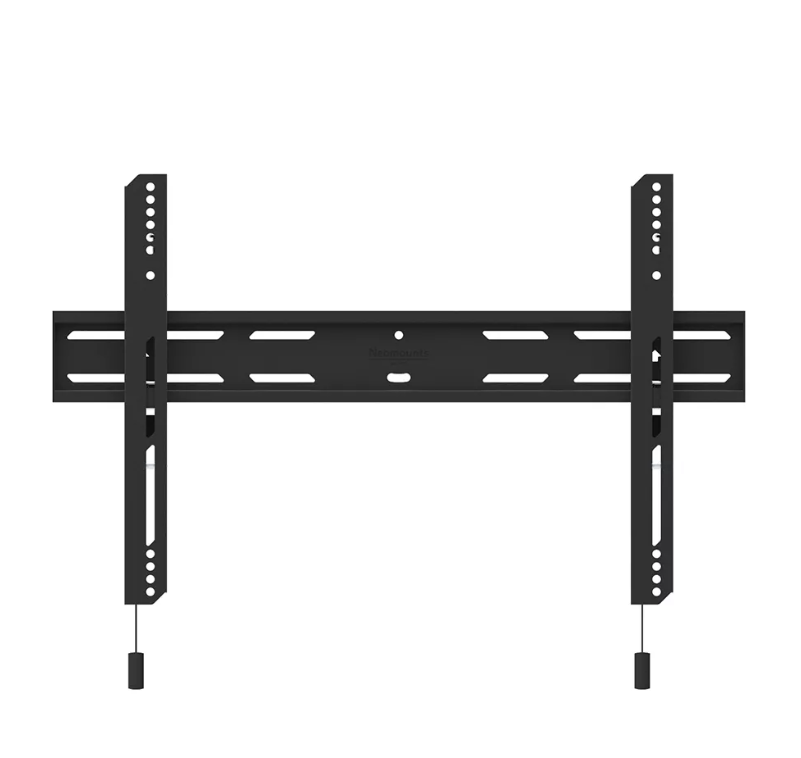

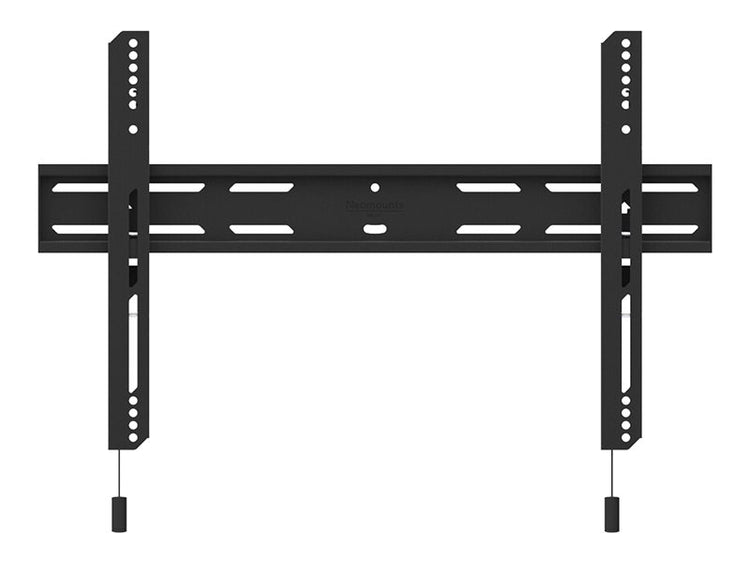

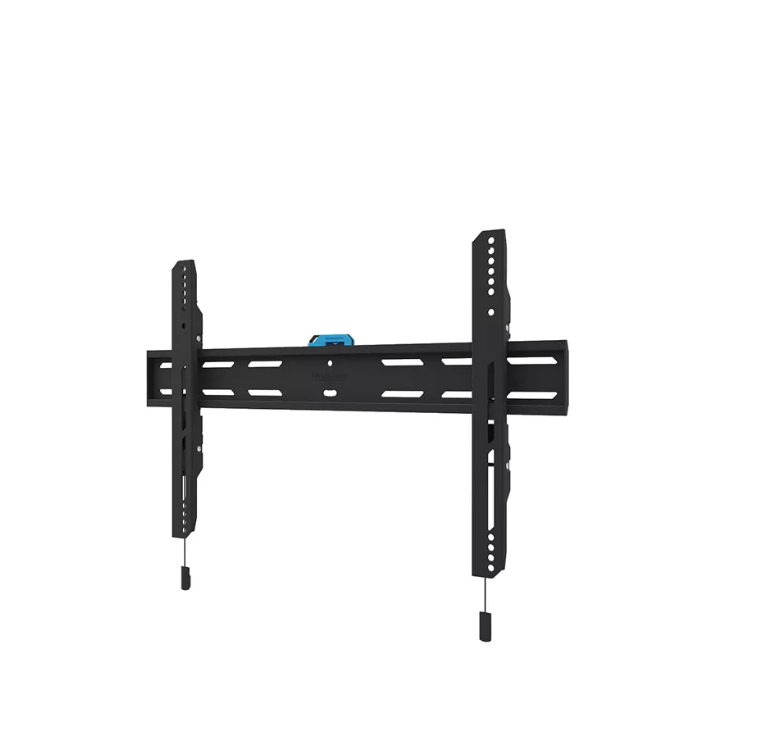

The Neomounts WL30S-850BL16 TV mount is designed for screens ranging from 42 to 86 inches, supporting a maximum weight of 60 kg. Its robust steel construction offers durability, and the micro adjustment feature allows for precise alignment.

• Compatible with VESA mounts from 100x100 mm to 600x400 mm
• Height adjustment range of 0 - 20 mm for optimal viewing angles
• Distance from the wall of 3.3 cm for a sleek profile
• Supports a single display with a maximum weight capacity of 60 kg
• Finished in black for a modern aesthetic

Specifications

• Warranty: 60 month(s)

Design

• Colour of product: Black
• VESA mounting: Yes

Mounting

• Maximum screen size compatibility: 86 "
• Maximum weight (capacity): 60 kg
• Mounting interface compatibility (max): 600x400 mm
• Mounting interface compatibility (min): 100x100 mm
• VESA mounting interfaces: 100x100, 100x150, 100x200, 120x120, 150x200, 200x100, 200x150, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400, 440x400, 500x400, 600x200, 600x300, 600x400 mm

Technical details

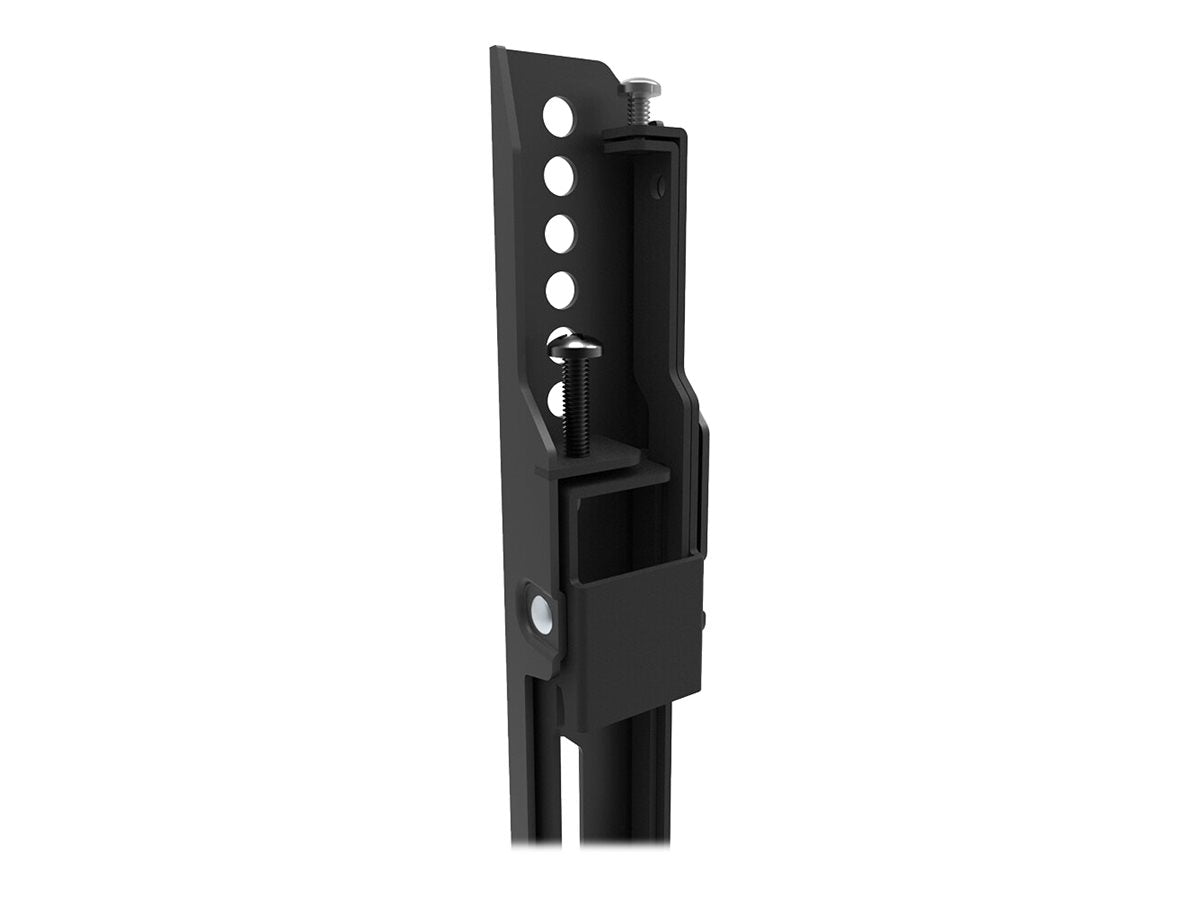

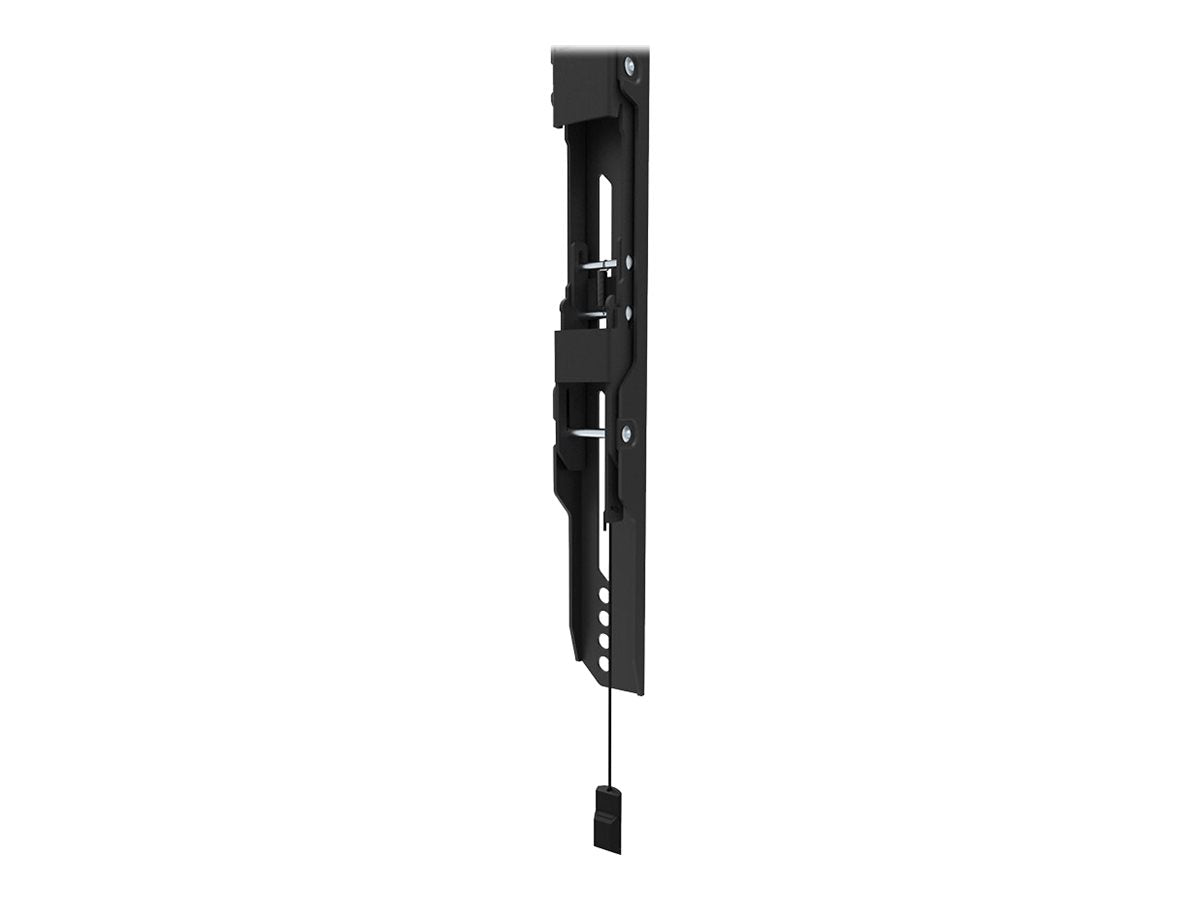

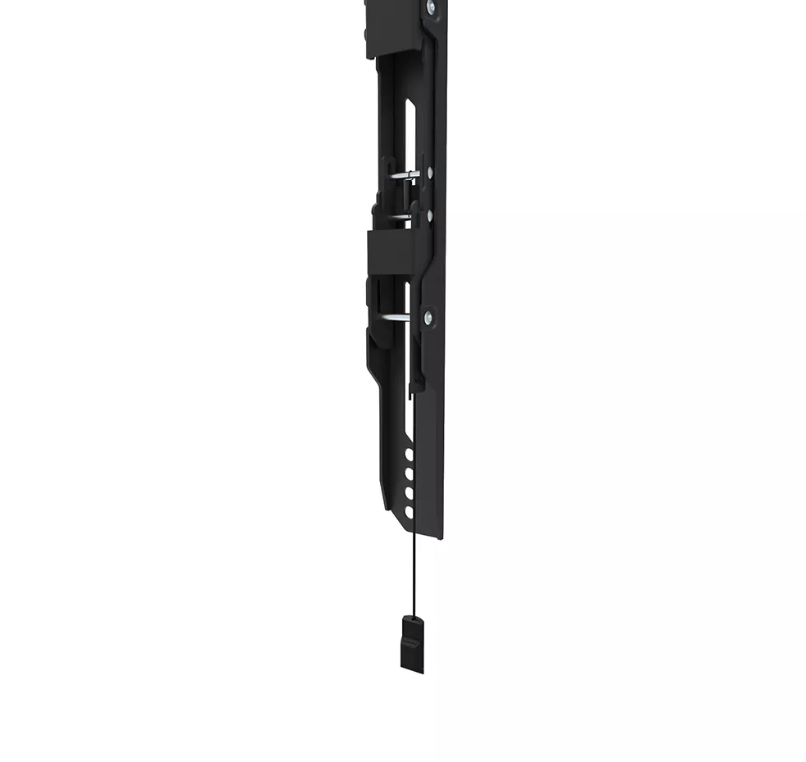

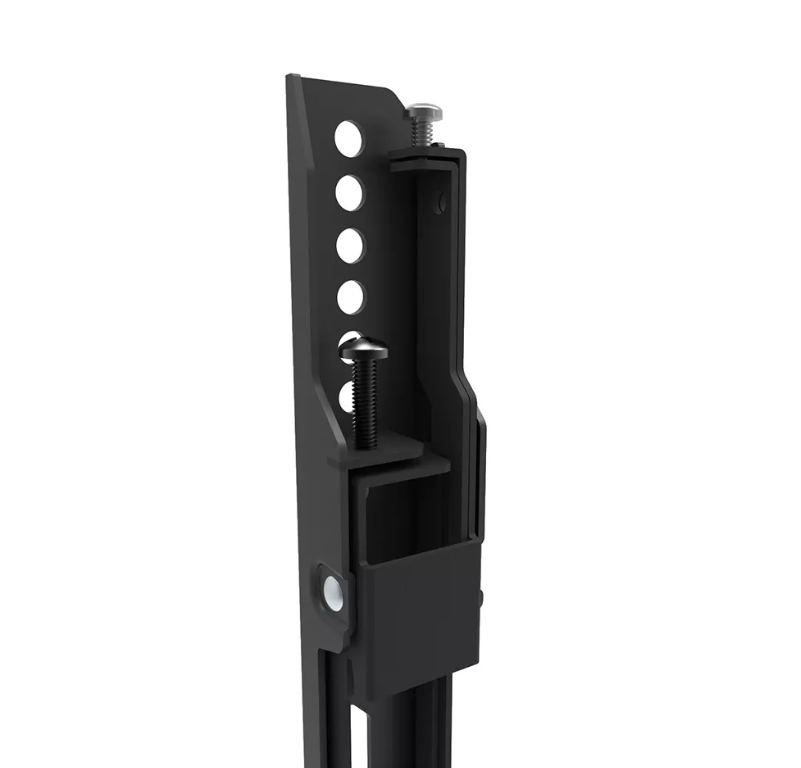

• Functions: Micro adjustment
• Net weight: 2.40 kg
• Placement: Wall mount
• Product name: WL30S-850BL16 TV mount
• Screen size compatibility: 42-86 "

Additional specifications

• Maximum weight capacity: 60 kg
• Minimum screen size: 106.7 cm (42")
• Number of displays supported: 1
• Maximum weight capacity (per display): 60 kg
• Maximum screen size: 2.18 m (86")
• Minimum VESA mount: 100 x 100 mm
• Maximum VESA mount: 600 x 400 mm
• Panel mounting interface: 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400
• Mounting type: Wall
• Height adjustment: Yes
• Height adjustment range: 0 - 20 mm
• Type: Fixed

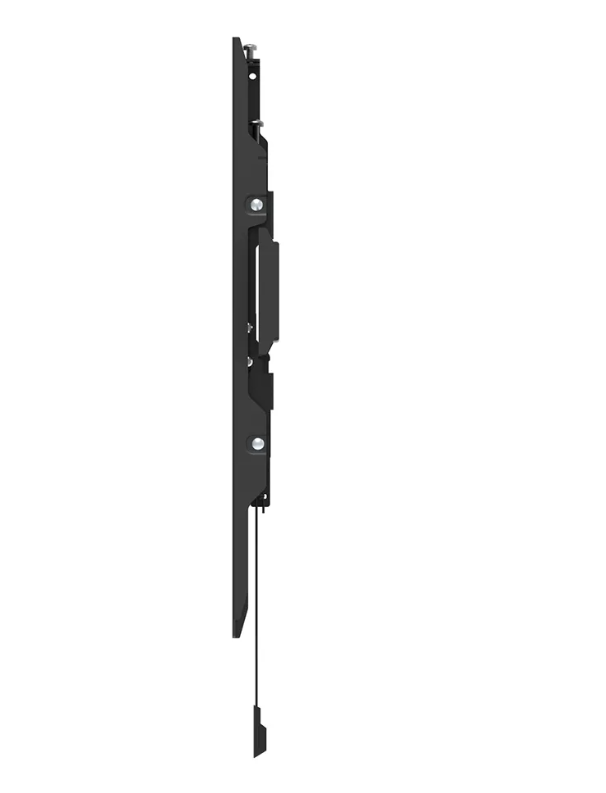

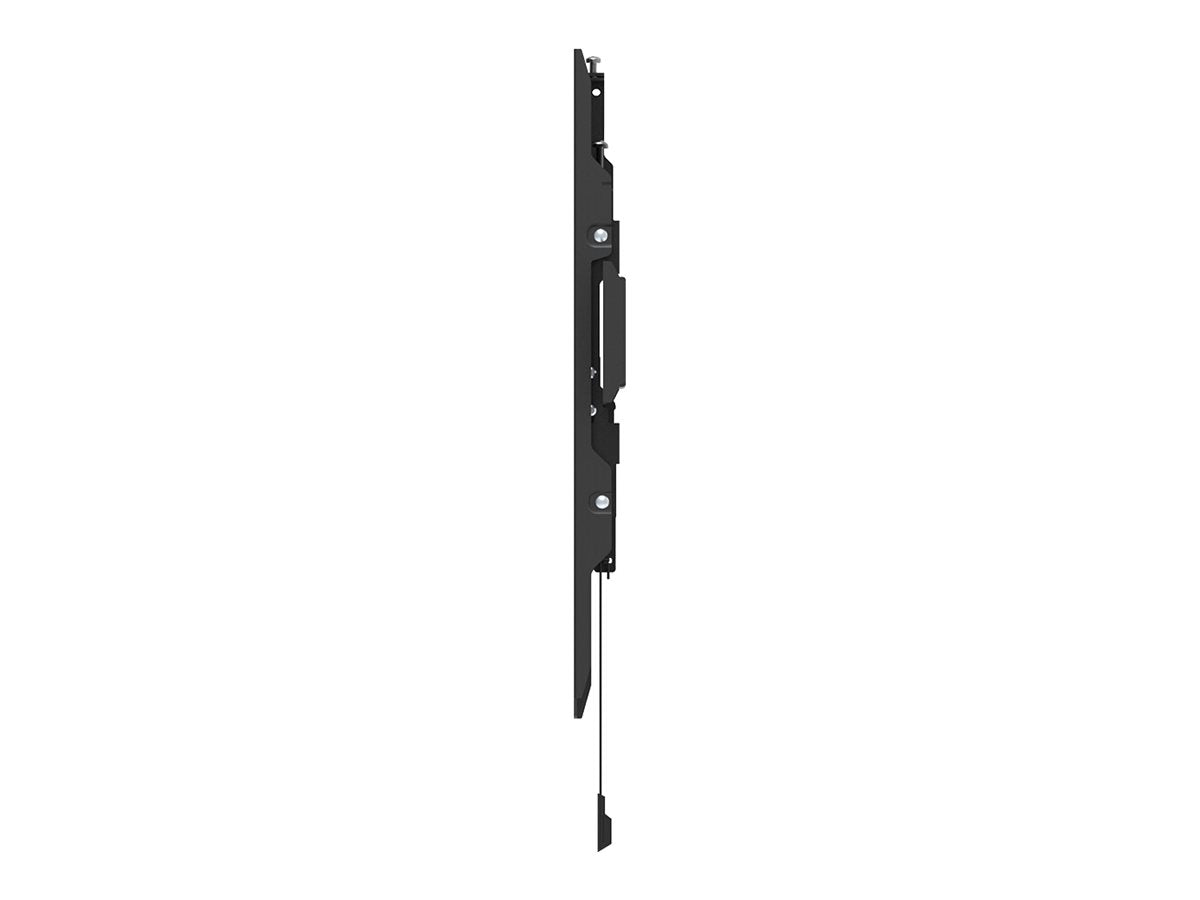

• Distance to the wall (max): 3.3 cm
• Product colour: Black
• Housing material: Steel
• Country of origin: China
• Package net weight: 3.4 kg

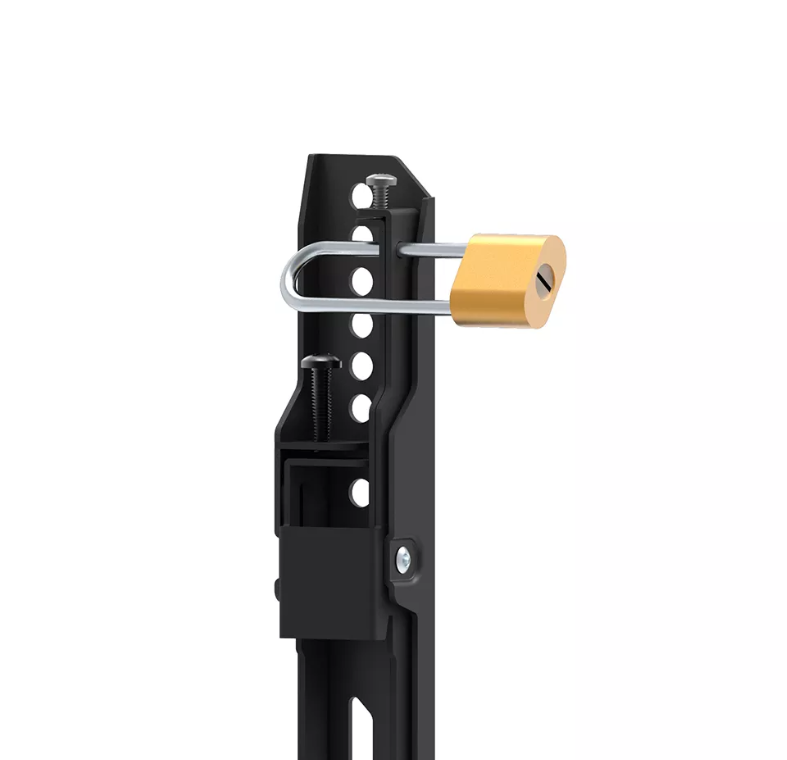

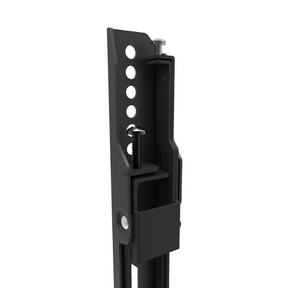

• Lockable: Security screw included
• Width: 684 mm
• Depth: 33 mm
• Depth (max): 3.3 cm
• Height: 425 mm
• Weight: 2.4 kg
• Master (outer) case width: 724 mm
• Master (outer) case length: 240 mm
• Master (outer) case height: 343 mm
• Master (outer) case net weight: 16.2 kg
• Products per master (outer) case: 6 pc(s)
• Harmonized System (HS) code: 7326909890
