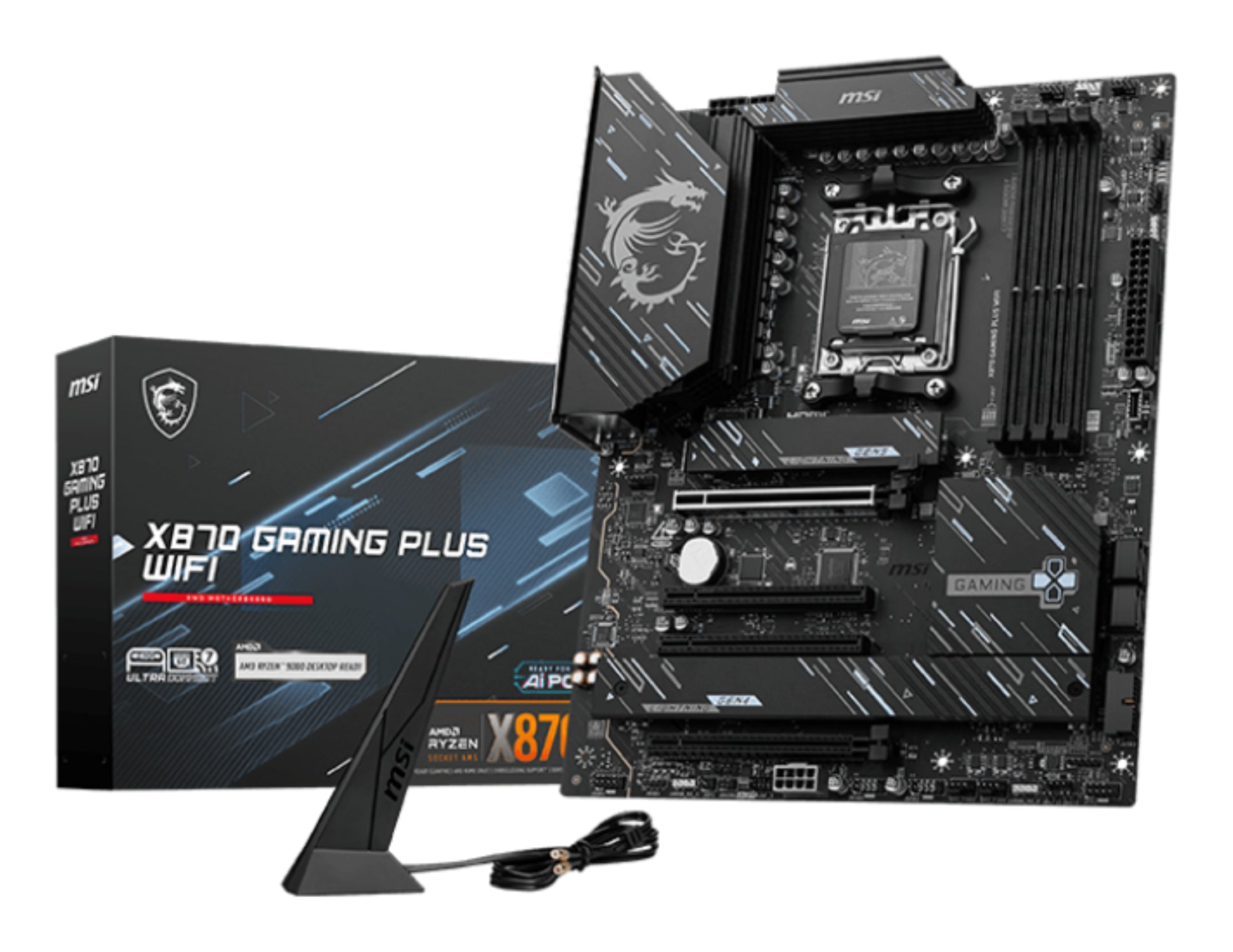

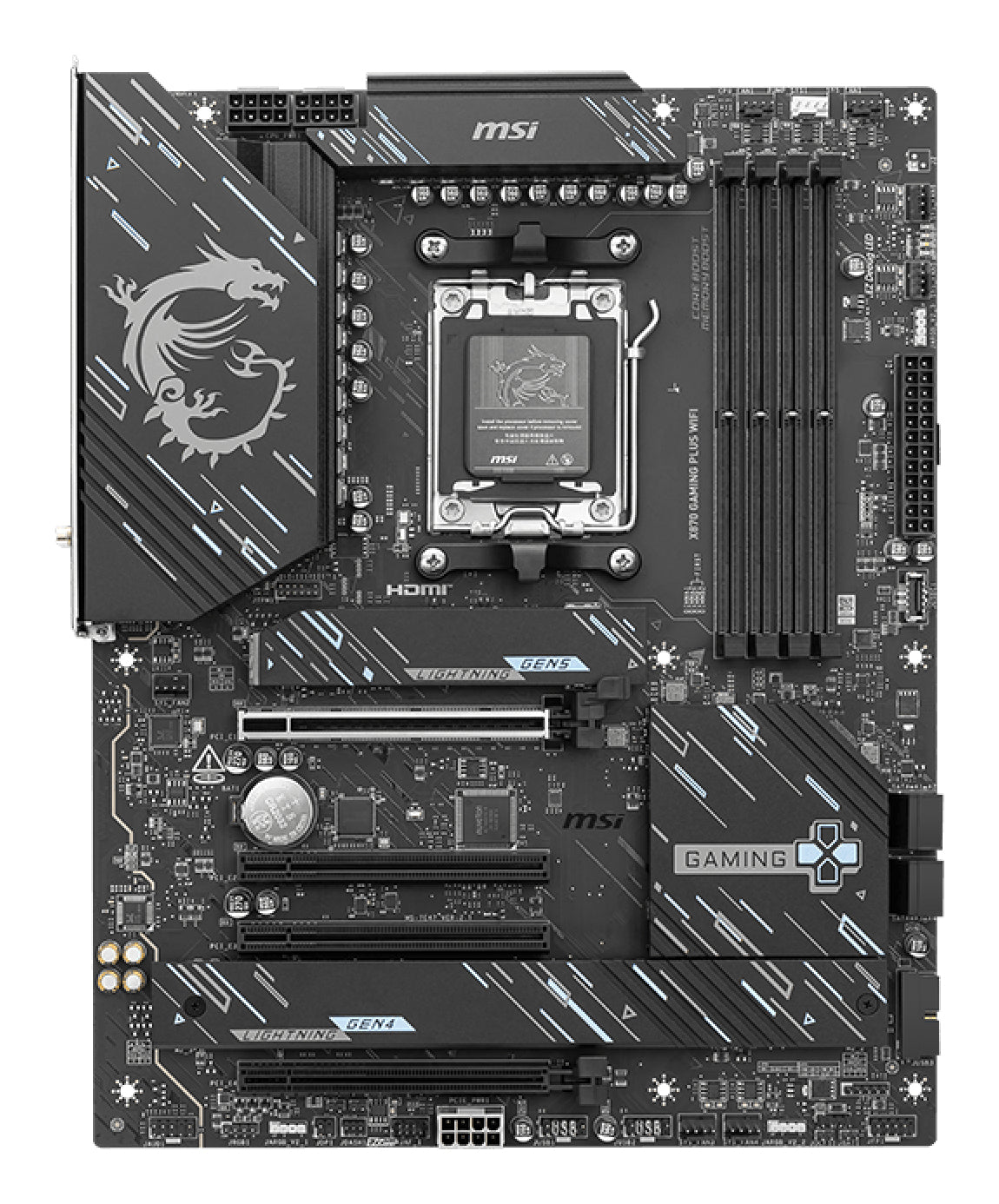

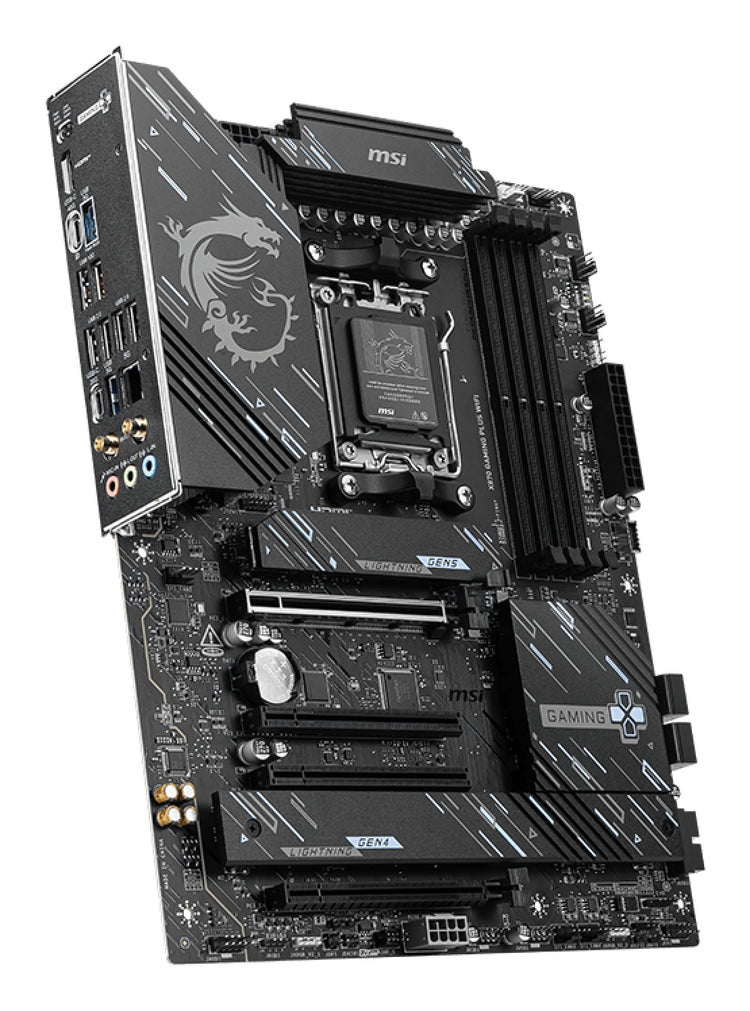

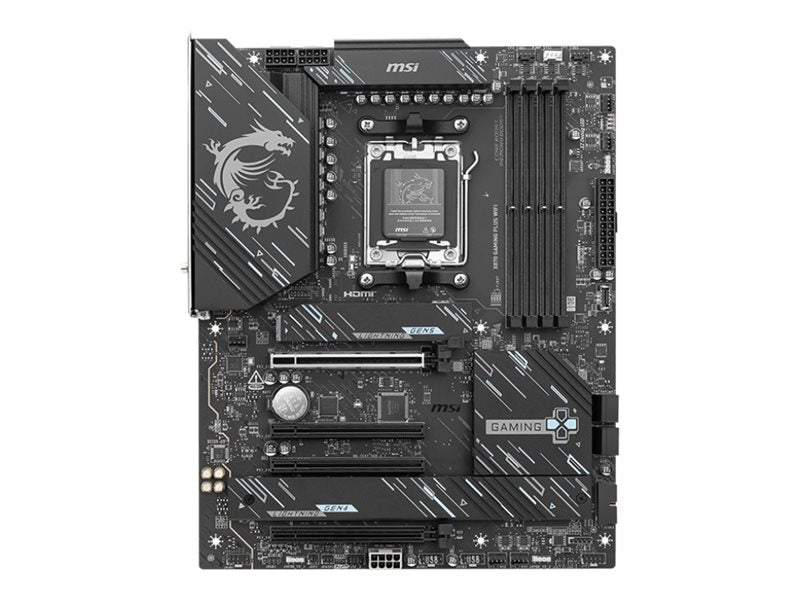

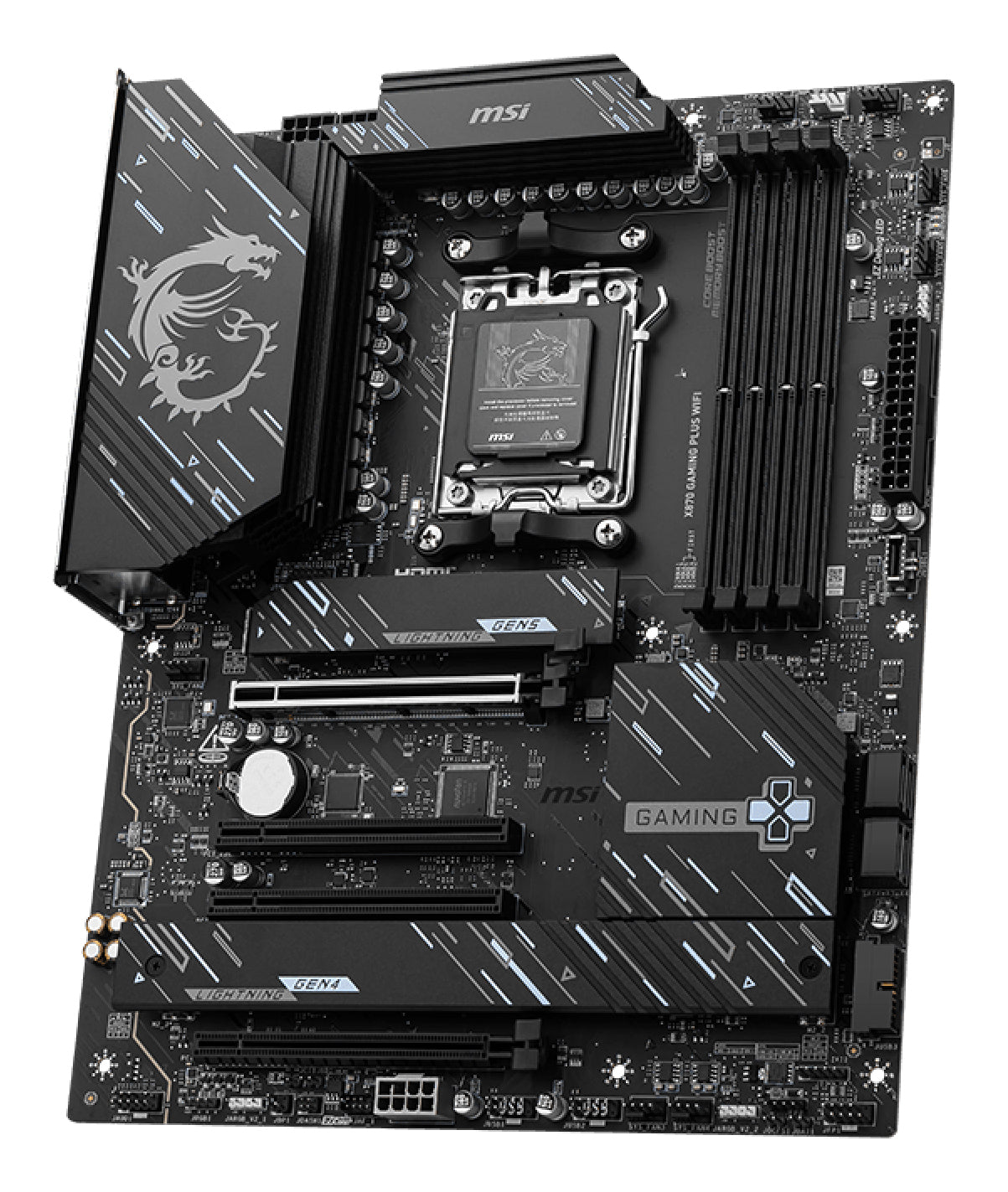

The MSI X870 GAMING PLUS WIFI is designed for AMD processors and features an AM5 socket. This motherboard supports DDR5 memory, SATA, and M.2 drive interfaces, making it versatile for high-performance computing.

• Supports DDR5 memory with a maximum clock speed of 8200 MHz and up to 128 GB capacity
• Includes 4 SATA connectors and supports 4 storage drives with SATA and M.2 interfaces

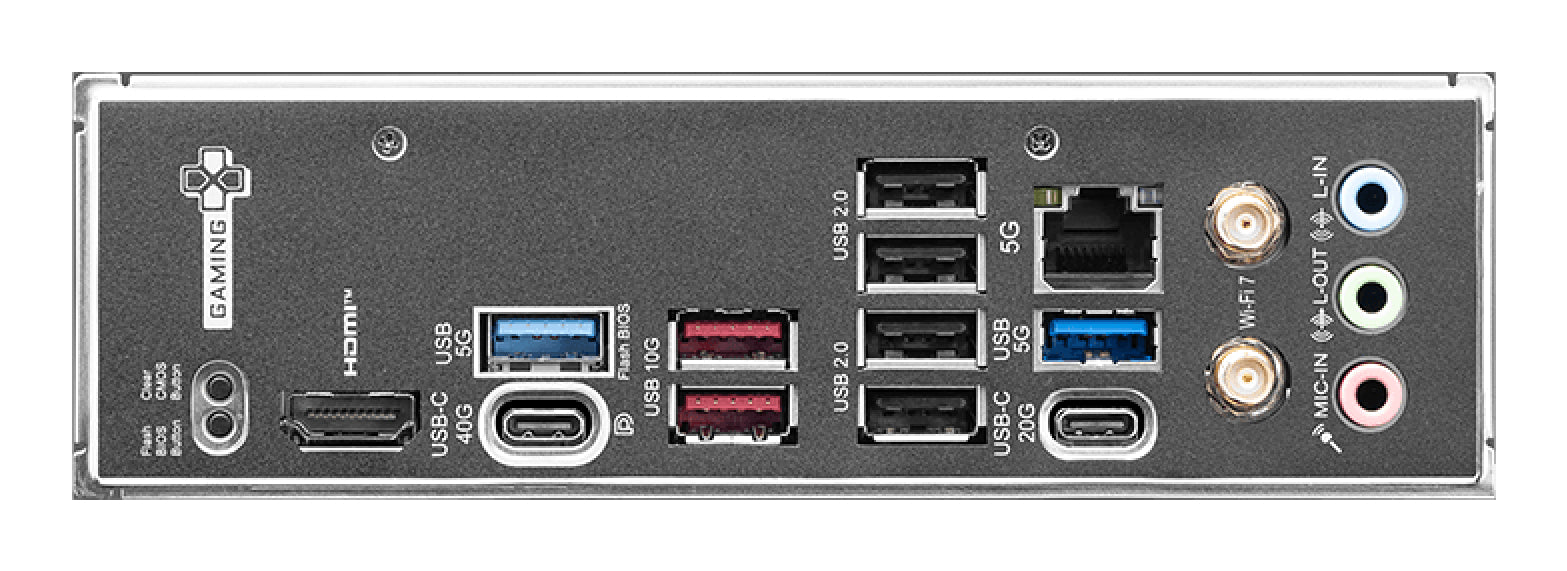

• Equipped with 4 USB 2.0 ports and 1 HDMI port
• Features 5 Gigabit Ethernet and built-in Wi-Fi 7 (802.11be)
• Supports dual-channel memory configuration with 4 DIMM slots

Technical details

• Producer product name: X870 GAMING PLUS WIFI
• Net weight: 0.97 kg

Specifications

• Warranty: 36 month(s)

Internal I/O

• Number of SATA connectors: 4
• Supported hard disk drive interfaces: SATA, M.2

Memory

• Supported memory types: DDR5

Processor

• Processor family: AMD
• Processor socket: AM5

Additional specifications

• Processor manufacturer: AMD
• Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4800,5600,8200 MHz
• Supported memory clock speed (max): 8200 MHz
• Maximum internal memory: 128 GB
• Unbuffered memory: Yes
• Supported storage drive types: SSD
• Supported storage drive interfaces: M.2, SATA
• Number of storage drives supported: 4
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Ethernet LAN: Yes
• Ethernet interface type: 5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Bluetooth: Yes
• Bluetooth version: 5.4
• Motherboard chipset: AMD X870
• Audio output channels: 7.1 channels
• Component for: PC
• Motherboard form factor: ATX
• Motherboard chipset family: AMD
