Description

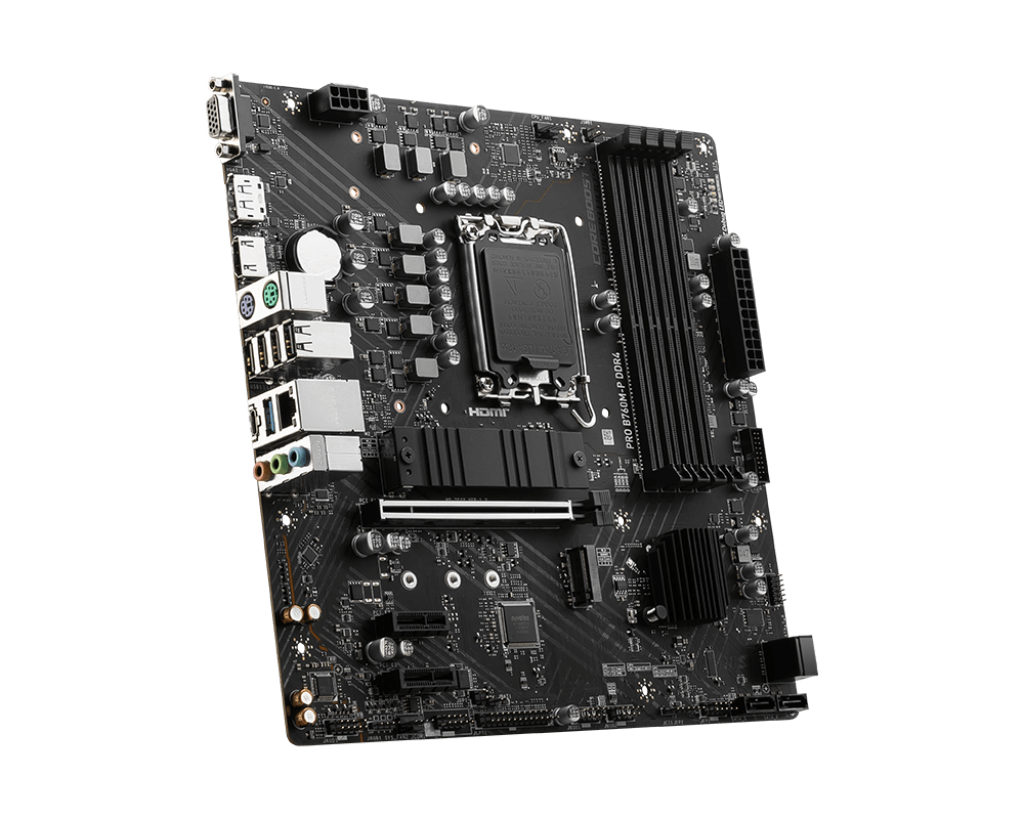

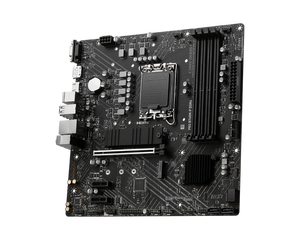

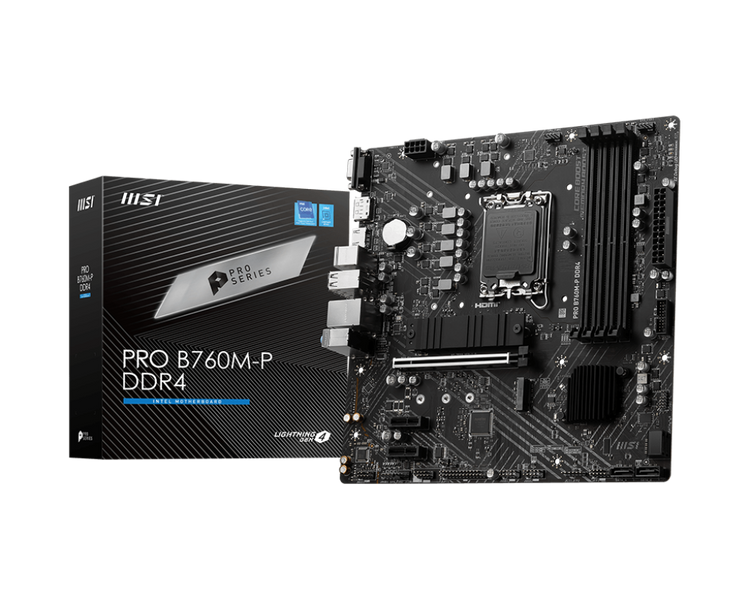

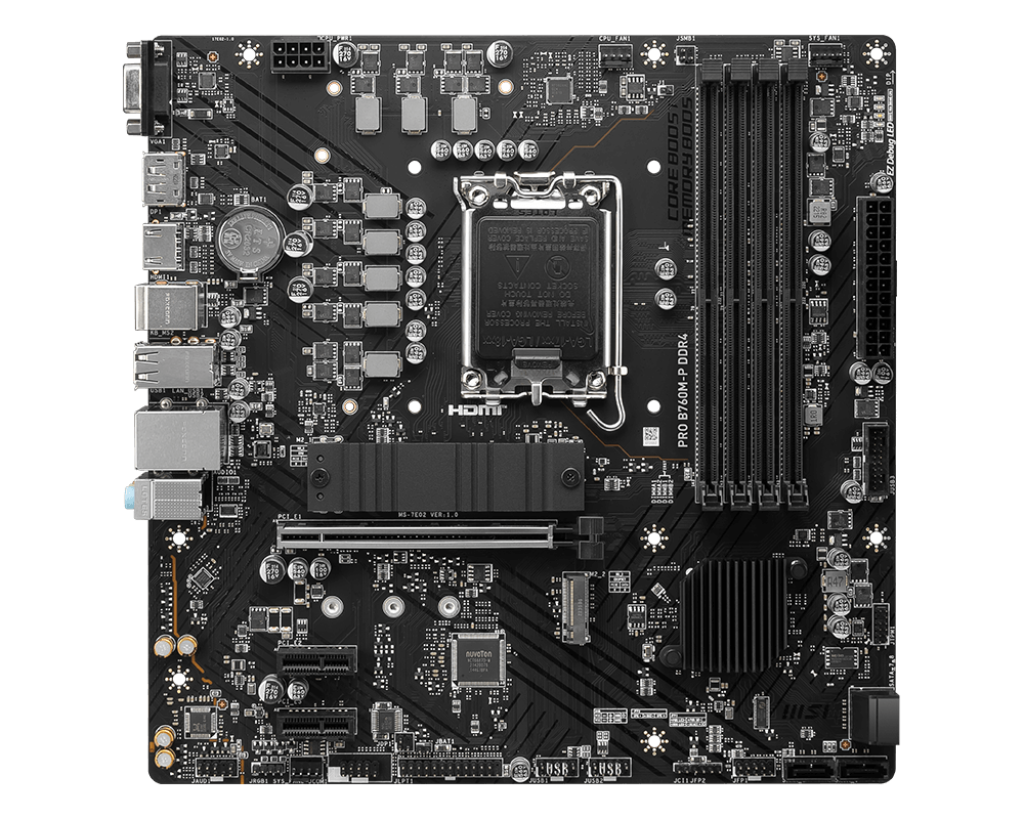

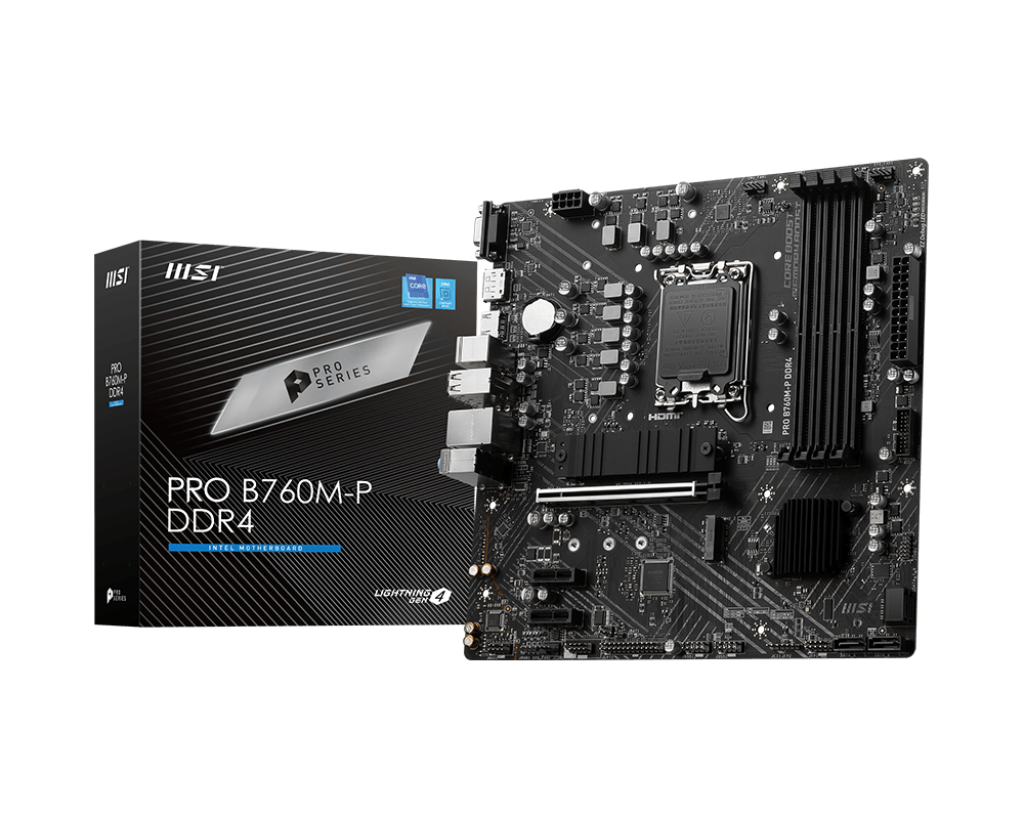

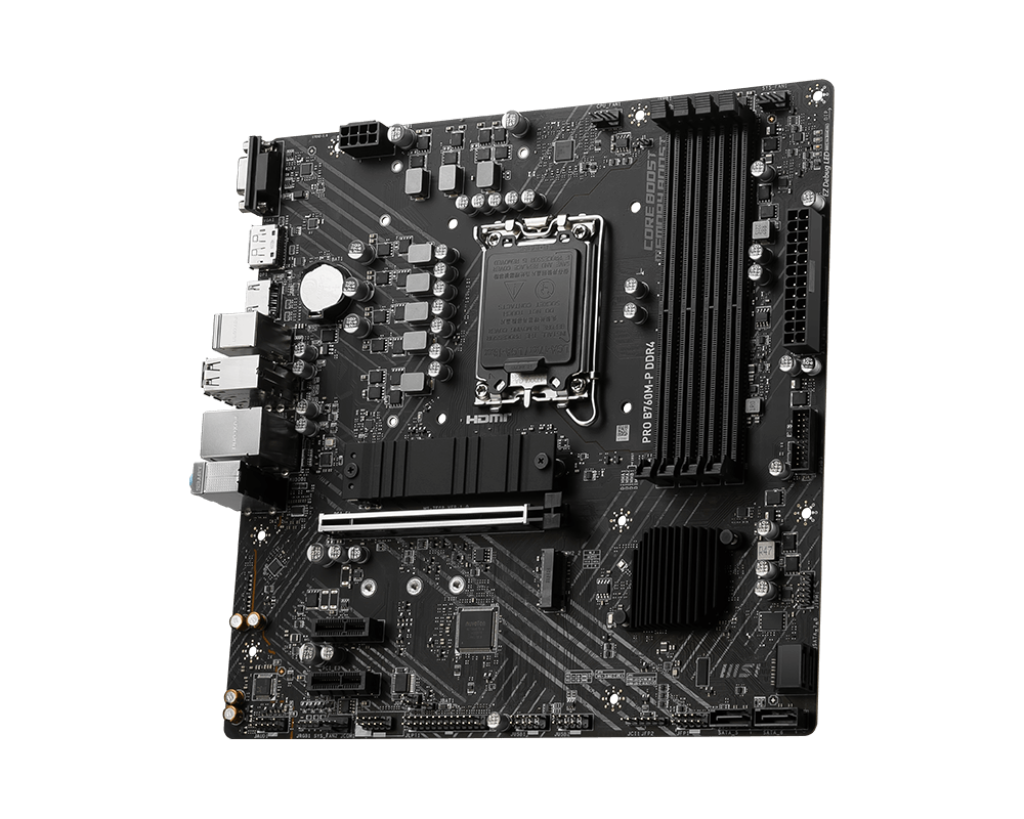

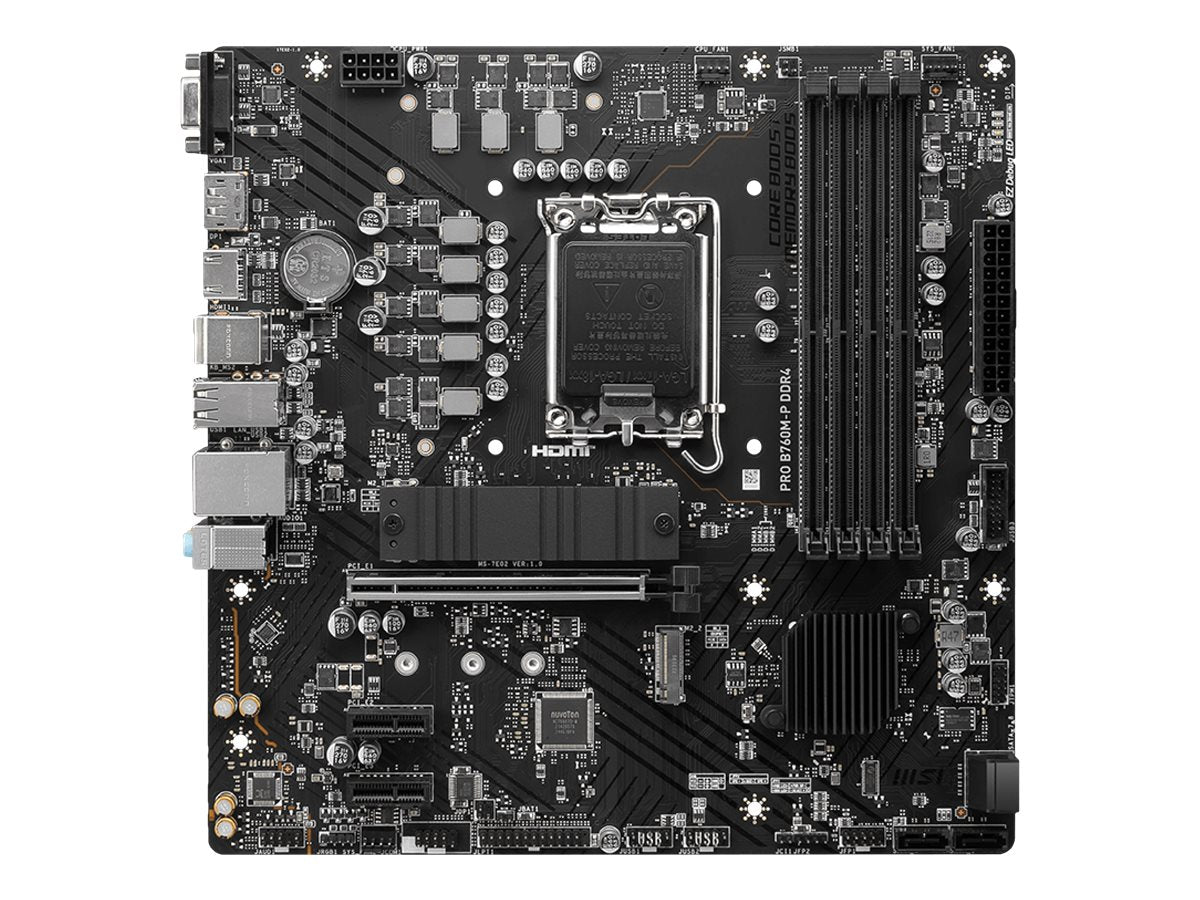

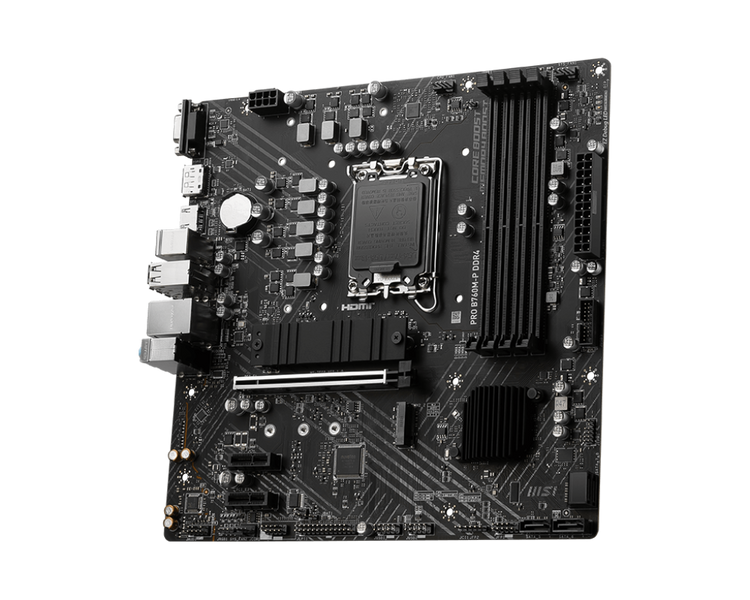

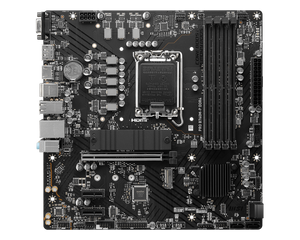

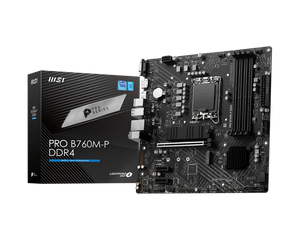

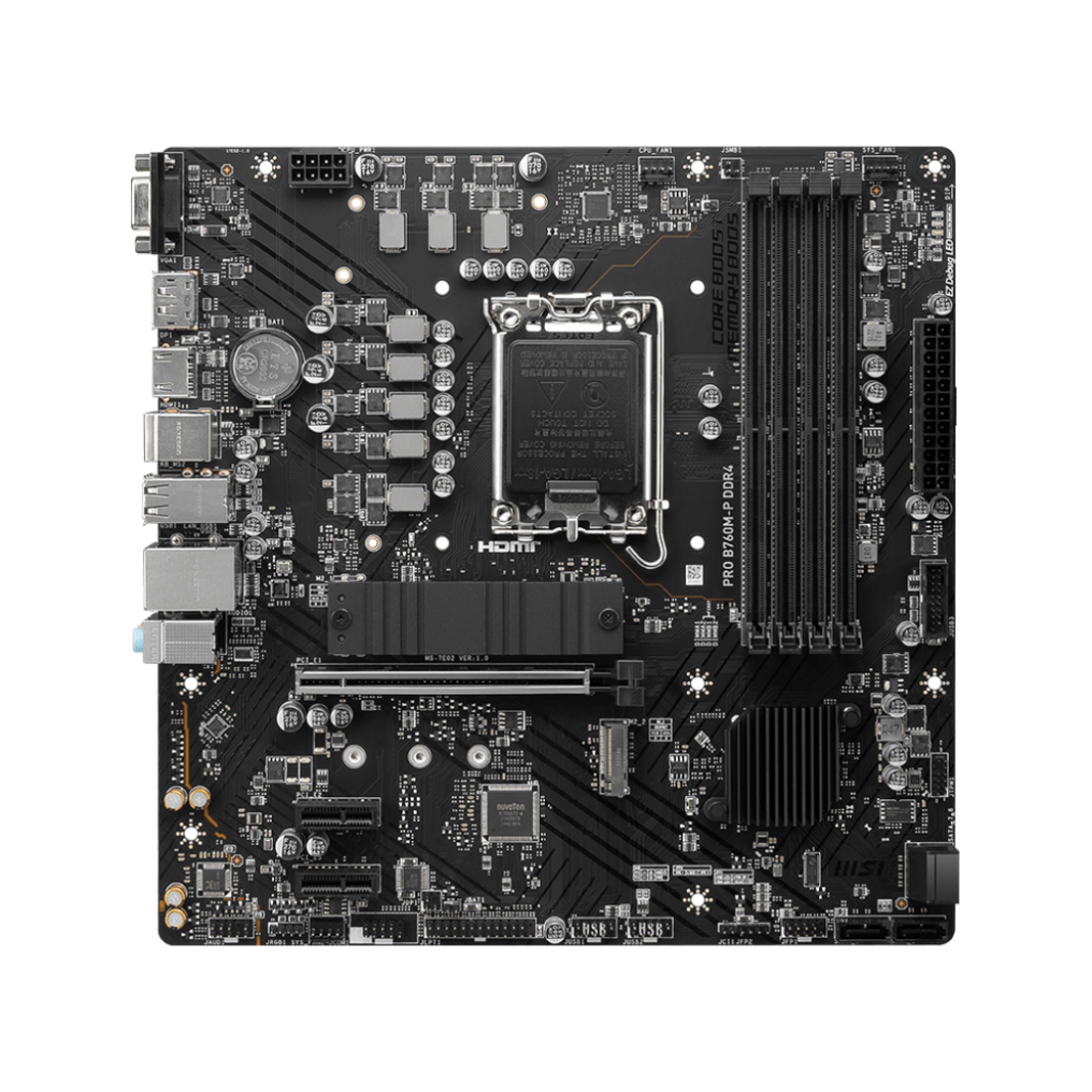

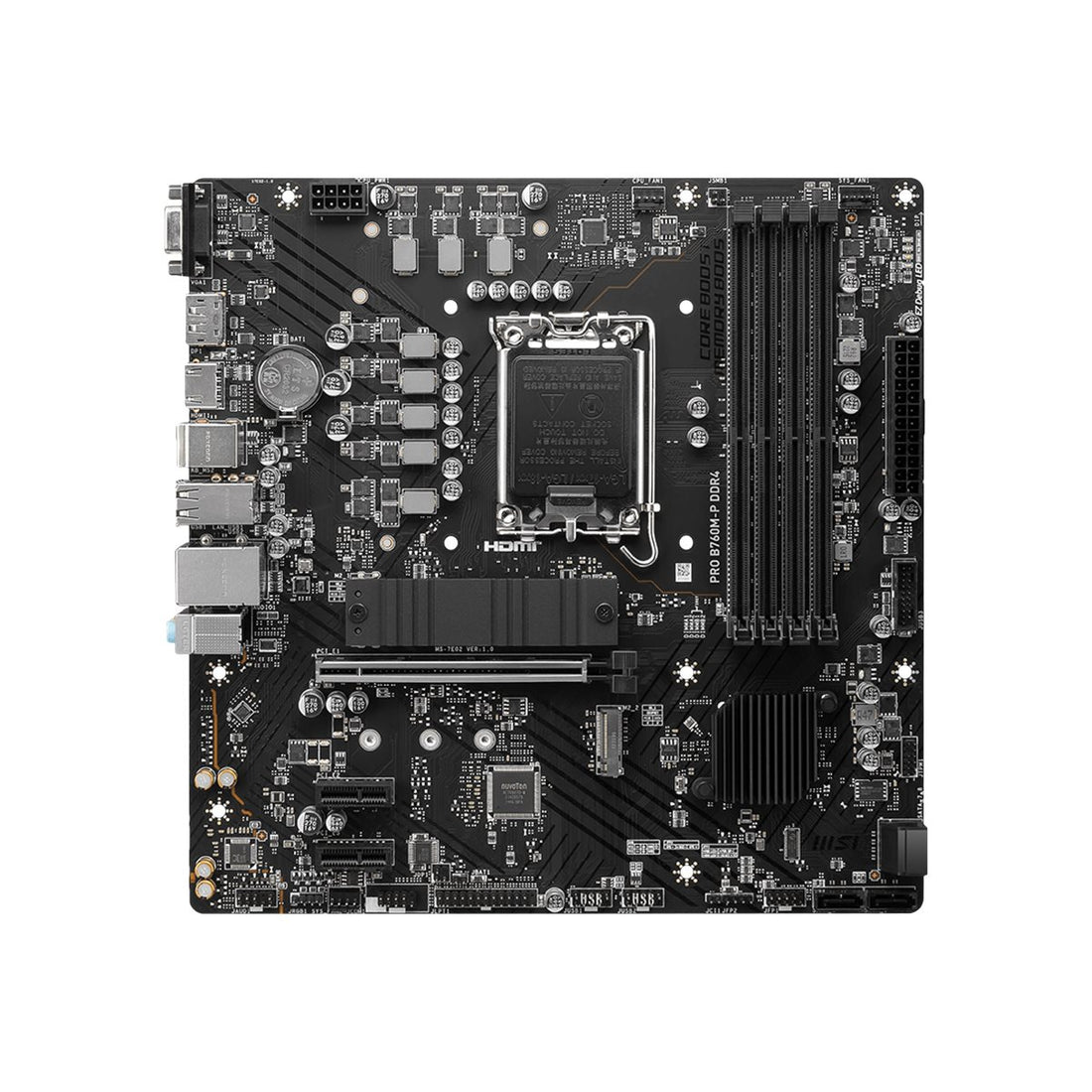

The MSI PRO B760M-P DDR4 is a micro ATX motherboard designed for users building a system with Intel processors. It offers versatile memory and storage options, making it suitable for both everyday computing and more demanding applications.
- Supports up to 128 GB of DDR4 memory across four DIMM slots, allowing for substantial multitasking capabilities.
- Equipped with four SATA connectors and M.2 support, enabling the installation of multiple storage drives for increased data capacity.
- Compatible with 12th and 13th Gen Intel Core Processors, as well as Pentium Gold and Celeron processors, providing flexibility in processor choice.
- RAID support for levels 0, 1, 5, and 10 enhances data management and redundancy options.
- Dual-channel memory architecture optimizes performance by allowing simultaneous data access from paired memory modules.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 4
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: Intel B760
- Motherboard form factor: mATX
Processor (3)
- Processor family: Intel
- Processor socket: LGA1700
- Compatible processor series: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Technical details (2)
- Producer product name: PRO B760M-P DDR4
- Net weight: 1.20 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (53)
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
- Supported memory clock speed (max): 4800 MHz
- Maximum internal memory: 128 GB
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- On-board graphics card: No
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes

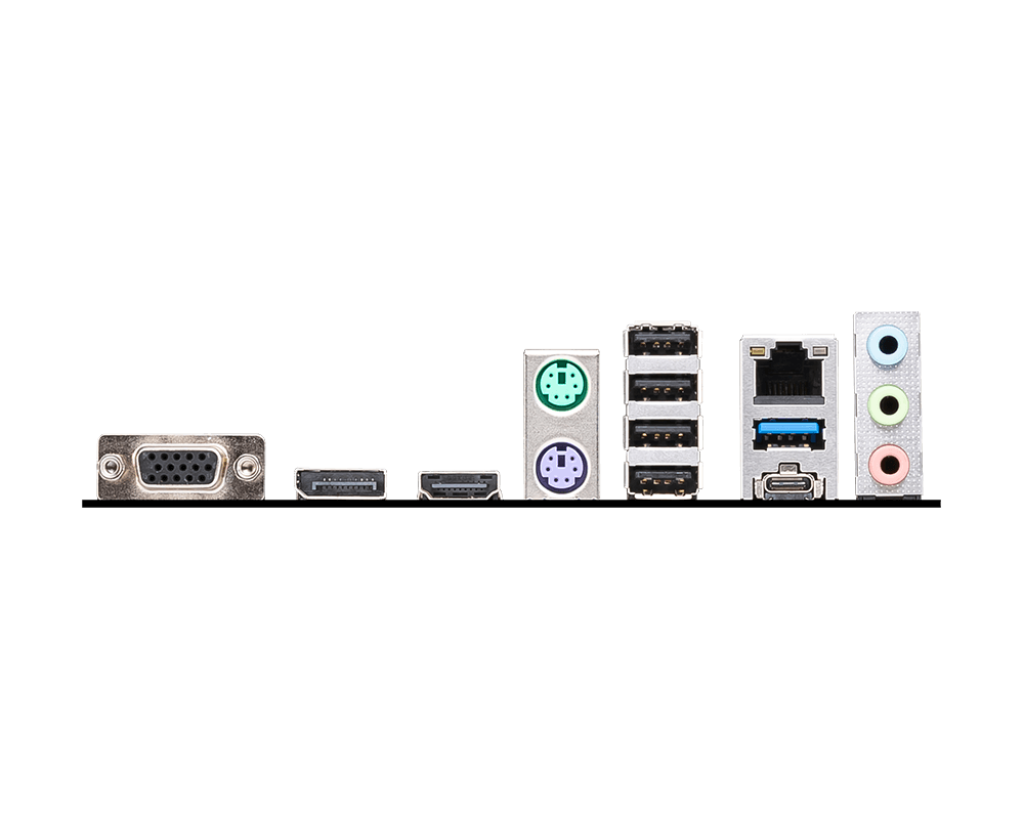

- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Top Wi-Fi standard: Not available
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 3.5
- Width: 243.8 mm
- Depth: 243.8 mm
Description
The MSI PRO B760M-P DDR4 is a micro ATX motherboard designed for users building a system with Intel processors. It offers versatile memory and storage options, making it suitable for both everyday computing and more demanding applications.
- Supports up to 128 GB of DDR4 memory across four DIMM slots, allowing for substantial multitasking capabilities.
- Equipped with four SATA connectors and M.2 support, enabling the installation of multiple storage drives for increased data capacity.
- Compatible with 12th and 13th Gen Intel Core Processors, as well as Pentium Gold and Celeron processors, providing flexibility in processor choice.
- RAID support for levels 0, 1, 5, and 10 enhances data management and redundancy options.
- Dual-channel memory architecture optimizes performance by allowing simultaneous data access from paired memory modules.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 4
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: Intel B760
- Motherboard form factor: mATX
Processor (3)
- Processor family: Intel
- Processor socket: LGA1700
- Compatible processor series: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Technical details (2)
- Producer product name: PRO B760M-P DDR4
- Net weight: 1.20 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (53)
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
- Supported memory clock speed (max): 4800 MHz
- Maximum internal memory: 128 GB
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- On-board graphics card: No
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Top Wi-Fi standard: Not available
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 3.5
- Width: 243.8 mm
- Depth: 243.8 mm
MSI PRO B760M-P DDR4, Processor family Intel, Processor socket LGA1700, DDR4 DIMM
- Regular price
- €107,87
- Sale price
- €107,87
- Regular price
-
Tax included.
