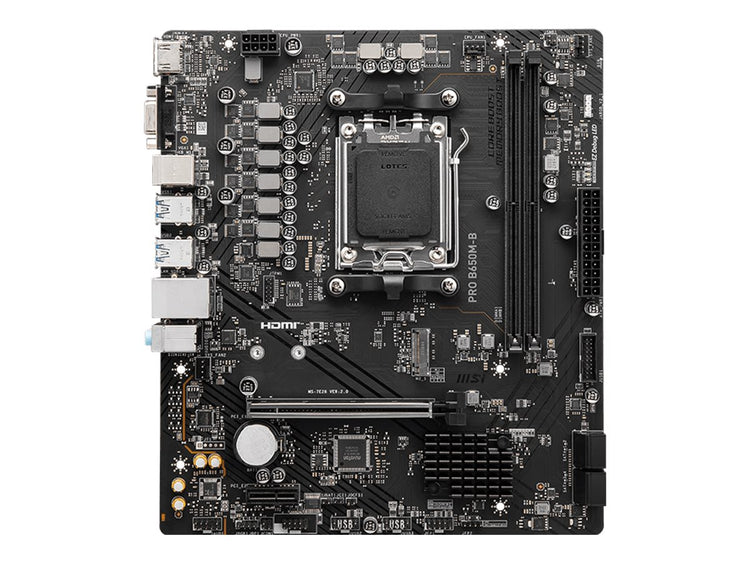

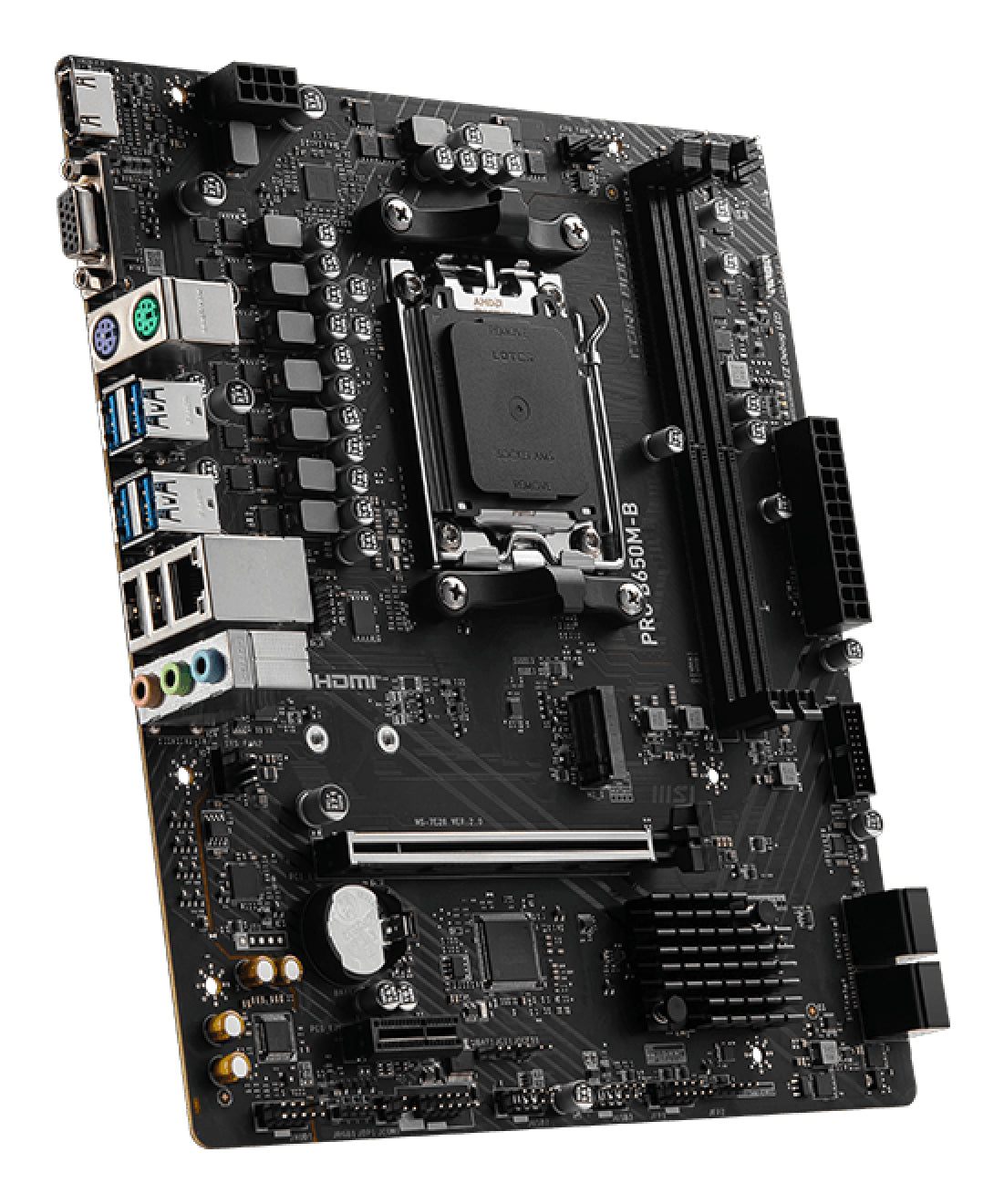

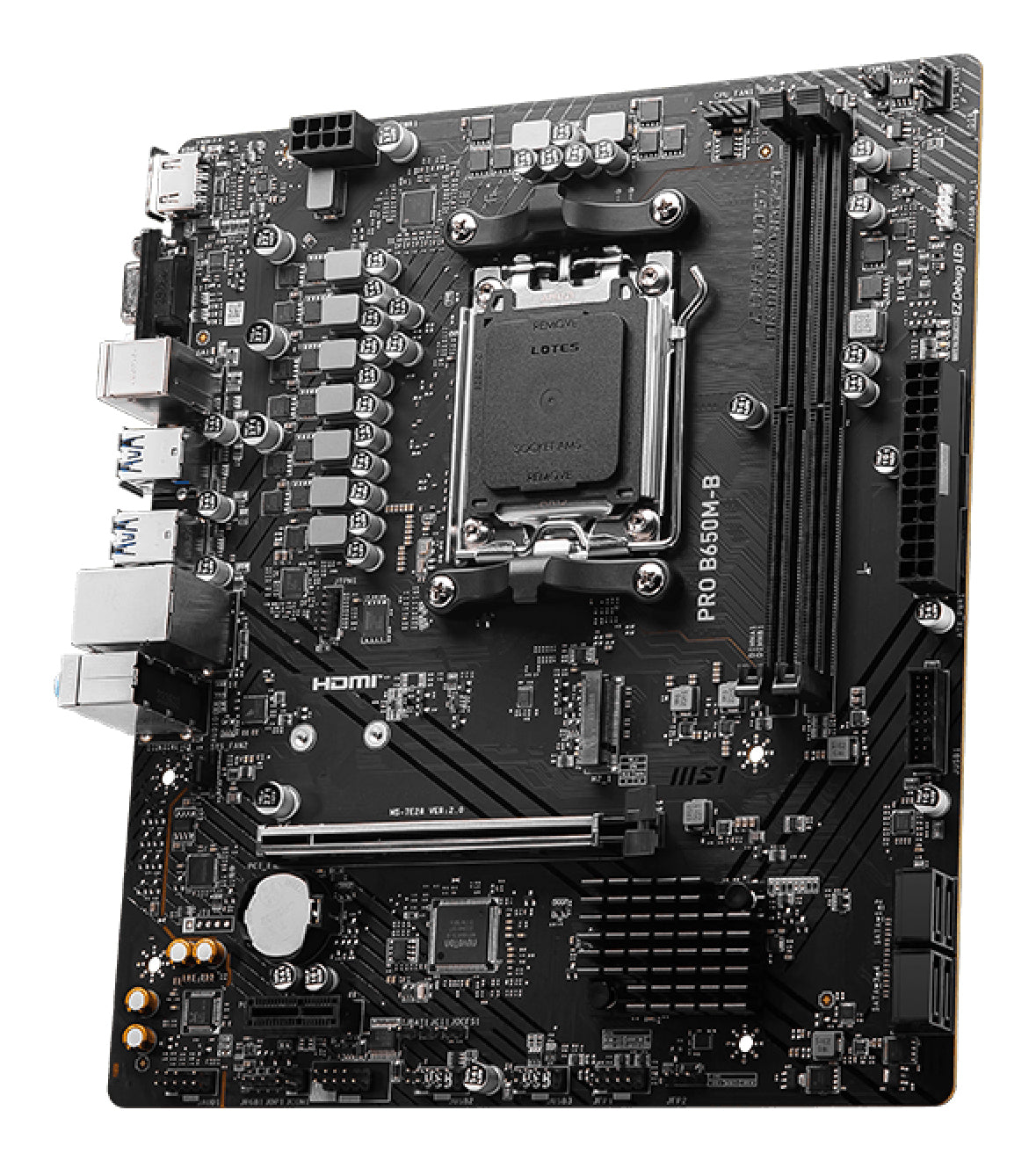

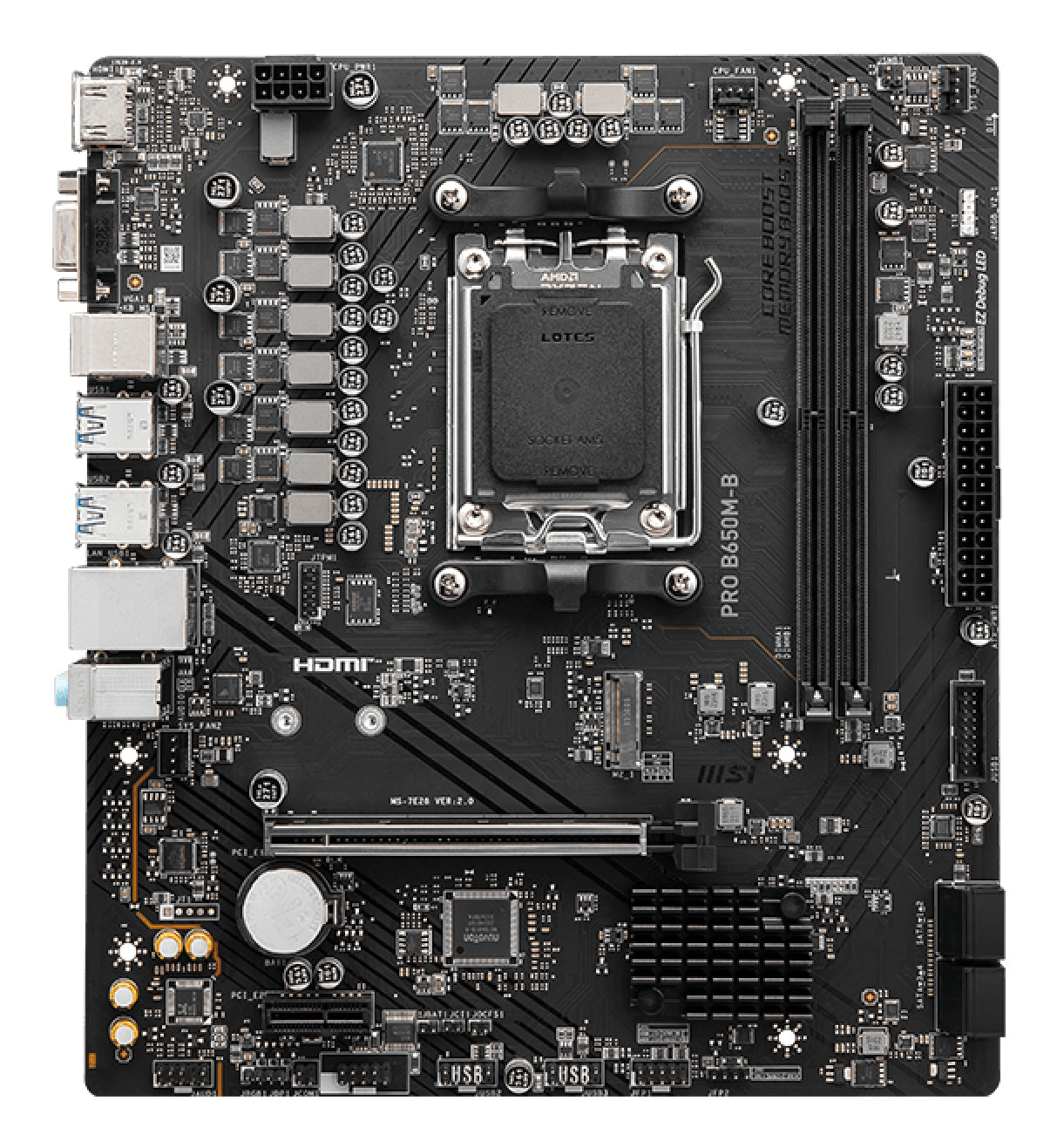

The MSI PRO B650M-B motherboard supports AMD processors with an AM5 socket and is designed for DDR5 memory. It features multiple storage drive interfaces, including M.2 and SATA, and provides ample connectivity options for peripherals.

• Supports AMD Ryzen 7000 Series processors
• 4 SATA connectors for various storage options
• 2 memory slots supporting up to 96 GB of DDR5 RAM
• Multiple USB ports including USB 3.2 Gen 2
• RAID support for level 0, 1, and 10 configurations

Internal I/O

• Number of SATA connectors: 4
• Supported hard disk drive interfaces: M.2, SATA

Memory

• Supported memory types: DDR5

Processor

• Processor family: AMD
• Processor socket: AM5

Technical details

• Producer product name: PRO B650M-B
• Net weight: 0.97 kg
• Warranty: 36 month(s)

Additional specifications

• Processor manufacturer: AMD
• Compatible processor series: AMD Ryzen 7000 Series
• Supported processor sockets: Socket AM5
• Maximum internal memory supported by processor: 96 GB
• Number of memory slots: 2
• Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
• Supported memory clock speed (max): 6800 MHz
• Maximum internal memory: 96 GB
• Supported storage drive interfaces: M.2, SATA
• RAID levels: 0, 1, 10
• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Chassis intrusion connector: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• VGA (D-Sub) ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Realtek RTL8125-BG
• Wi-Fi: No
• Motherboard chipset: AMD B650
• Audio chip: Realtek ALC897
• Audio output channels: 7.1 channels
• PC health monitoring: Fan
• Component for: PC
• Motherboard form factor: micro ATX
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11 x64
• PCI Express x16 (Gen 3.x) slots: 1
• Number of M.2 (M) slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 6.4
• System Management BIOS (SMBIOS) version: 3.5
• Width: 215 mm
• Depth: 243.8 mm
