About

Description

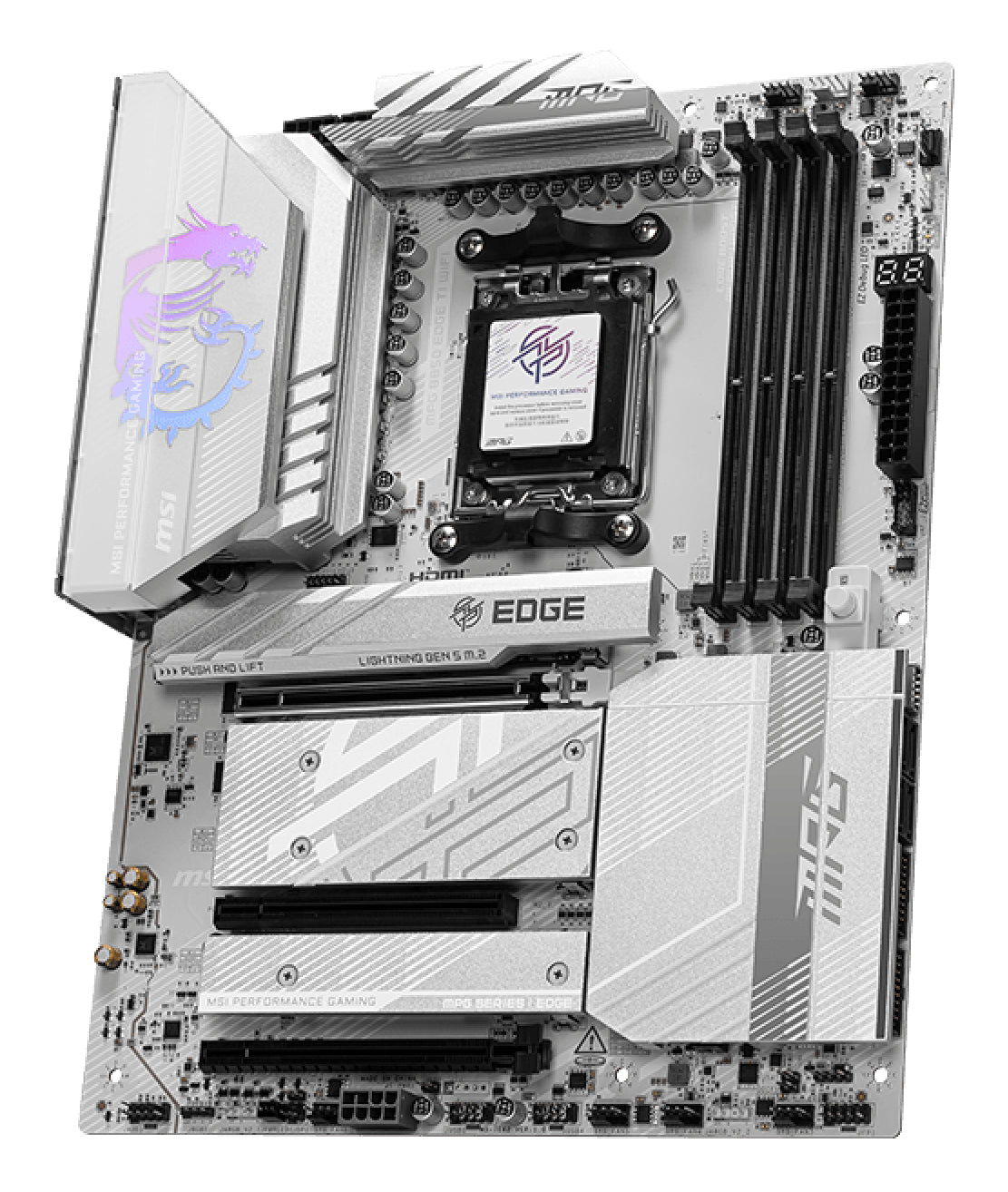

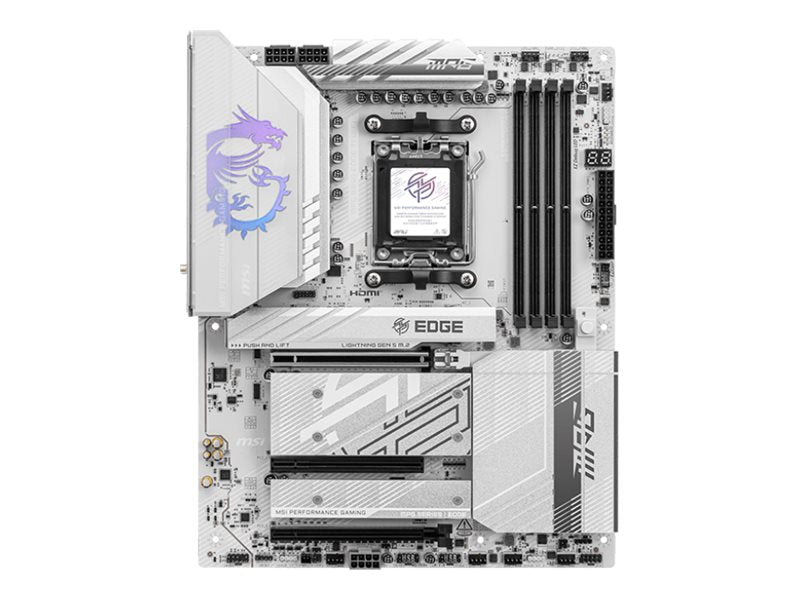

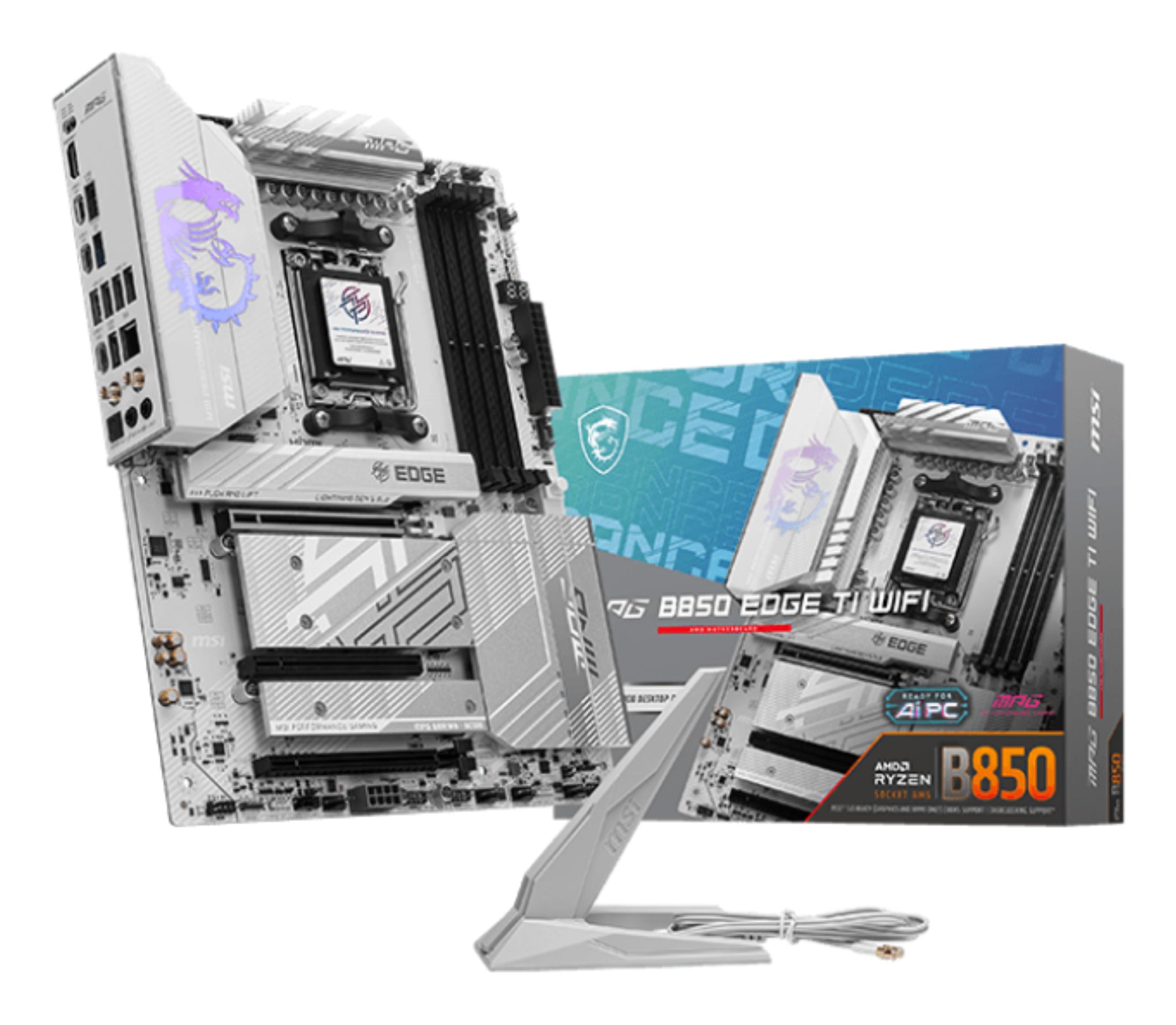

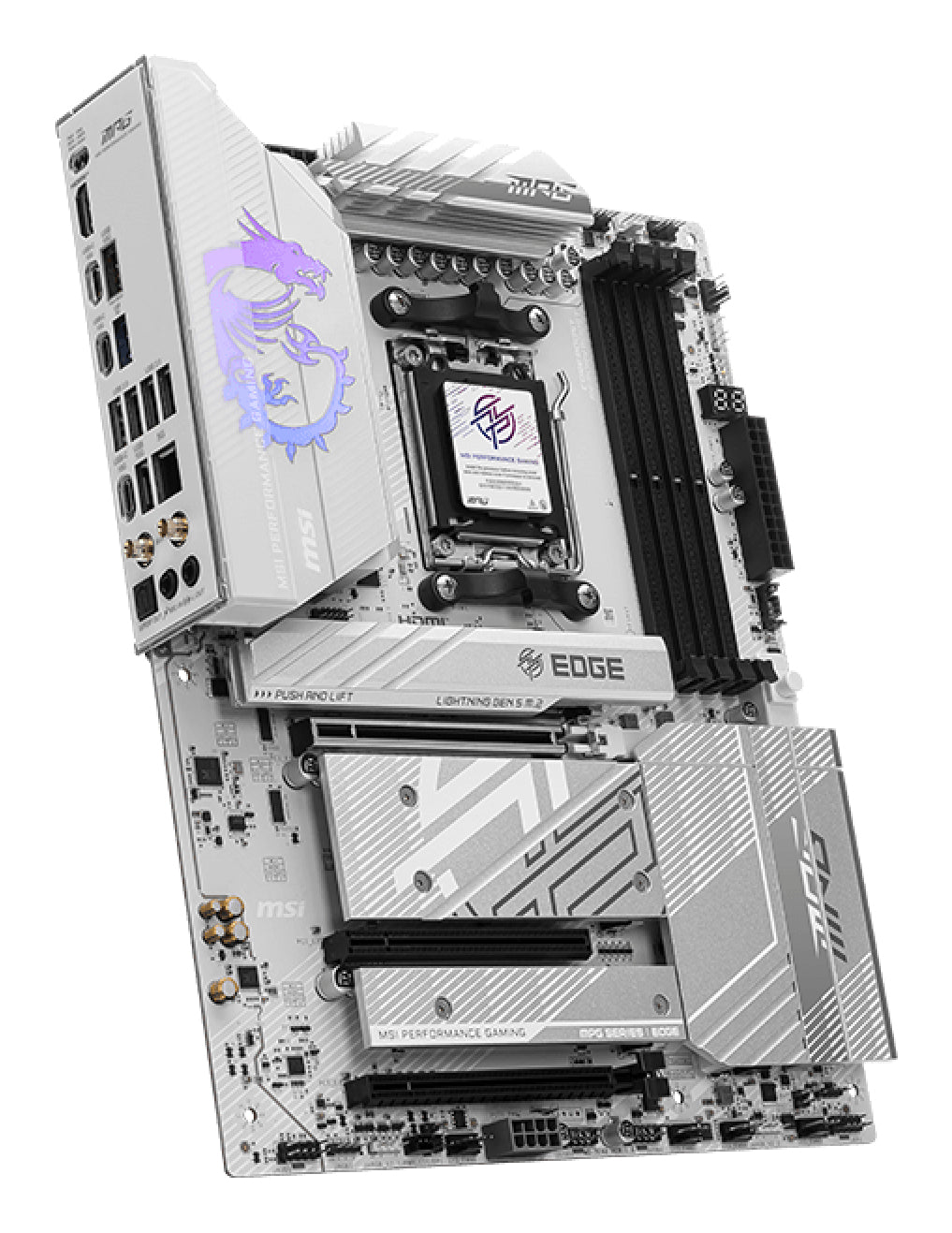

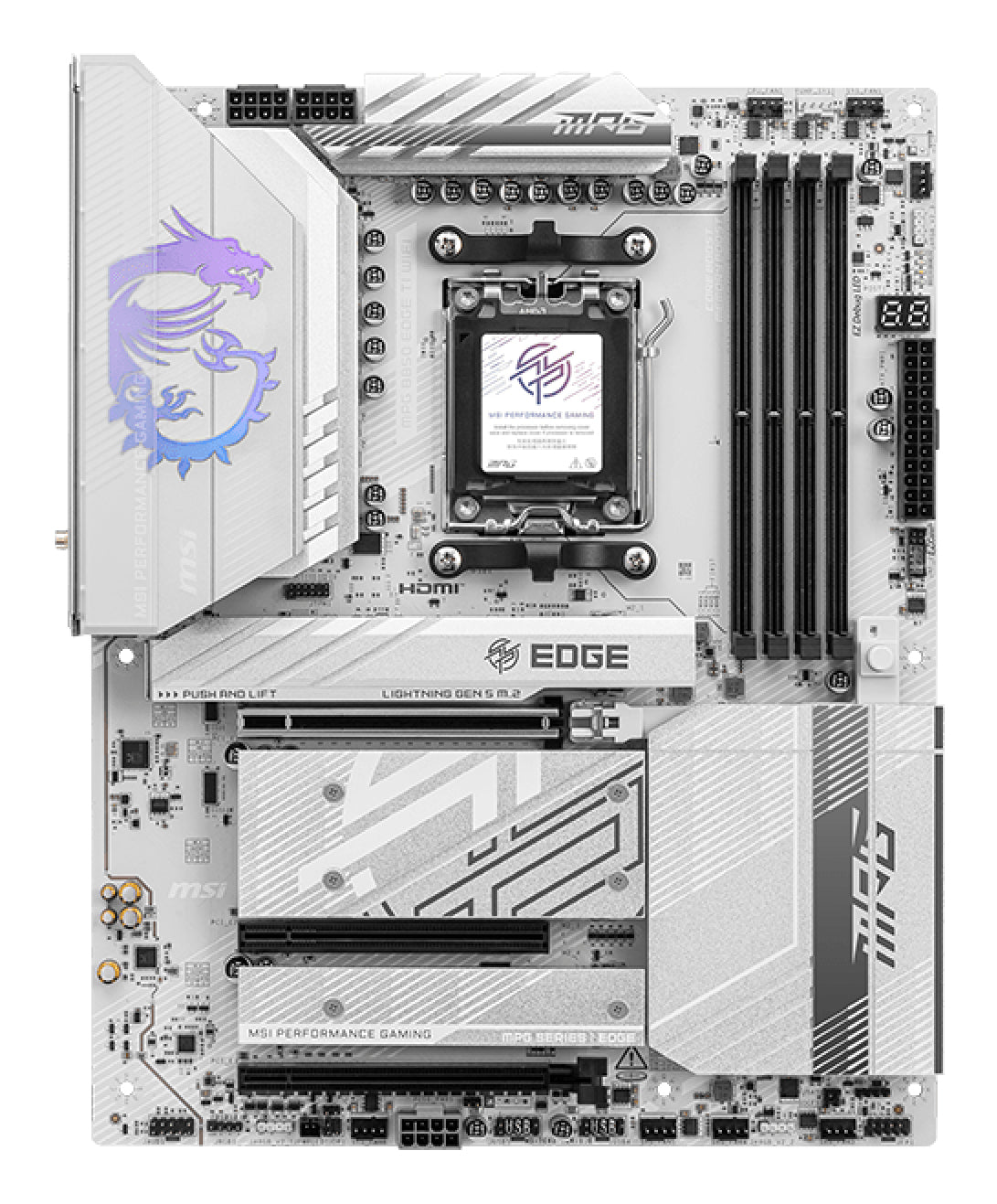

The MSI MPG B850 EDGE TI WIFI is a motherboard designed for gamers and PC builders who want to build a high-performance system using AMD processors. It supports the latest DDR5 memory and provides robust storage options, making it suitable for demanding applications and multitasking environments.

  • Supports AMD Ryzen 7000, 8000, and 9000 Series processors via AM5 socket for modern computing power.
  • Includes 4 SATA connectors and supports M.2 drives, allowing for multiple storage configurations for your needs.
  • Equipped with 4 memory slots for DDR5 memory, supporting speeds up to 8400 MHz, optimizing performance for gaming and multitasking.
  • Offers RAID support for storage redundancy or improved performance with RAID levels 0, 1, and 10.
  • Features 4 USB 3.2 Gen 1 and 4 USB 2.0 connectors, providing ample connectivity for peripherals and devices.
Technical details (2)
  • Producer product name: MPG B850 EDGE TI WIFI
  • Net weight: 1.67 kg
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Additional specifications (64)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Maximum internal memory supported by processor: 256 GB
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5600,8400 MHz
  • Supported memory clock speed (max): 8400 MHz
  • Maximum internal memory: 256 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, Micro SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • On-board graphics card: No
  • USB 2.0 connectors: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 6
  • Number of water pump connectors: 1
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 3
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Bluetooth: Yes
  • Bluetooth version: 5.4
  • Motherboard chipset: AMD B850
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Product colour: White
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4
  • 1st M.2 largest key size: 22110
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 5.0
  • 3rd M.2 largest key size: 2280
  • 3rd M.2 highest PCI Express generation: 4.0
  • 4th M.2 largest key size: 2280
  • 4th M.2 highest PCI Express generation: 4.0
  • Width: 304.8 mm
  • Depth: 243.8 mm
Description

The MSI MPG B850 EDGE TI WIFI is a motherboard designed for gamers and PC builders who want to build a high-performance system using AMD processors. It supports the latest DDR5 memory and provides robust storage options, making it suitable for demanding applications and multitasking environments.

  • Supports AMD Ryzen 7000, 8000, and 9000 Series processors via AM5 socket for modern computing power.
  • Includes 4 SATA connectors and supports M.2 drives, allowing for multiple storage configurations for your needs.
  • Equipped with 4 memory slots for DDR5 memory, supporting speeds up to 8400 MHz, optimizing performance for gaming and multitasking.
  • Offers RAID support for storage redundancy or improved performance with RAID levels 0, 1, and 10.
  • Features 4 USB 3.2 Gen 1 and 4 USB 2.0 connectors, providing ample connectivity for peripherals and devices.
Technical details (2)
  • Producer product name: MPG B850 EDGE TI WIFI
  • Net weight: 1.67 kg
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Additional specifications (64)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Maximum internal memory supported by processor: 256 GB
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5600,8400 MHz
  • Supported memory clock speed (max): 8400 MHz
  • Maximum internal memory: 256 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, Micro SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • On-board graphics card: No
  • USB 2.0 connectors: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 6
  • Number of water pump connectors: 1
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 3
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Bluetooth: Yes
  • Bluetooth version: 5.4
  • Motherboard chipset: AMD B850
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Product colour: White
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4
  • 1st M.2 largest key size: 22110
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 5.0
  • 3rd M.2 largest key size: 2280
  • 3rd M.2 highest PCI Express generation: 4.0
  • 4th M.2 largest key size: 2280
  • 4th M.2 highest PCI Express generation: 4.0
  • Width: 304.8 mm
  • Depth: 243.8 mm

MSI MPG B850 EDGE TI WIFI, Processor family AMD, Processor socket AM5, DDR5

€322,39
€322,39
Tax included.
