About

Description

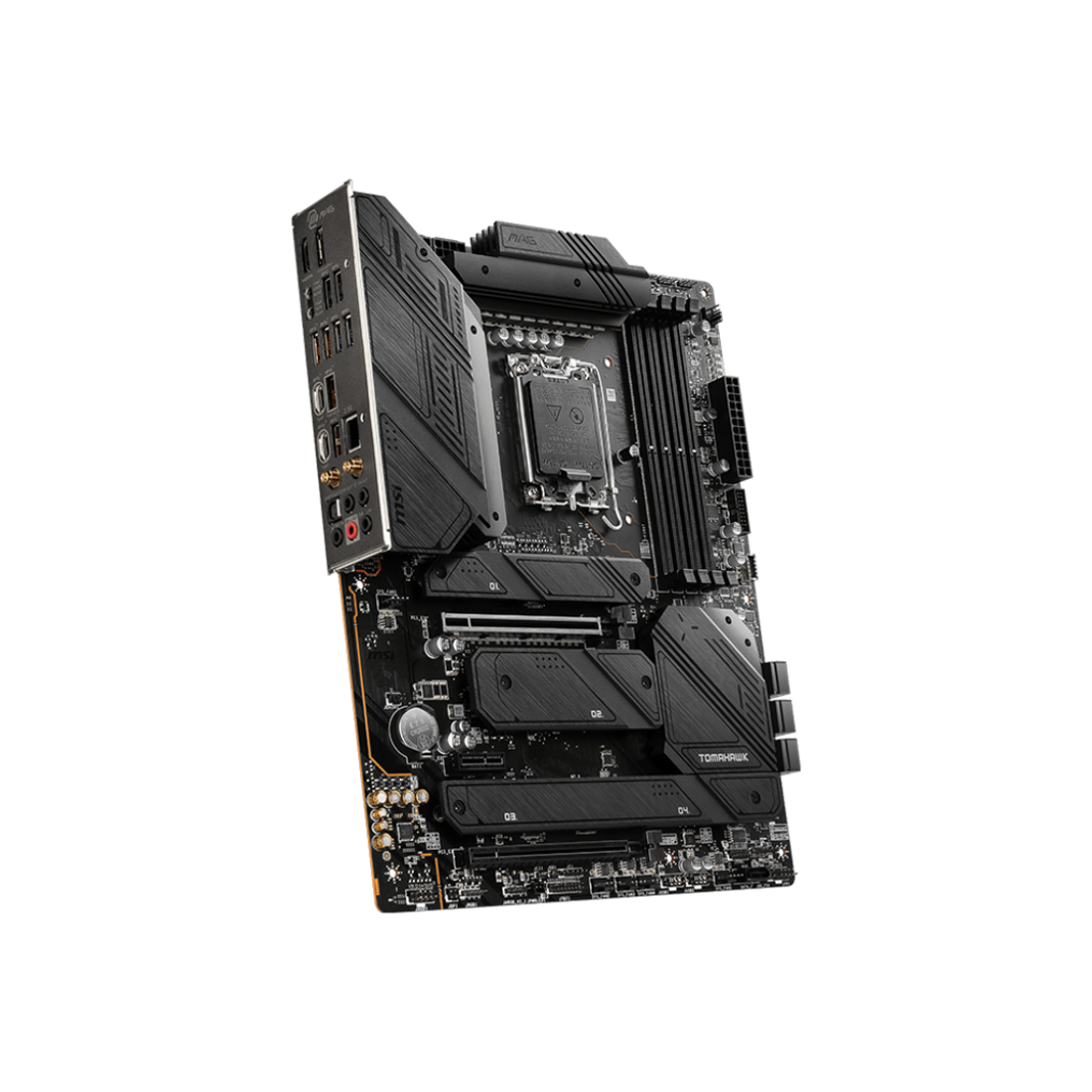

The MSI MAG Z790 TOMAHAWK WIFI is a versatile motherboard designed for users looking to build a powerful PC. It supports Intel processors and offers a strong foundation for gaming, content creation, and multitasking.

  • Supports the latest DDR5 memory for improved performance and speed.
  • Offers 7 SATA connectors, allowing for multiple storage devices to be connected.
  • Equipped with dual-channel memory channels for enhanced data transfer rates.
  • Compatible with a wide range of Intel processors, including Celeron and Pentium Gold.
  • Supports both M.2 and SATA storage interfaces, providing flexibility for HDD and SSD installations.
Internal I/O (2)
  • Number of SATA connectors: 7
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5 DIMM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Producer product name: MAG Z790 TOMAHAWK WIFI
  • Net weight: 0.97 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (62)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700
  • Maximum internal memory supported by processor: 192 GB
  • Number of memory slots: 4
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express
  • Number of storage drives supported: 11
  • RAID support: Yes
  • RAID levels: 0, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 7
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • CPU fan connector: Yes
  • Chassis intrusion connector: Yes
  • TPM connector: Yes
  • RGB LED pin header: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • S/PDIF out port: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.3
  • Motherboard chipset: Intel Z790
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x1 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 6.4
  • System Management BIOS (SMBIOS) version: 3.5
  • Width: 243.8 mm
  • Depth: 304.8 mm
  • Cables included: SATA
Description

The MSI MAG Z790 TOMAHAWK WIFI is a versatile motherboard designed for users looking to build a powerful PC. It supports Intel processors and offers a strong foundation for gaming, content creation, and multitasking.

  • Supports the latest DDR5 memory for improved performance and speed.
  • Offers 7 SATA connectors, allowing for multiple storage devices to be connected.
  • Equipped with dual-channel memory channels for enhanced data transfer rates.
  • Compatible with a wide range of Intel processors, including Celeron and Pentium Gold.
  • Supports both M.2 and SATA storage interfaces, providing flexibility for HDD and SSD installations.
Internal I/O (2)
  • Number of SATA connectors: 7
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5 DIMM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Producer product name: MAG Z790 TOMAHAWK WIFI
  • Net weight: 0.97 kg
Specifications (1)
  • Warranty: 36 month(s)
Additional specifications (62)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700
  • Maximum internal memory supported by processor: 192 GB
  • Number of memory slots: 4
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express
  • Number of storage drives supported: 11
  • RAID support: Yes
  • RAID levels: 0, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 7
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • CPU fan connector: Yes
  • Chassis intrusion connector: Yes
  • TPM connector: Yes
  • RGB LED pin header: Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • S/PDIF out port: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.3
  • Motherboard chipset: Intel Z790
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x1 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 6.4
  • System Management BIOS (SMBIOS) version: 3.5
  • Width: 243.8 mm
  • Depth: 304.8 mm
  • Cables included: SATA

MSI MAG Z790 TOMAHAWK WIFI, Processor family Intel, Processor socket LGA1700, DDR5 DIMM

€259,15
€259,15
Tax included.
