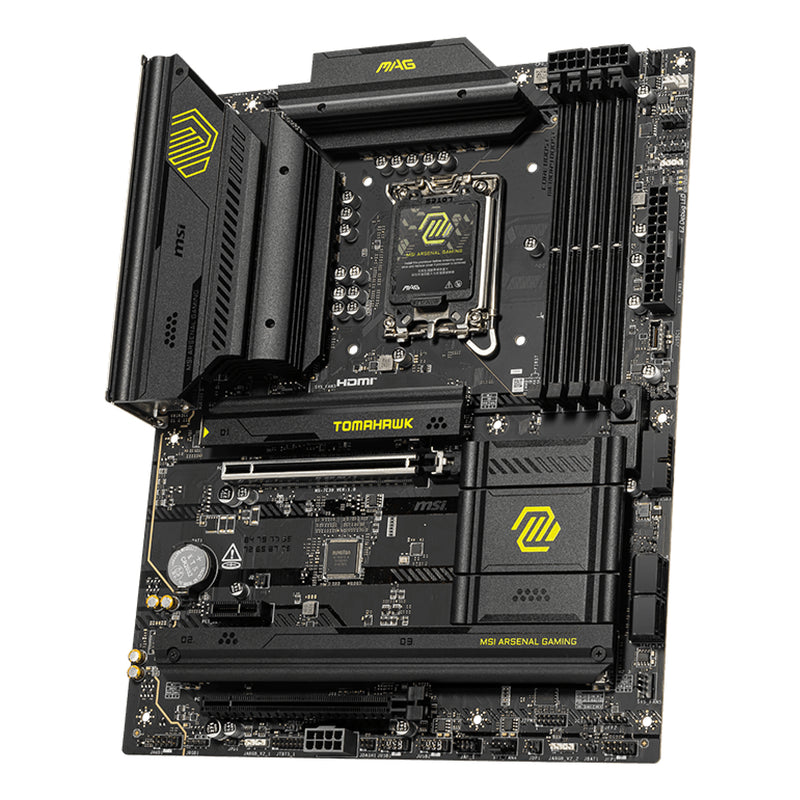

The MSI MAG B860 TOMAHAWK WIFI is a motherboard designed for Intel processors, featuring the LGA1851 socket. It supports DDR5 memory, has multiple storage options, and offers advanced RAID support for efficient data management.

• Compatible with Intel Core Ultra (Series 2) processors
• Supports up to 256 GB of DDR5 memory across 4 DIMM slots
• Includes 4 SATA connectors and M.2 interface for SSDs
• Features USB 2.0 and USB 3.2 Gen 1 connectivity
• Supports RAID levels 0, 1, 5, and 10 for enhanced storage options

Technical details

• Producer product name: MAG B860 TOMAHAWK WIFI
• Net weight: 1.95 kg

Specifications

• Warranty: 36 month(s)

Internal I/O

• Number of SATA connectors: 4
• Supported hard disk drive interfaces: SATA, M.2

Memory

• Supported memory types: DDR5

Processor

• Processor family: Intel
• Processor socket: LGA1851

Additional specifications

• Processor manufacturer: Intel
• Compatible processor series: Intel Core Ultra (Series 2)
• Supported processor sockets: LGA 1851
• Maximum internal memory supported by processor: 256 GB
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 5600,6400,7200,9200 MHz
• Supported memory clock speed (max): 9200 MHz
• Maximum internal memory: 256 GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, Micro SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0, 1, 5, 10
• On-board graphics card: No
• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• Total number of SATA connectors: 4
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of water pump connectors: 1
• RGB LED pin header: Yes
• Number of RGB LED pin headers: 3
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Ethernet LAN: Yes
• Ethernet interface type: 5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
• WLAN controller model: Killer Wi-Fi 7 1750x
• Bluetooth: Yes
• Bluetooth version: 5.4
• Motherboard chipset: Intel B860
• Audio chip: Realtek ALC897
• Audio output channels: 7.1 channels
• Product colour: Black
• Component for: PC
• Motherboard form factor: ATX
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 11 x64
• PCI Express x1 slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 3
• 1st M.2 largest key size: 2280
• 1st M.2 highest PCI Express generation: 5.0
• 2nd M.2 largest key size: 22110
• 2nd M.2 highest PCI Express generation: 4.0
• 3rd M.2 largest key size: 2280
• 3rd M.2 highest PCI Express generation: 4.0
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 6.5
• System Management BIOS (SMBIOS) version: 3.7
• Width: 243.8 mm
• Depth: 304.8 mm
