About
Description

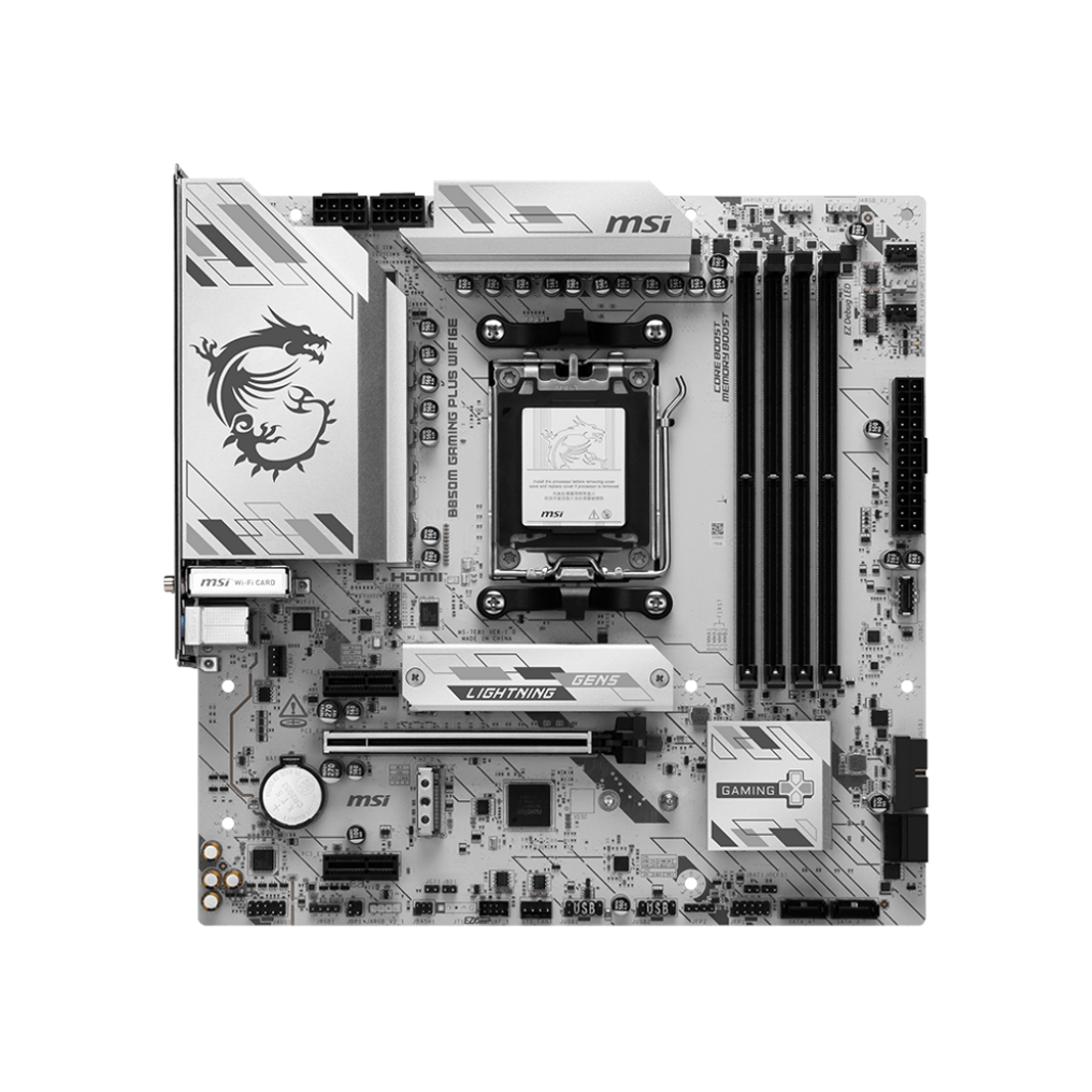

The MSI B850M GAMING PLUS WIFI6E is a motherboard designed for gamers and PC builders seeking a reliable platform for AMD processors. It supports a variety of storage options and modern memory, making it suitable for both gaming and productivity tasks.
- Supports AMD Ryzen 7000, 8000, and 9000 Series processors with an AM5 socket for enhanced performance.
- Provides four SATA connectors and M.2 interface for flexible storage options, accommodating both HDD and SSD drives.
- Offers four DIMM slots for DDR5 memory, supporting speeds up to 8200 MHz to meet demanding application requirements.
- Includes support for RAID configurations (0, 1, 10) to enhance data security and performance.
- Equipped with multiple USB connectors, including four USB 2.0 and three USB 3.2 ports for fast data transfer.
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Technical details (2)
- Net weight: 1.60 kg
- Producer product name: B850M GAMING PLUS WIFI6E
Additional specifications (71)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,6000,6400,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- On-board graphics card: No
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- LAN controller: Realtek RTL8126
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
- PCI Express x4 slots: 1
- PCI Express x16 slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 5.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.5
- System Management BIOS (SMBIOS) version: 3.7
- Width: 243.8 mm
- Depth: 243.8 mm
