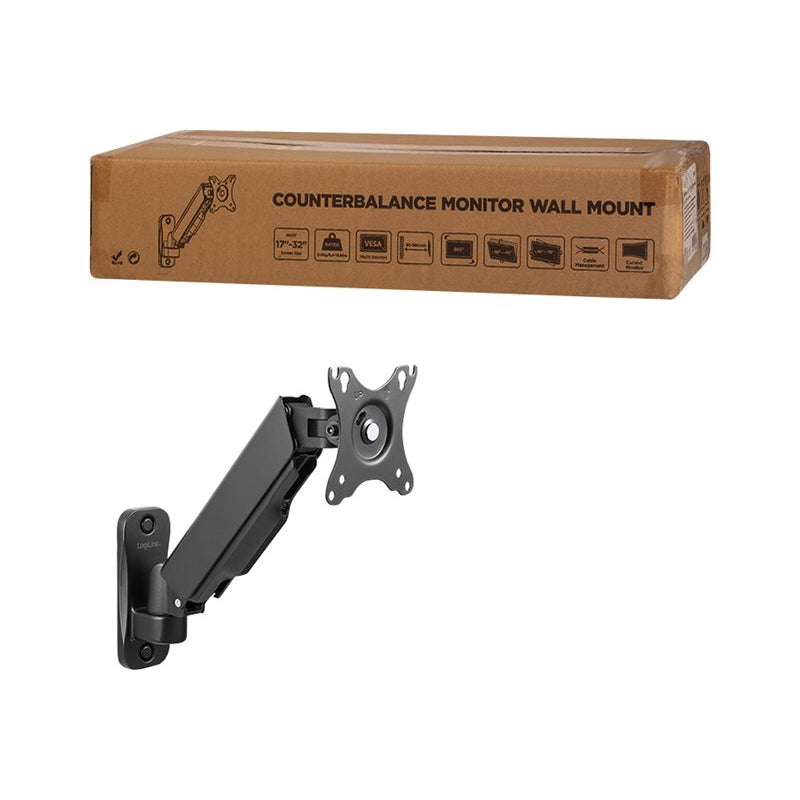

The Logilink Wall Mount is designed for displays ranging from 17 to 32 inches, supporting a maximum weight of 9 kg. It features tilt, swivel, and rotate functions for optimal viewing angles and comes equipped with a gas spring for height adjustment.

• Compatible with VESA mounting interfaces 75 x 75 mm and 100 x 100 mm
• Allows for a tilt angle range of -45 to 90 degrees
• Distance from the wall can be adjusted between 90 mm and 380 mm
• Supports one display with a maximum weight capacity of 9 kg
• Finished in black for a sleek appearance

Design

• Colour of product: Black
• VESA mounting: Yes

Mounting

• Maximum weight (capacity): 9 kg
• Distance to the wall (max): 380 mm
• Distance to the wall (min): 90 mm
• Maximum screen size compatibility: 32 "
• Mounting interface compatibility (max): 100 x 100 mm
• Mounting interface compatibility (min): 75 x 75 mm
• VESA mounting interfaces: 75 x 75, 100 x 100 mm

Technical details

• Functions: Tilt, swivel, rotate
• Placement: Wall mount
• Screen size compatibility: 17-32 "
• Net weight: 1.28 kg
• Other features: With gas spring
• Producer product family: Monitor wall mount
• Producer product name: BP0144

Specifications

• Warranty: 24 month(s)

Ergonomics

• Tilt angle: -45-90 °

Additional specifications

• Maximum weight capacity: 9 kg
• Minimum screen size: 43.2 cm (17")
• Number of displays supported: 1
• Maximum screen size: 81.3 cm (32")
• Mounting type: Wall
• Minimum VESA mount: 75 x 75 mm
• Maximum VESA mount: 100 x 100 mm
• Panel mounting interface: 75 x 75,100 x 100 mm
• Height adjustment: Yes
• Height adjustment type: Gas spring
• Tilt adjustment: Yes
• Tilt angle range: -45 - 90°
• Swivel angle range: -90 - 90°
• Angle of rotation: 360°
• Cable management: Yes
• Housing material: Aluminium, Plastic, Steel
• Product colour: Black
• Width: 315 mm
• Depth: 117 mm
• Height: 321 mm
• Weight: 1.28 kg
• Harmonized System (HS) code: 85299097
