Description

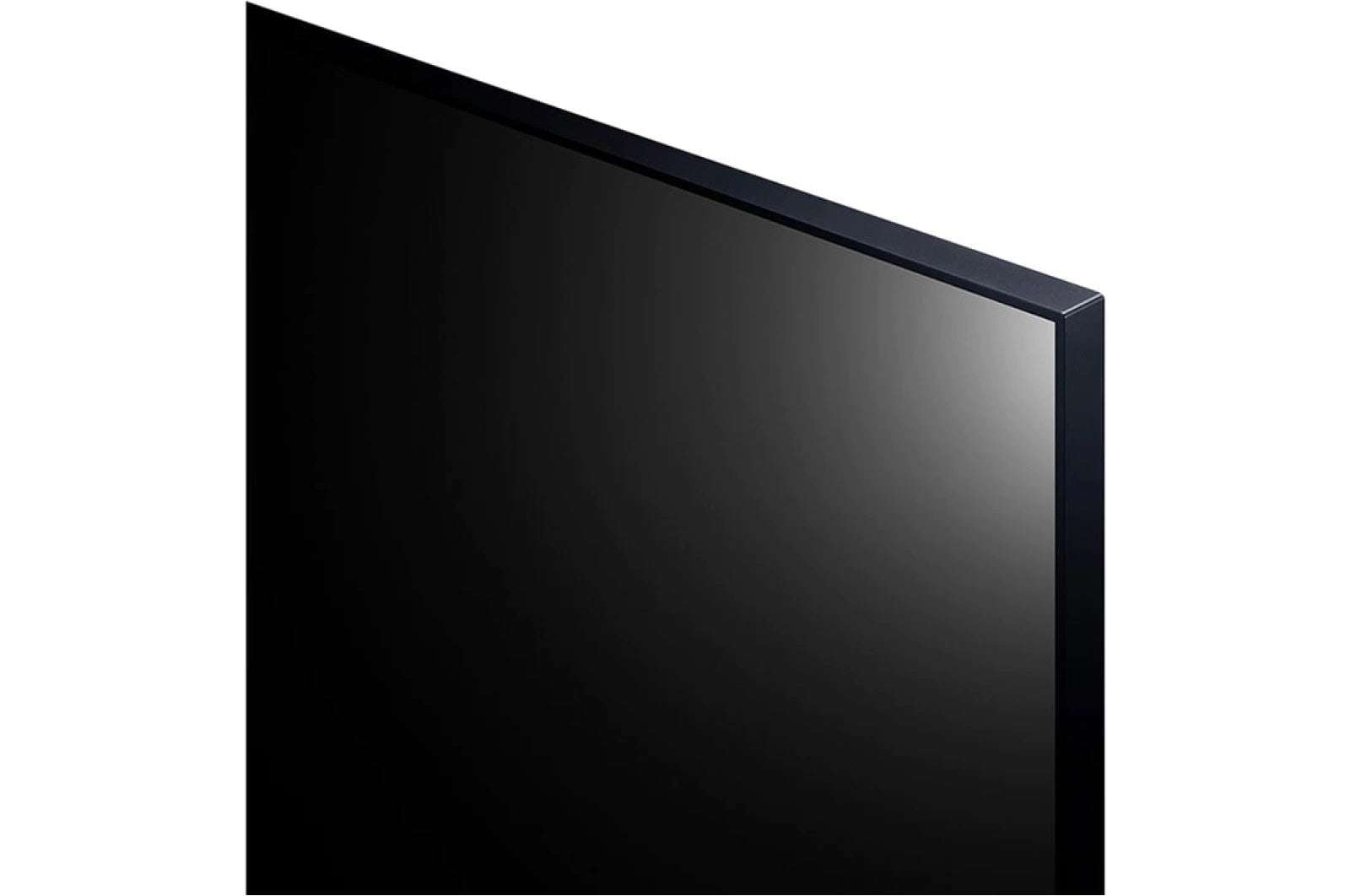

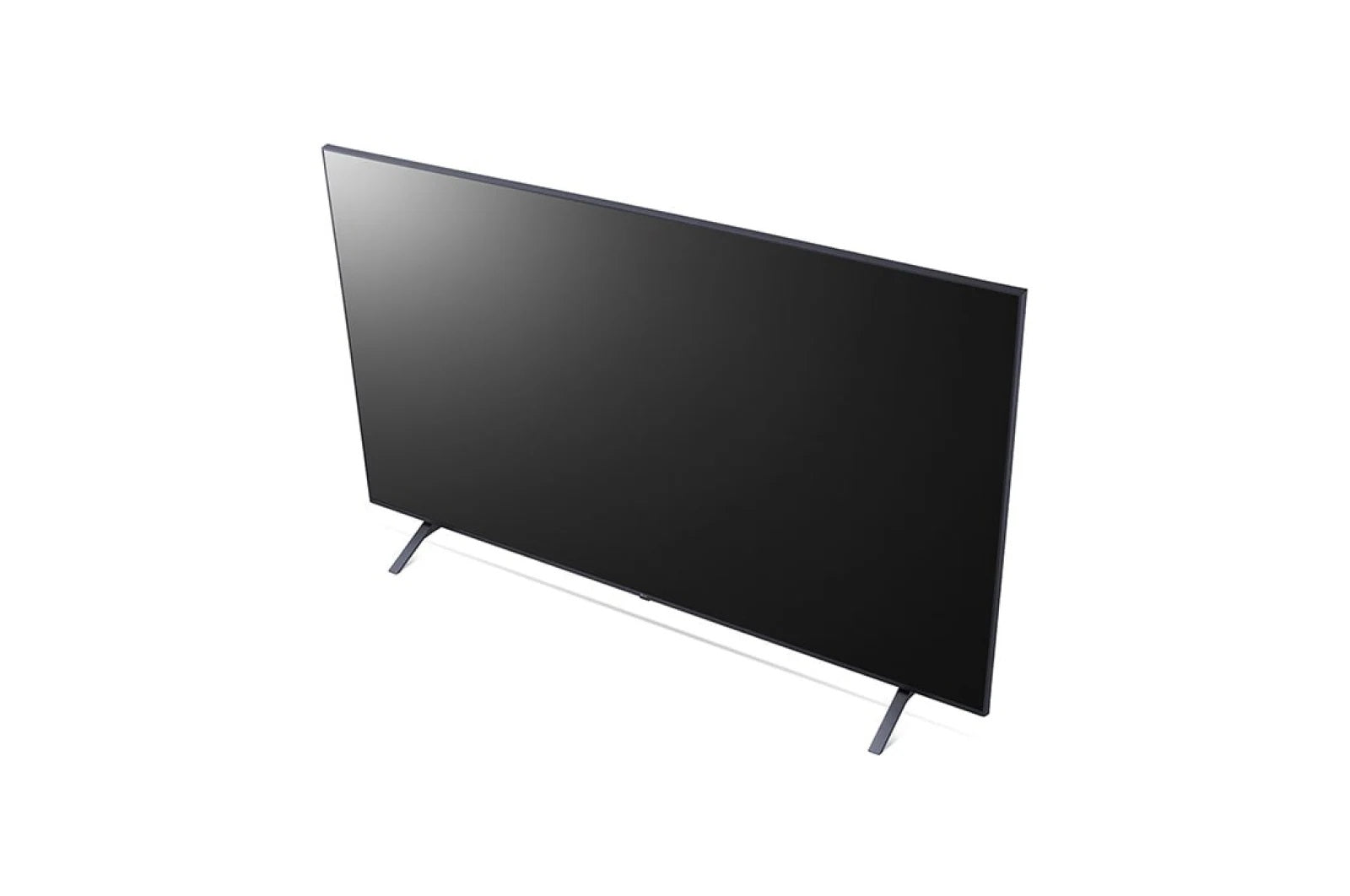

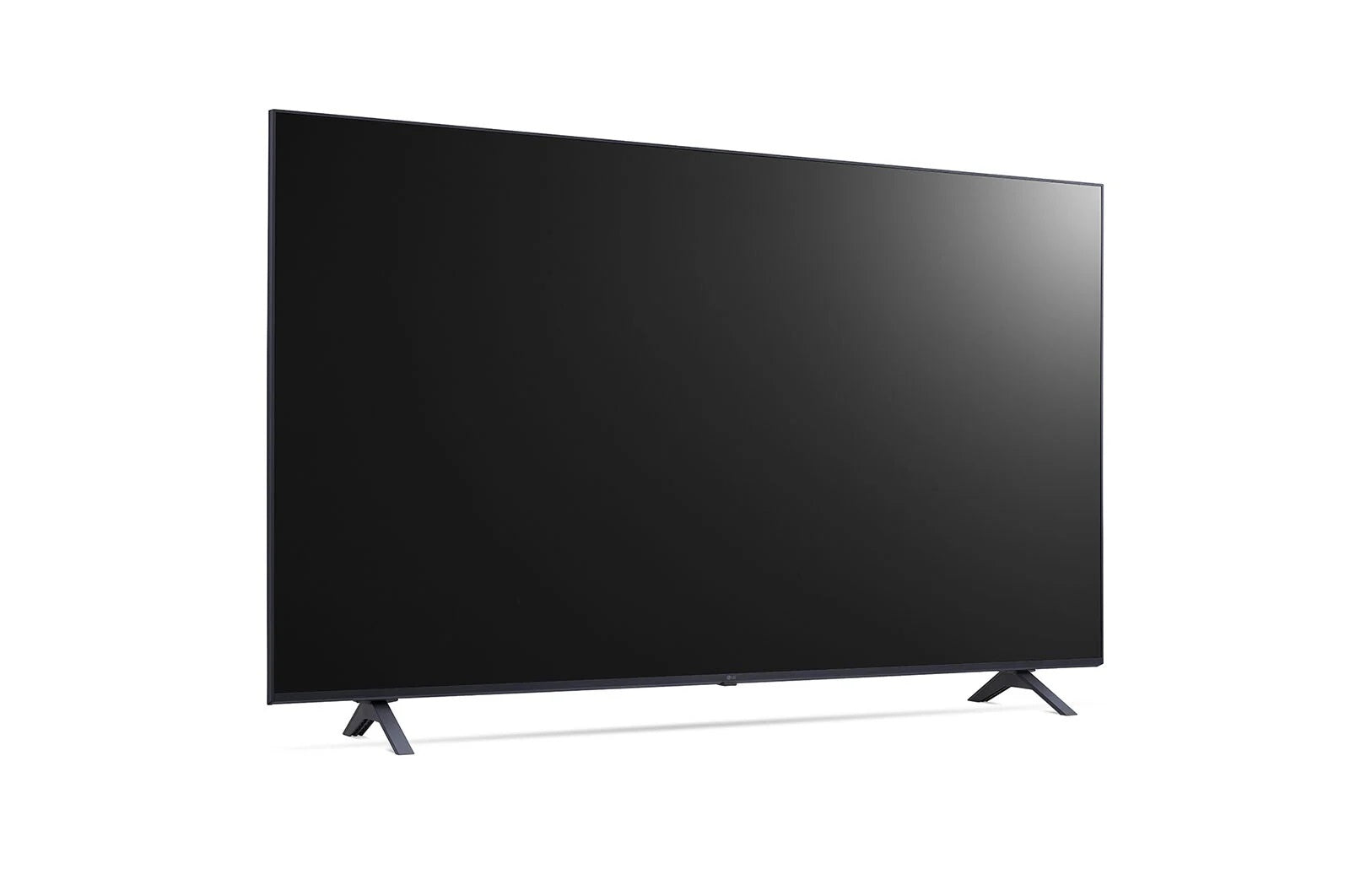

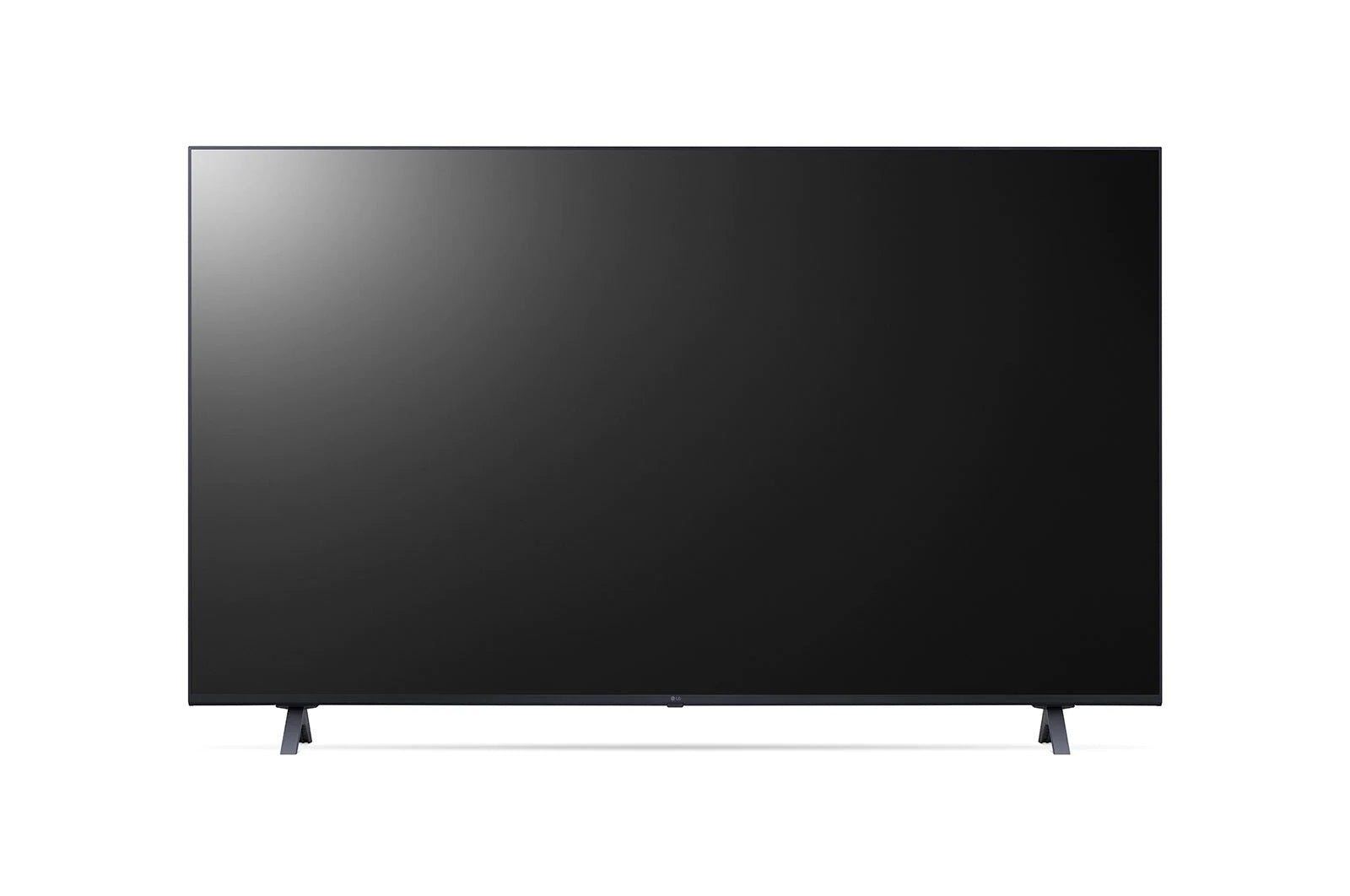

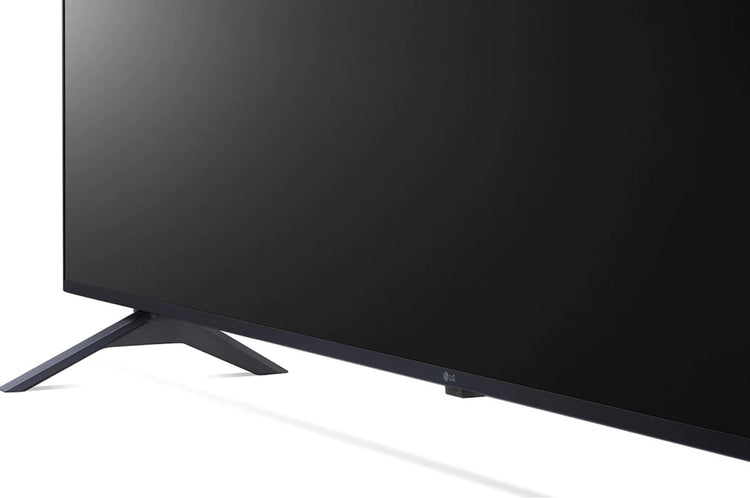

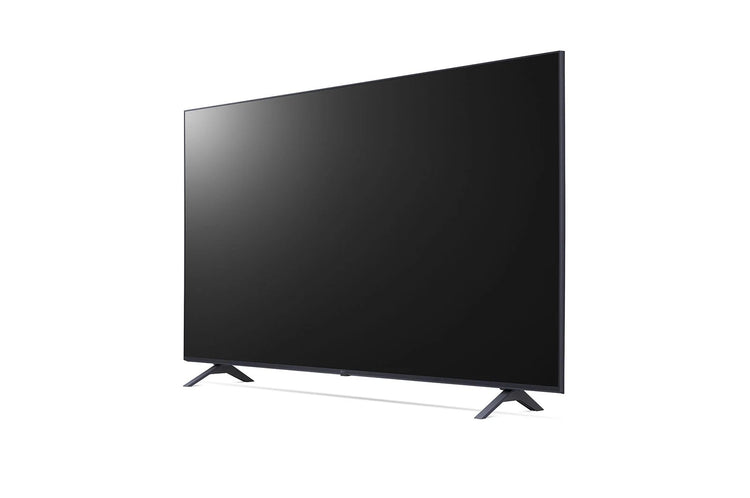

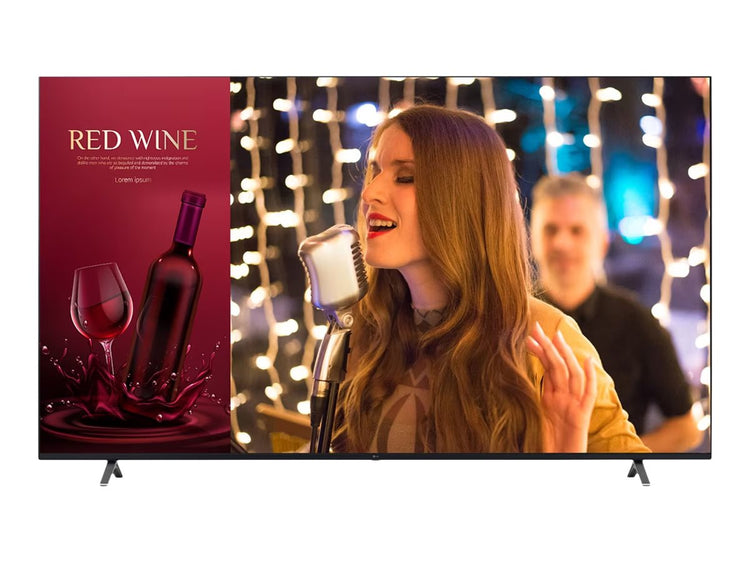

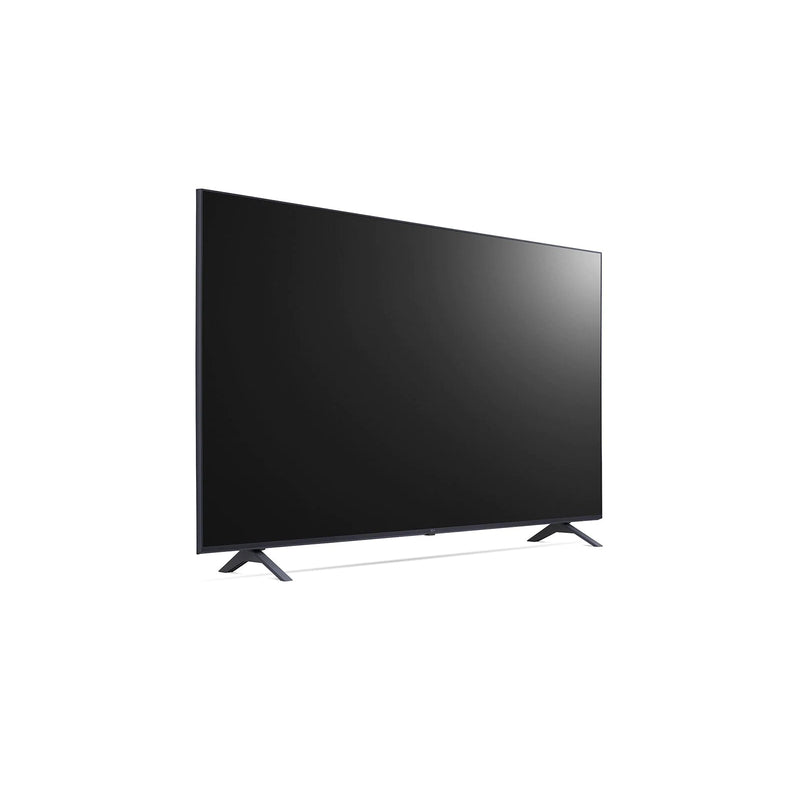

The LG 86UR640S3ZD is an 86-inch digital signage display designed for businesses seeking a high-quality visual solution. Its large size and impressive 4K Ultra HD resolution make it ideal for presentations and advertising in retail or public environments.

The 4K resolution (3840 x 2160 pixels) provides clear and detailed imagery, ensuring your content looks vibrant and professional.
With a brightness of 330 cd/m², the display remains visible and engaging even in well-lit areas.
Operating continuously for 16 hours a day, 7 days a week, this display is built for demanding environments where reliability is essential.
VESA mounting compatibility allows for flexible installation options, making it easier to integrate into various spaces.
High Dynamic Range (HDR) support enhances visual quality with improved contrast and color range, making your content more appealing.

Specifications (2)

Producer product name: 86UR640S3ZD
Warranty: 36 month(s)

Display (3)

Placement (L/P): Landscape
Contrast ratio (typical): 1200 : 1
Display: 3840 x 2160 pixels

Software (2)

Operating system: WebOS
Operating system version: 6.0

Technical details (4)

Brightness: 330 cd/m²
Diagonal: 86 "
Operating hours/days: 16/7
Net weight: 42.50 kg

Audio (1)

Built-in speaker(s): Yes

Design (2)

VESA mounting: Yes
VESA mounting interfaces: 600 x 400 mm

Other features (1)

Signage product family: Digital Signage

Ports & interfaces (1)

Device connectivity: Set Side:HDMI In (3 (2.0)), Headphone Out (Phone Jack Type), RS-232C(D-Sub 9pin / Phone jack) (Phone Jack, 4pin), LG SVC only (Phone jack type) (Phone Jack Type), CI Slot (CI+ 1.4 ECP); Set Rear / Bottom: USB (2.0), RF In (2), Digital Audio Out (Optical), External Speaker Out(3.5mm phone jack), RJ45 (Usage Purpose) (LAN)

Power (1)

Energy efficiency class: G

Additional specifications (74)

LED backlight: Yes
Display diagonal: 2.18 m (86")
Display technology: LED
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Display diagonal (metric): 217.4 cm
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG)
Native refresh rate: 120 Hz
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DVI port: No
USB port: Yes
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Digital audio optical out: 1
Number of built-in speakers: 2
RMS rated power: 20 W
Product design: Digital signage flat panel
Placement supported: Indoor
Colour name: Ashed Blue
Orientation: Horizontal/Vertical
Product colour: Blue
Screen shape: Flat
Panel mounting interface: 600 x 400 mm
Purpose: Universal
TV tuner integrated: Yes
Analog signal format system: PAL, SECAM
Digital signal format system: DVB-S2, DVB-T2, ISDB-C
Miracast: Yes
Browsing: Yes
Power consumption (typical): 313 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 171 kWh
Energy consumption (HDR) per 1000 hours: 245 kWh
AC input voltage: 120 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system: Yes
Built-in processor: Yes
Operating system installed: WebOS
Google applications: Google Chromecast
Display width: 1927 mm
Display depth: 59.9 mm
Display height: 1104 mm
Display weight: 45.2 kg

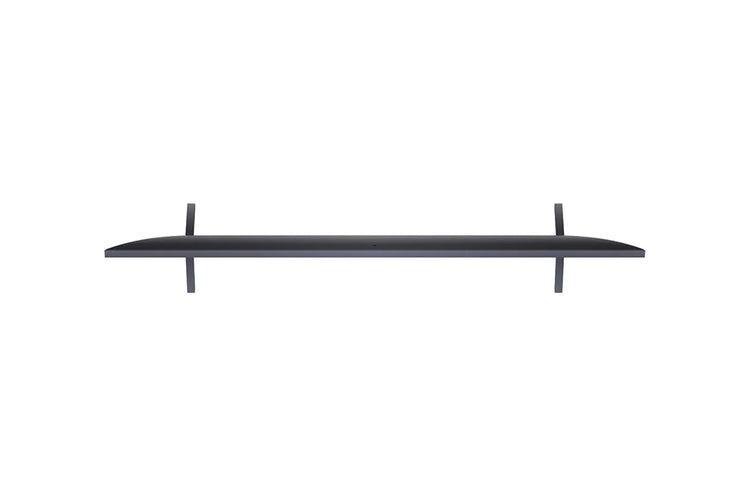

Width (with stand): 1927 mm
Depth (with stand): 362 mm
Height (with stand): 1167 mm
Weight (with stand): 45.9 kg
Stand included: Yes
Remote control included: Yes
Remote control type: S-con
Cables included: AC
Certification: CB, CU TR, CE
Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth: Yes
Cable lock slot: Yes
Headphone connectivity: 3.5 mm
Headphone outputs: 1
Cable lock slot type: Kensington
Cable length: 1.5 m
Power supply type: Internal
Hotel mode: Yes
