Description

The LG 86UH5J-H is an 86-inch digital signage display suitable for businesses needing versatile advertising options. It offers a clear 4K resolution and can operate in both landscape and portrait orientations, making it ideal for various settings.

High brightness of 500 cd/m² ensures visibility in well-lit environments.
Supports 24/7 operation, suitable for continuous use in busy locations.
Wide viewing angles of 178° both horizontally and vertically provide clear visibility from multiple positions.
WebOS operating system allows easy integration of digital content and apps.
VESA mounting support offers flexibility in display installation.

Specifications (2)

Producer product name: 86UH5J-H
Warranty: 36 month(s)

Display (6)

Placement (L/P): Landscape/Portrait
Response time: 8 ms
Viewing angle, horizontal: 178 °
Viewing angle, vertical: 178 °
Contrast ratio (typical): 1100 : 1
Display: 3840 x 2160 pixels

Software (1)

Operating system: WebOS

Technical details (7)

Brightness: 500 cd/m²
Diagonal: 86 "
Operating hours/days: 24/7
Bezel width: 14.3 mm (Even bezel) mm
Dimensions (WxDxH): 1926.2 x 60.6 x 1097.2 mm
Net weight: 49.00 kg
Type: IPS

Audio (1)

Built-in speaker(s): Yes

Design (3)

Colour of product: Black
VESA mounting: Yes
VESA mounting interfaces: 600 x 400 mm

Operational conditions (1)

Operating temperature (T-T): 0/40 °C

Other features (1)

Signage product family: Digital Signage

Ports & interfaces (1)

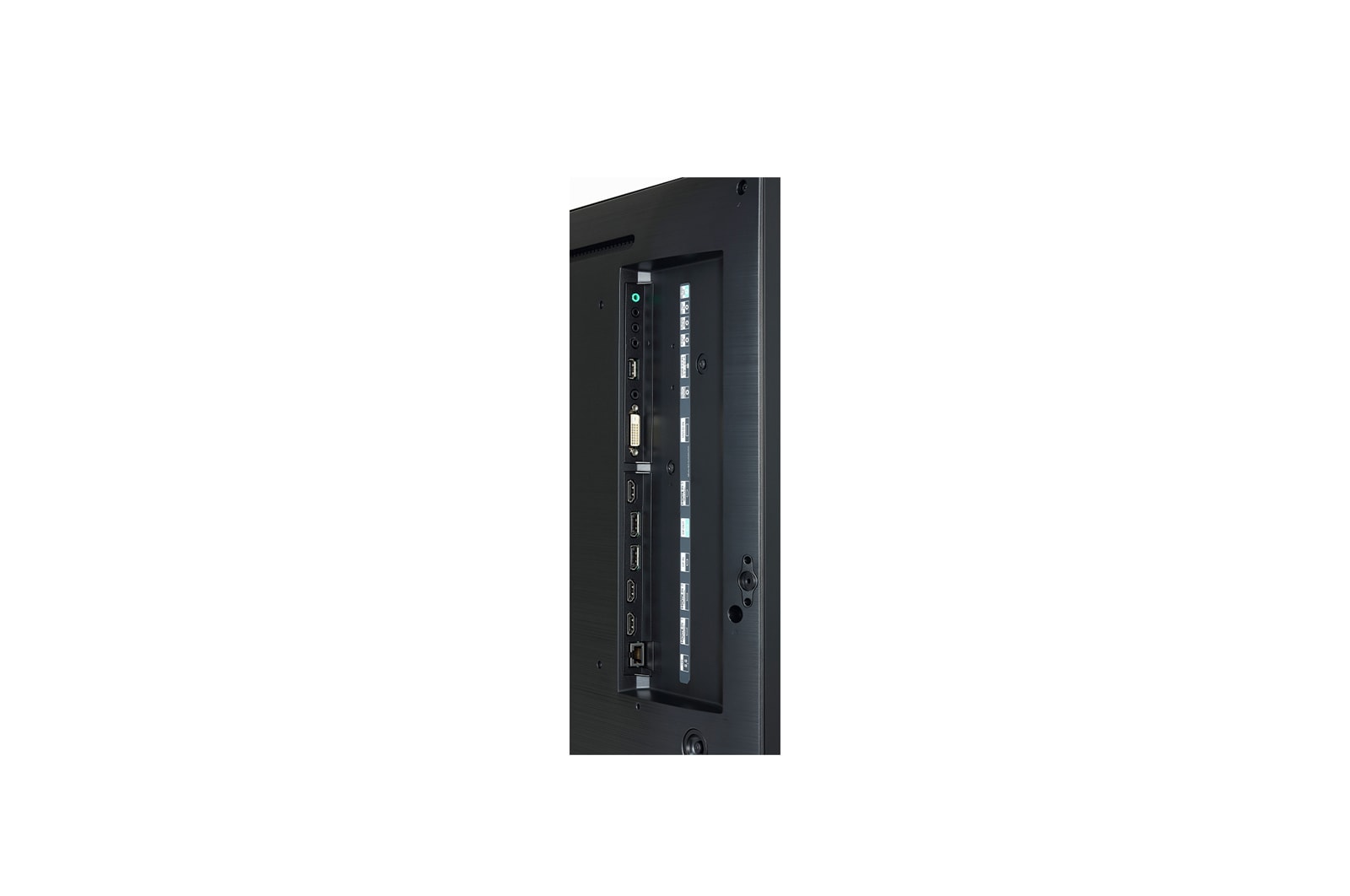

Device connectivity: Input: HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1); Output: HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

Additional specifications (63)

LED backlighting type: Edge-LED
Display diagonal: 2.18 m (86")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Contrast ratio (dynamic): 1000000:1
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Native refresh rate: 120 Hz
Haze rate: 28%
RGB colour space: NTSC
HDMI ports quantity: 3
HDMI version: 2.2/1.4
DVI port: Yes
DVI-D ports quantity: 1
DisplayPorts quantity: 1
USB port: Yes
USB ports quantity: 1
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
RS-232C: Yes
Infrared data port: Yes
Remote (IR) input: 1
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.43 cm
Bezel width (side): 1.43 cm
Bezel width (top): 1.43 cm
Purpose: Commercial
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days): 24/7
HDCP: Yes
International Protection (IP) code: IP5X
HDCP version: 1.4/2.2
Power consumption (typical): 215 W
Power consumption (sleep): 0.5 W
Power consumption (off): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50-60 Hz
Heat dissipation: 733.69 BTU/h
Internal memory: 16 GB
Operating system installed: WebOS
Display width: 1926.2 mm
Display depth: 60.6 mm
Display height: 1097.2 mm
Display weight: 49 kg
Remote control included: Yes
Batteries included: Yes
Cables included: AC
Operating relative humidity (H-H): 10 - 80%
Ambient light sensor: Yes
Ethernet LAN: Yes
Wi-Fi: Yes
Heat dissipation (max): 955.5 BTU/h
