Description

The Lenovo 4G LTE CAT16 M.2 WWAN Module is designed for users of the ThinkPad X1 Carbon Gen 11 who need reliable and fast mobile internet connectivity. This compact component enhances your laptop's capabilities with robust wireless technology.

  • Supports maximum data transfer rates up to 1000 Mbit/s, ensuring high-speed internet access.
  • Features 4x4 MIMO protocol for improved connection stability and performance in crowded networks.
  • Designed specifically for ThinkPad X1 Carbon Gen 11, providing seamless integration.
  • Internal antenna design simplifies installation and maintains a sleek profile.
  • Certified for various international standards, ensuring compatibility and reliability across different regions.
Specifications (3)
  • Producer product family: 4G LTE CAT16 M.2 WWAN Module
  • Producer product name: ThinkPad Fibocom L860-GL-16
  • Warranty: 12 month(s)
Other features (1)
  • Dimensions (WxDxH): 30x42x2.3 mm
Performance (2)
  • Compatible products: For ThinkPad X1 Carbon Gen 11
  • Interface: PCIe Gen2 M.2
Technical details (3)
  • Net weight: 0.03 kg
  • Other features: Antenna Connector: WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe
  • Warranty: 1 year(s)
Weight & dimensions (1)
  • Weight: 6.2 g
Additional specifications (17)
  • Connectivity technology: Wireless
  • Host interface: M.2
  • Maximum data transfer rate: 1000 Mbit/s
  • 4G standard: LTE-TDD & LTE-FDD
  • Mobile network generation: 4G
  • MU-MIMO: Yes
  • Component for: Laptop
  • Internal: Yes
  • Antenna design: Internal
  • Certification: CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
  • Windows operating systems supported: Windows 11
  • Operating temperature (T-T): -10 - 55 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 30 mm
  • Depth: 42 mm
  • Height: 2.3 mm
Description

The Lenovo 4G LTE CAT16 M.2 WWAN Module is designed for users of the ThinkPad X1 Carbon Gen 11 who need reliable and fast mobile internet connectivity. This compact component enhances your laptop's capabilities with robust wireless technology.

  • Supports maximum data transfer rates up to 1000 Mbit/s, ensuring high-speed internet access.
  • Features 4x4 MIMO protocol for improved connection stability and performance in crowded networks.
  • Designed specifically for ThinkPad X1 Carbon Gen 11, providing seamless integration.
  • Internal antenna design simplifies installation and maintains a sleek profile.
  • Certified for various international standards, ensuring compatibility and reliability across different regions.
Specifications (3)
  • Producer product family: 4G LTE CAT16 M.2 WWAN Module
  • Producer product name: ThinkPad Fibocom L860-GL-16
  • Warranty: 12 month(s)
Other features (1)
  • Dimensions (WxDxH): 30x42x2.3 mm
Performance (2)
  • Compatible products: For ThinkPad X1 Carbon Gen 11
  • Interface: PCIe Gen2 M.2
Technical details (3)
  • Net weight: 0.03 kg
  • Other features: Antenna Connector: WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe
  • Warranty: 1 year(s)
Weight & dimensions (1)
  • Weight: 6.2 g
Additional specifications (17)
  • Connectivity technology: Wireless
  • Host interface: M.2
  • Maximum data transfer rate: 1000 Mbit/s
  • 4G standard: LTE-TDD & LTE-FDD
  • Mobile network generation: 4G
  • MU-MIMO: Yes
  • Component for: Laptop
  • Internal: Yes
  • Antenna design: Internal
  • Certification: CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
  • Windows operating systems supported: Windows 11
  • Operating temperature (T-T): -10 - 55 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Width: 30 mm
  • Depth: 42 mm
  • Height: 2.3 mm

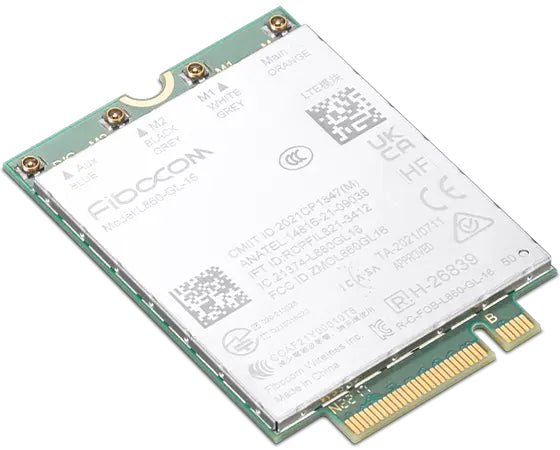

Lenovo ThinkPad Fibocom L860-GL-16 — 4G LTE CAT16 M.2 WWAN Module

€167,39
€167,39
Tax included.
