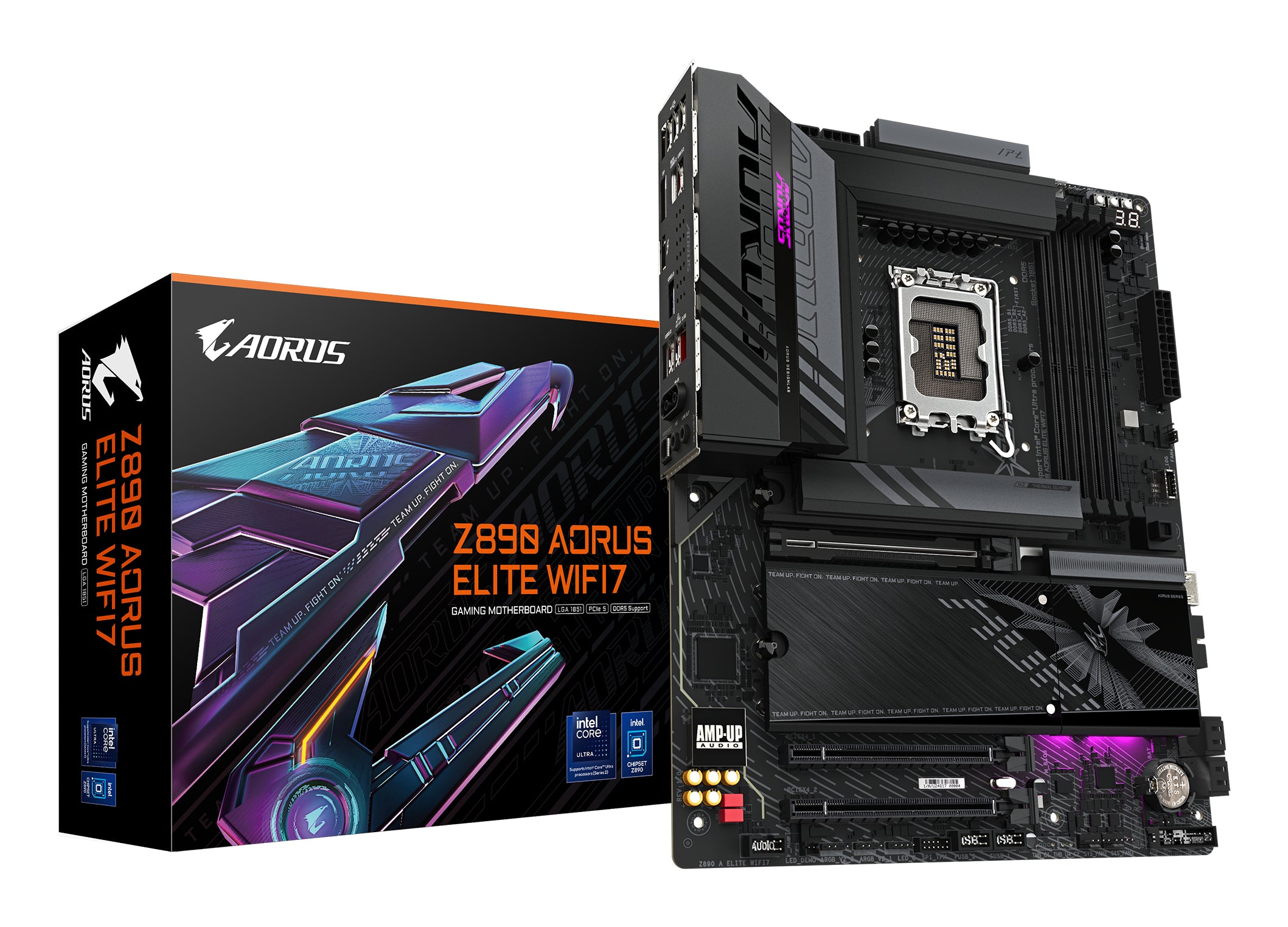

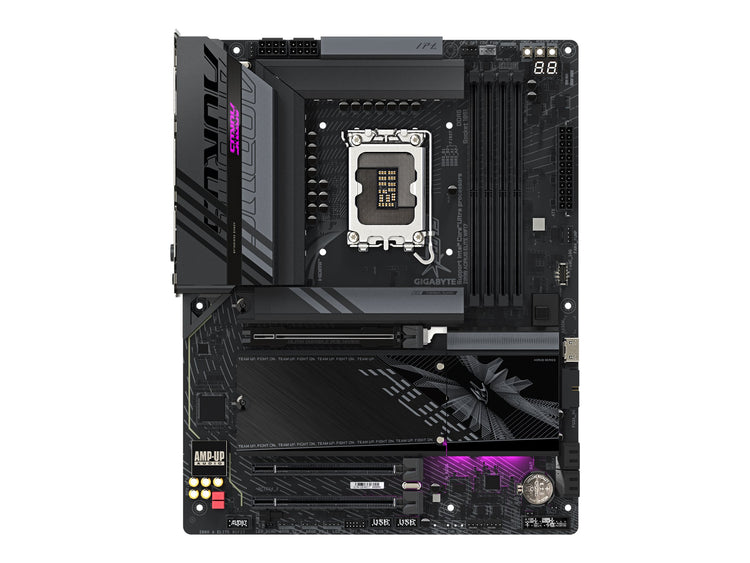

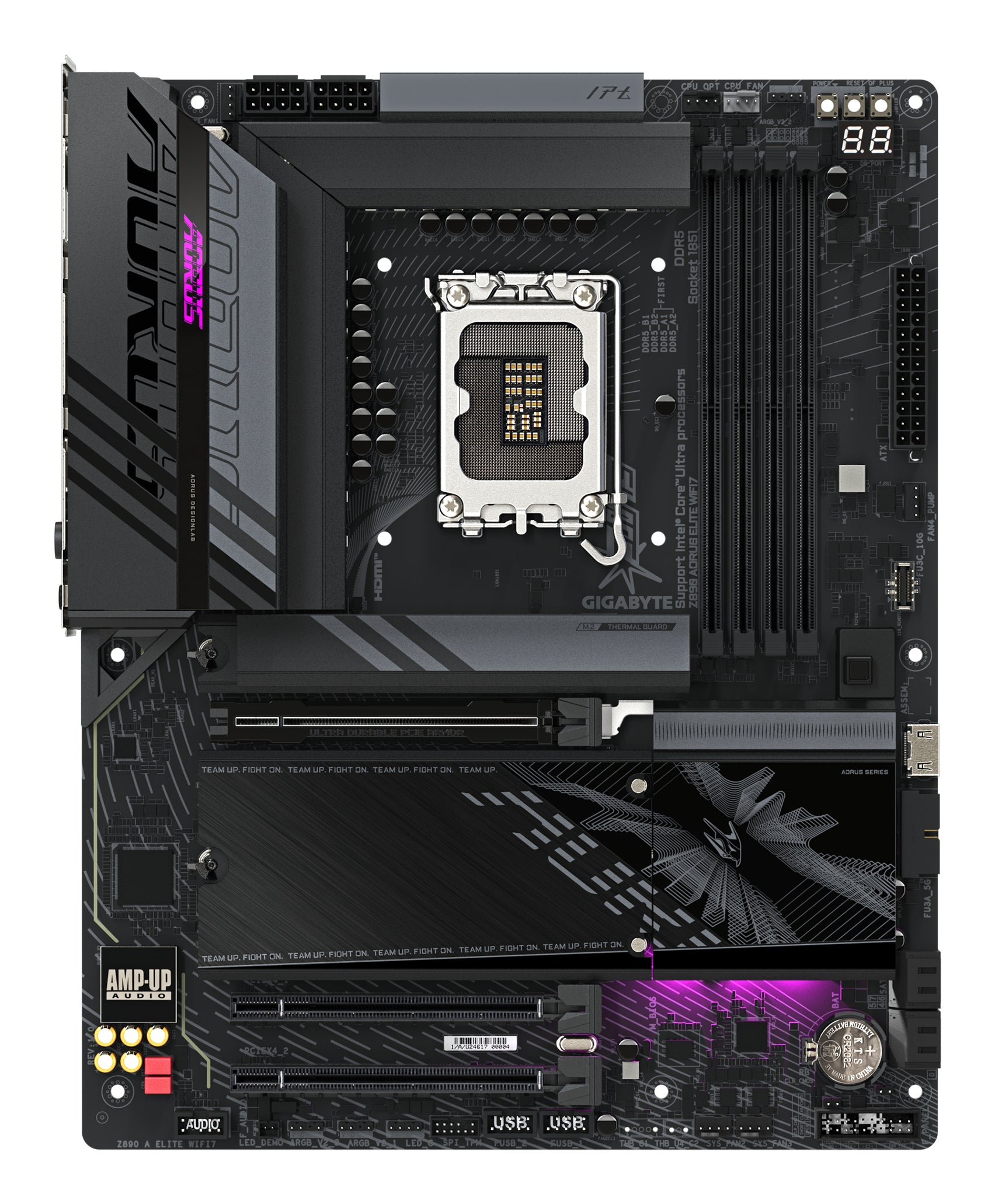

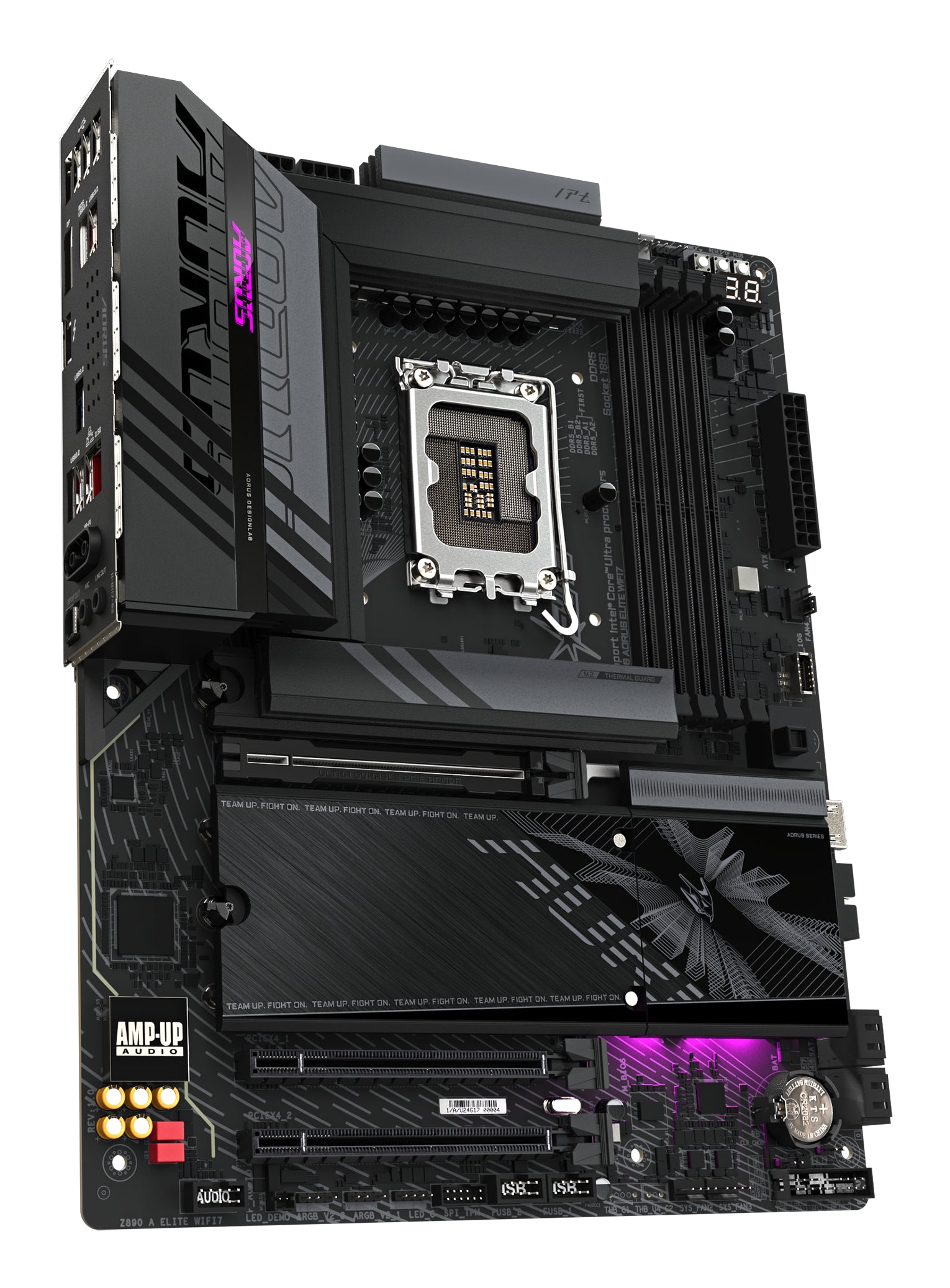

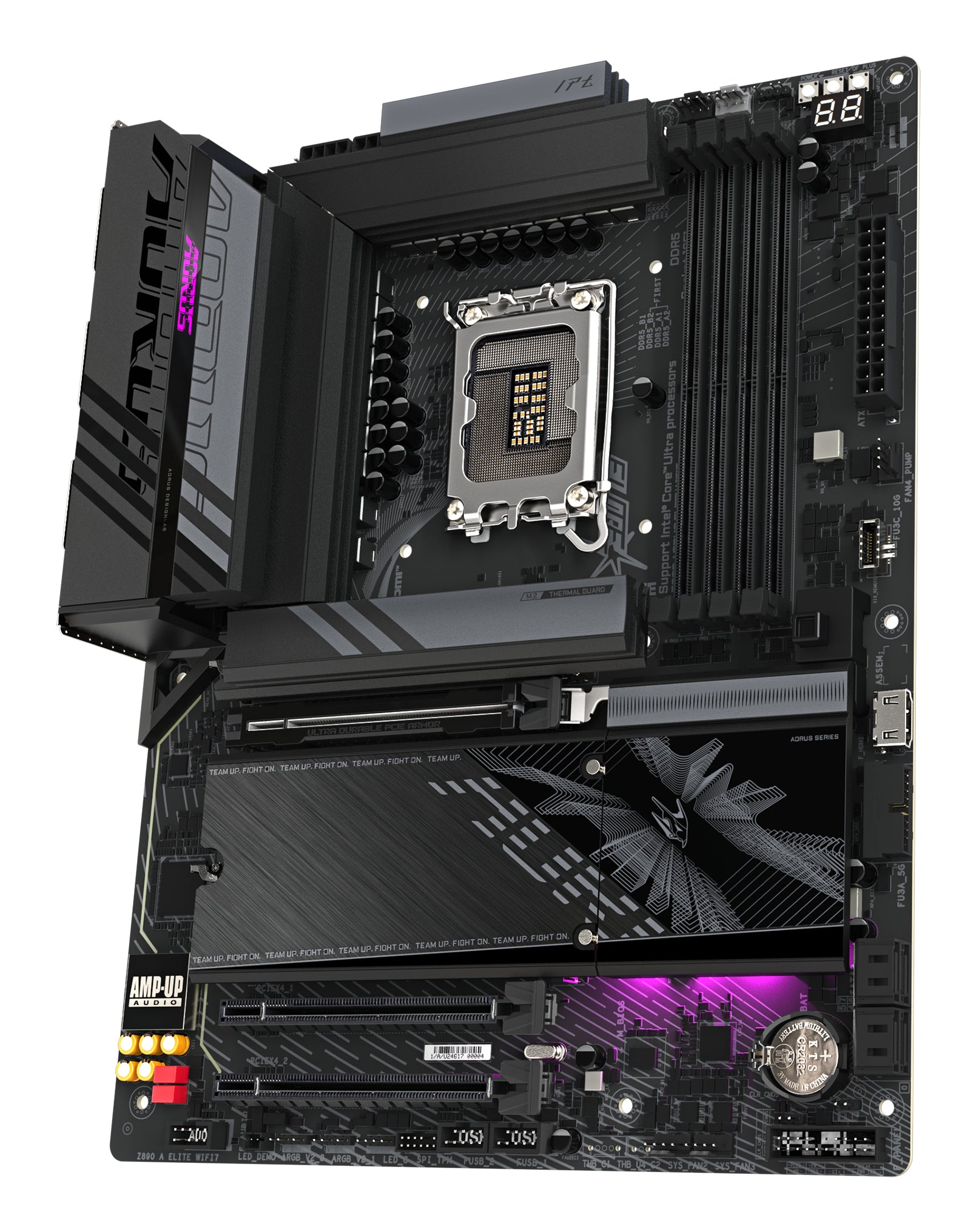

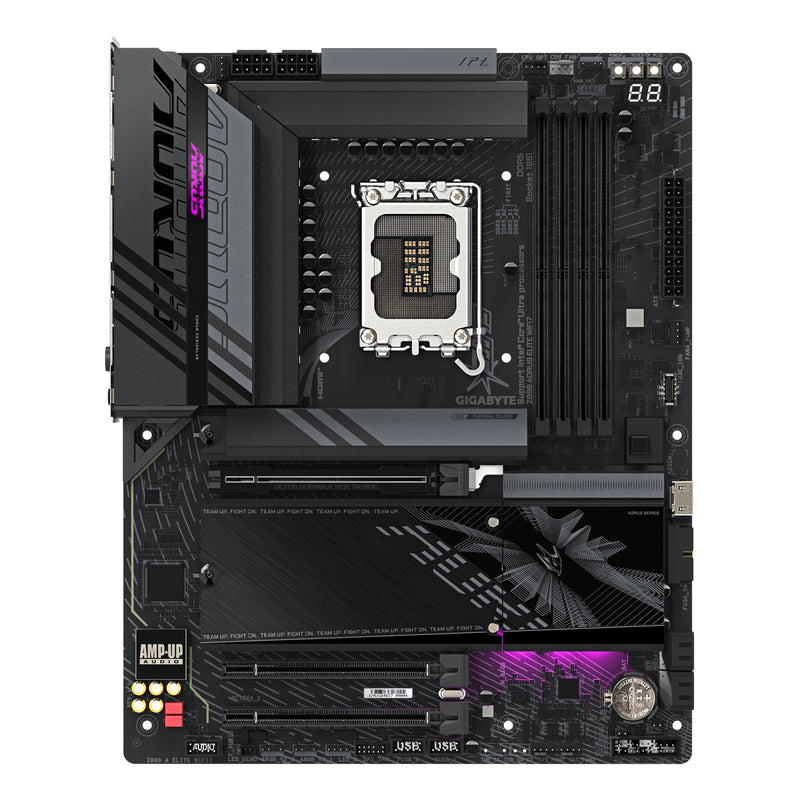

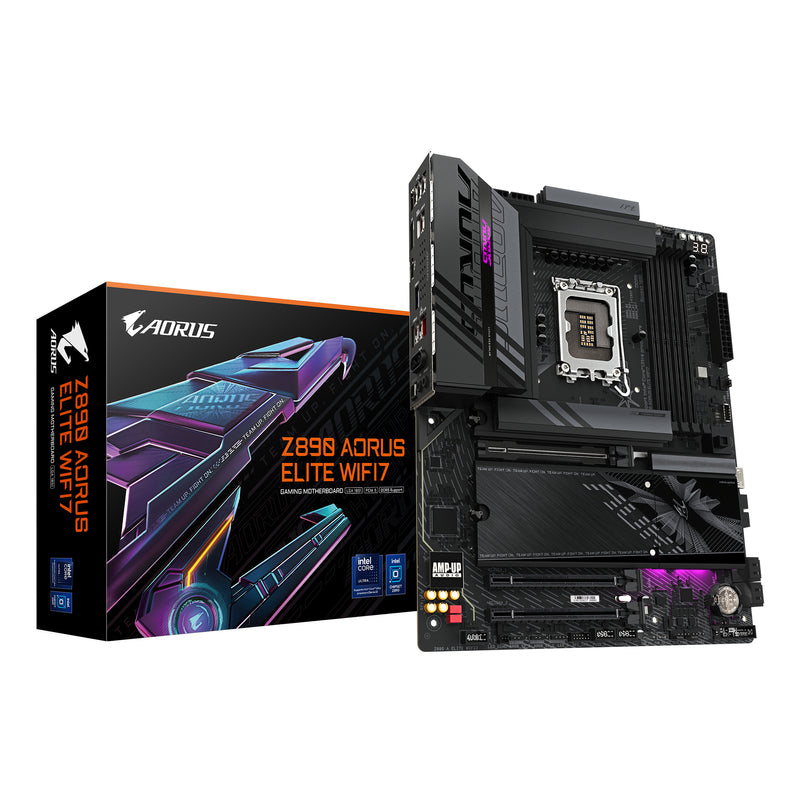

The Gigabyte Z890 A ELITE WIFI7 is a motherboard designed for PC builders looking for performance with Intel processors. It supports advanced features ideal for gamers and content creators who need robust memory and storage capabilities.
- Supports Intel Core Ultra processors for high-performance computing.
- Equipped with four DDR5 memory slots, allowing for memory expansion up to 256 GB.
- Features multiple storage options with M.2 and SATA interfaces, accommodating both SSDs and HDDs.
- Includes RAID support for enhanced data management and redundancy options.
- Supports a wide range of memory clock speeds, ensuring flexibility for performance tuning.
Technical details (2)
- Producer product name: Z890 A ELITE WIFI7
- Net weight: 2.23 kg
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: M.2, SATA
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: Intel
- Processor socket: LGA1851
Additional specifications (81)
- Processor manufacturer: Intel
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- Maximum internal memory supported by processor: 256 GB
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
- Supported memory clock speed (max): 8800 MHz
- Maximum internal memory: 256 GB
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 8
- Number of storage drives supported: 4
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- On-board graphics card: No
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- ATX Power connector (24-pin): Yes
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: Yes
- S/PDIF out port: Yes
- Thunderbolt ports quantity: 1
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet

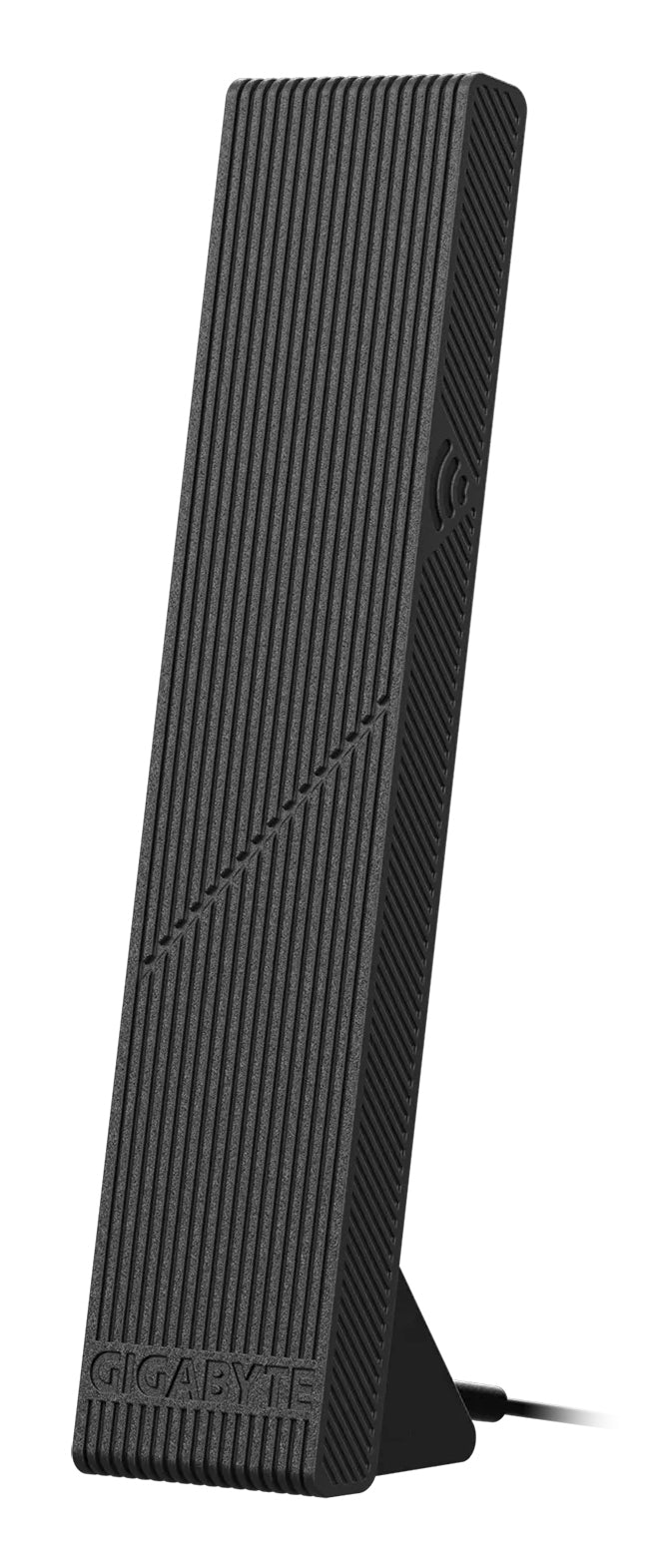

- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- WLAN controller model: MediaTek MT7925
- Bluetooth: Yes
- Bluetooth version: 5.4
- Motherboard chipset: Intel Z890
- Audio chip: Realtek ALC1220
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 11 x64
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Weight: 2.23 kg
- Warranty period: 3 year(s)
