About

Description

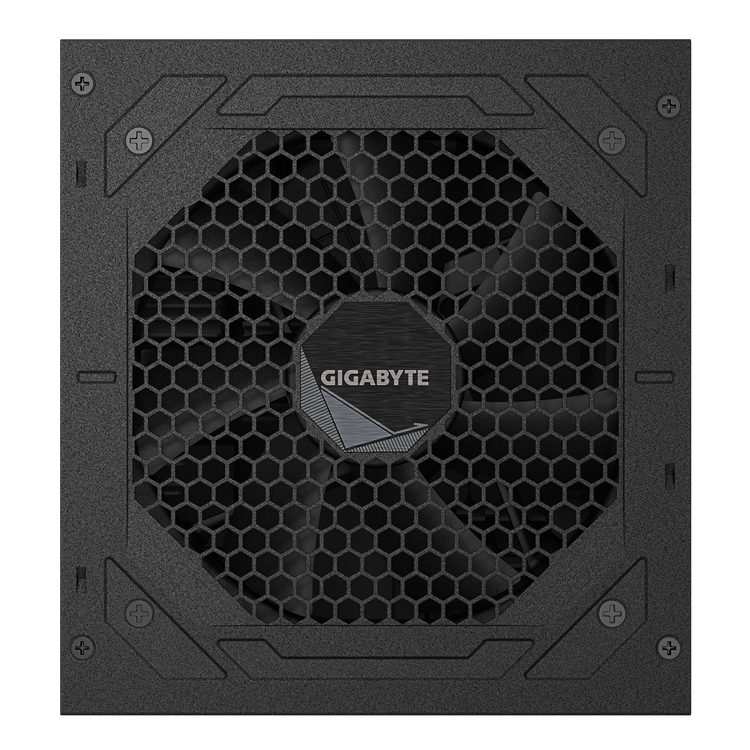

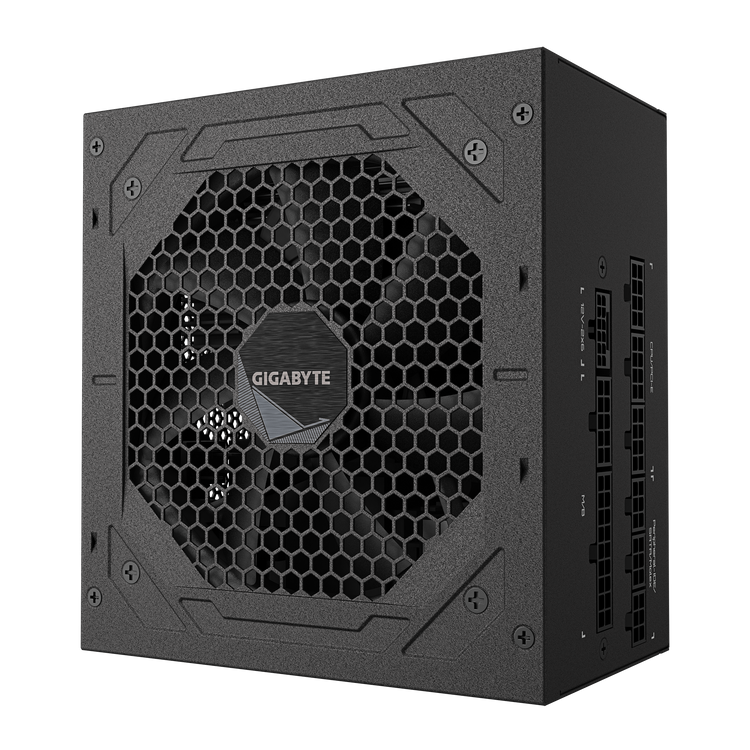

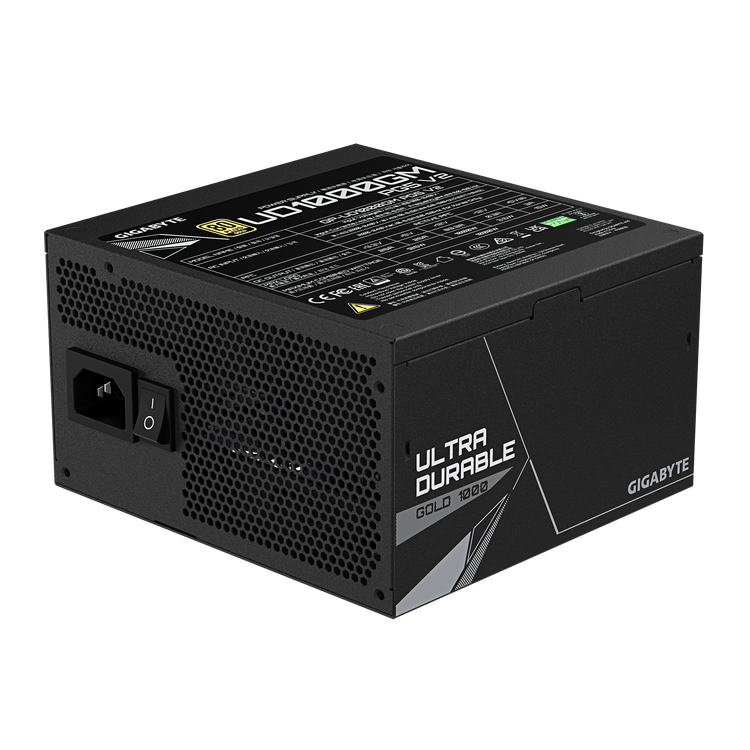

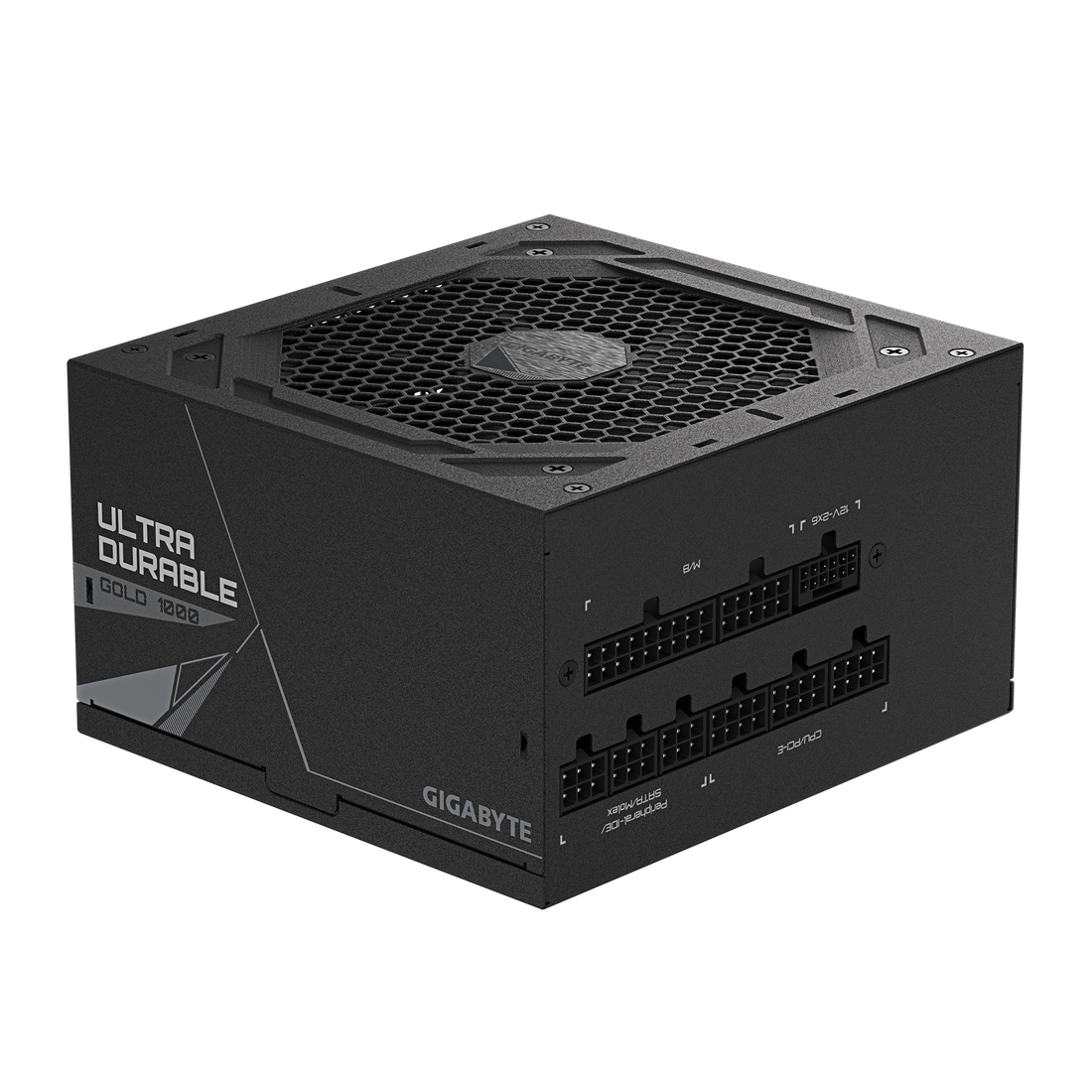

The Gigabyte UD1000GM PG5 V2 is a reliable 1000 W power supply designed for PC builders and gamers looking for stable performance. It features high efficiency and multiple power protection features for added safety.

  • Delivers a total power output of 1000 W, suitable for high-demand systems.
  • Features an efficiency rating of 90%, ensuring minimal energy waste.
  • Includes multiple power protection features like over current and short circuit protection to safeguard your components.
  • Equipped with 8 SATA power connectors, allowing for extensive connectivity with storage devices.
  • Compatible with a range of input voltages (100 - 240 V), making it versatile for different electrical environments.
Power (1)
  • Nominal power: 1000 W
Technical details (3)
  • Producer product family: Power Supply, ATX 12V v3.1
  • Producer product name: UD1000GM PG5 V2
  • Net weight: 2.65 kg
Specifications (1)
  • Warranty: 120 month(s)
Additional specifications (50)
  • Total power: 1000 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 15 - 6.5 A
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 125 W
  • Combined power (+12V): 1000 W
  • Combined power (+5V): 125 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 25 A
  • Max output current (+12V): 83.3 A
  • Max output current (+5V): 25 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 16 ms
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 61 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 150,600 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 120,150,500 mm
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power connectors (16-pin): 1
  • PCI Express power cable length: 70 cm
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 60 cm
  • Floppy drive power connector: 1
  • PCI Express connector: Yes
  • Number of EPS connectors: 2
  • Cabling type: Fully-Modular
  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • Bearing technology: HYB
  • Mean time between failures (MTBF): 100000 h
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • On/off switch: Yes
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
  • Weight: 2.48 kg
  • Warranty period: 10 year(s)
Description

The Gigabyte UD1000GM PG5 V2 is a reliable 1000 W power supply designed for PC builders and gamers looking for stable performance. It features high efficiency and multiple power protection features for added safety.

  • Delivers a total power output of 1000 W, suitable for high-demand systems.
  • Features an efficiency rating of 90%, ensuring minimal energy waste.
  • Includes multiple power protection features like over current and short circuit protection to safeguard your components.
  • Equipped with 8 SATA power connectors, allowing for extensive connectivity with storage devices.
  • Compatible with a range of input voltages (100 - 240 V), making it versatile for different electrical environments.
Power (1)
  • Nominal power: 1000 W
Technical details (3)
  • Producer product family: Power Supply, ATX 12V v3.1
  • Producer product name: UD1000GM PG5 V2
  • Net weight: 2.65 kg
Specifications (1)
  • Warranty: 120 month(s)
Additional specifications (50)
  • Total power: 1000 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 15 - 6.5 A
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 125 W
  • Combined power (+12V): 1000 W
  • Combined power (+5V): 125 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 25 A
  • Max output current (+12V): 83.3 A
  • Max output current (+5V): 25 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 16 ms
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 61 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 150,600 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 120,150,500 mm
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power connectors (16-pin): 1
  • PCI Express power cable length: 70 cm
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 60 cm
  • Floppy drive power connector: 1
  • PCI Express connector: Yes
  • Number of EPS connectors: 2
  • Cabling type: Fully-Modular
  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • Bearing technology: HYB
  • Mean time between failures (MTBF): 100000 h
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • On/off switch: Yes
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
  • Weight: 2.48 kg
  • Warranty period: 10 year(s)

Gigabyte UD1000GM PG5 V2 — Power Supply, ATX 12V v3.1, 1000 W

$128.00
$128.00
Tax included.
