Description

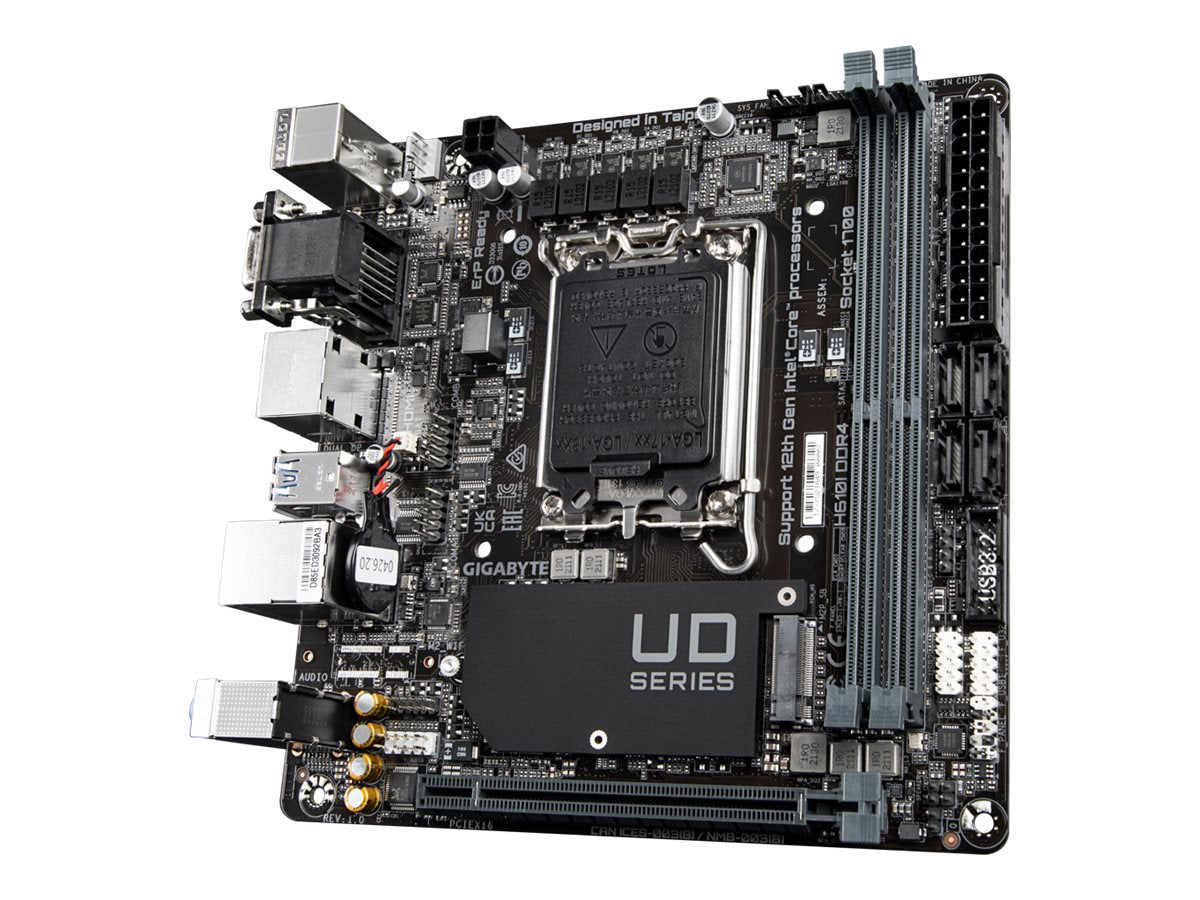

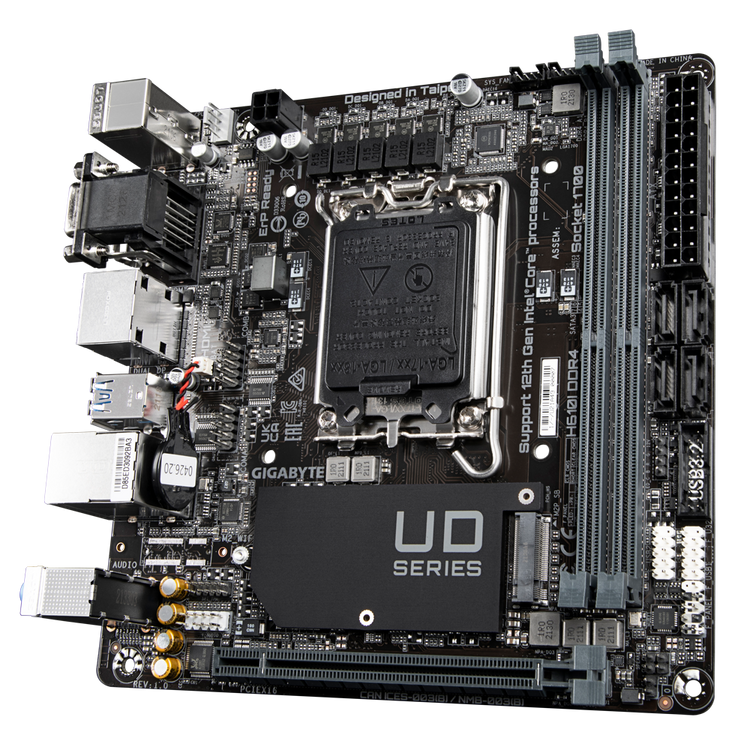

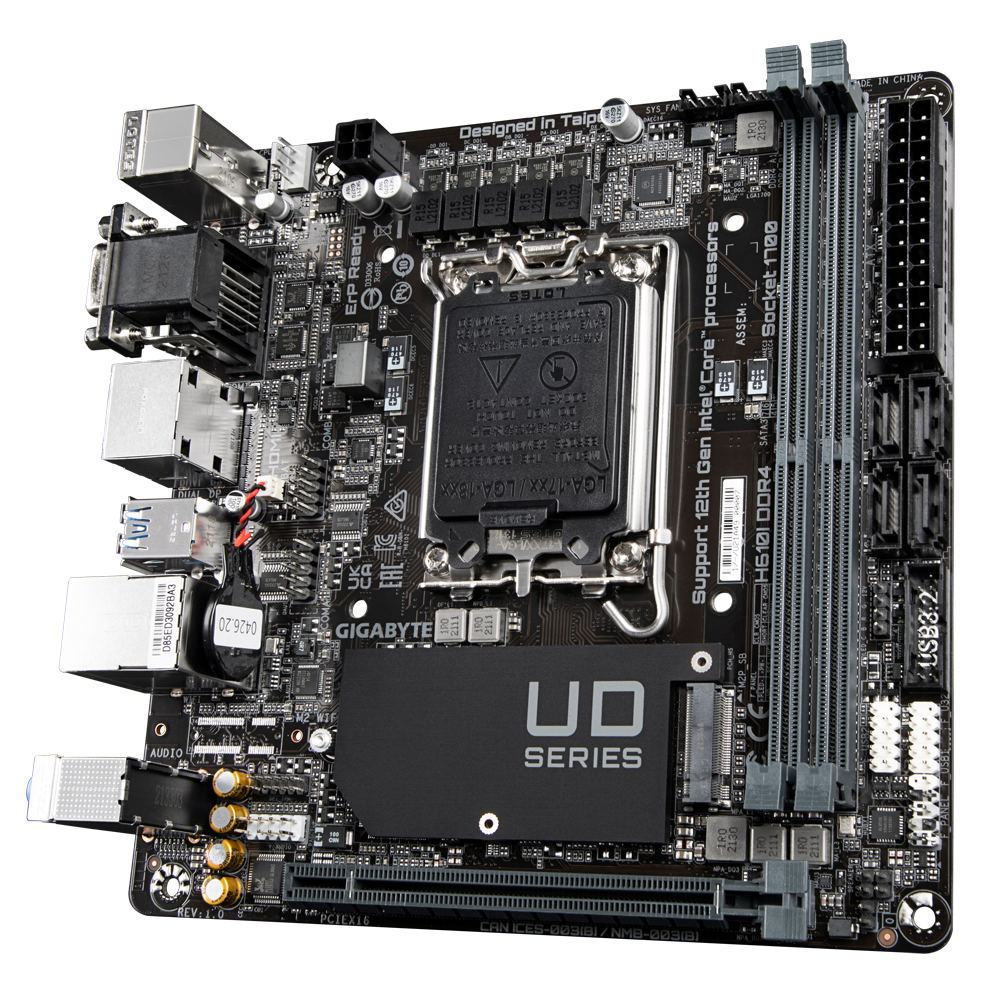

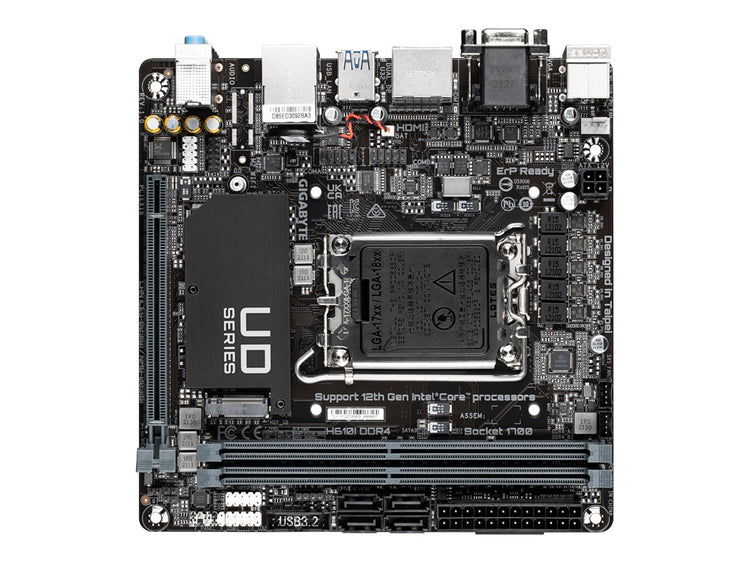

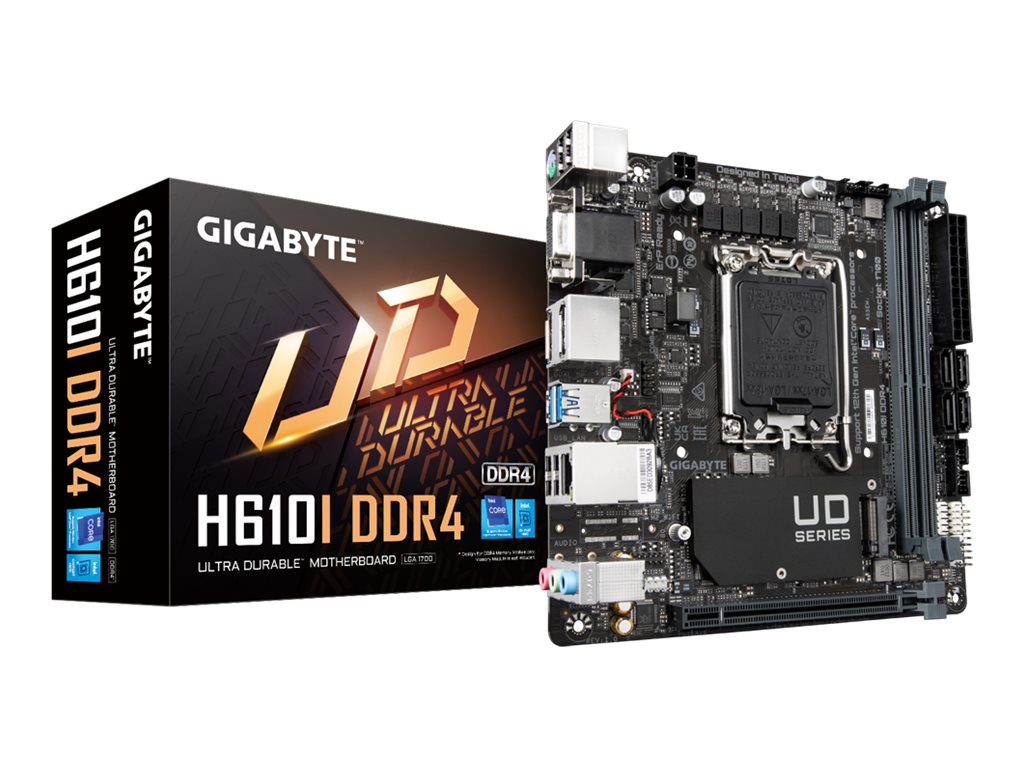

The Gigabyte H610I DDR4 1.0 is a Mini-ITX motherboard designed for users building compact PCs, ideal for gaming or general use. It supports Intel processors and offers extensive memory and storage options.
- Supports up to 64 GB of DDR4 memory across 2 DIMM slots for enhanced performance.
- Compatible with 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket.
- Features four SATA connectors and M.2 interfaces for versatile storage drive options with both HDDs and SSDs.
- The Intel H610 Express chipset optimises system stability and performance for your computing needs.
- Dual-channel memory support allows efficient data handling for improved system responsiveness.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 2
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: Intel H610 Express
- Motherboard form factor: Mini-ITX
Processor (3)
- Processor family: Intel
- Processor socket: LGA1700
- Compatible processor series: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
Technical details (3)
- Producer product name: H610I DDR4 1.0 M/B
- Net weight: 0.435 kg
- Warranty: 36 month(s)
Additional specifications (79)
- Processor manufacturer: Intel
- Supported processor sockets: LGA 1700
- Maximum internal memory supported by processor: 64 GB
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
- Supported memory clock speed (max): 3200 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
- DirectX version: 12.0
- Number of displays supported: 3
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

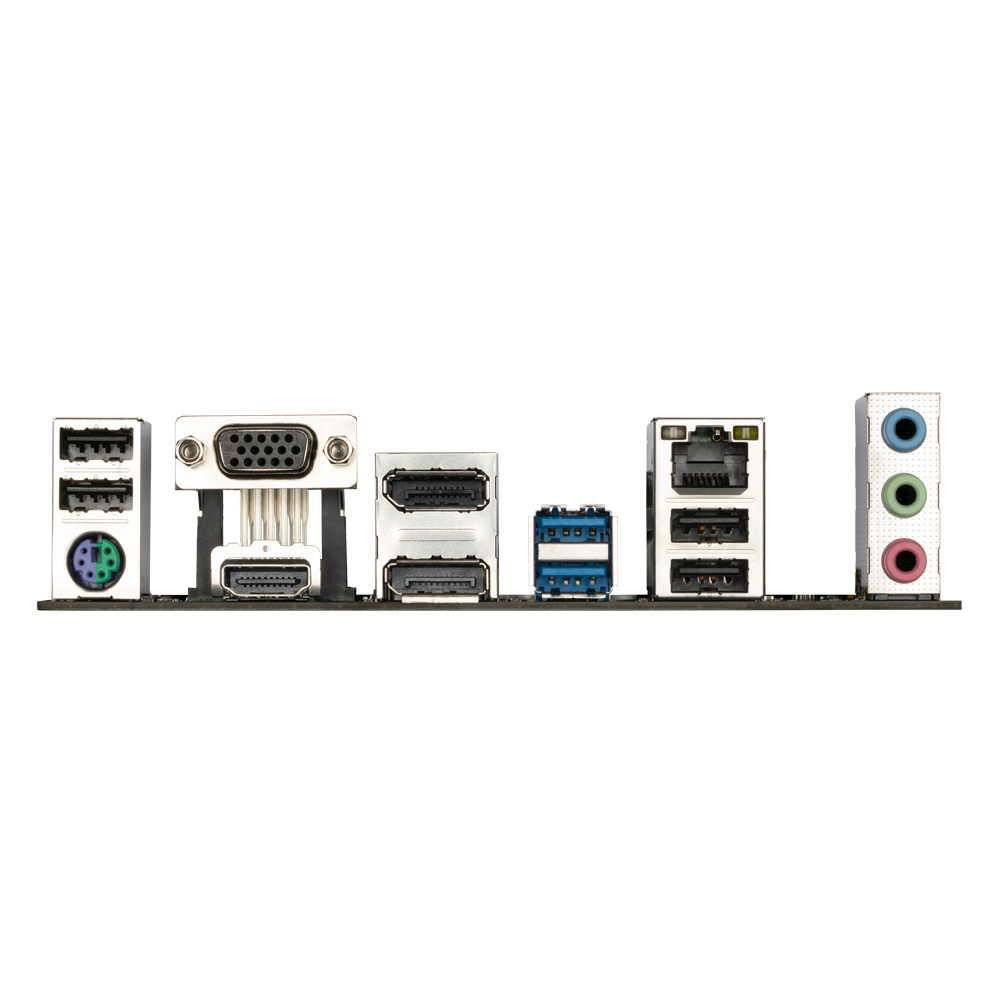

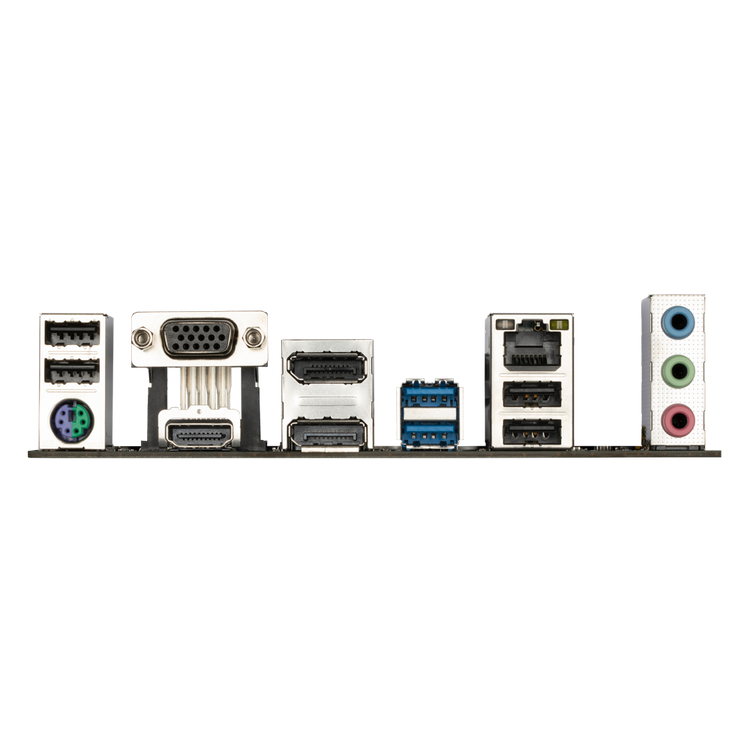

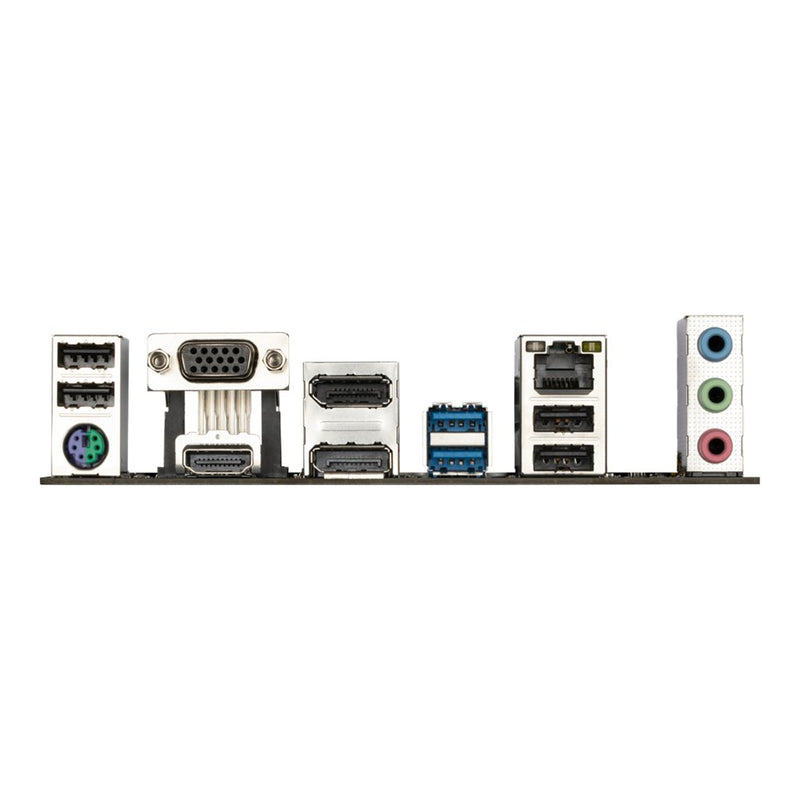

- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.0
- DisplayPorts quantity: 2
- DisplayPort version: 1.2
- Headphone outputs: 3
- Microphone in: Yes
- USB connector type: USB Type-A
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Motherboard chipset: Intel H610 Express
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Harmonized System (HS) code: 84733020
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 170 mm
- Depth: 170 mm
- Height: 35 mm
- Cables included: SATA
- Batteries included: Yes
- Bundled software: Norton Internet Security (OEM version), LAN bandwidth management software
- Warranty period: 3 year(s)
