Description

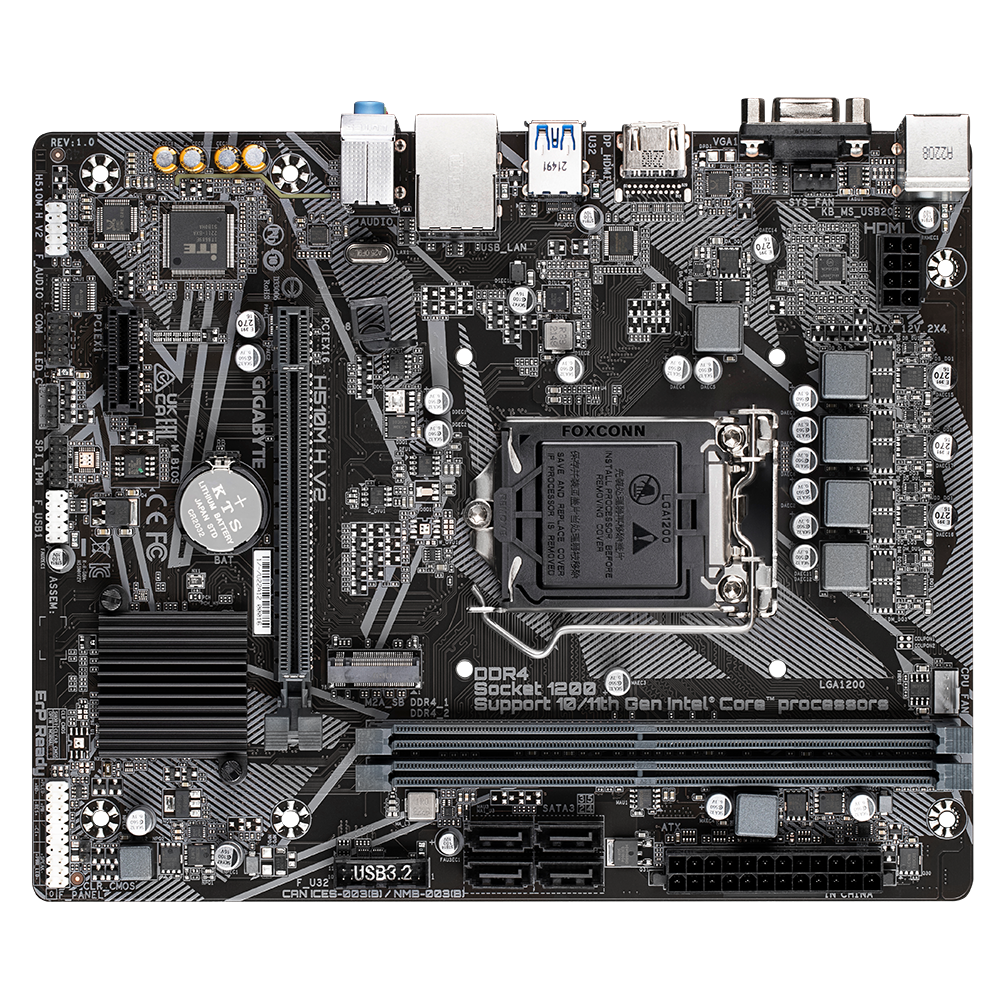

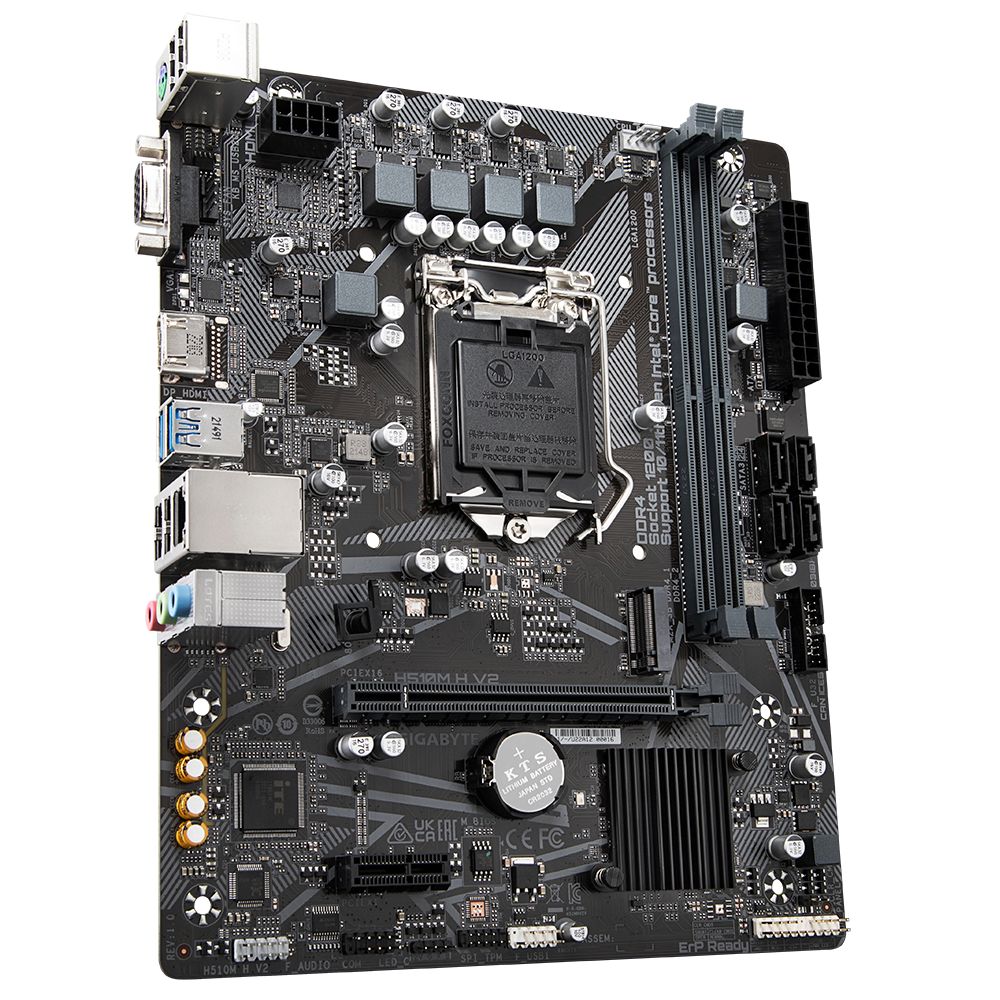

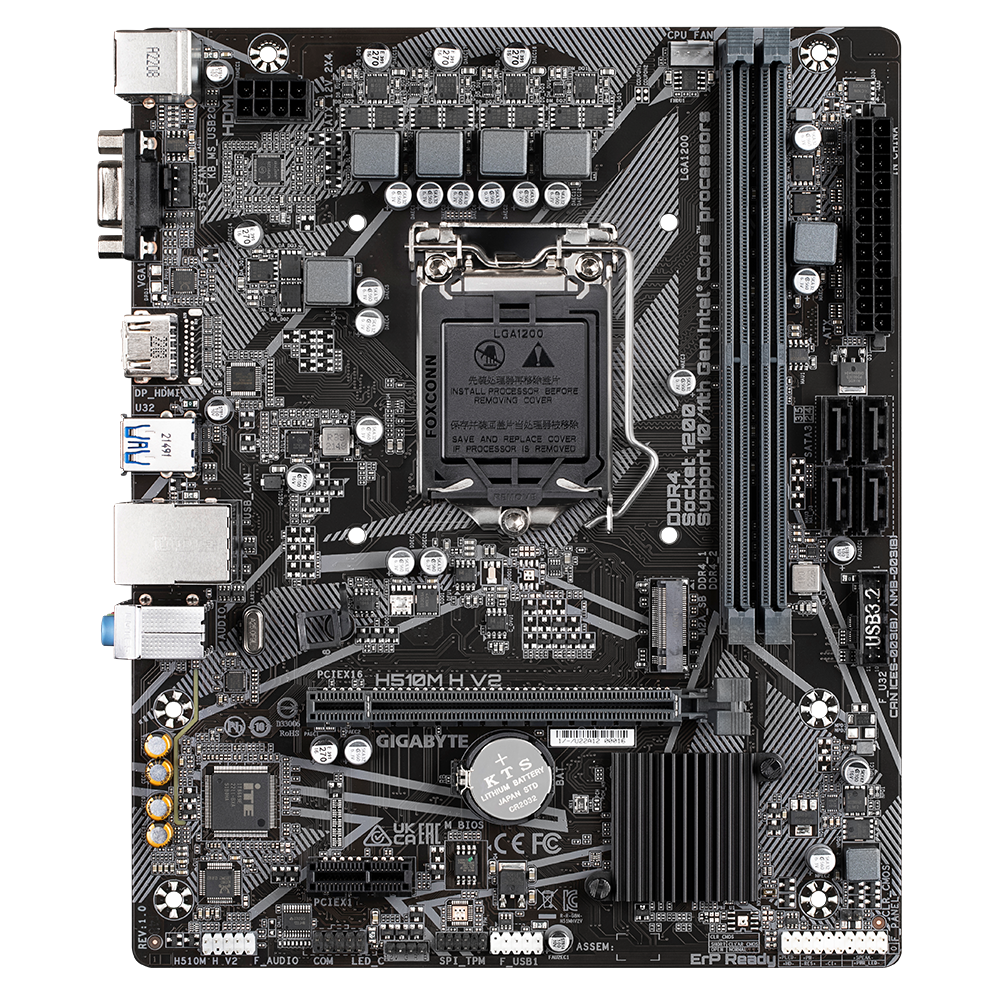

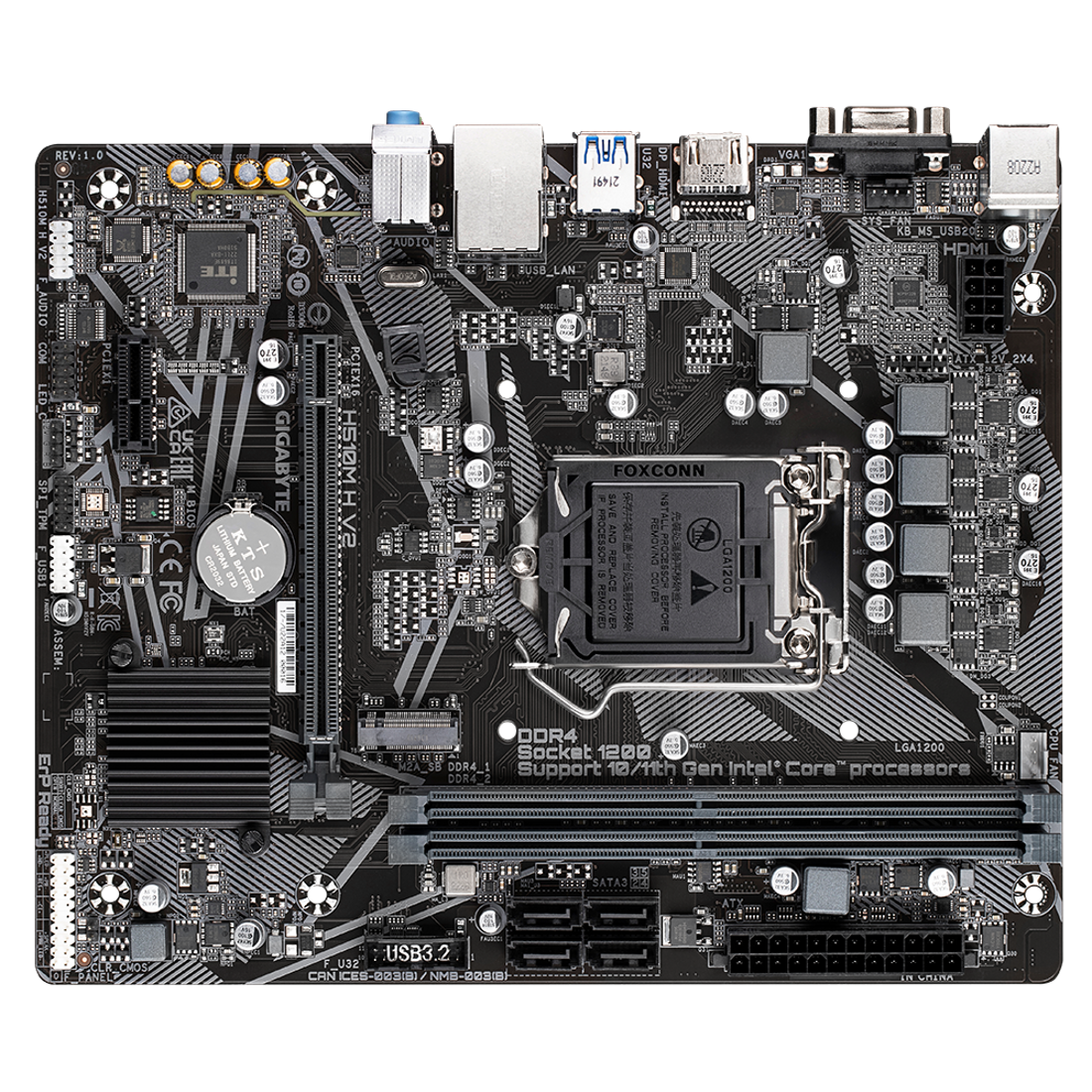

The Gigabyte H510M H V2 1.0 M/B is a micro ATX motherboard designed for users looking to build a reliable system with Intel processors. Its flexible memory and storage options suit both casual and more demanding computing tasks.

Supports 11th and 10th Gen Intel Core processors with an LGA1200 socket for efficient performance.
Equipped with two DDR4 DIMM slots, allowing for up to 64 GB of memory, enhancing multitasking capabilities.
Features four SATA connectors and supports M.2 interfaces, accommodating multiple HDD and SSD storage drives.
Utilizes the Intel H470 Express chipset, providing stability and enhanced features for better overall system management.
Supports a maximum resolution of 4096 x 2304 pixels, ensuring clarity for high-quality displays.

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: SATA, M.2

Memory (2)

Memory slots: 2
Supported memory types: DDR4 DIMM

Performance (2)

Chipset: Intel H470 Express
Motherboard form factor: Micro ATX

Processor (3)

Processor family: Intel
Processor socket: LGA1200
Compatible processor series: Supports 11th/10th Gen Intel Core Processors

Technical details (2)

Producer product name: H510M H V2 1.0 M/B
Net weight: 0.95 kg

Specifications (1)

Warranty: 36 month(s)

Additional specifications (72)

Processor manufacturer: Intel
Supported processor sockets: LGA 1200 (Socket H5)
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Number of displays supported: 2
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
TPM connector: Yes
Serial port headers: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
Microphone in: Yes
USB connector type: USB Type-A
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Motherboard chipset: Intel H510 Express
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage
Component for: PC
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64
PCI Express x1 slots: 2
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Width: 226 mm
Depth: 185 mm
Height: 35 mm
Cables included: SATA
Batteries included: Yes
Drivers included: Yes
Warranty period: 3 year(s)
