About
Description

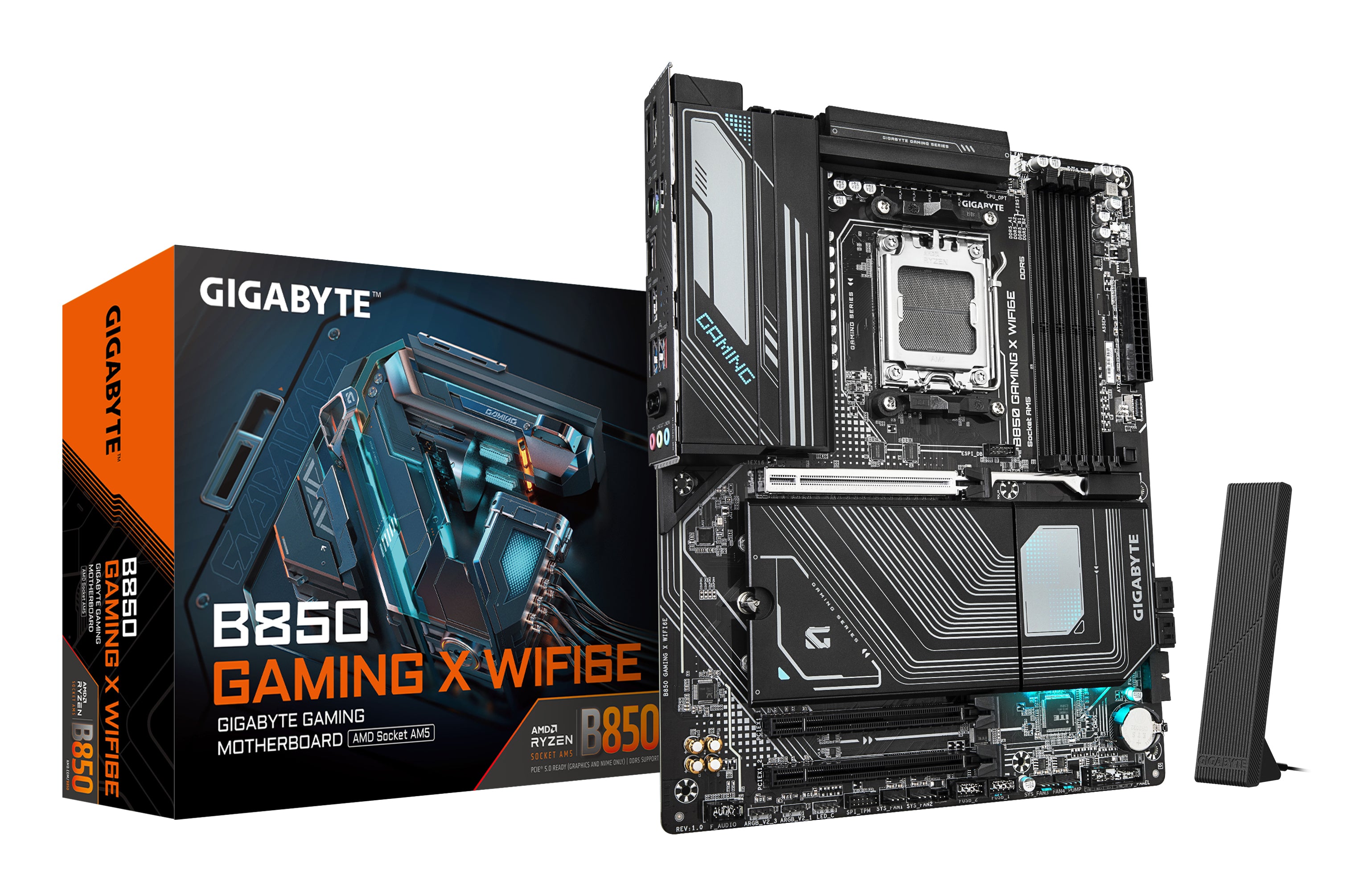

The Gigabyte B850 GAMING X WIFI6E is a motherboard designed for gamers and PC enthusiasts using AMD processors. It offers advanced features for building a powerful and efficient gaming rig.
- Supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5.
- Includes four slots for DDR5 memory, allowing up to 256 GB of RAM and clock speeds up to 8200 MHz.
- Supports both SATA and M.2 interfaces, accommodating SSD and HDD storage with RAID support for data redundancy.
- Provides dual-channel memory architecture, ensuring improved performance for intensive tasks.
- Capable of driving high-definition resolutions up to 4096 x 2160 pixels for an enhanced visual experience.
Technical details (2)
- Producer product name: B850 GAMING X WIFI6E
- Net weight: 1.00 kg
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Additional specifications (101)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4

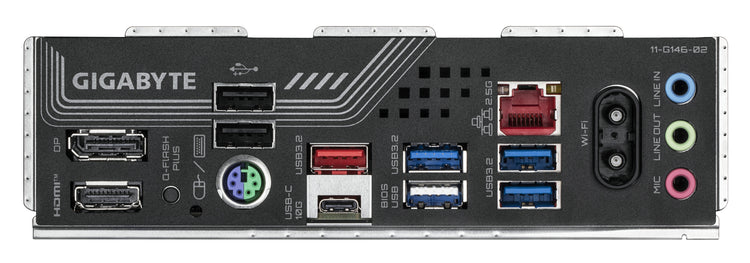

- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 2.1
- Headphone outputs: 1
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8111H
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
- Weight: 2.1 kg
- Warranty period: 3 year(s)
Description
The Gigabyte B850 GAMING X WIFI6E is a motherboard designed for gamers and PC enthusiasts using AMD processors. It offers advanced features for building a powerful and efficient gaming rig.
- Supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5.
- Includes four slots for DDR5 memory, allowing up to 256 GB of RAM and clock speeds up to 8200 MHz.
- Supports both SATA and M.2 interfaces, accommodating SSD and HDD storage with RAID support for data redundancy.
- Provides dual-channel memory architecture, ensuring improved performance for intensive tasks.
- Capable of driving high-definition resolutions up to 4096 x 2160 pixels for an enhanced visual experience.
Technical details (2)
- Producer product name: B850 GAMING X WIFI6E
- Net weight: 1.00 kg
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Additional specifications (101)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 2.1
- Headphone outputs: 1
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8111H
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
- Weight: 2.1 kg
- Warranty period: 3 year(s)
Gigabyte B850 GAMING X WIFI6E, Processor family AMD, Processor socket AM5, DDR5
- Regular price
- €231,87
- Sale price
- €231,87
- Regular price
-
Tax included.
Before placing and paying for your order, we’ll confirm the item’s current availability to help avoid possible cancellations and refunds.
Couldn't load pickup availability
