About
Description

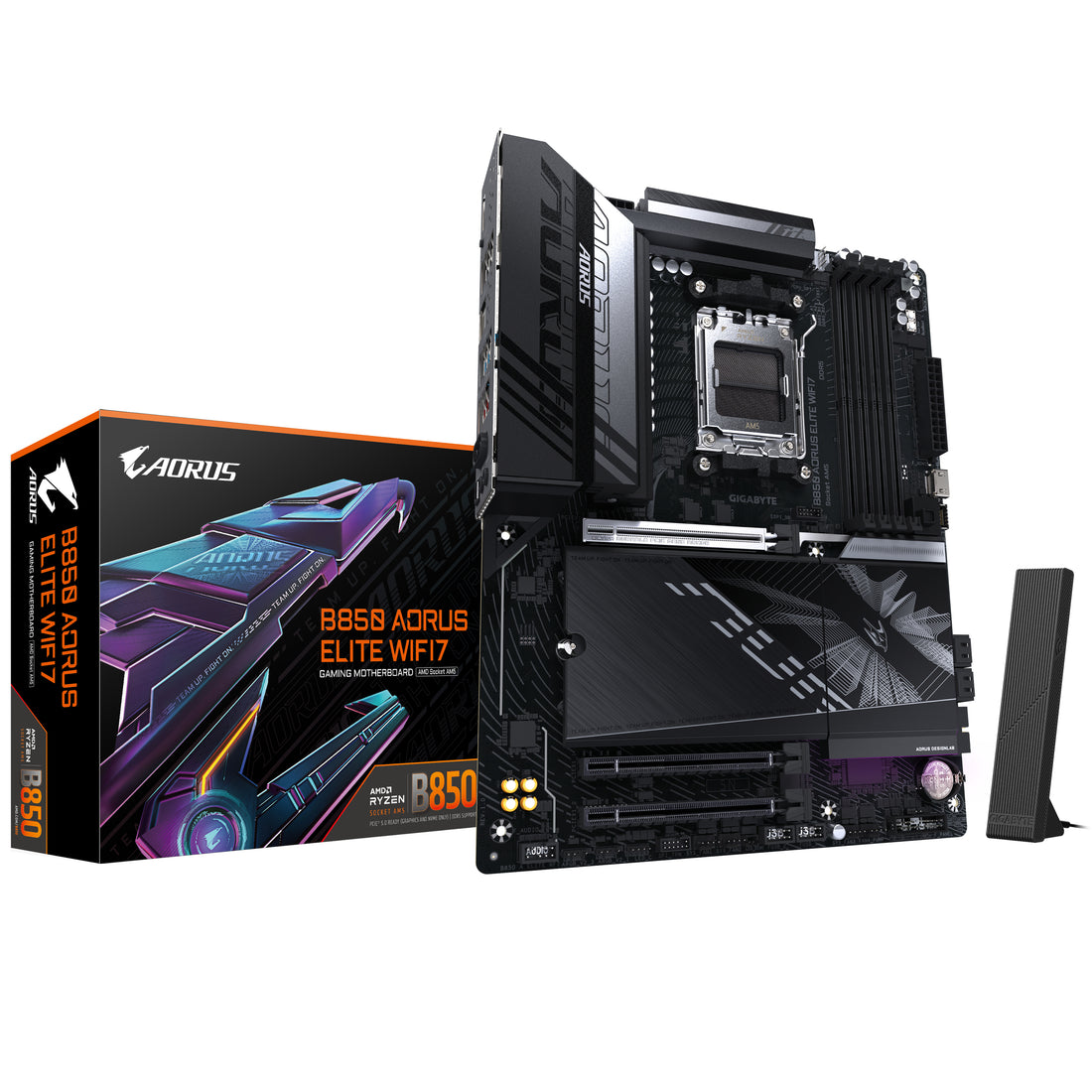

The Gigabyte B850 A ELITE WF7 is a motherboard designed for users looking to build or upgrade their PC with AMD processors. It supports the latest DDR5 memory and offers multiple storage options, making it a suitable choice for gamers and content creators.
- Compatible with the AMD Ryzen 7000, 8000, and 9000 series processors for versatile performance.
- Equipped with four SATA connectors and supports both SATA and M.2 drives, allowing for flexible storage configurations.
- Holds up to 256 GB of DDR5 memory across four slots, accommodating high-speed processing needs.
- Supports a maximum memory clock speed of 8200 MHz for enhanced system responsiveness.
- Includes RAID support for improved data redundancy and performance options.
Technical details (2)
- Producer product name: B850 A ELITE WF7
- Net weight: 1.00 kg
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Additional specifications (104)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- On-board graphics card: No
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Bluetooth: Yes
- Bluetooth version: 5.4
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black, Brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
- Weight: 2.13 kg
- Warranty period: 3 year(s)
Description
The Gigabyte B850 A ELITE WF7 is a motherboard designed for users looking to build or upgrade their PC with AMD processors. It supports the latest DDR5 memory and offers multiple storage options, making it a suitable choice for gamers and content creators.
- Compatible with the AMD Ryzen 7000, 8000, and 9000 series processors for versatile performance.
- Equipped with four SATA connectors and supports both SATA and M.2 drives, allowing for flexible storage configurations.
- Holds up to 256 GB of DDR5 memory across four slots, accommodating high-speed processing needs.
- Supports a maximum memory clock speed of 8200 MHz for enhanced system responsiveness.
- Includes RAID support for improved data redundancy and performance options.
Technical details (2)
- Producer product name: B850 A ELITE WF7
- Net weight: 1.00 kg
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Additional specifications (104)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- On-board graphics card: No
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Bluetooth: Yes
- Bluetooth version: 5.4
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black, Brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
- Weight: 2.13 kg
- Warranty period: 3 year(s)
