Description

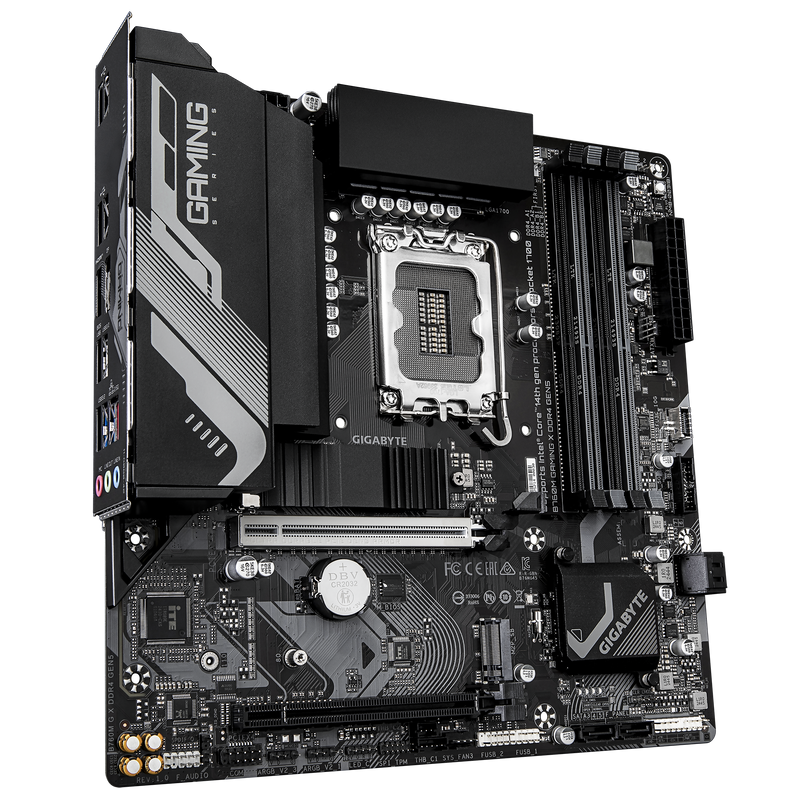

The Gigabyte B760M GAMING X DDR4 GEN5 is a motherboard designed for Intel processors, suitable for building a reliable gaming PC or workstation. Its compatibility with a range of Intel CPUs and multiple memory options makes it versatile for different user needs.

  • Supports the latest Intel processors, ensuring compatibility with 12th to 14th generation Intel Core, Celeron, and Pentium CPUs.
  • Includes four SATA connectors and M.2 support for flexible storage solutions, allowing for both HDDs and SSDs.
  • Houses four DIMM slots with dual-channel memory architecture, supporting up to 128 GB of DDR4 RAM for demanding applications.
  • Supports various RAID configurations (0, 1, 5, 10) to enhance data redundancy and performance.
  • Provides a maximum resolution of 4096 x 2304 pixels, suitable for high-definition video output.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR4
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 0.92 kg
  • Producer product name: B760M GAMING X DDR4 GEN5
Additional specifications (94)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 3200,3000,2933,2666,2400,2133 MHz
  • Supported memory clock speed (max): 3200 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 32 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • Serial port headers: 1
  • Thunderbolt headers: 2
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 4

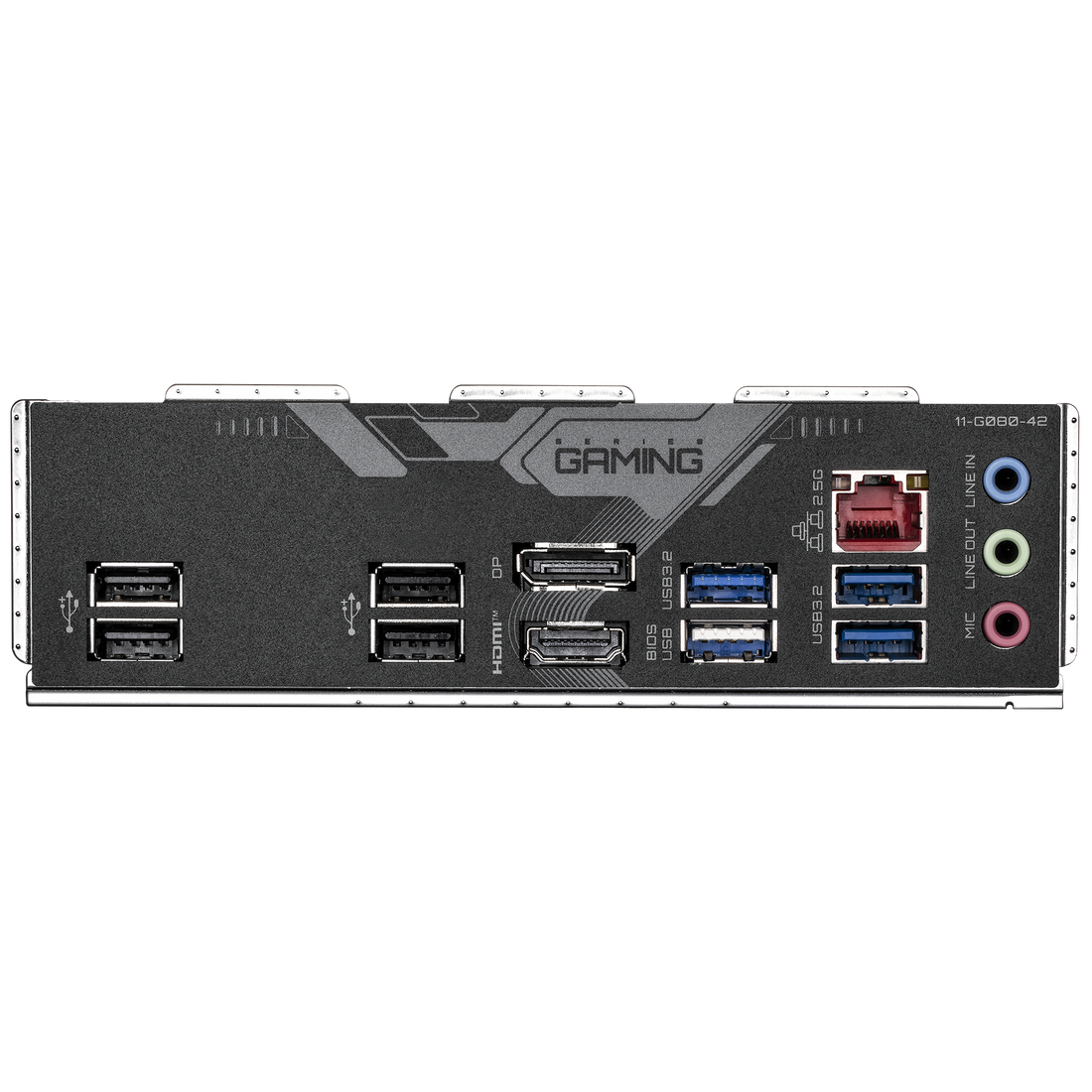

  • USB 2.0 ports quantity: 5
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: No
  • Motherboard chipset: Intel B760
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Dark brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
  • Weight: 1.19 kg
  • Warranty period: 3 year(s)
Description

The Gigabyte B760M GAMING X DDR4 GEN5 is a motherboard designed for Intel processors, suitable for building a reliable gaming PC or workstation. Its compatibility with a range of Intel CPUs and multiple memory options makes it versatile for different user needs.

  • Supports the latest Intel processors, ensuring compatibility with 12th to 14th generation Intel Core, Celeron, and Pentium CPUs.
  • Includes four SATA connectors and M.2 support for flexible storage solutions, allowing for both HDDs and SSDs.
  • Houses four DIMM slots with dual-channel memory architecture, supporting up to 128 GB of DDR4 RAM for demanding applications.
  • Supports various RAID configurations (0, 1, 5, 10) to enhance data redundancy and performance.
  • Provides a maximum resolution of 4096 x 2304 pixels, suitable for high-definition video output.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR4
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 0.92 kg
  • Producer product name: B760M GAMING X DDR4 GEN5
Additional specifications (94)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 3200,3000,2933,2666,2400,2133 MHz
  • Supported memory clock speed (max): 3200 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 32 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • Serial port headers: 1
  • Thunderbolt headers: 2
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 4
  • USB 2.0 ports quantity: 5
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: No
  • Motherboard chipset: Intel B760
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Dark brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
  • Weight: 1.19 kg
  • Warranty period: 3 year(s)

Gigabyte B760M GAMING X DDR4 GEN5, Processor family Intel, Processor socket LGA1700, Number of SATA connectors 4

€142,59
€142,59
Tax included.
