Description

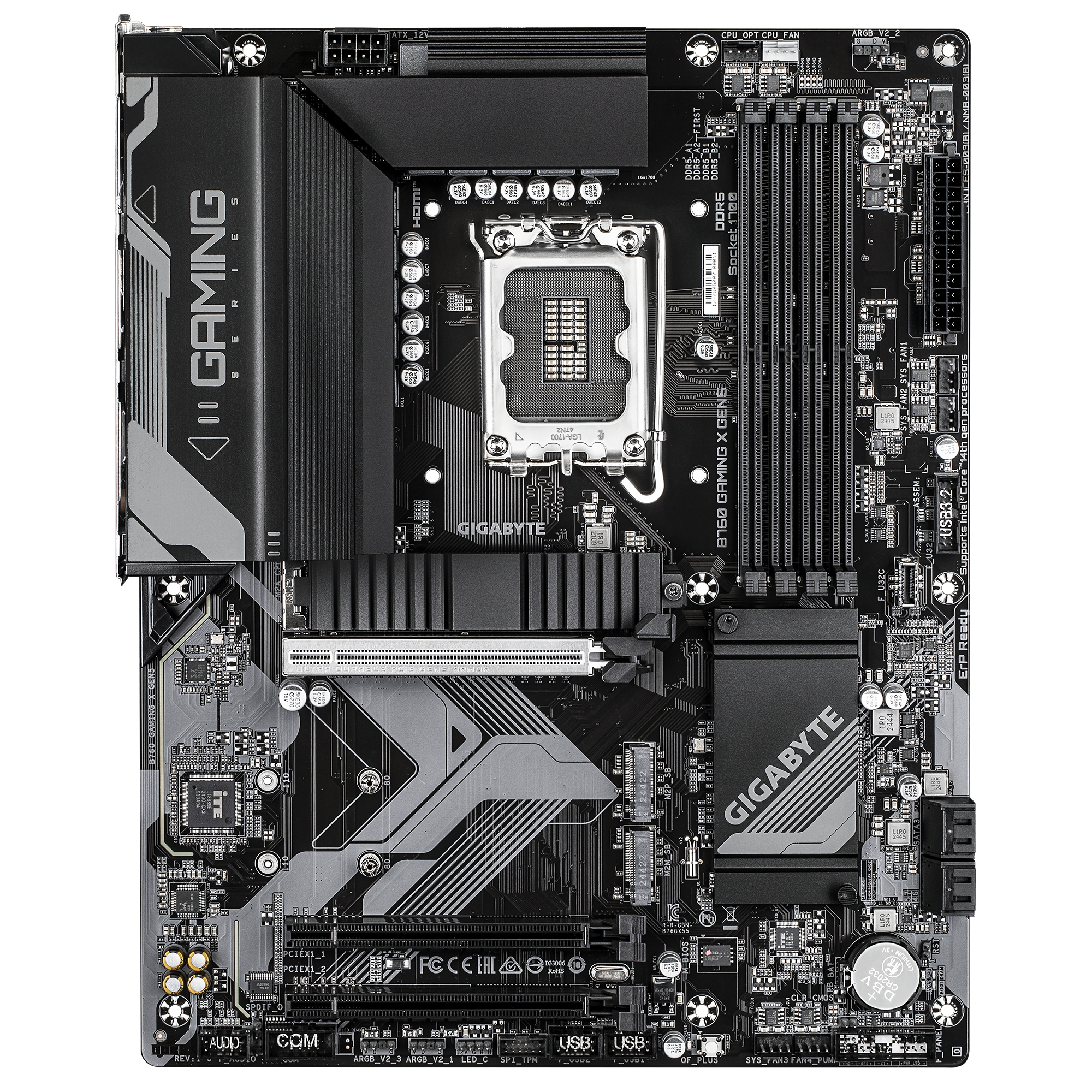

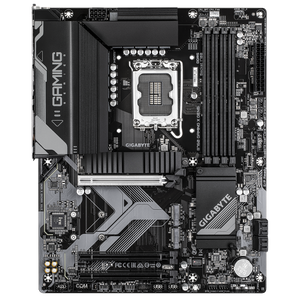

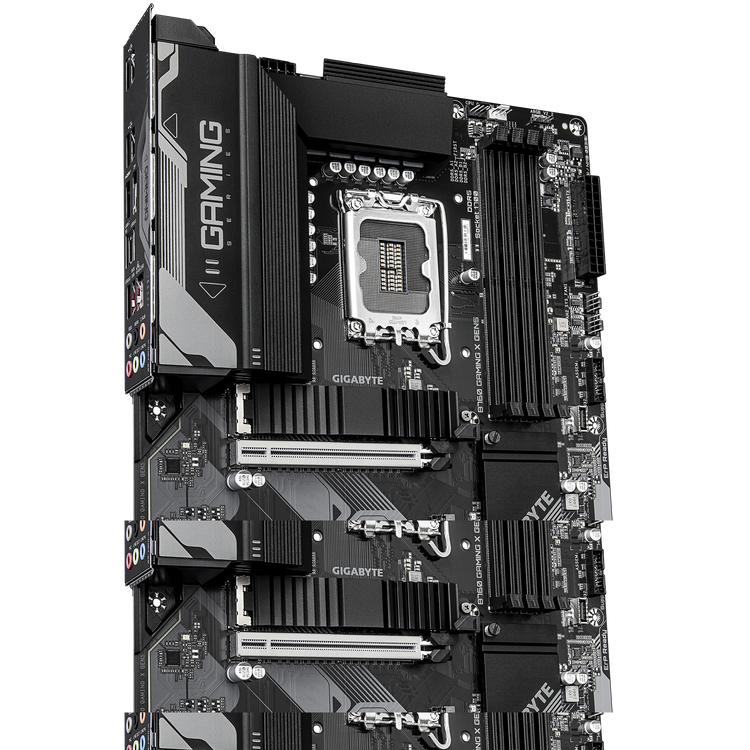

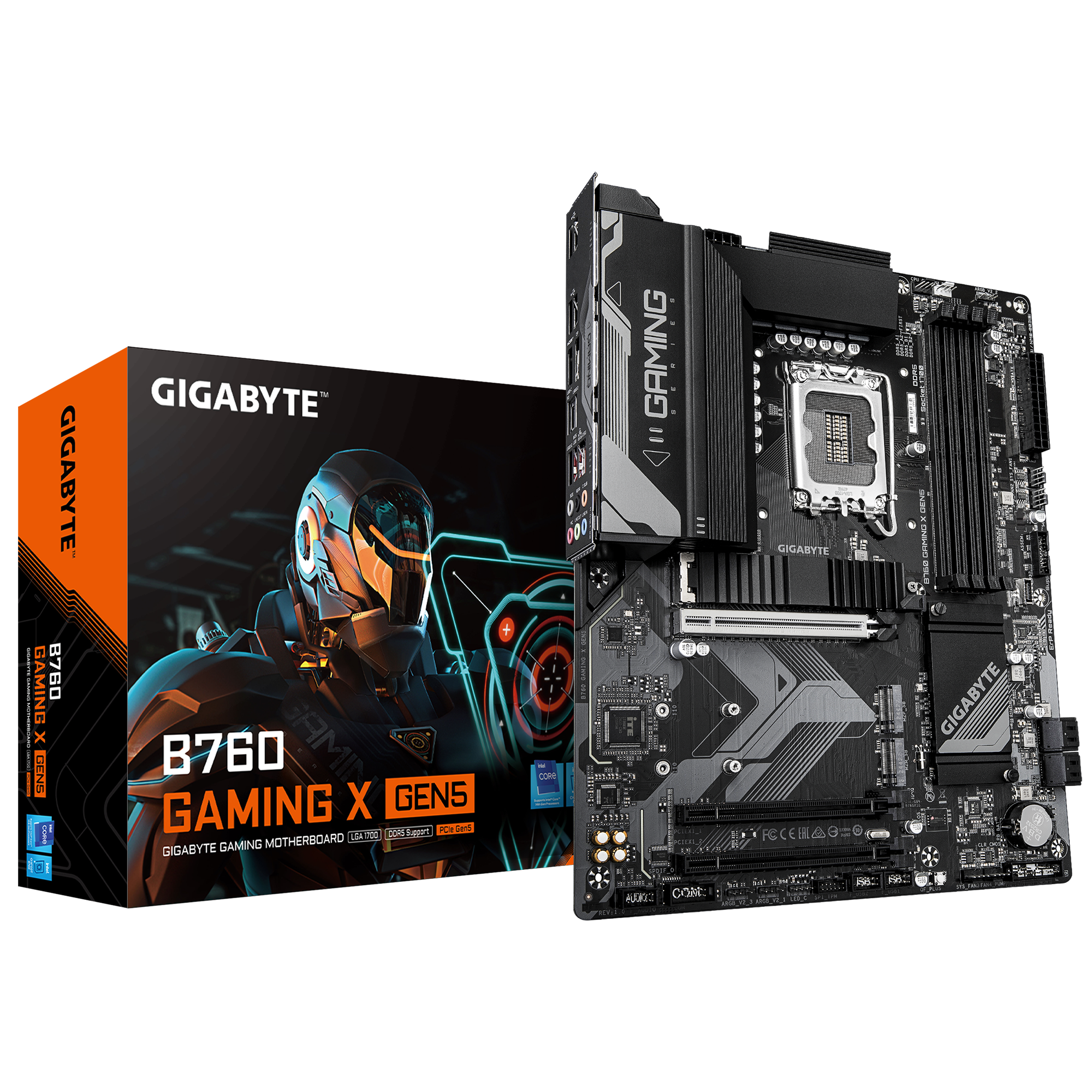

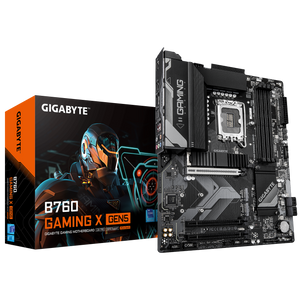

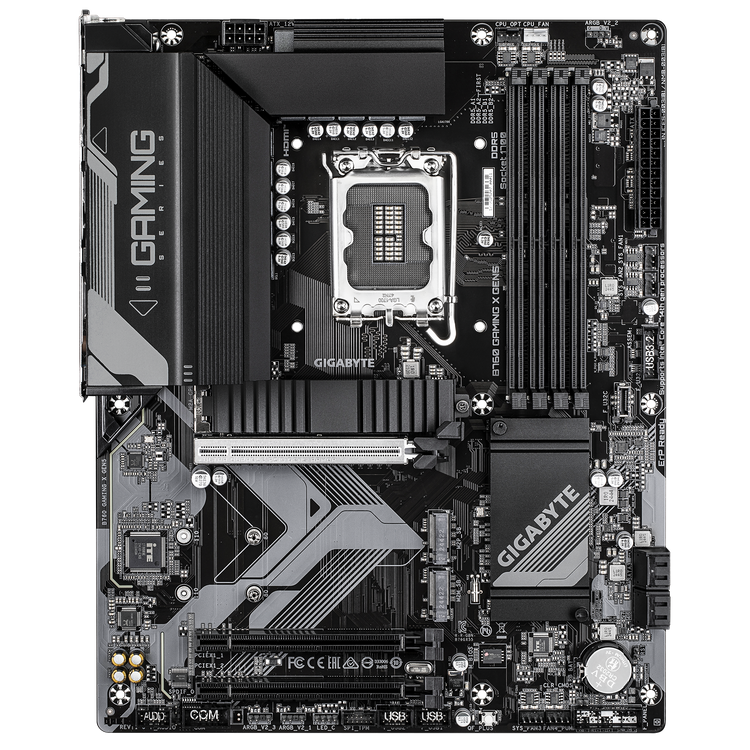

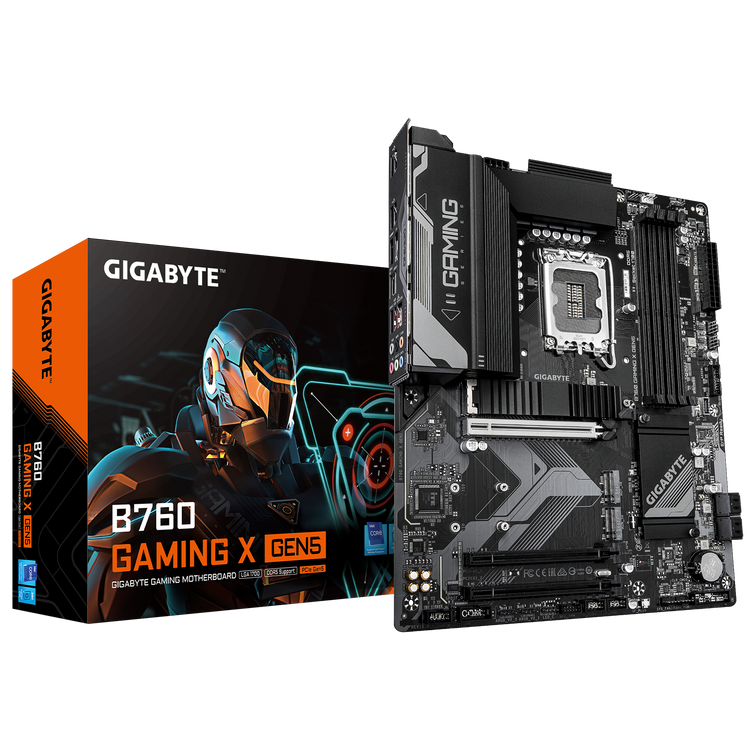

The Gigabyte B760 GAMING X GEN5 is a versatile motherboard ideal for users building high-performance gaming PCs or workstations. It supports the latest Intel processors and offers a range of features for storage and memory expansion.

  • Supports Intel processors with LGA1700 socket, including 12th to 14th Gen Intel Core.
  • Equipped with four memory slots for DDR5 RAM, allowing for high-speed performance up to 5600 MHz.
  • Provides multiple storage options with M.2 and SATA support for up to 7 drives.
  • Includes RAID support for data redundancy and performance enhancement.
  • Dual-channel memory architecture ensures efficient data processing and multitasking.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 0.95 kg
  • Producer product name: B760 GAMING X GEN5
Additional specifications (99)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4400,4800,5200,5600 MHz
  • Supported memory clock speed (max): 5600 MHz
  • Maximum internal memory: 256 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 64 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 2
  • Number of chassis fan connectors: 4
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • Serial port headers: 1
  • 12V power connector: Yes
  • Number of water pump connectors: 2
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 4

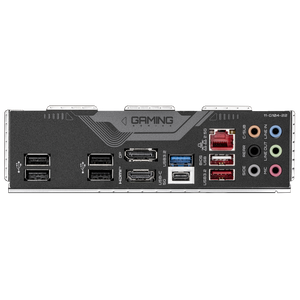

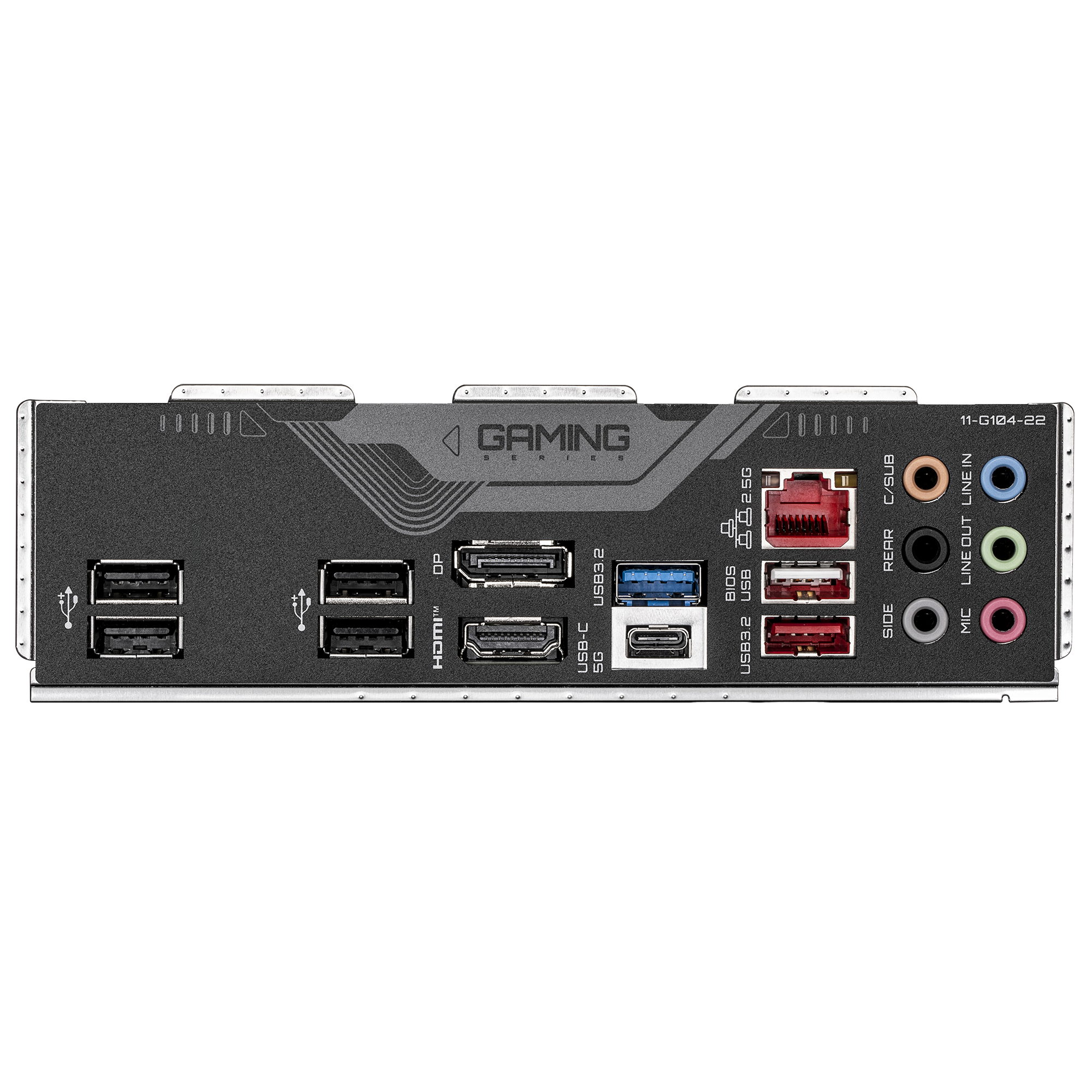

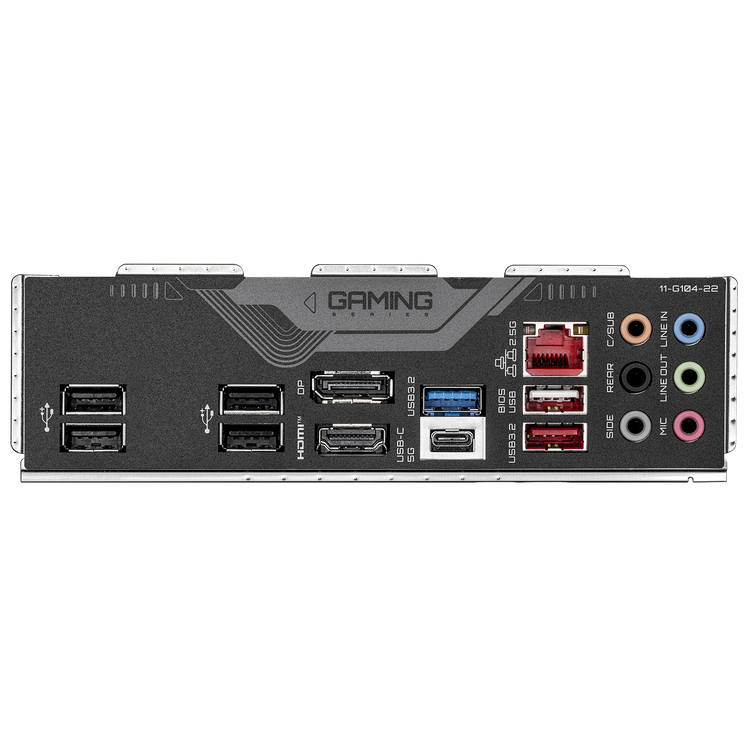

  • USB 2.0 ports quantity: 5
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: No
  • Motherboard chipset: Intel B760
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Dark brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • 1st M.2 largest key size: 22110
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 4.0
  • 3rd M.2 largest key size: 22110
  • 3rd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery capacity: 220 mAh
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Width: 305 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version)
  • Weight: 1.56 kg
  • Warranty period: 3 year(s)
Description

The Gigabyte B760 GAMING X GEN5 is a versatile motherboard ideal for users building high-performance gaming PCs or workstations. It supports the latest Intel processors and offers a range of features for storage and memory expansion.

  • Supports Intel processors with LGA1700 socket, including 12th to 14th Gen Intel Core.
  • Equipped with four memory slots for DDR5 RAM, allowing for high-speed performance up to 5600 MHz.
  • Provides multiple storage options with M.2 and SATA support for up to 7 drives.
  • Includes RAID support for data redundancy and performance enhancement.
  • Dual-channel memory architecture ensures efficient data processing and multitasking.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: M.2, SATA
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 0.95 kg
  • Producer product name: B760 GAMING X GEN5
Additional specifications (99)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4400,4800,5200,5600 MHz
  • Supported memory clock speed (max): 5600 MHz
  • Maximum internal memory: 256 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 64 GB
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 2
  • Number of chassis fan connectors: 4
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • Serial port headers: 1
  • 12V power connector: Yes
  • Number of water pump connectors: 2
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 4
  • USB 2.0 ports quantity: 5
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: No
  • Motherboard chipset: Intel B760
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Dark brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x16 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • 1st M.2 largest key size: 22110
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 4.0
  • 3rd M.2 largest key size: 22110
  • 3rd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery capacity: 220 mAh
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032
  • Width: 305 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version)
  • Weight: 1.56 kg
  • Warranty period: 3 year(s)

Gigabyte B760 GAMING X GEN5, Processor family Intel, Processor socket LGA1700, DDR5

€162,43
€162,43
Tax included.
