About
Description

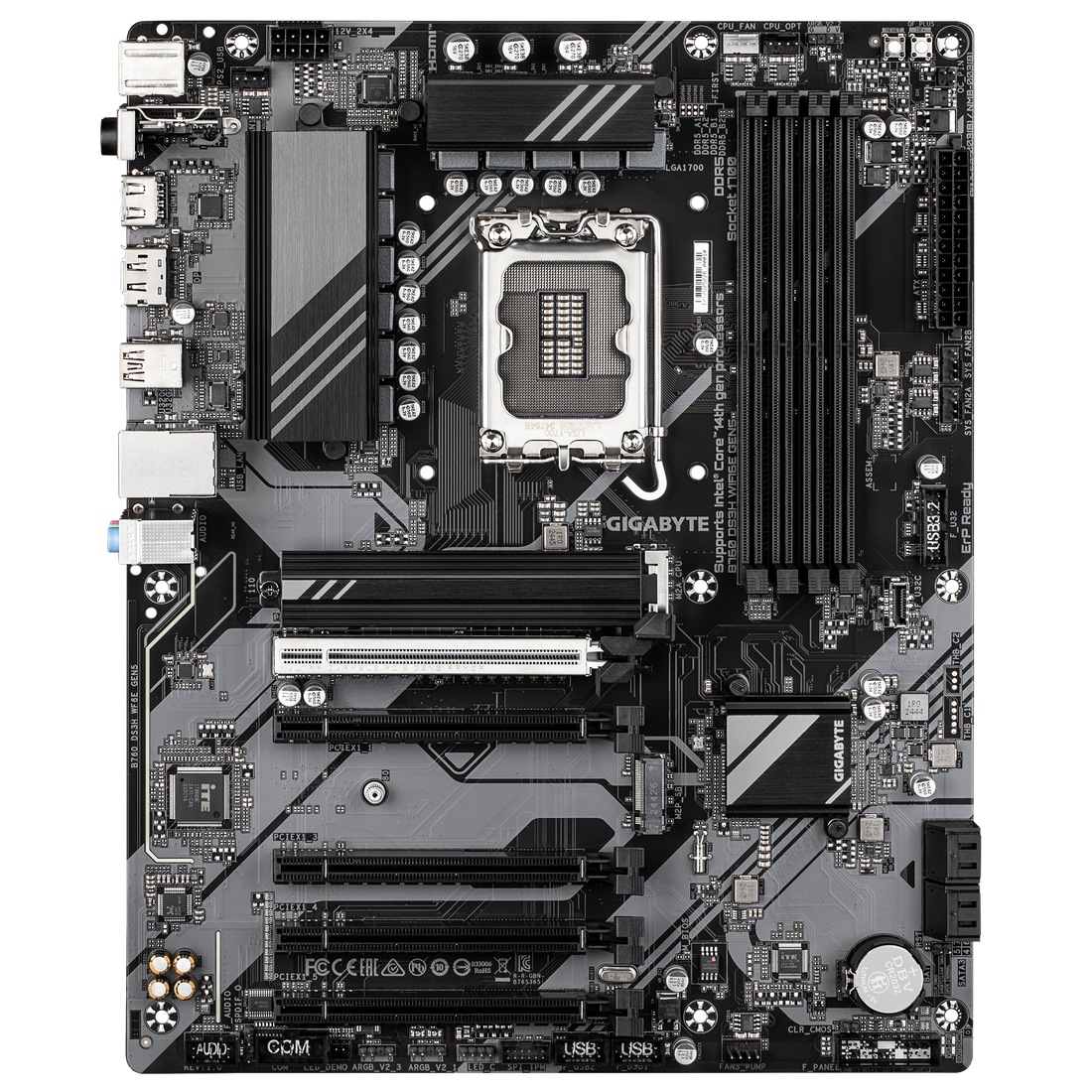

The Gigabyte B760 DS3H WF6E GEN5 is a versatile motherboard designed for users looking to build or upgrade their PC for gaming or productivity. Compatible with Intel's latest processor families, it offers robust memory and storage support for efficient performance.
- Supports Intel processors with LGA1700 socket, enabling use of various Intel Core and Celeron series.
- Up to 256 GB of DDR5 memory can be installed across four DIMM slots for enhanced multitasking.
- Offers dual-channel memory architecture for improved data transfer rates.
- Provides multiple storage options with support for M.2 and SATA interfaces, accommodating both HDDs and SSDs.
- Includes RAID support with multiple RAID levels for data redundancy or performance enhancement.
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: M.2, SATA
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: Intel
- Processor socket: LGA1700
Technical details (2)
- Net weight: 0.95 kg
- Producer product name: B760 DS3H WF6E GEN5
Additional specifications (103)
- Processor manufacturer: Intel
- Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,5200,4800,4400 MHz
- Supported memory clock speed (max): 5600 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.2
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX210
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: Intel B760 Express
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 3.x) slots: 4
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Weight: 1.31 kg
- Warranty period: 3 year(s)
Description
The Gigabyte B760 DS3H WF6E GEN5 is a versatile motherboard designed for users looking to build or upgrade their PC for gaming or productivity. Compatible with Intel's latest processor families, it offers robust memory and storage support for efficient performance.
- Supports Intel processors with LGA1700 socket, enabling use of various Intel Core and Celeron series.
- Up to 256 GB of DDR5 memory can be installed across four DIMM slots for enhanced multitasking.
- Offers dual-channel memory architecture for improved data transfer rates.
- Provides multiple storage options with support for M.2 and SATA interfaces, accommodating both HDDs and SSDs.
- Includes RAID support with multiple RAID levels for data redundancy or performance enhancement.
Specifications (1)
- Warranty: 36 month(s)
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: M.2, SATA
Memory (1)
- Supported memory types: DDR5
Processor (2)
- Processor family: Intel
- Processor socket: LGA1700
Technical details (2)
- Net weight: 0.95 kg
- Producer product name: B760 DS3H WF6E GEN5
Additional specifications (103)
- Processor manufacturer: Intel
- Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,5200,4800,4400 MHz
- Supported memory clock speed (max): 5600 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.2
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX210
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: Intel B760 Express
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 3.x) slots: 4
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Weight: 1.31 kg
- Warranty period: 3 year(s)
Gigabyte B760 DS3H WF6E GEN5, Processor family Intel, Processor socket LGA1700, DDR5
- Regular price
- €169,87
- Sale price
- €169,87
- Regular price
-
Tax included.
