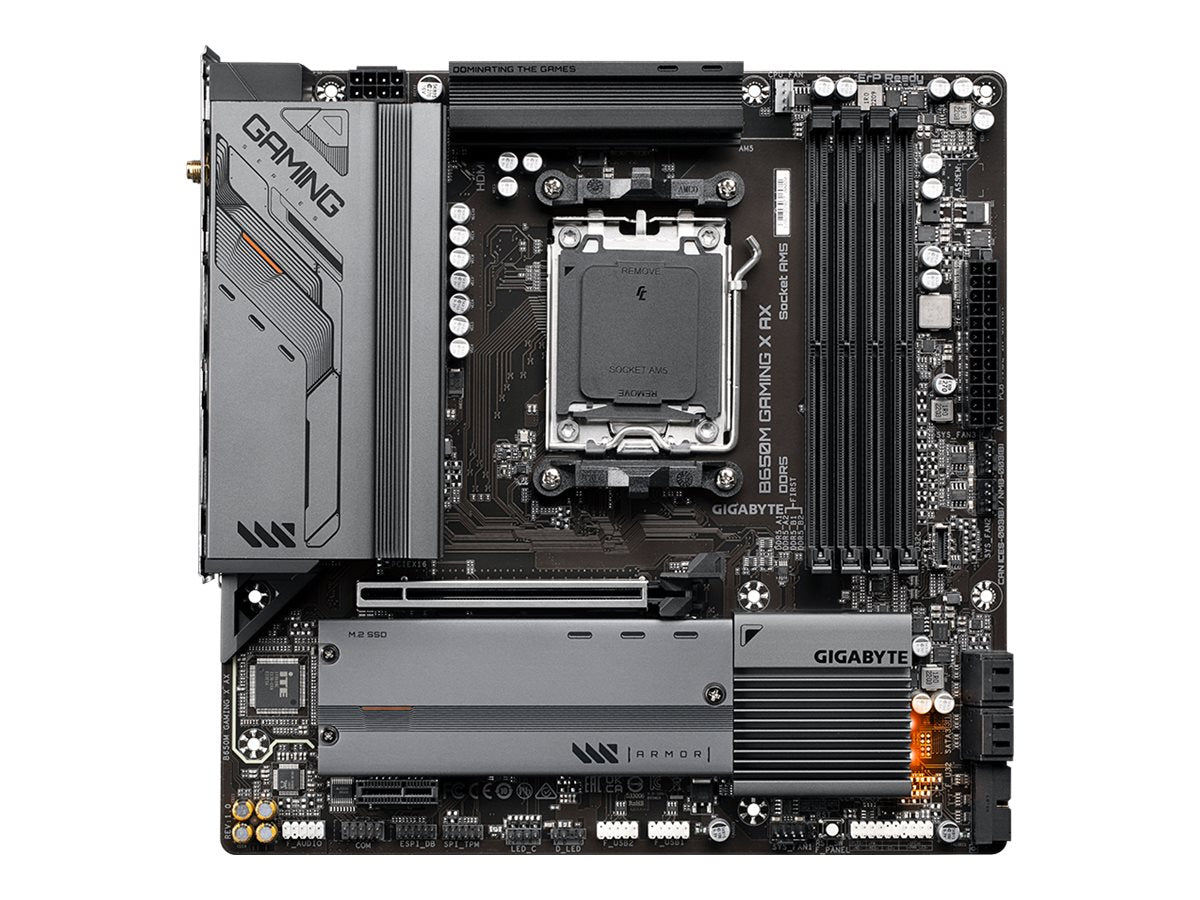

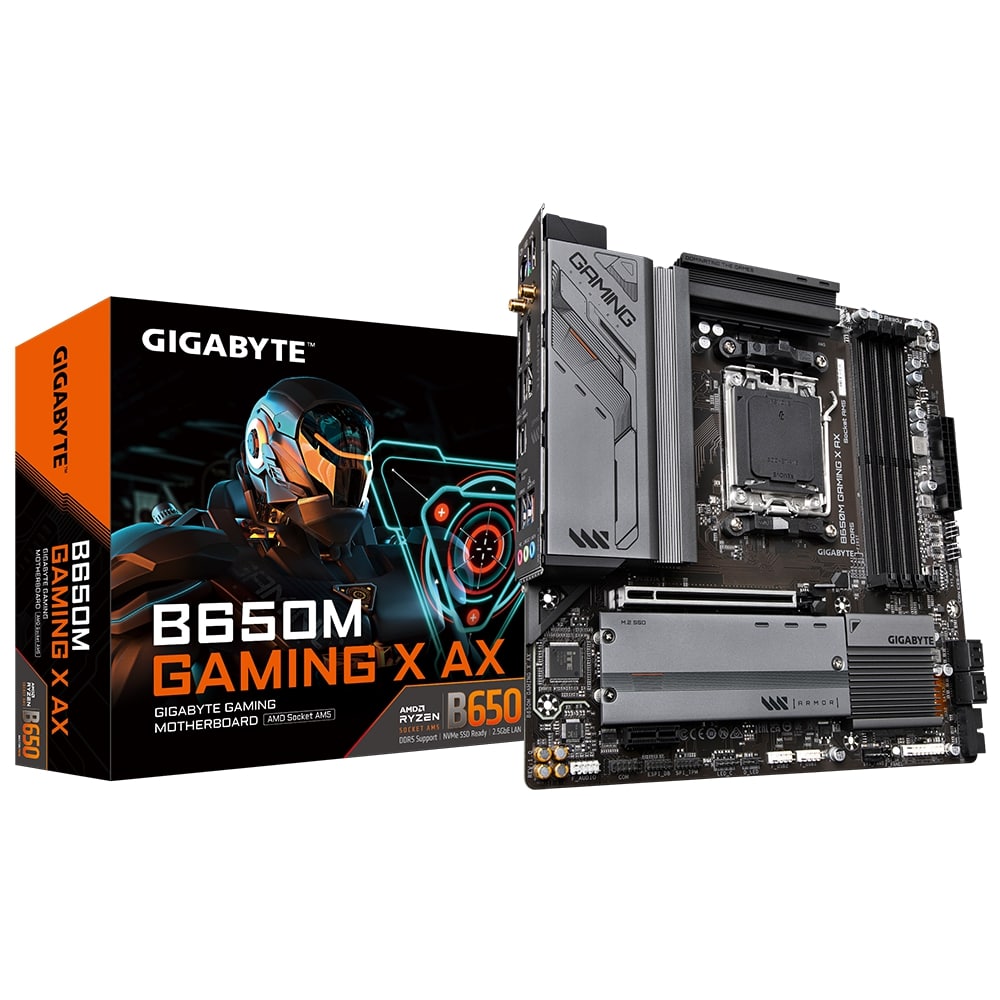

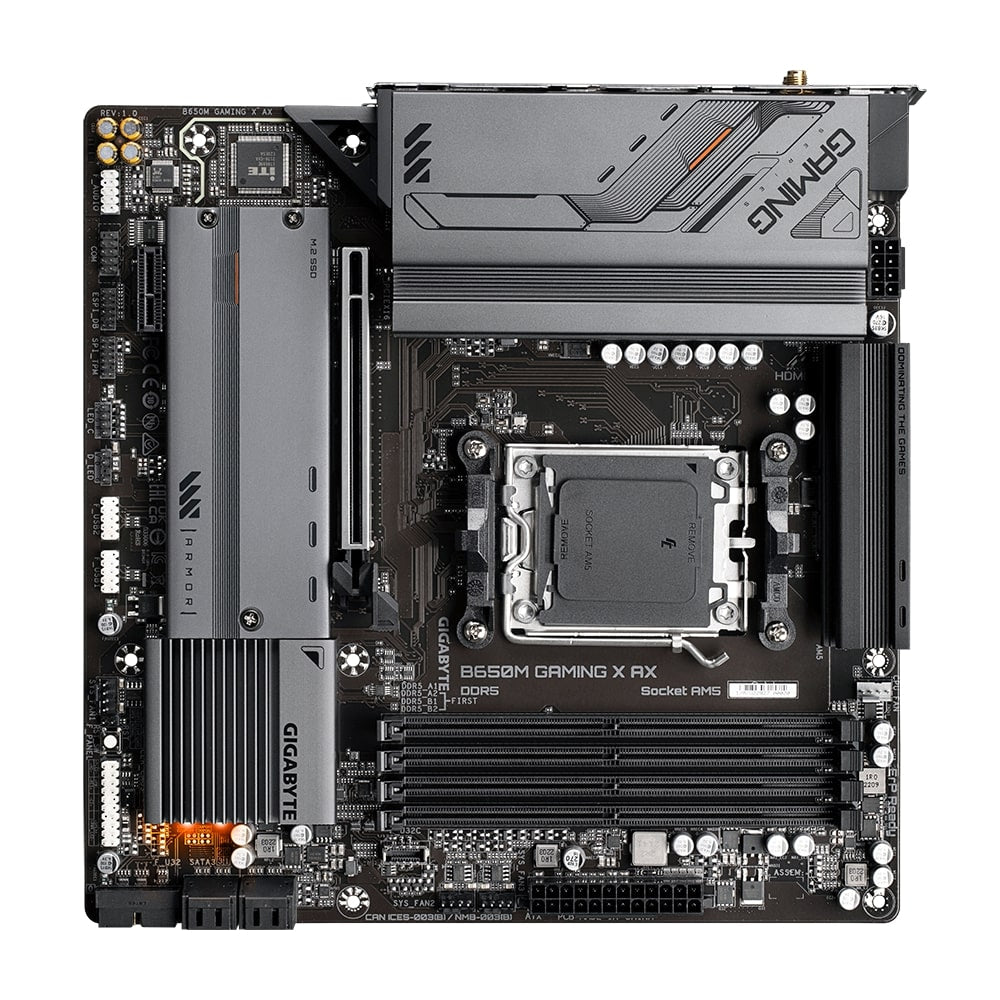

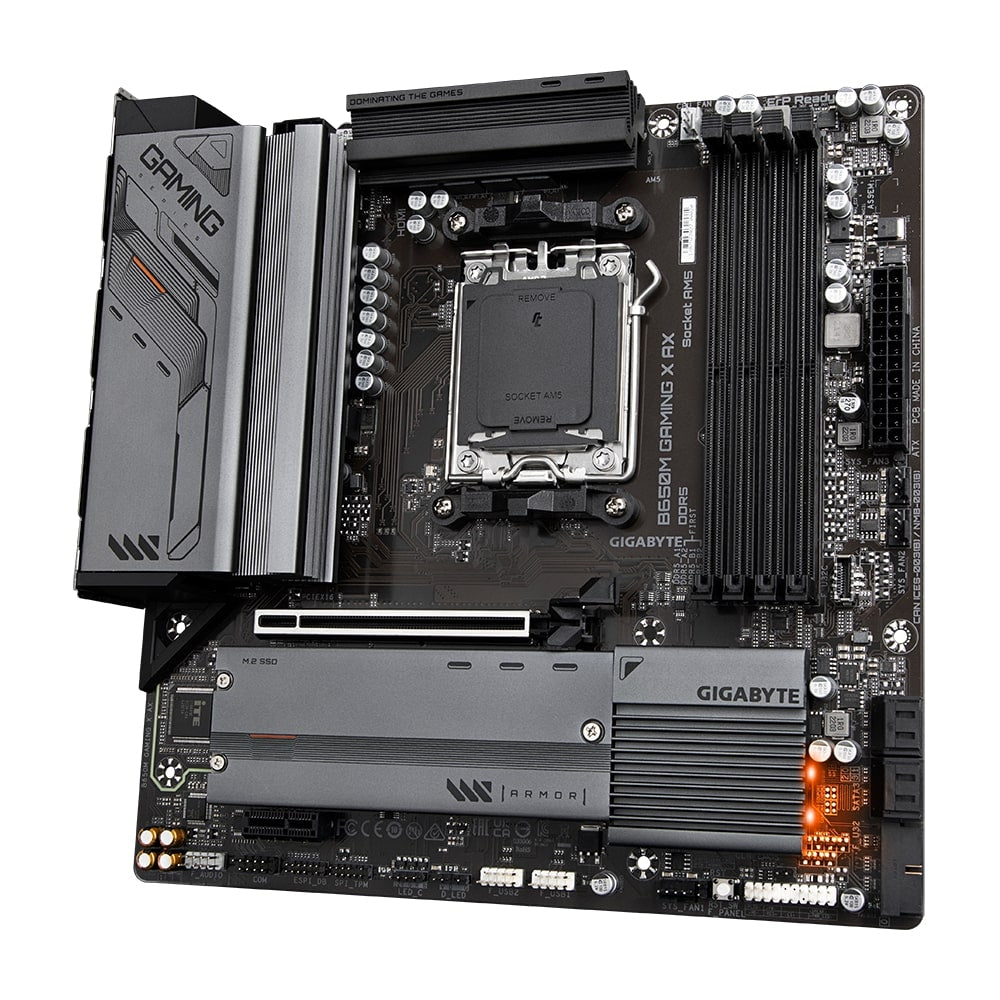

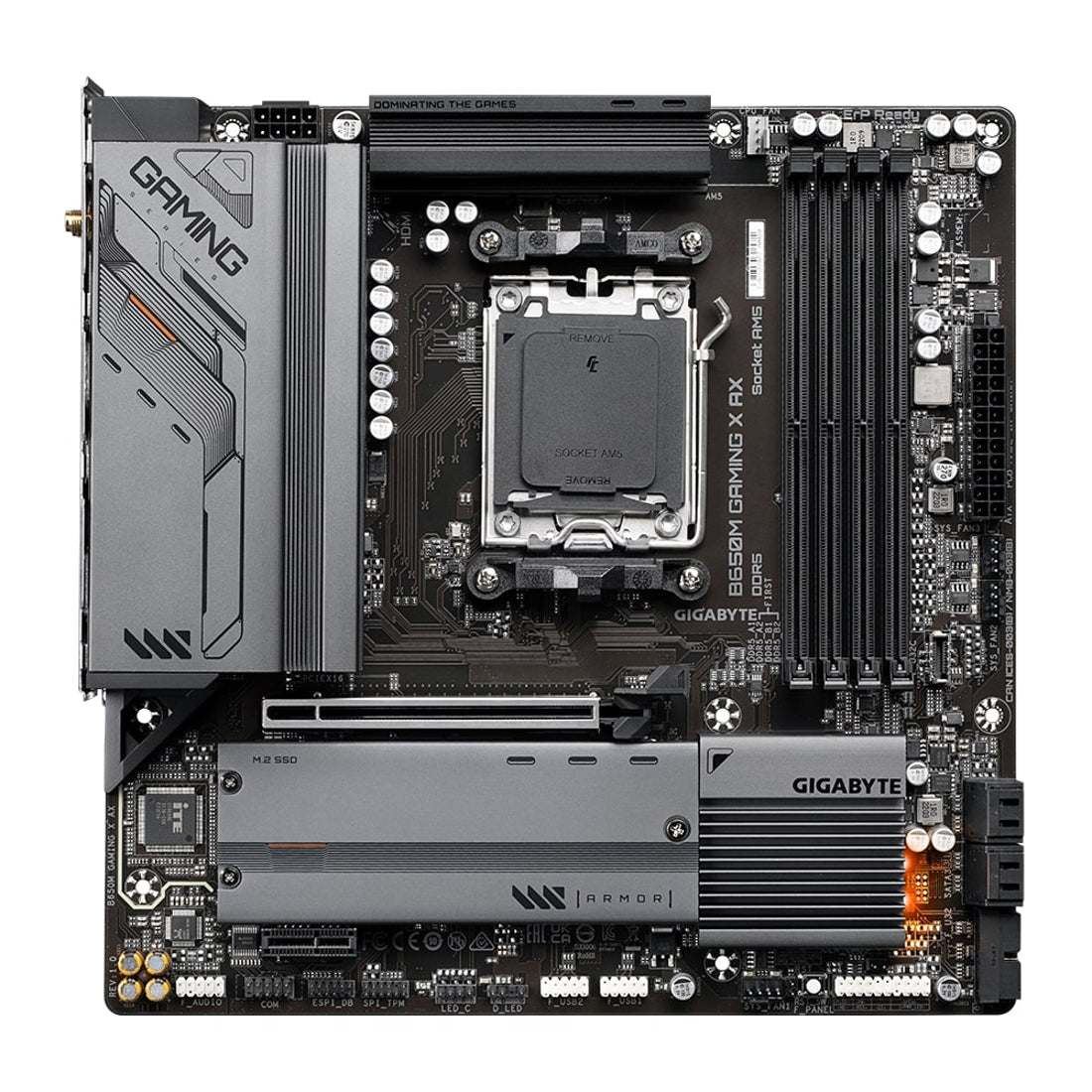

The Gigabyte B650M GAMING X AX 1.1 is a micro ATX motherboard designed for gamers and PC builders who prefer AMD processors. It offers robust support for high-speed memory and a variety of storage options, making it suitable for building a powerful and efficient system.
- Supports AMD Ryzen 7000 Series processors with an AM5 socket for modern computing needs.
- Equipped with four DDR5 DIMM slots, allowing for fast memory speeds up to 8000 MHz and a maximum internal memory of 256 GB.
- Includes four SATA connectors and supports both SATA and M.2 interfaces, accommodating multiple HDDs and SSDs for versatile storage solutions.
- Features RAID support for improved data redundancy and performance.
- Micro ATX form factor fits in a variety of cases, ensuring compatibility for most builds.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 4
- Supported memory types: DDR5 DIMM
Performance (2)
- Chipset: B650
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM5
- Compatible processor series: Supports AMD Ryzen 7000 Series Processors
Technical details (3)
- Producer product name: B650M GAMING X AX 1.1 M/B
- Net weight: 0.97 kg
- Warranty: 36 month(s)
Additional specifications (99)
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
- Supported memory clock speed (max): 8000 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- Discrete graphics support: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

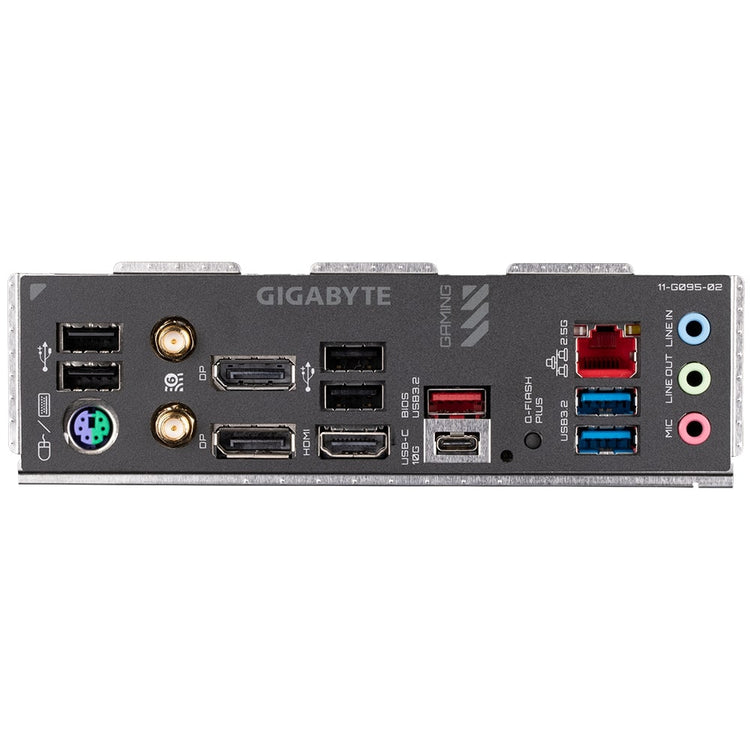

- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8852CE
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 25110
- 2nd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Warranty period: 3 year(s)
Description
The Gigabyte B650M GAMING X AX 1.1 is a micro ATX motherboard designed for gamers and PC builders who prefer AMD processors. It offers robust support for high-speed memory and a variety of storage options, making it suitable for building a powerful and efficient system.
- Supports AMD Ryzen 7000 Series processors with an AM5 socket for modern computing needs.
- Equipped with four DDR5 DIMM slots, allowing for fast memory speeds up to 8000 MHz and a maximum internal memory of 256 GB.
- Includes four SATA connectors and supports both SATA and M.2 interfaces, accommodating multiple HDDs and SSDs for versatile storage solutions.
- Features RAID support for improved data redundancy and performance.
- Micro ATX form factor fits in a variety of cases, ensuring compatibility for most builds.
Internal I/O (2)
- Number of SATA connectors: 4
- Supported hard disk drive interfaces: SATA, M.2
Memory (2)
- Memory slots: 4
- Supported memory types: DDR5 DIMM
Performance (2)
- Chipset: B650
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM5
- Compatible processor series: Supports AMD Ryzen 7000 Series Processors
Technical details (3)
- Producer product name: B650M GAMING X AX 1.1 M/B
- Net weight: 0.97 kg
- Warranty: 36 month(s)
Additional specifications (99)
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM5
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
- Supported memory clock speed (max): 8000 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- Discrete graphics support: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8852CE
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 25110
- 2nd M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Warranty period: 3 year(s)
Gigabyte B650M GAMING X AX 1.1 M/B, Processor family AMD, Processor socket AM5, DDR5 DIMM
- Regular price
- €178,55
- Sale price
- €178,55
- Regular price
-
Tax included.
