Description

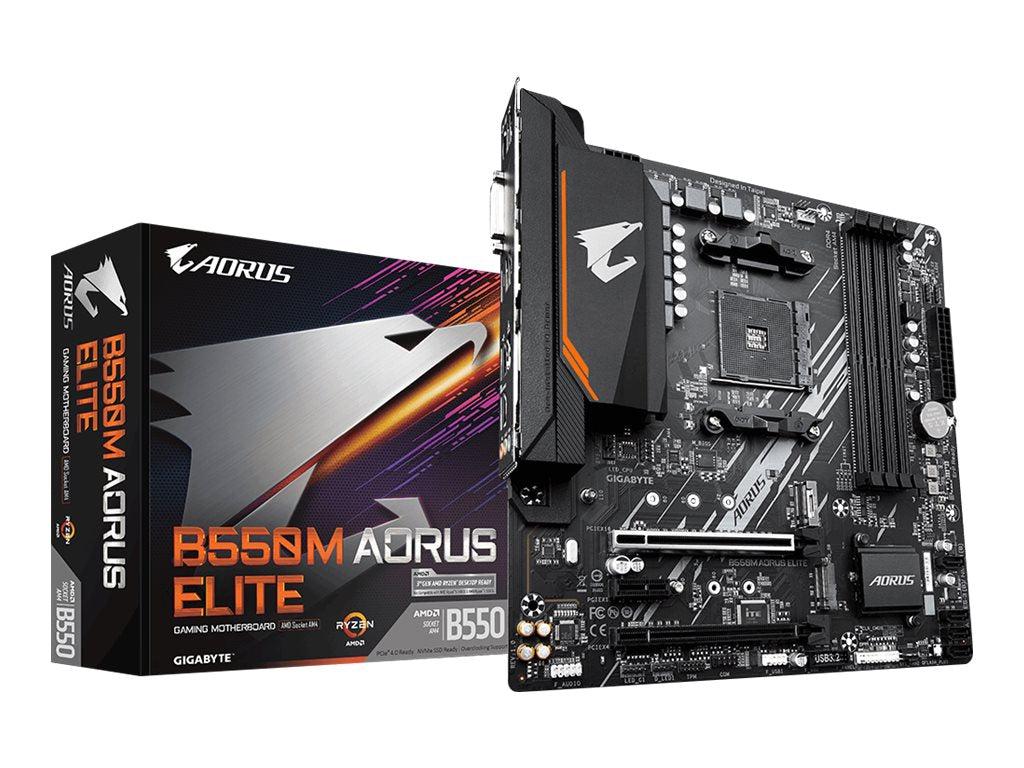

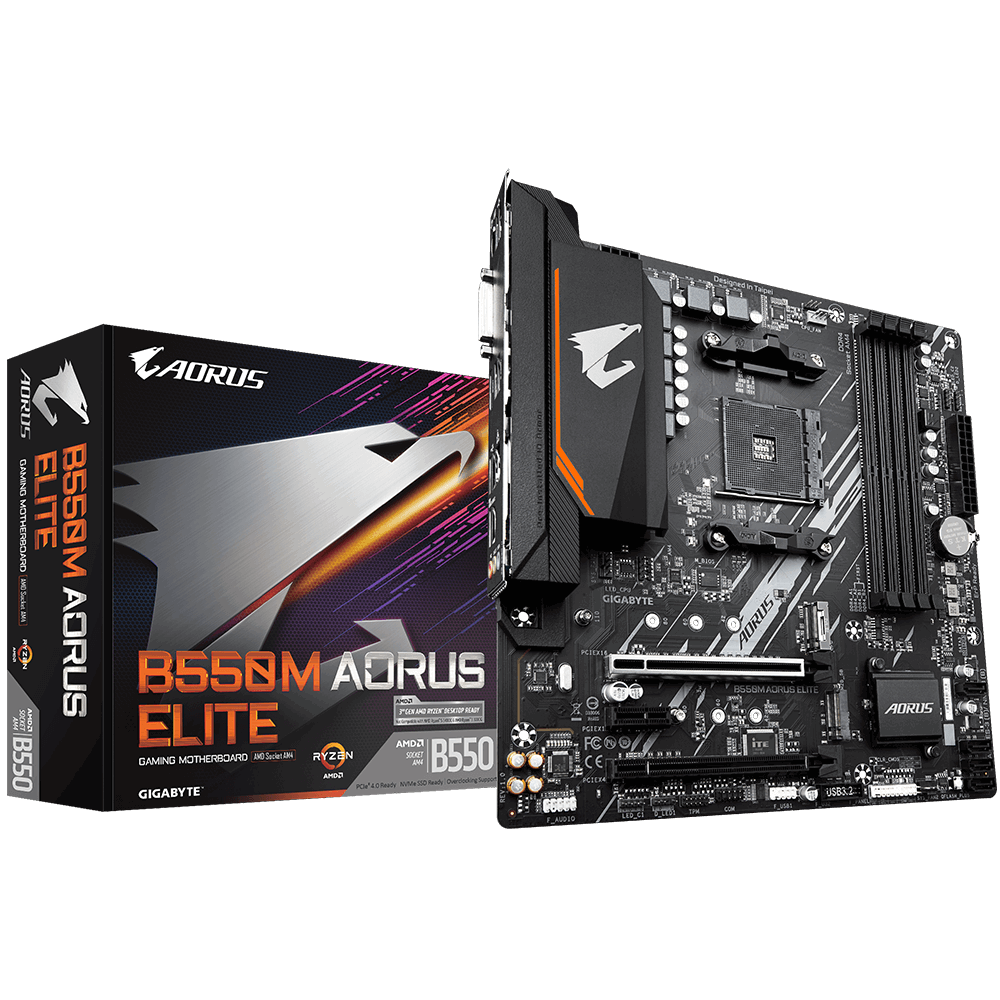

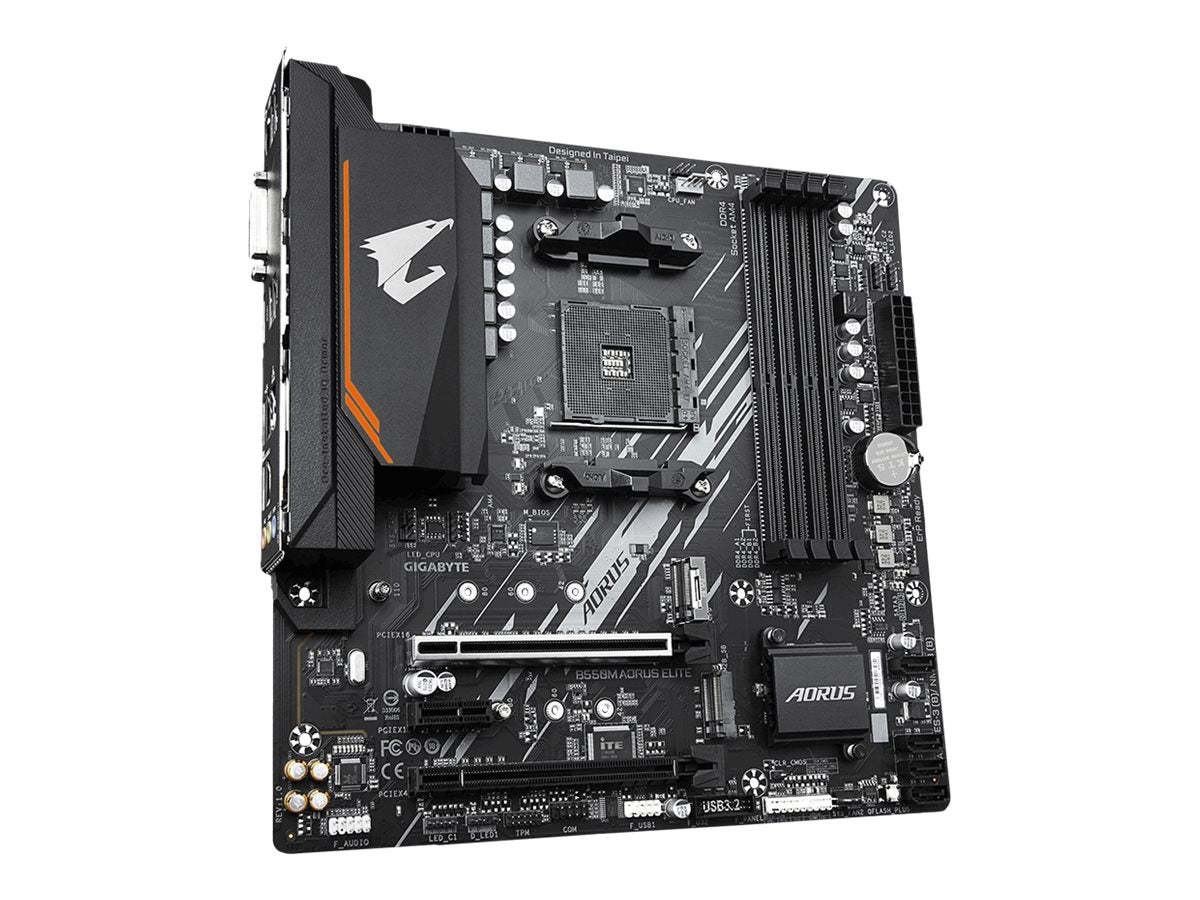

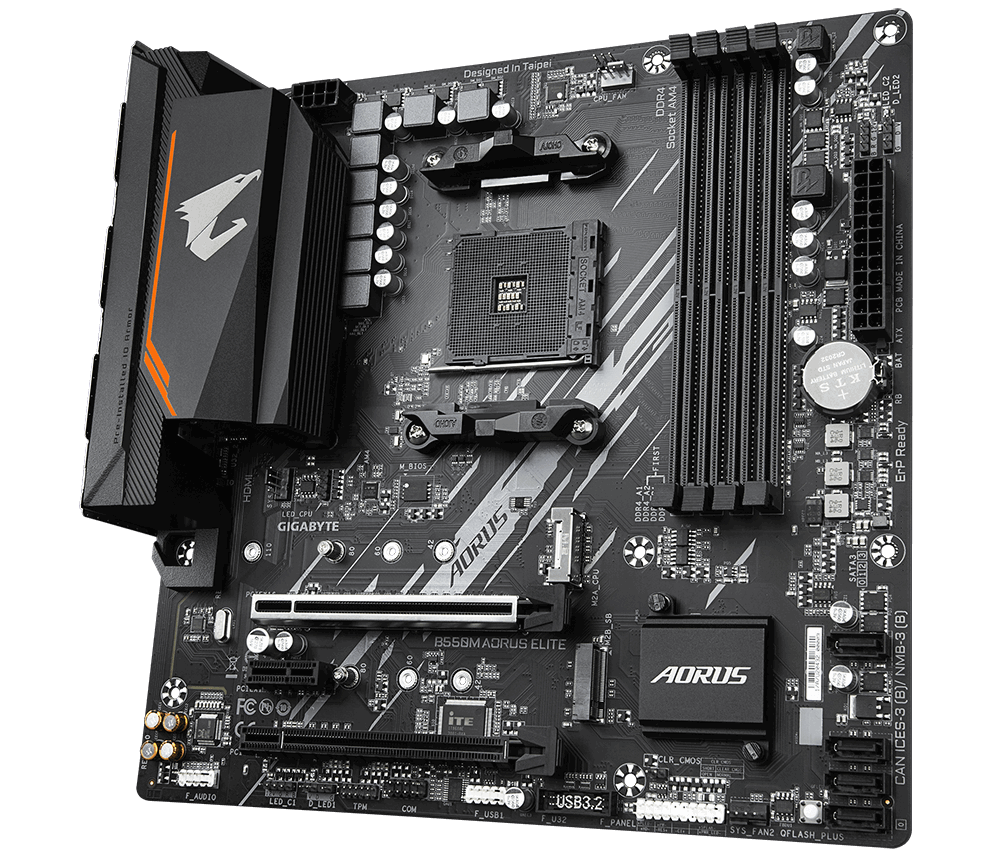

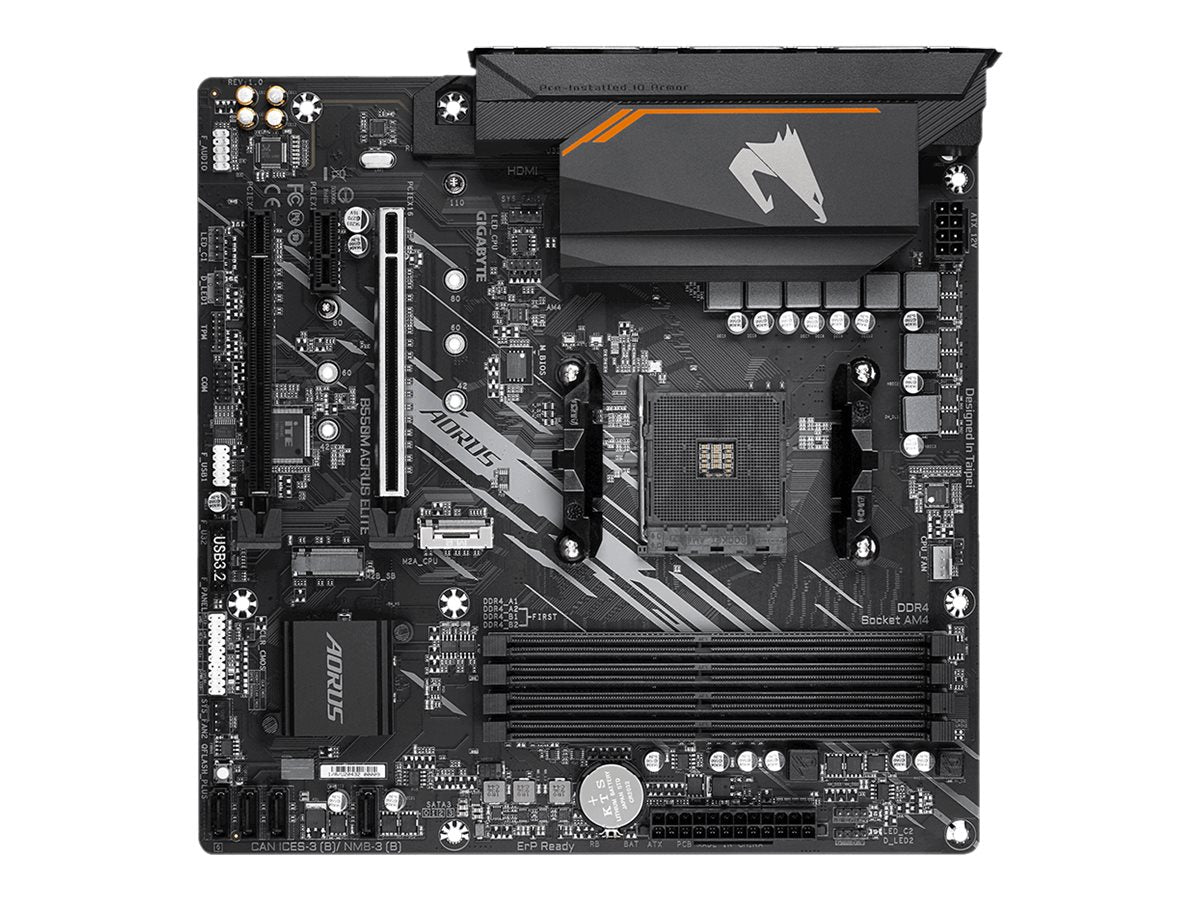

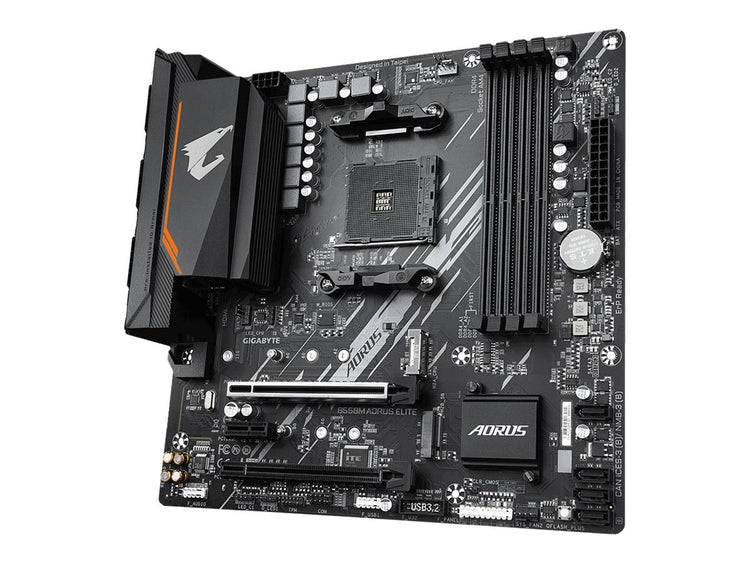

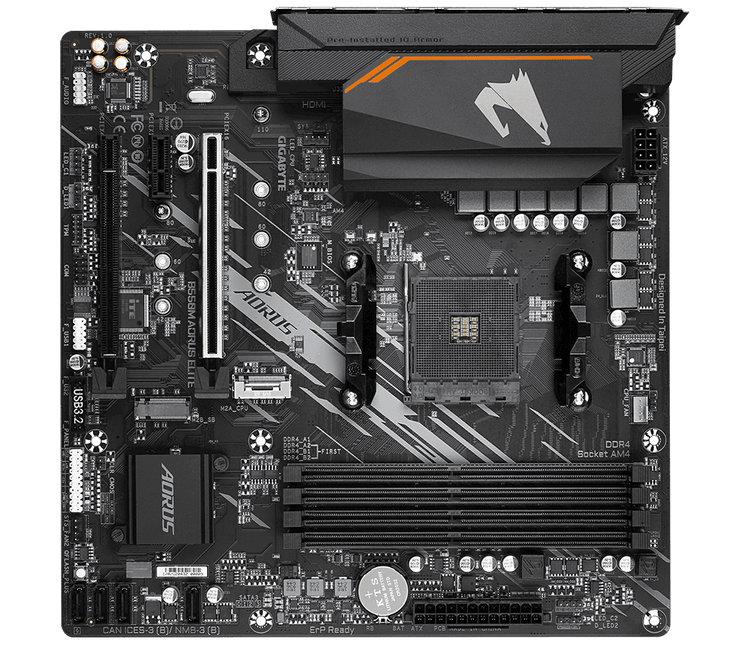

The Gigabyte B550M AORUS ELITE 1.0 is a Micro ATX motherboard designed for users wanting to build a reliable AMD-based system. It supports a wide range of AMD processors and provides ample memory and storage options.
- Four memory slots accommodate up to 128 GB of DDR4 DIMM RAM, allowing for extensive multitasking and performance.
- Equipped with four SATA 6Gb/s connectors and additional M.2 slots, this motherboard supports multiple storage drives, enhancing flexibility for your data needs.
- Dual-channel memory architecture improves data transfer rates, boosting overall system performance.
- Compatible with both ECC and non-ECC memory, this motherboard caters to various user requirements, from gaming to professional applications.
- Support for RAID 0, 1, and 10 configurations offers options for enhanced data redundancy and performance.
Internal I/O (1)
- Number of SATA connectors: 4 x SATA 6Gb/s connectors
Memory (2)
- Memory slots: 4
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: AMD B
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM4
- Compatible processor series: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Technical details (2)
- Producer product name: B550M AORUS ELITE 1.0
- Net weight: 0.8 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (91)
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- Supported memory clock speed (max): 4733 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 5

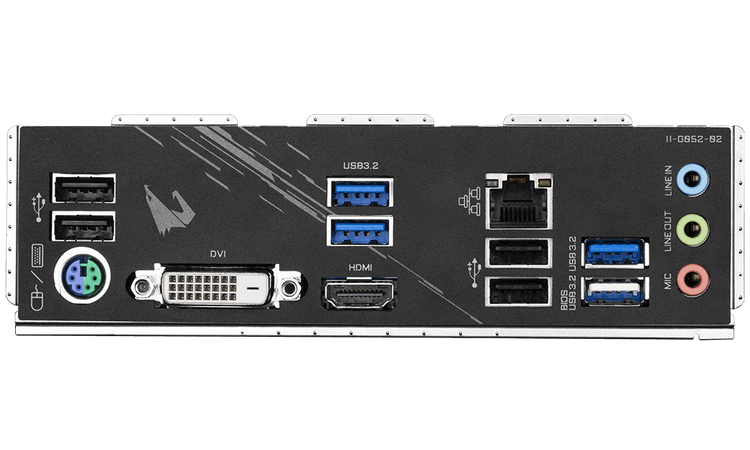

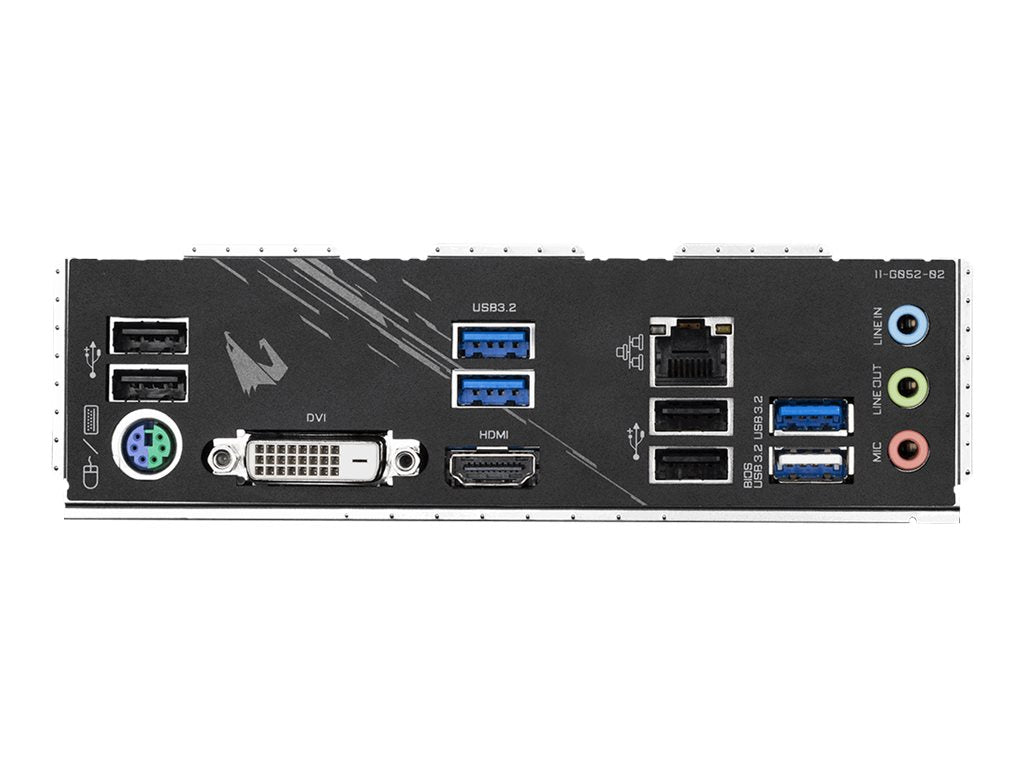

- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 3.0
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Harmonized System (HS) code: 84733020
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
- Batteries included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Warranty period: 3 year(s)
