Description

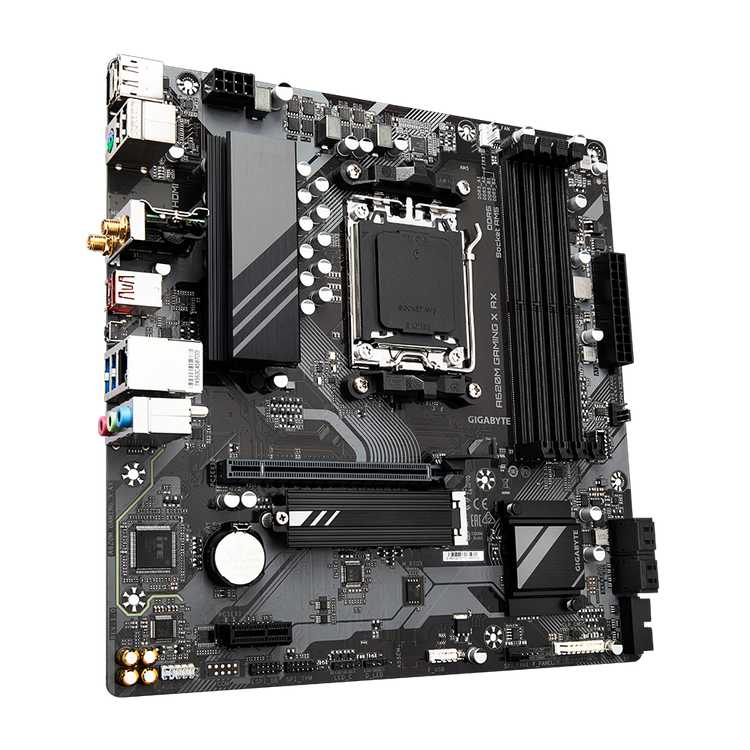

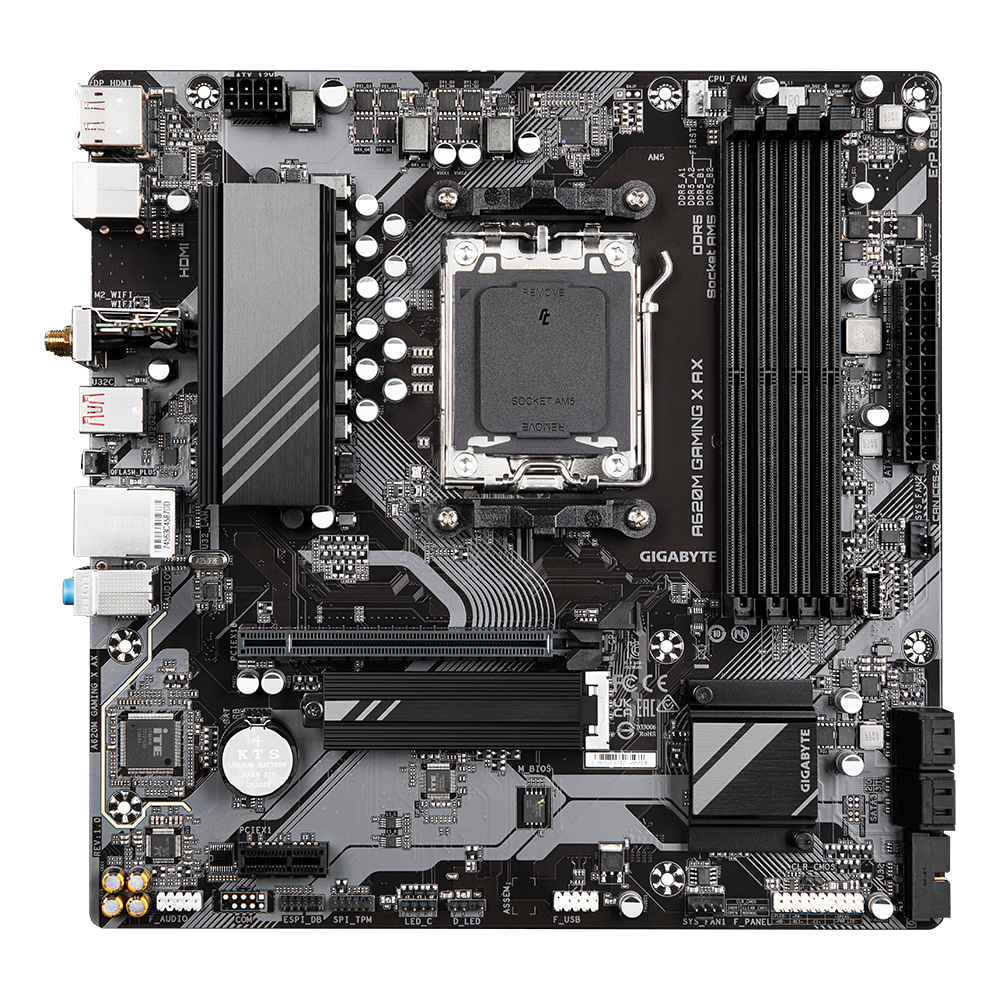

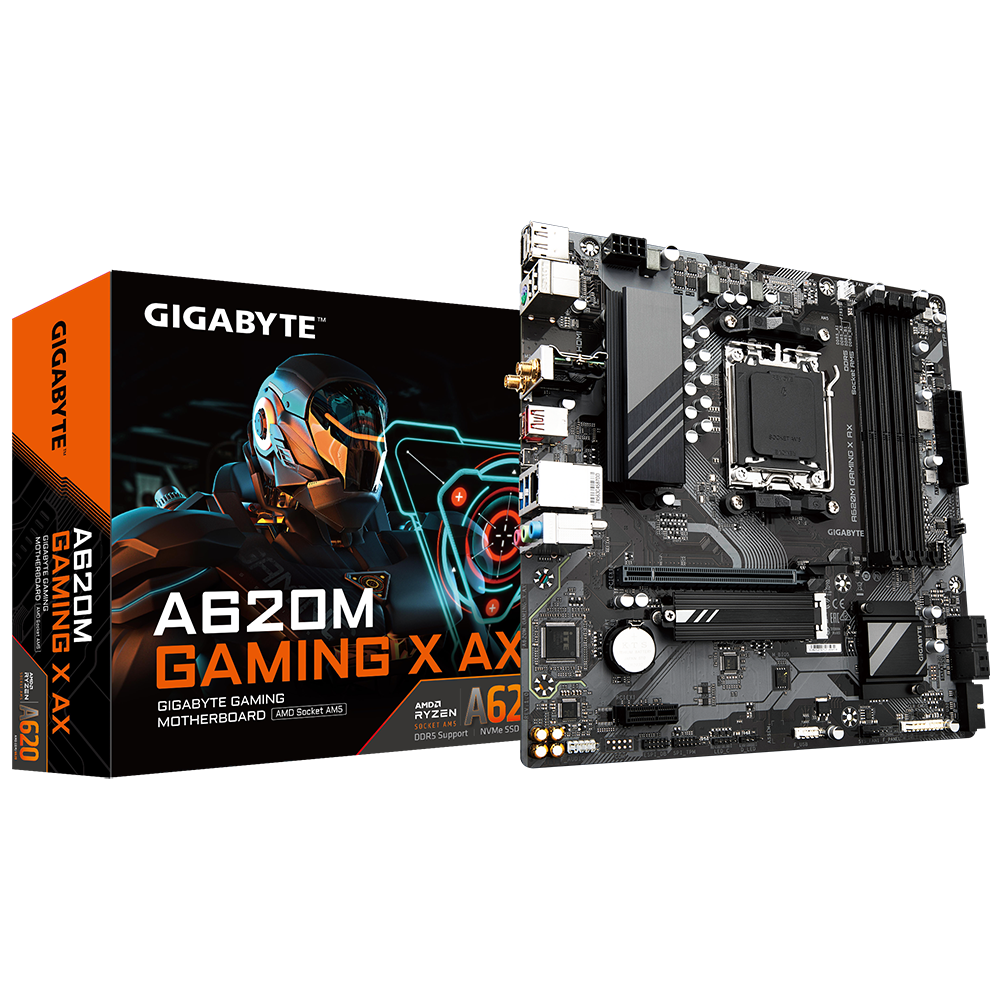

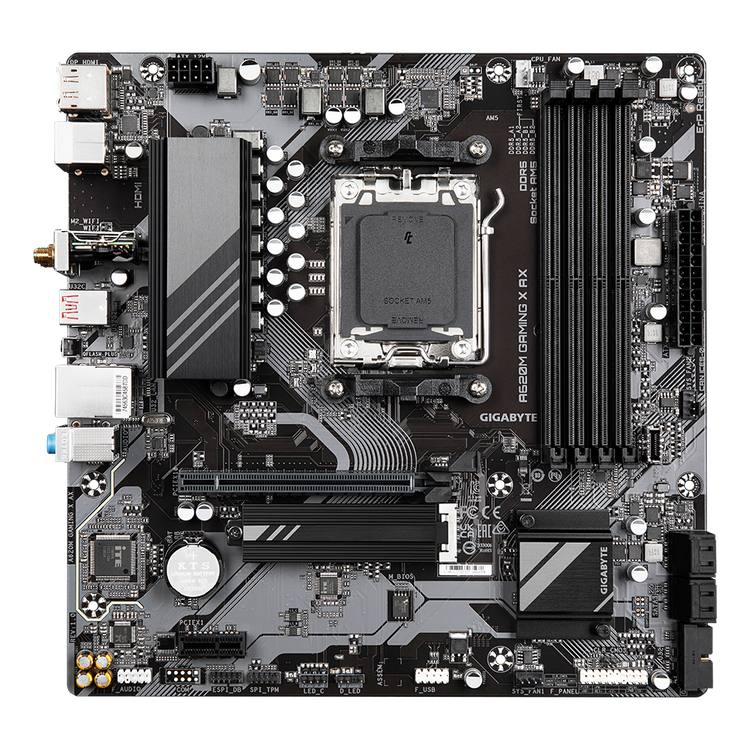

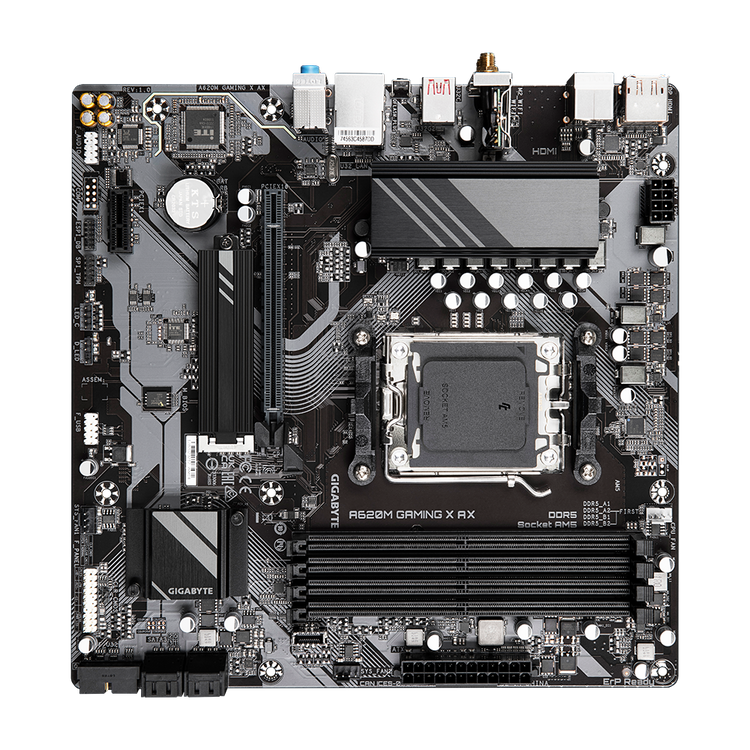

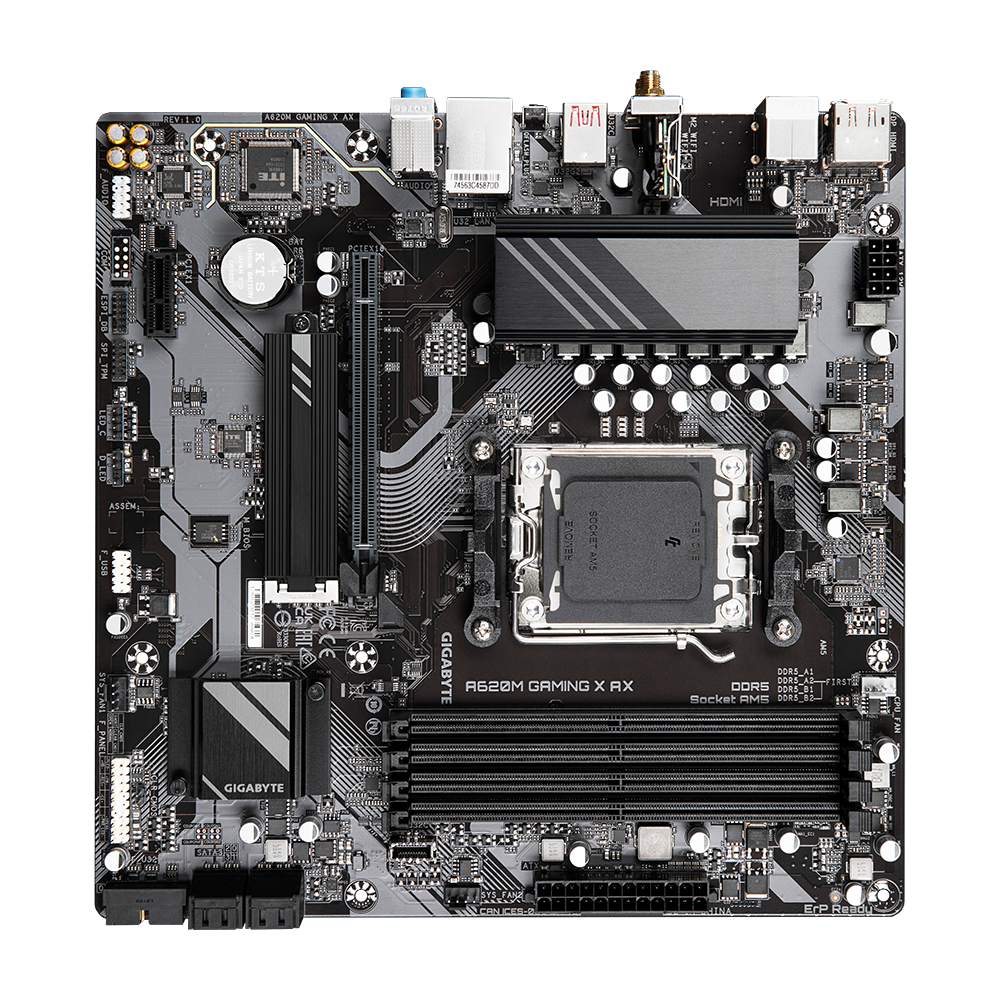

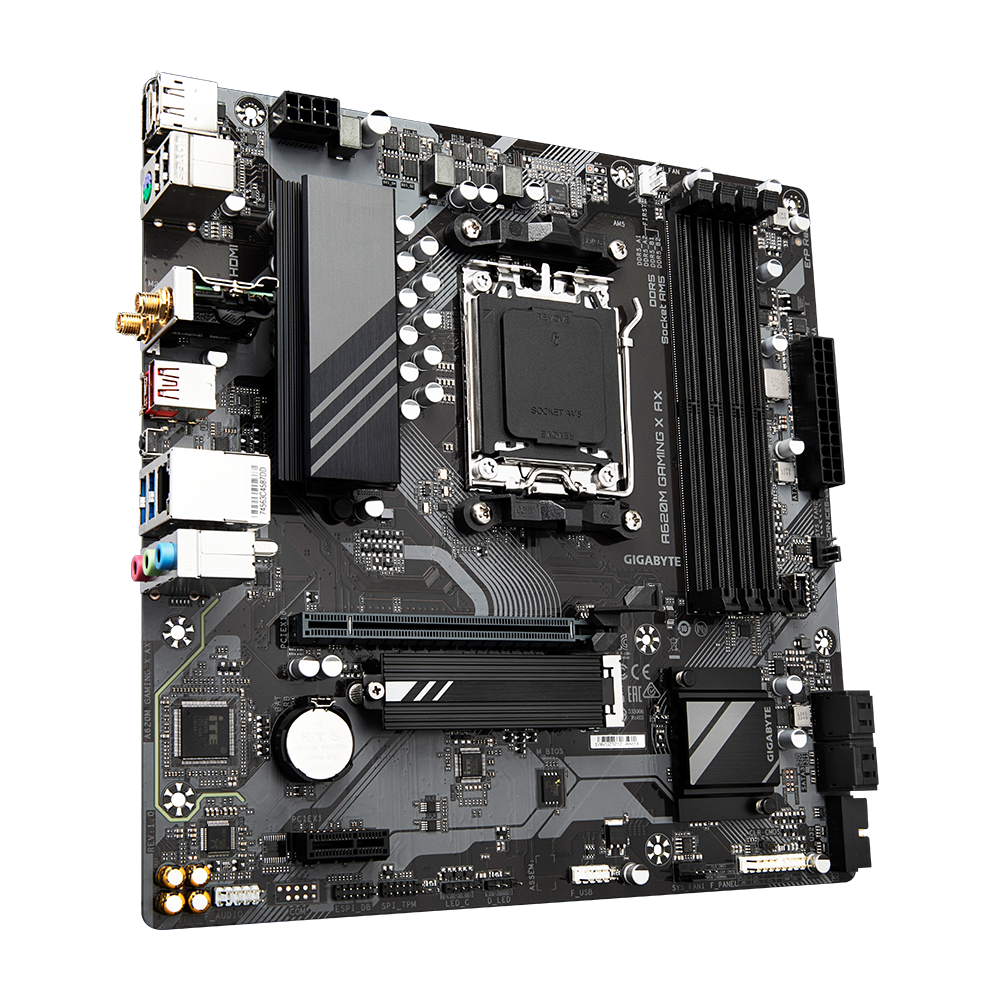

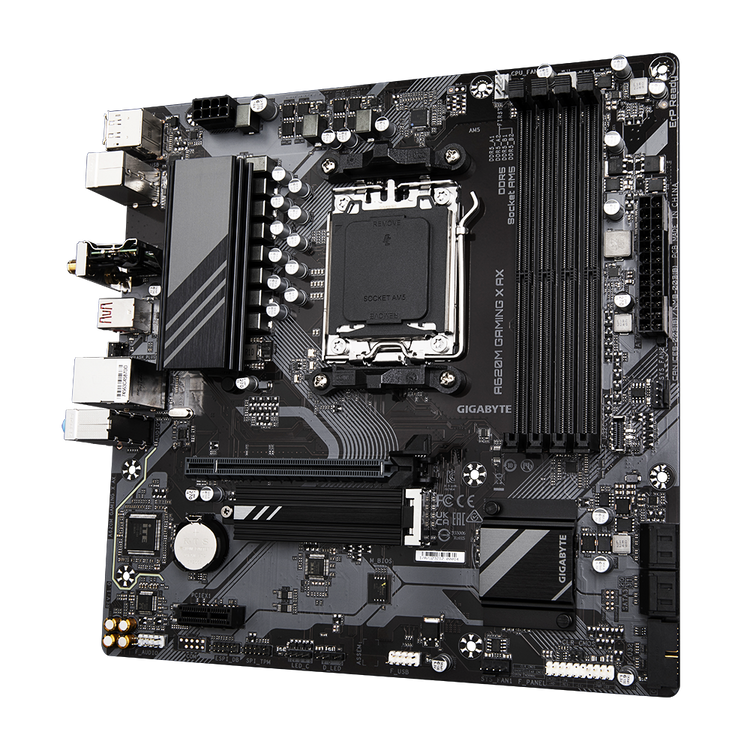

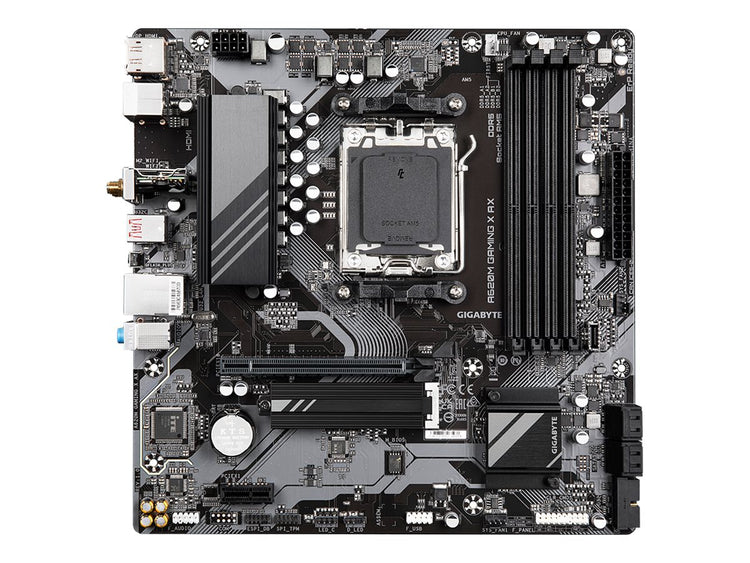

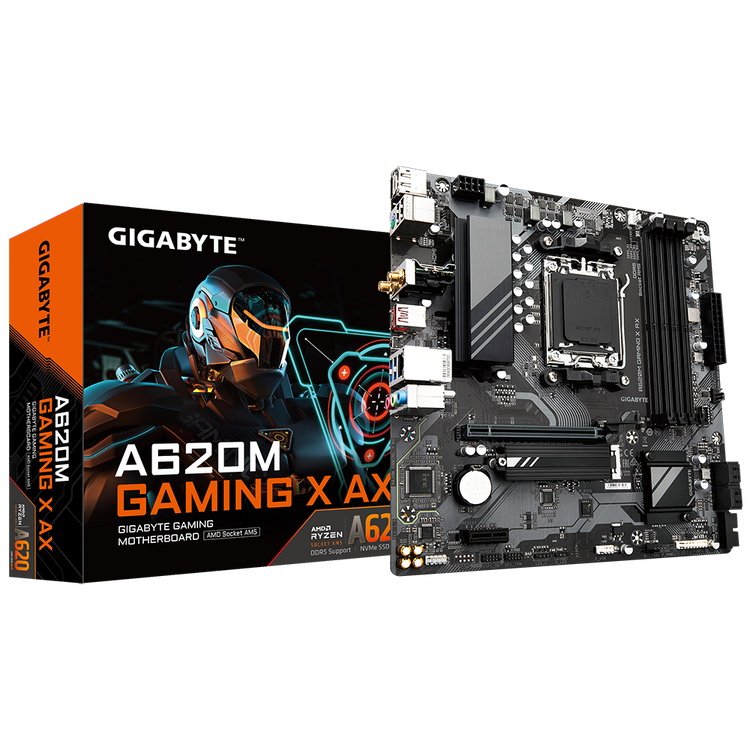

The Gigabyte A620M GAMING X AX 1.0 is a Micro ATX motherboard designed for gamers and PC builders who require performance and versatility. It supports the latest AMD Ryzen 7000 Series processors, making it suitable for high-performance computing tasks and gaming setups.

  • Supports up to 192 GB of DDR5 memory for improved multitasking and application performance.
  • Features four memory slots for dual-channel memory configuration, enhancing data transfer rates.
  • Offers multiple storage options with four SATA connectors and M.2 interface, accommodating a variety of HDD and SSD drives.
  • Includes RAID support for data redundancy or performance improvements, with options for levels 0, 1, and 10.
  • Supports a maximum resolution of 4096 x 2160 pixels for high-definition displays and gaming.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (2)
  • Memory slots: 4
  • Supported memory types: DDR5 DIMM
Performance (2)
  • Chipset: AMD A620
  • Motherboard form factor: Micro ATX
Processor (3)
  • Processor family: AMD
  • Processor socket: AM5
  • Compatible processor series: Supports AMD Ryzen 7000 Series Processors
Technical details (3)
  • Producer product name: A620M GAMING X AX 1.0 M/B
  • Net weight: 0.97 kg
  • Warranty: 36 month(s)
Additional specifications (64)
  • Processor manufacturer: AMD
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
  • Supported memory clock speed (max): 6400 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 5
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes

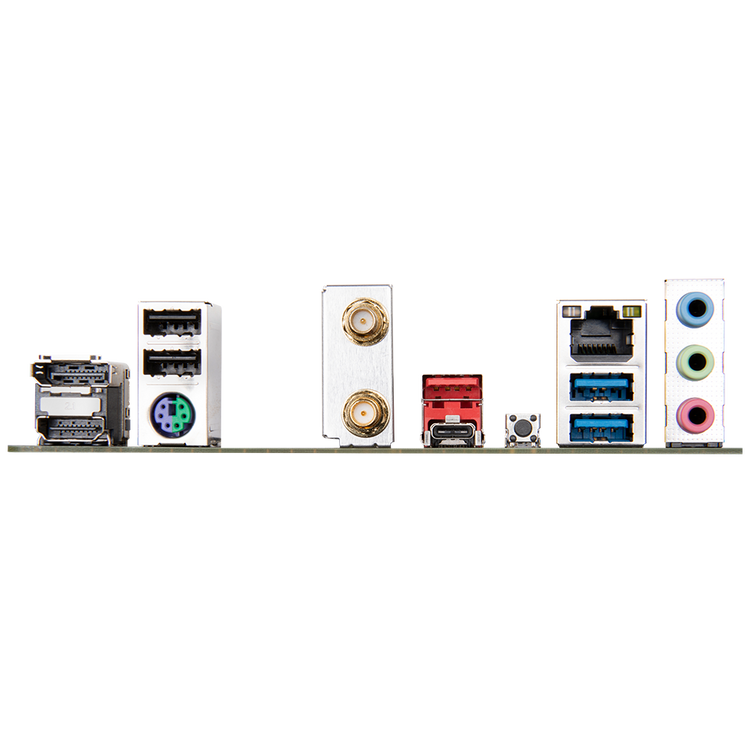

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 3
  • Microphone in: Yes
  • USB connector type: USB Type-A, USB Type-C
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: Yes
  • WLAN controller model: Realtek RTL8852CE
  • Bluetooth: Yes
  • Bluetooth version: 5.2
  • Motherboard chipset: AMD A620
  • Audio output channels: 7.1 channels
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x1 slots: 1
  • PCI Express x16 slots: 1
  • Number of M.2 (M) slots: 1
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Width: 244 mm
  • Depth: 244 mm
  • Cables included: SATA
Description

The Gigabyte A620M GAMING X AX 1.0 is a Micro ATX motherboard designed for gamers and PC builders who require performance and versatility. It supports the latest AMD Ryzen 7000 Series processors, making it suitable for high-performance computing tasks and gaming setups.

  • Supports up to 192 GB of DDR5 memory for improved multitasking and application performance.
  • Features four memory slots for dual-channel memory configuration, enhancing data transfer rates.
  • Offers multiple storage options with four SATA connectors and M.2 interface, accommodating a variety of HDD and SSD drives.
  • Includes RAID support for data redundancy or performance improvements, with options for levels 0, 1, and 10.
  • Supports a maximum resolution of 4096 x 2160 pixels for high-definition displays and gaming.
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (2)
  • Memory slots: 4
  • Supported memory types: DDR5 DIMM
Performance (2)
  • Chipset: AMD A620
  • Motherboard form factor: Micro ATX
Processor (3)
  • Processor family: AMD
  • Processor socket: AM5
  • Compatible processor series: Supports AMD Ryzen 7000 Series Processors
Technical details (3)
  • Producer product name: A620M GAMING X AX 1.0 M/B
  • Net weight: 0.97 kg
  • Warranty: 36 month(s)
Additional specifications (64)
  • Processor manufacturer: AMD
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
  • Supported memory clock speed (max): 6400 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 5
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: Yes
  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 3
  • Microphone in: Yes
  • USB connector type: USB Type-A, USB Type-C
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: Yes
  • WLAN controller model: Realtek RTL8852CE
  • Bluetooth: Yes
  • Bluetooth version: 5.2
  • Motherboard chipset: AMD A620
  • Audio output channels: 7.1 channels
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64
  • PCI Express x1 slots: 1
  • PCI Express x16 slots: 1
  • Number of M.2 (M) slots: 1
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System Management BIOS (SMBIOS) version: 2.7
  • Width: 244 mm
  • Depth: 244 mm
  • Cables included: SATA

Gigabyte A620M GAMING X AX 1.0 M/B, Processor family AMD, Processor socket AM5, DDR5 DIMM

€123,99
€123,99
Tax included.
