Description

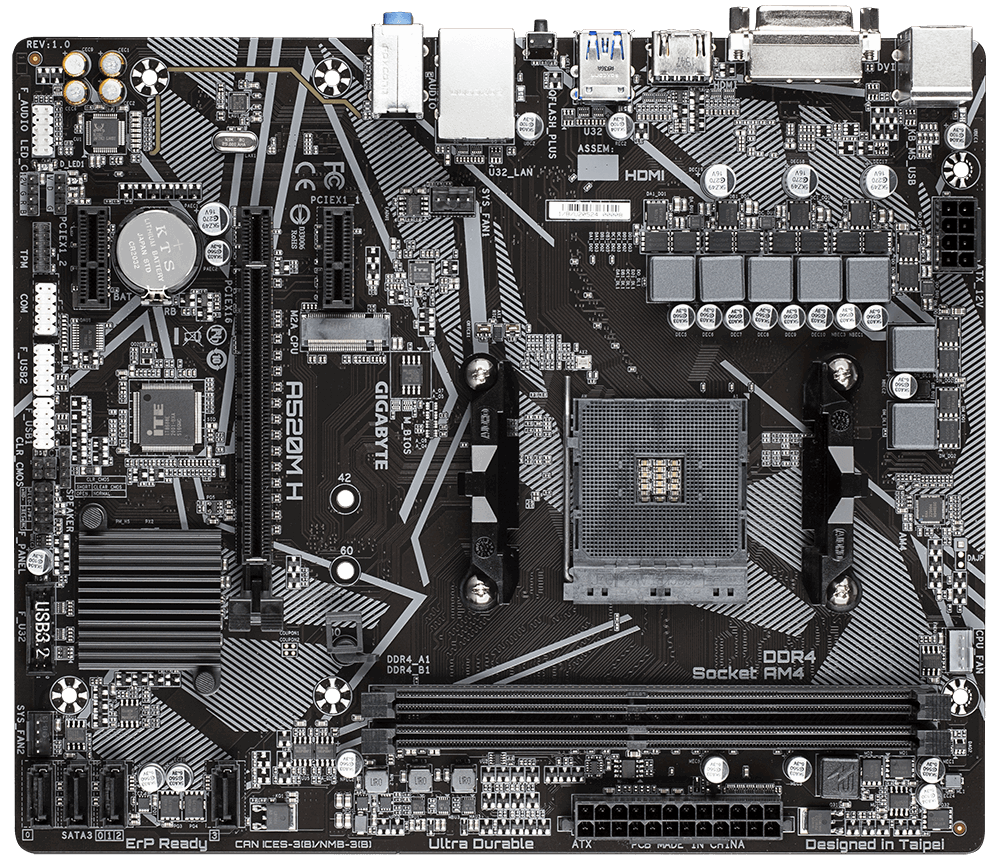

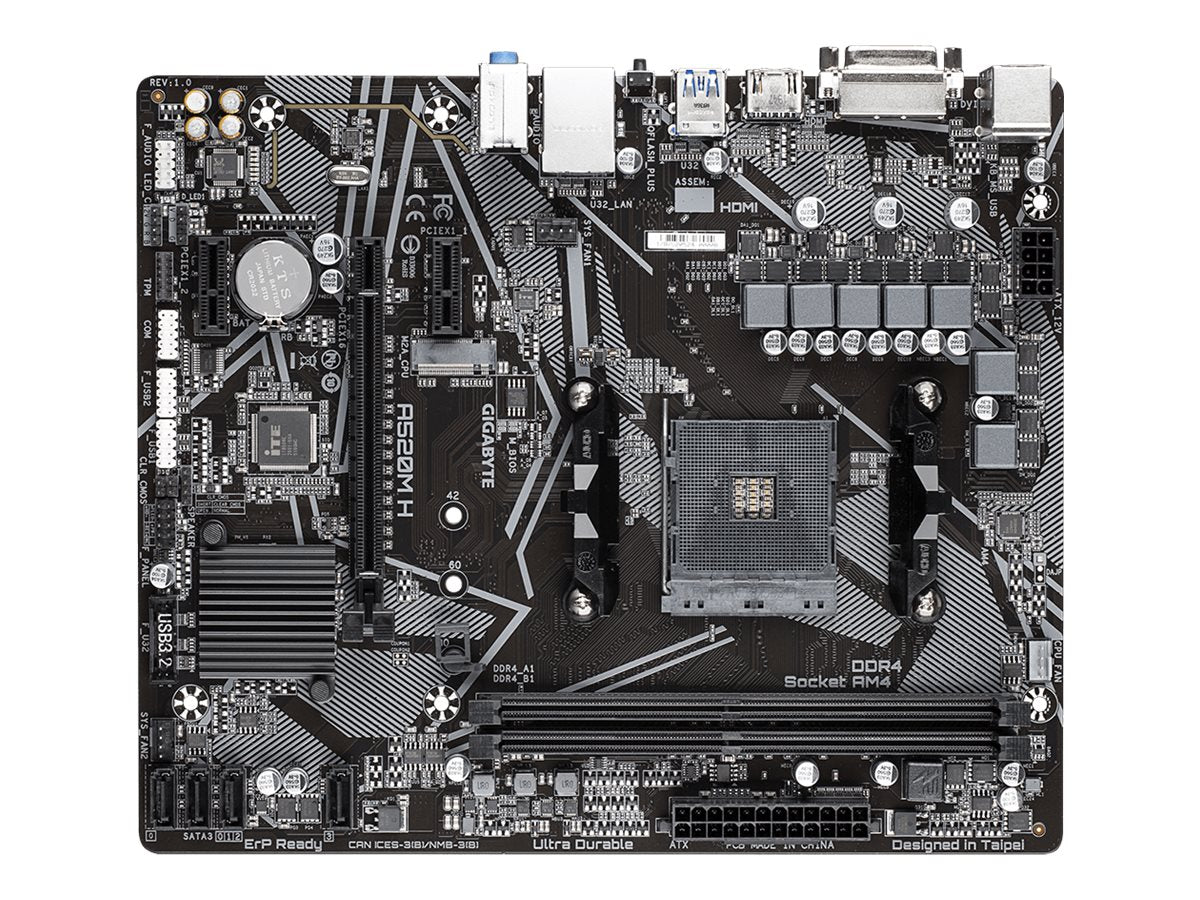

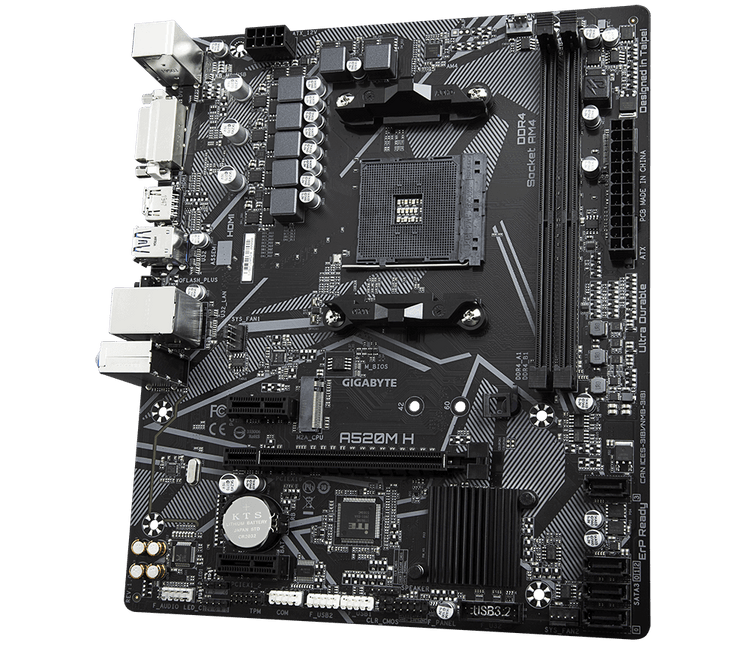

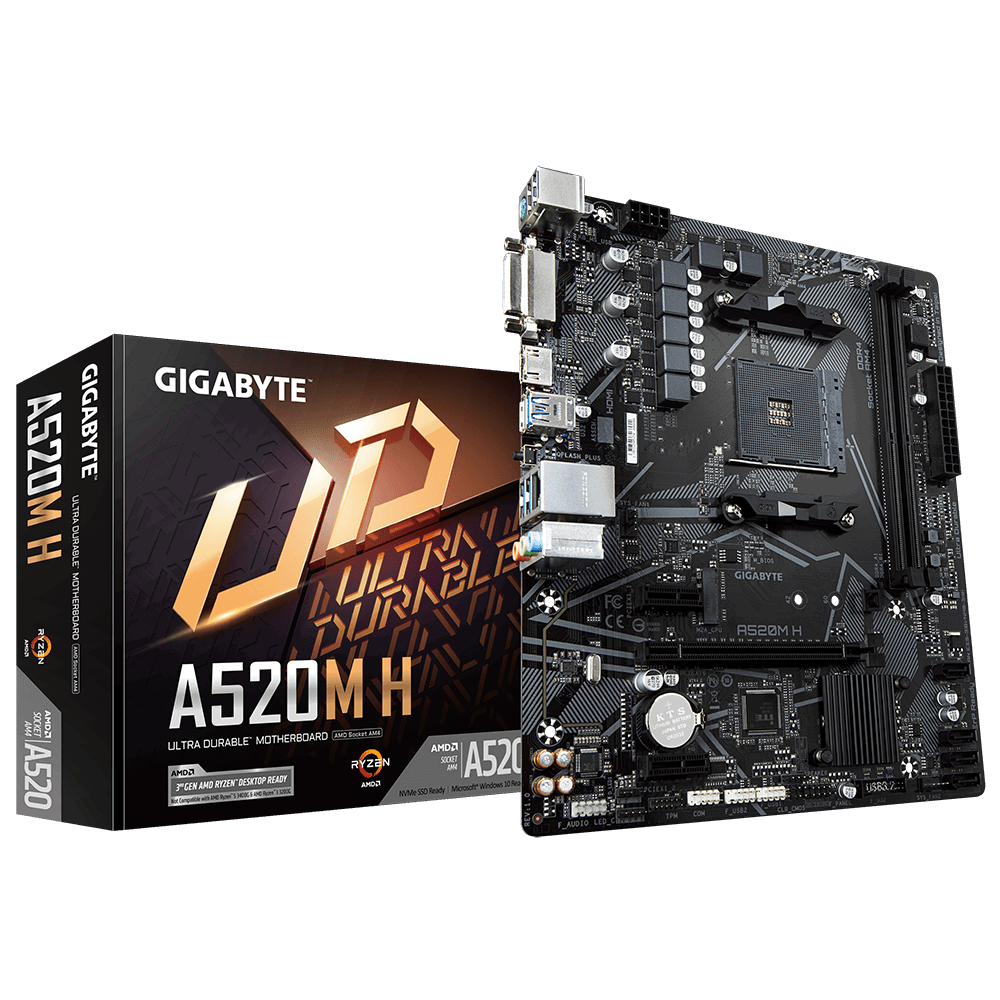

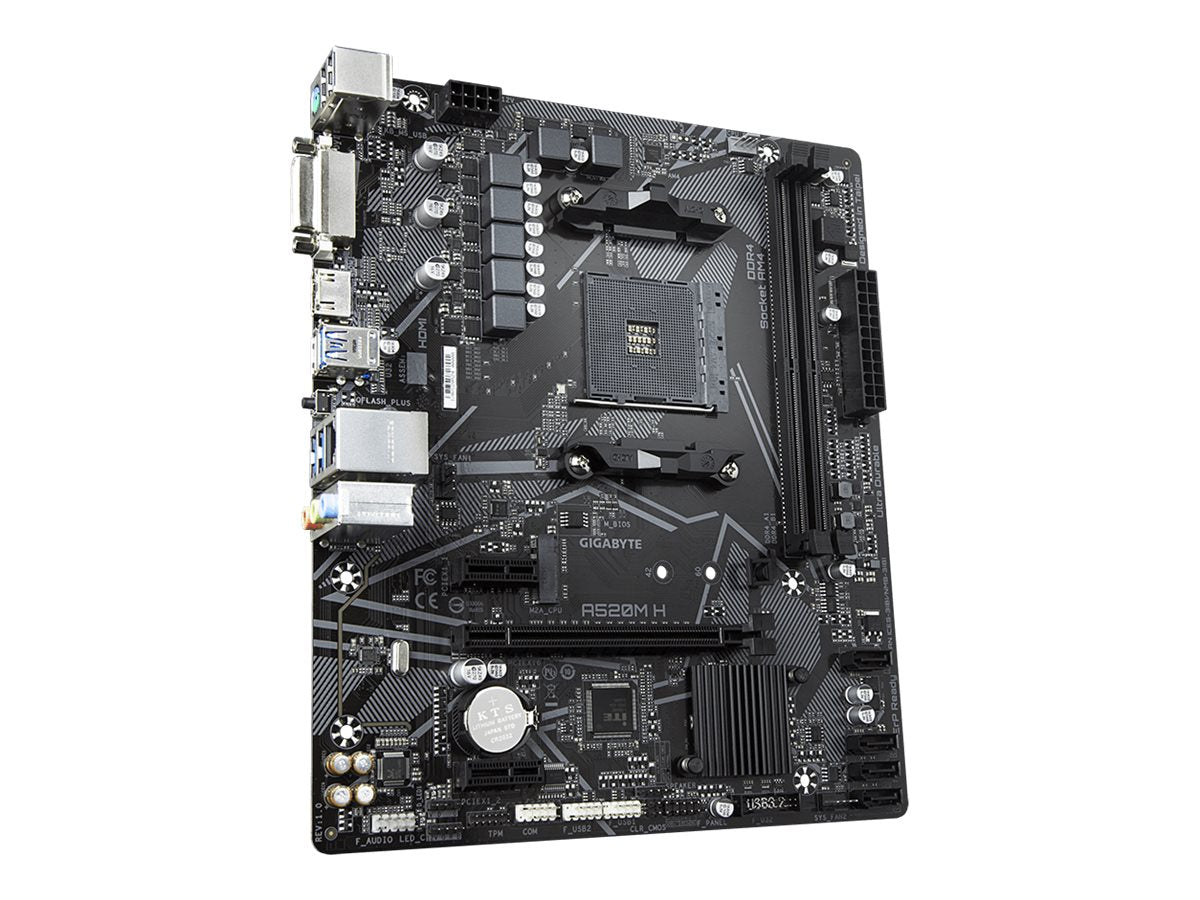

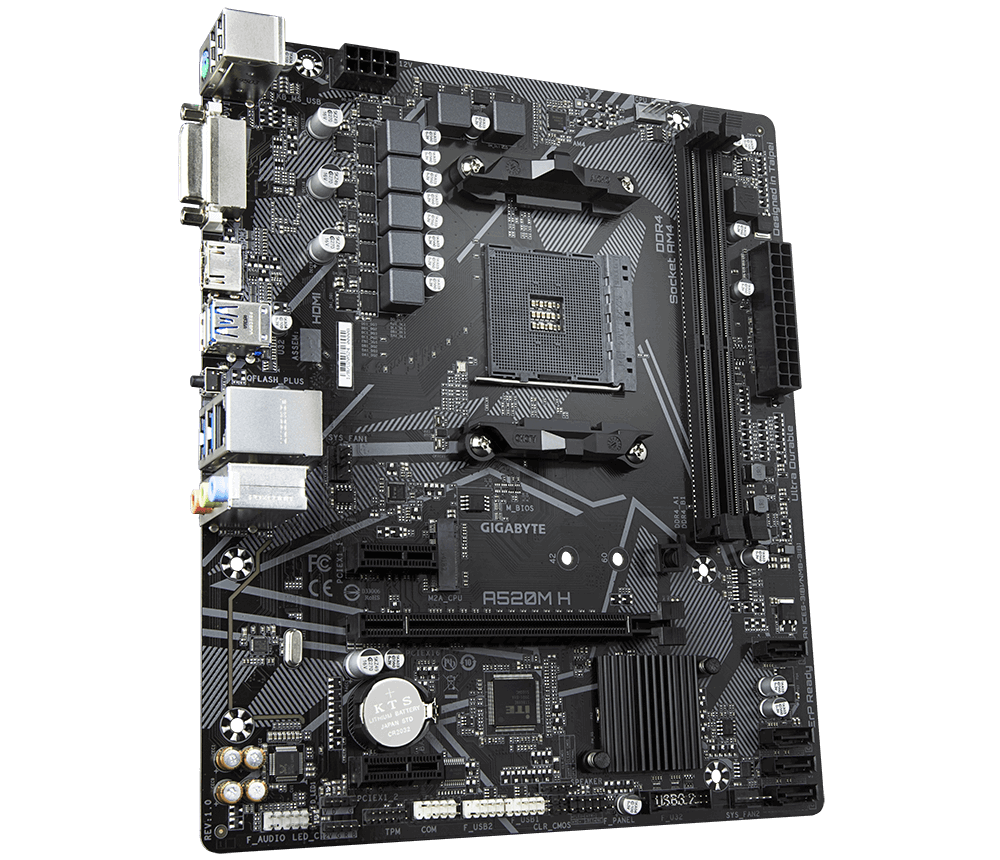

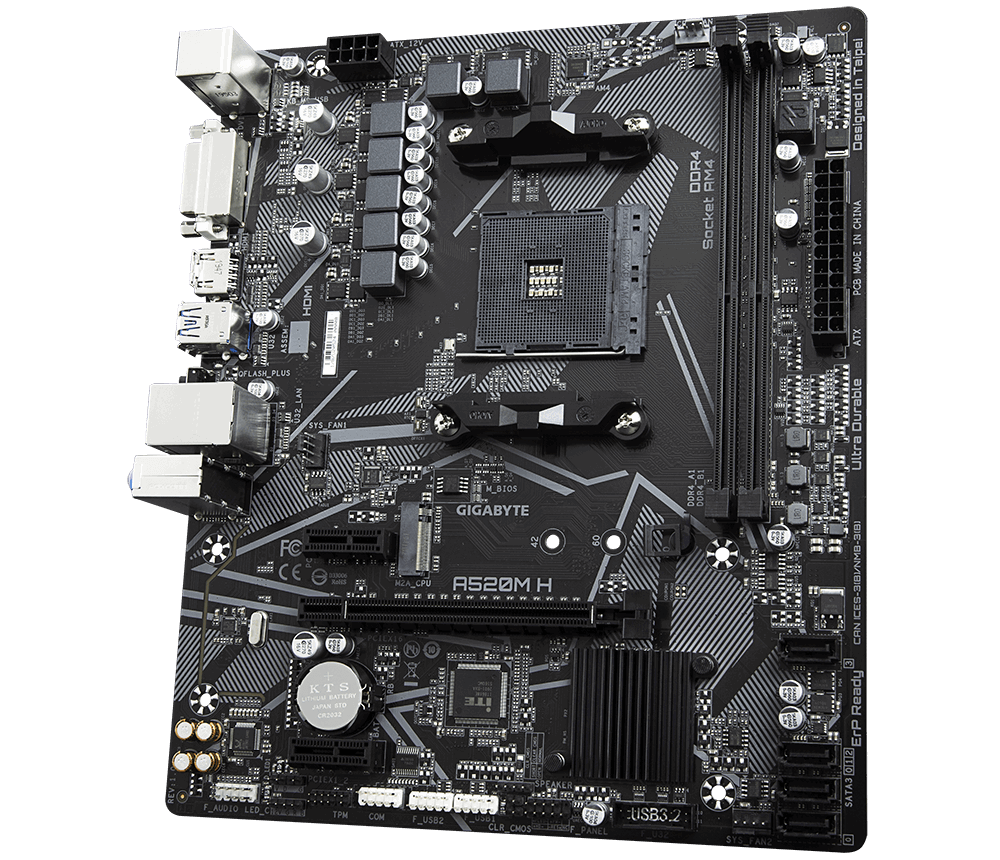

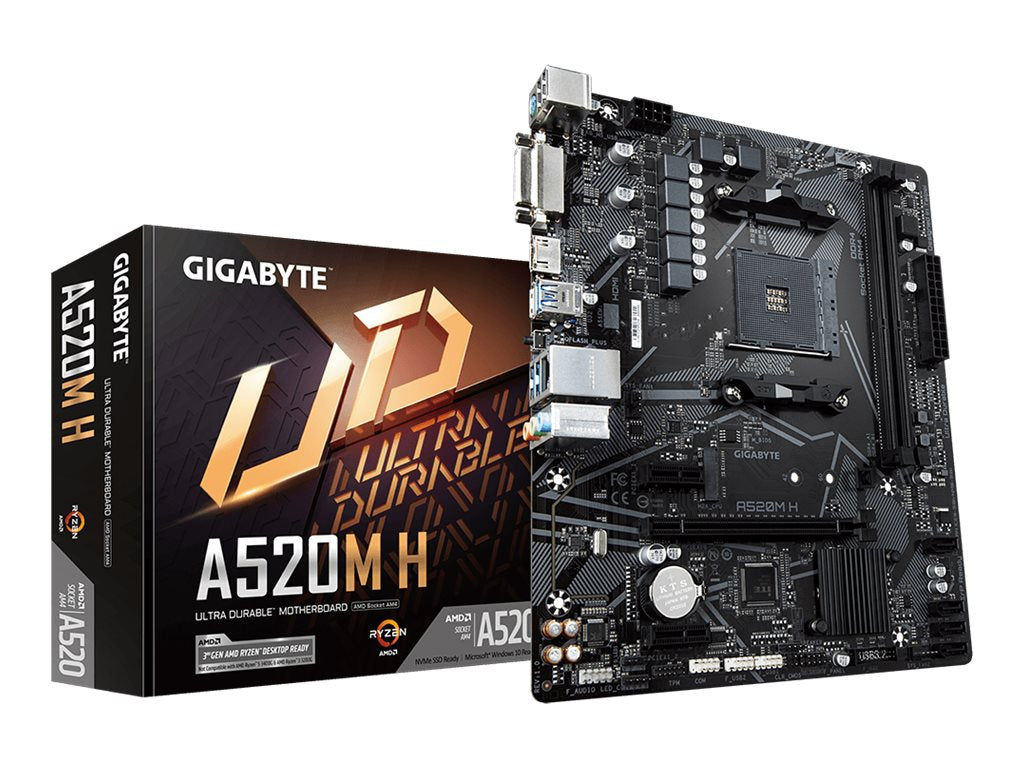

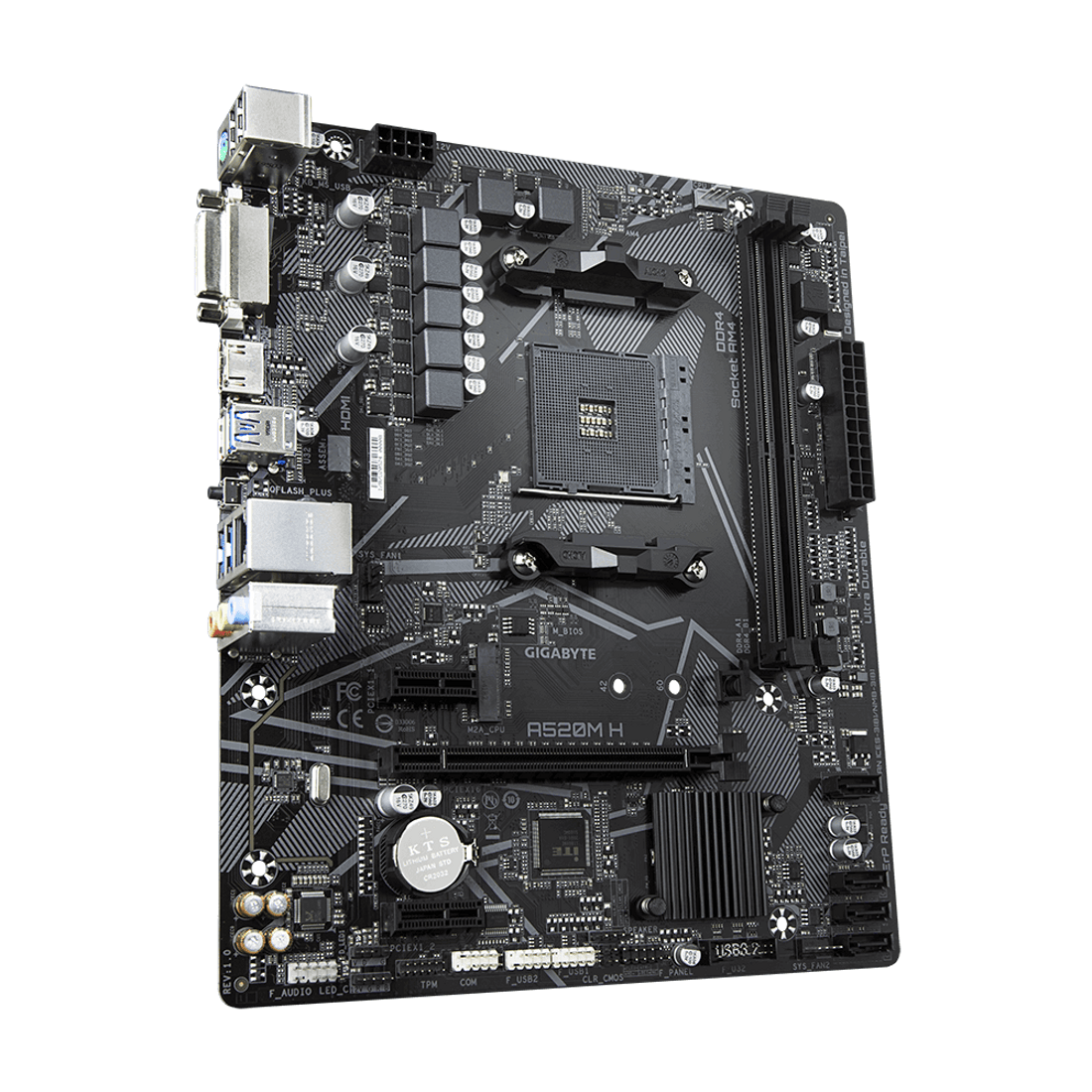

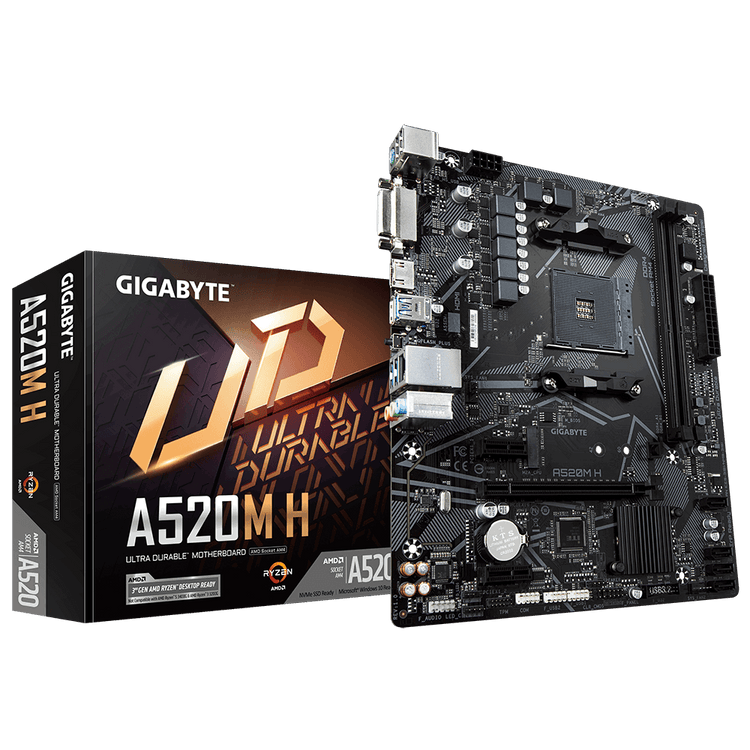

The Gigabyte A520M H 1.0 is a Micro ATX motherboard designed for users building systems with AMD processors. It is suitable for those seeking a solid foundation for a gaming or productivity PC using AMD Ryzen technology.
- Supports up to 64 GB of RAM with dual-channel capability, allowing for improved performance in demanding applications.
- Equipped with two DDR4 DIMM slots, the board accepts a range of memory clock speeds, catering to different performance needs.
- Includes support for multiple storage options with interfaces for M.2, PCI Express 3.0, and SATA III, accommodating both HDD and SSD drives.
- Compatible with 3rd Generation AMD Ryzen processors, this motherboard enables enhanced processing power for smoother operation.
- RAID support allows for data redundancy and improved performance across connected storage devices.
Memory (2)
- Memory slots: 2
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: AMD A
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM4
- Compatible processor series: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Technical details (2)
- Producer product name: A520M H 1.0
- Net weight: 0.318 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (86)
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Maximum internal memory supported by processor: 64 GB
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
- Supported memory clock speed (max): 5100 MHz
- Maximum internal memory: 64 GB
- Supported memory module capacities: 1GB, 8GB, 16GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- Discrete graphics support: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Number of EATX power connectors: 1
- Power fan connector: Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

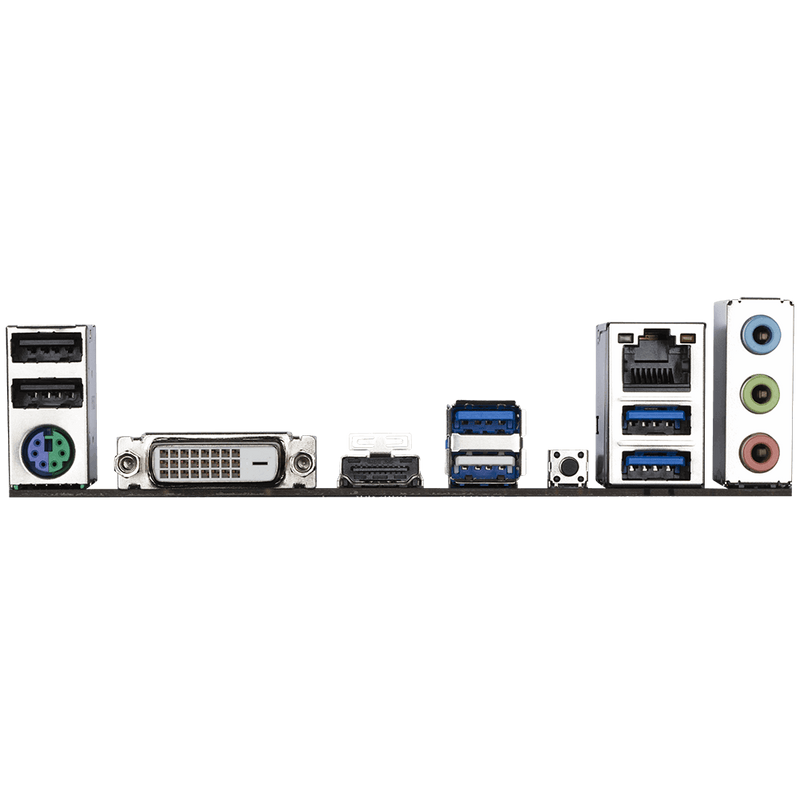

- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
- USB connector type: USB Type-A
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: AMD
- Cooling type: Active
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 205 mm
- Height: 35 mm
- Cables included: SATA
- Batteries included: Yes
- Bundled software: Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
- Warranty period: 3 year(s)
Description
The Gigabyte A520M H 1.0 is a Micro ATX motherboard designed for users building systems with AMD processors. It is suitable for those seeking a solid foundation for a gaming or productivity PC using AMD Ryzen technology.
- Supports up to 64 GB of RAM with dual-channel capability, allowing for improved performance in demanding applications.
- Equipped with two DDR4 DIMM slots, the board accepts a range of memory clock speeds, catering to different performance needs.
- Includes support for multiple storage options with interfaces for M.2, PCI Express 3.0, and SATA III, accommodating both HDD and SSD drives.
- Compatible with 3rd Generation AMD Ryzen processors, this motherboard enables enhanced processing power for smoother operation.
- RAID support allows for data redundancy and improved performance across connected storage devices.
Memory (2)
- Memory slots: 2
- Supported memory types: DDR4 DIMM
Performance (2)
- Chipset: AMD A
- Motherboard form factor: Micro ATX
Processor (3)
- Processor family: AMD
- Processor socket: AM4
- Compatible processor series: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Technical details (2)
- Producer product name: A520M H 1.0
- Net weight: 0.318 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (86)
- Processor manufacturer: AMD
- Maximum number of SMP processors: 1
- Supported processor sockets: Socket AM4
- Maximum internal memory supported by processor: 64 GB
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
- Supported memory clock speed (max): 5100 MHz
- Maximum internal memory: 64 GB
- Supported memory module capacities: 1GB, 8GB, 16GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- Discrete graphics support: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Number of EATX power connectors: 1
- Power fan connector: Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
- USB connector type: USB Type-A
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage
- Component for: PC
- Motherboard chipset family: AMD
- Cooling type: Active
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 244 mm
- Depth: 205 mm
- Height: 35 mm
- Cables included: SATA
- Batteries included: Yes
- Bundled software: Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
- Warranty period: 3 year(s)
Gigabyte A520M H 1.0, Processor family AMD, Processor socket AM4, DDR4 DIMM
- Regular price
- €81,83
- Sale price
- €81,83
- Regular price
-
Tax included.
