Description

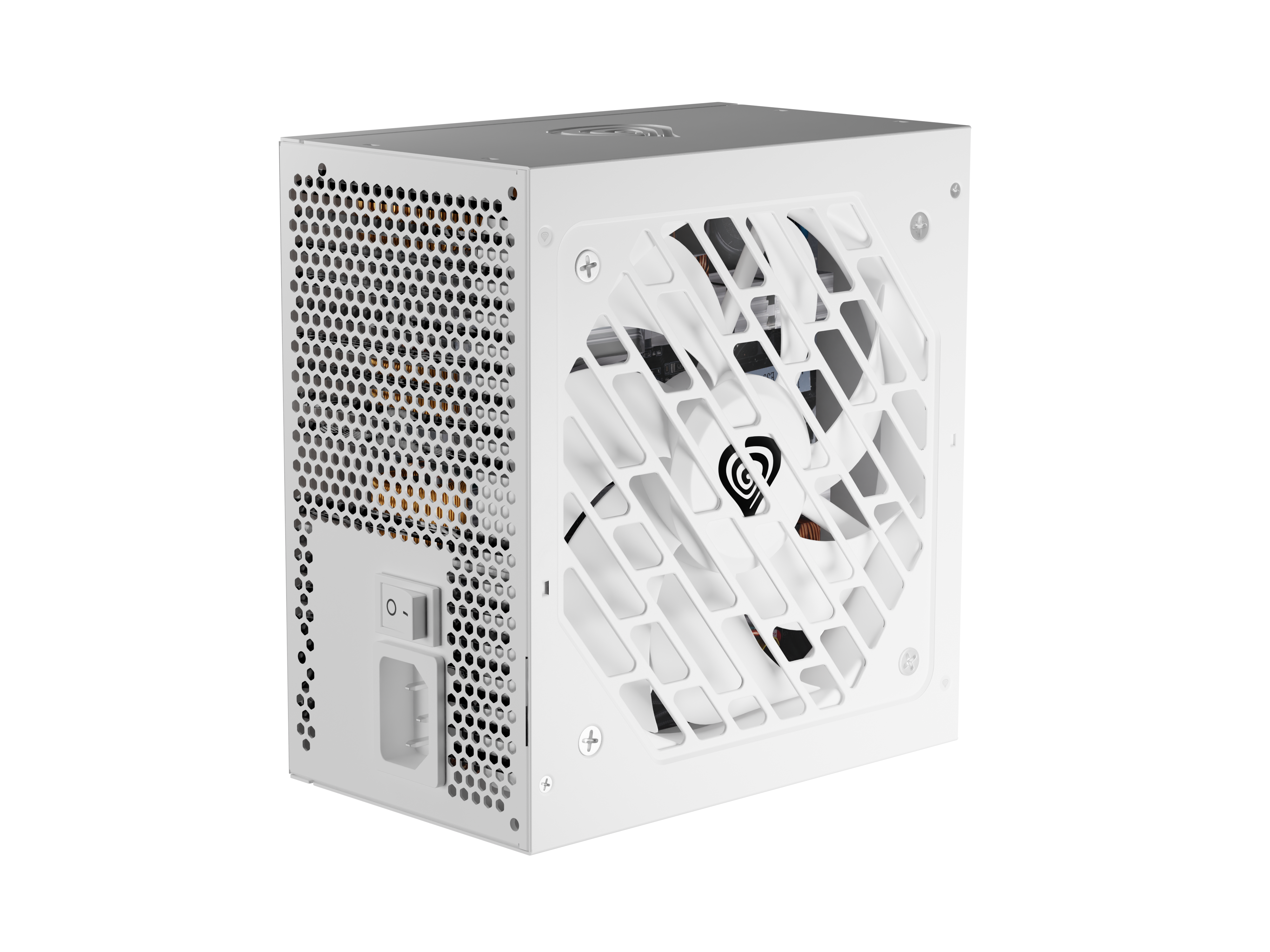

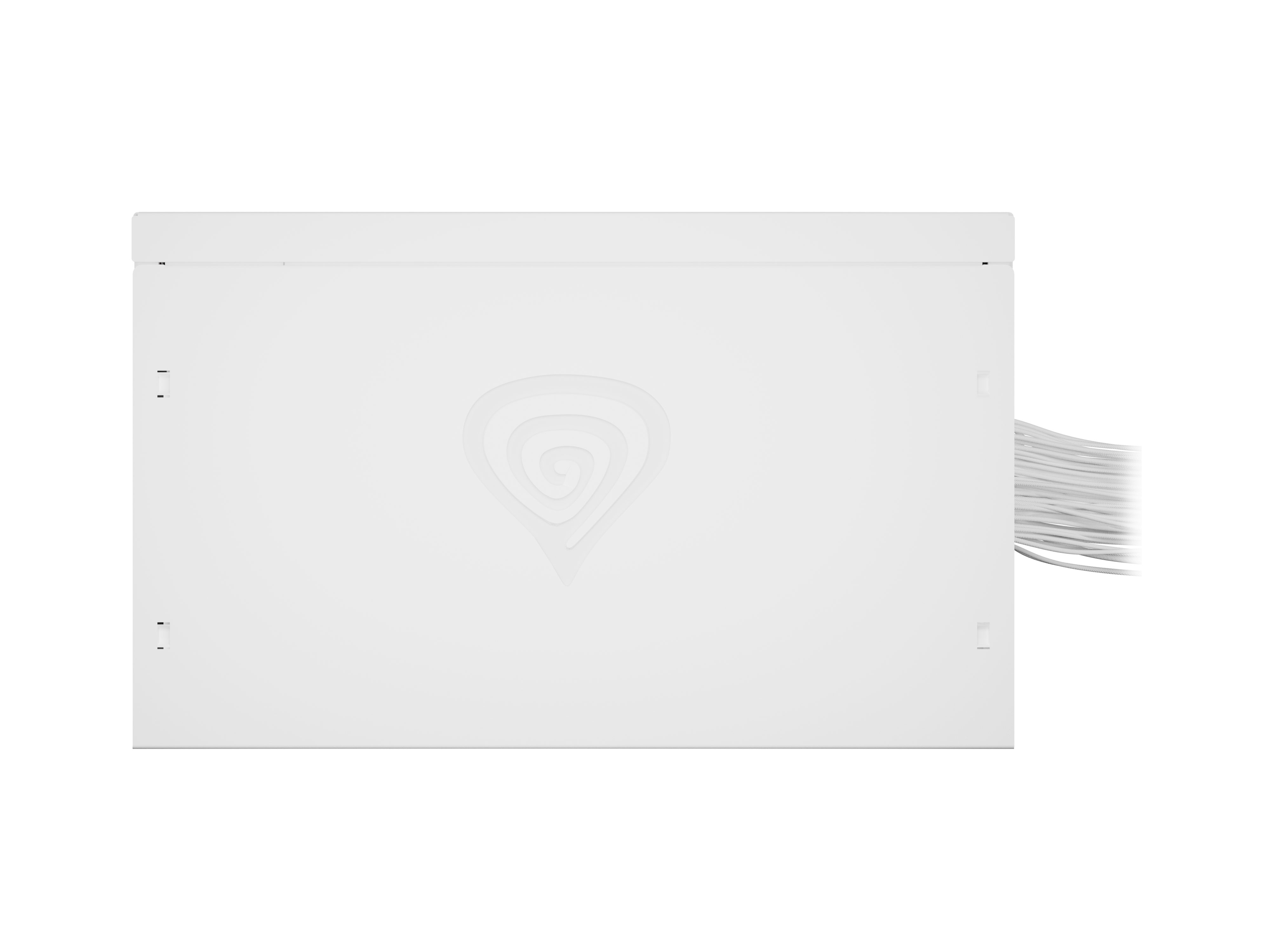

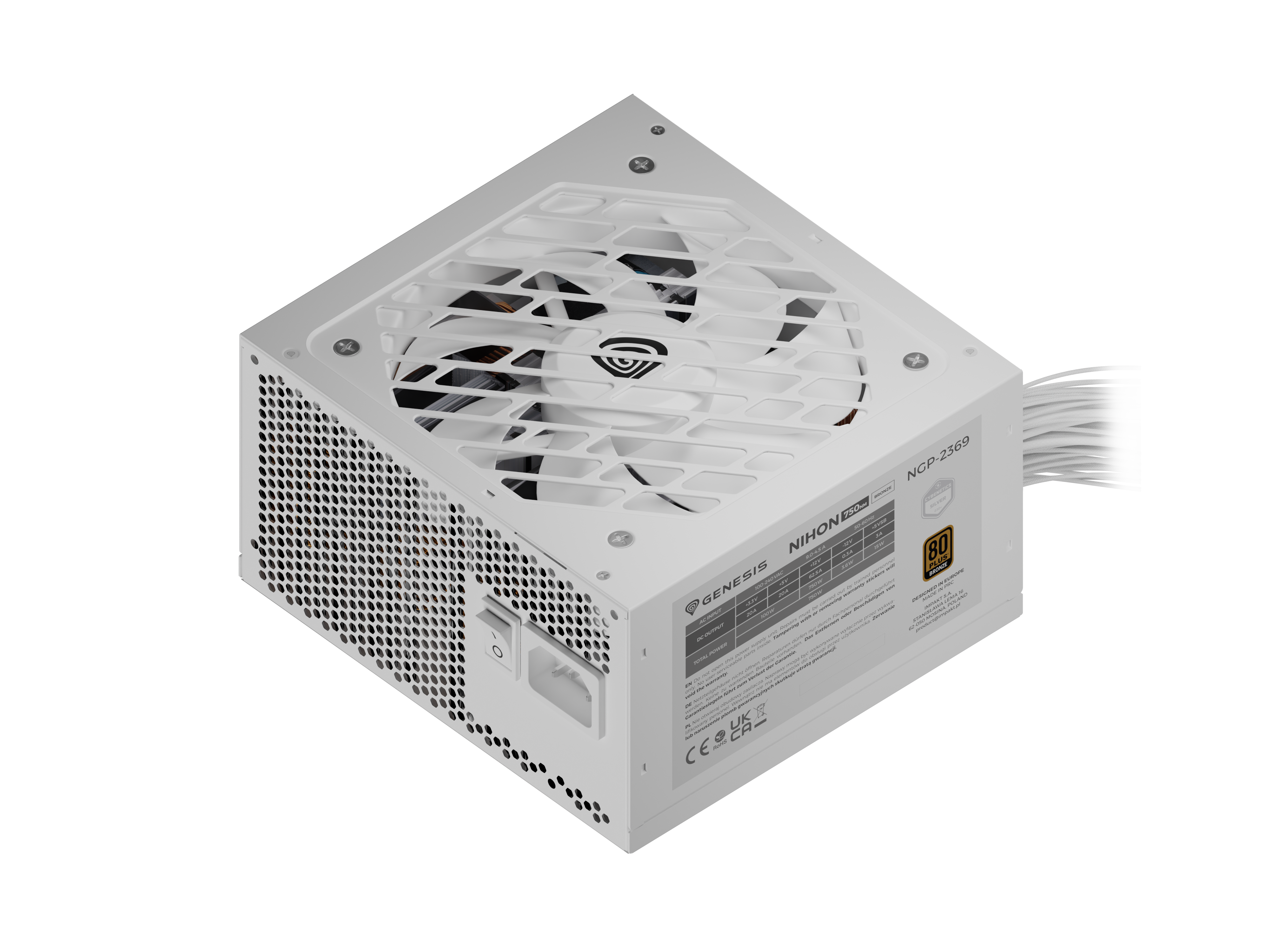

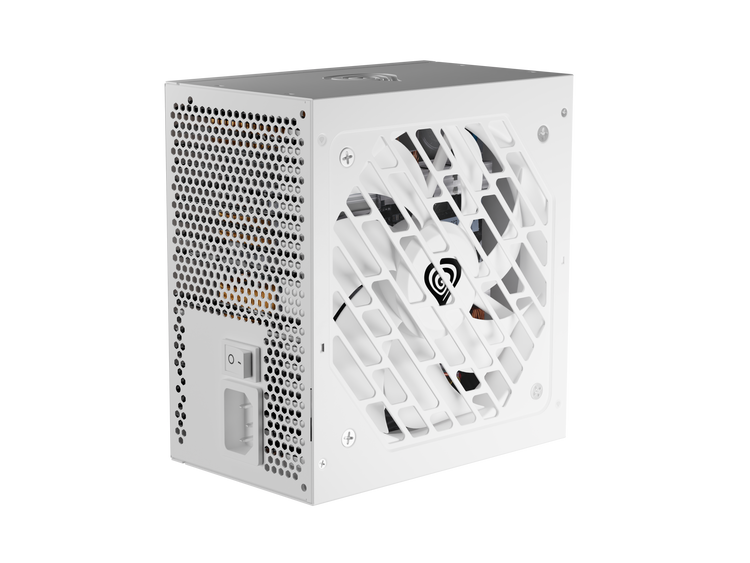

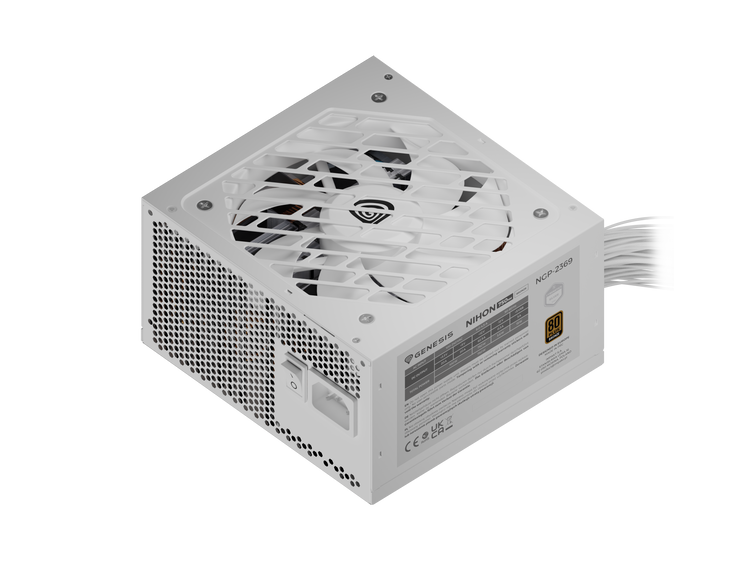

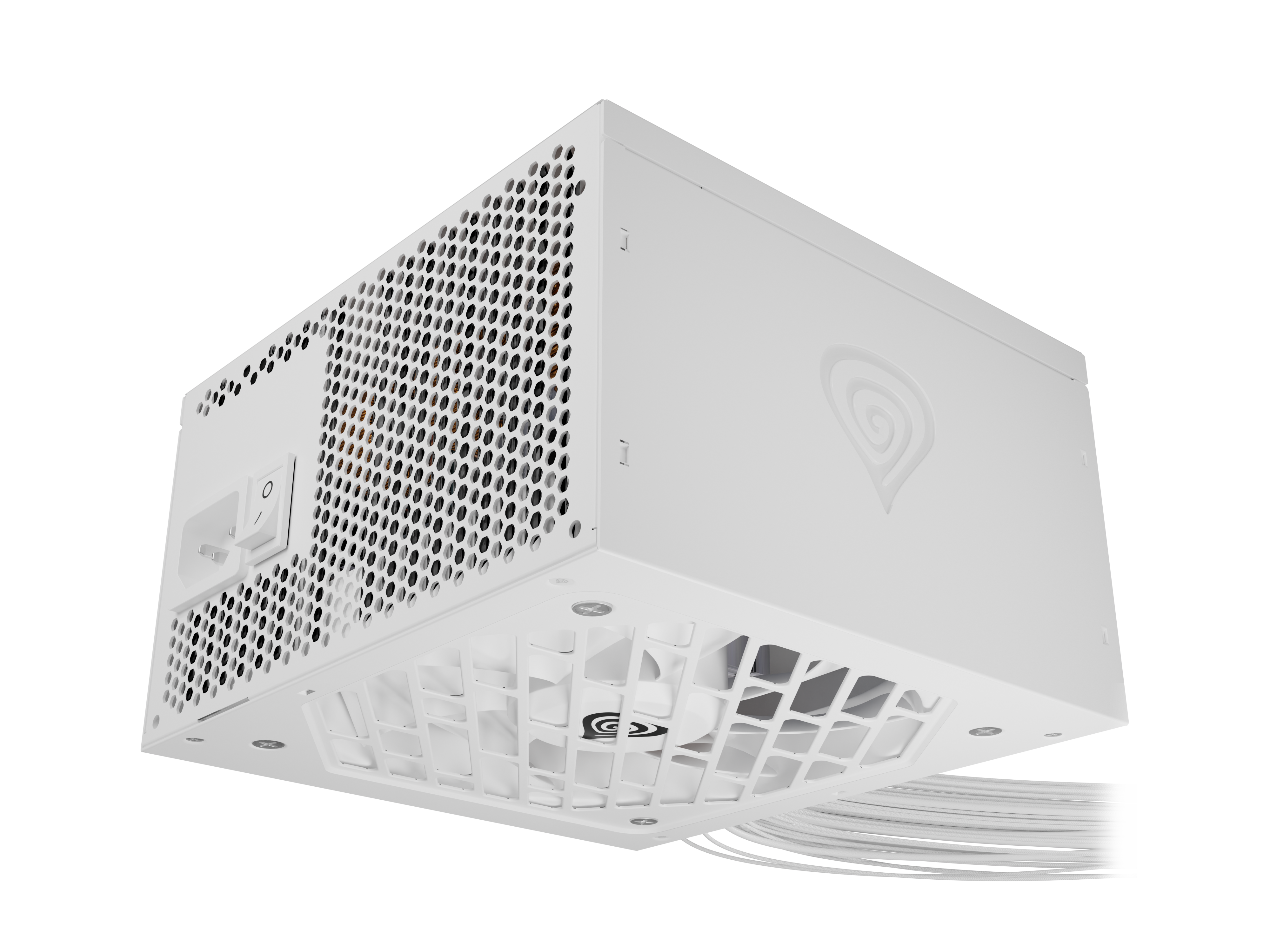

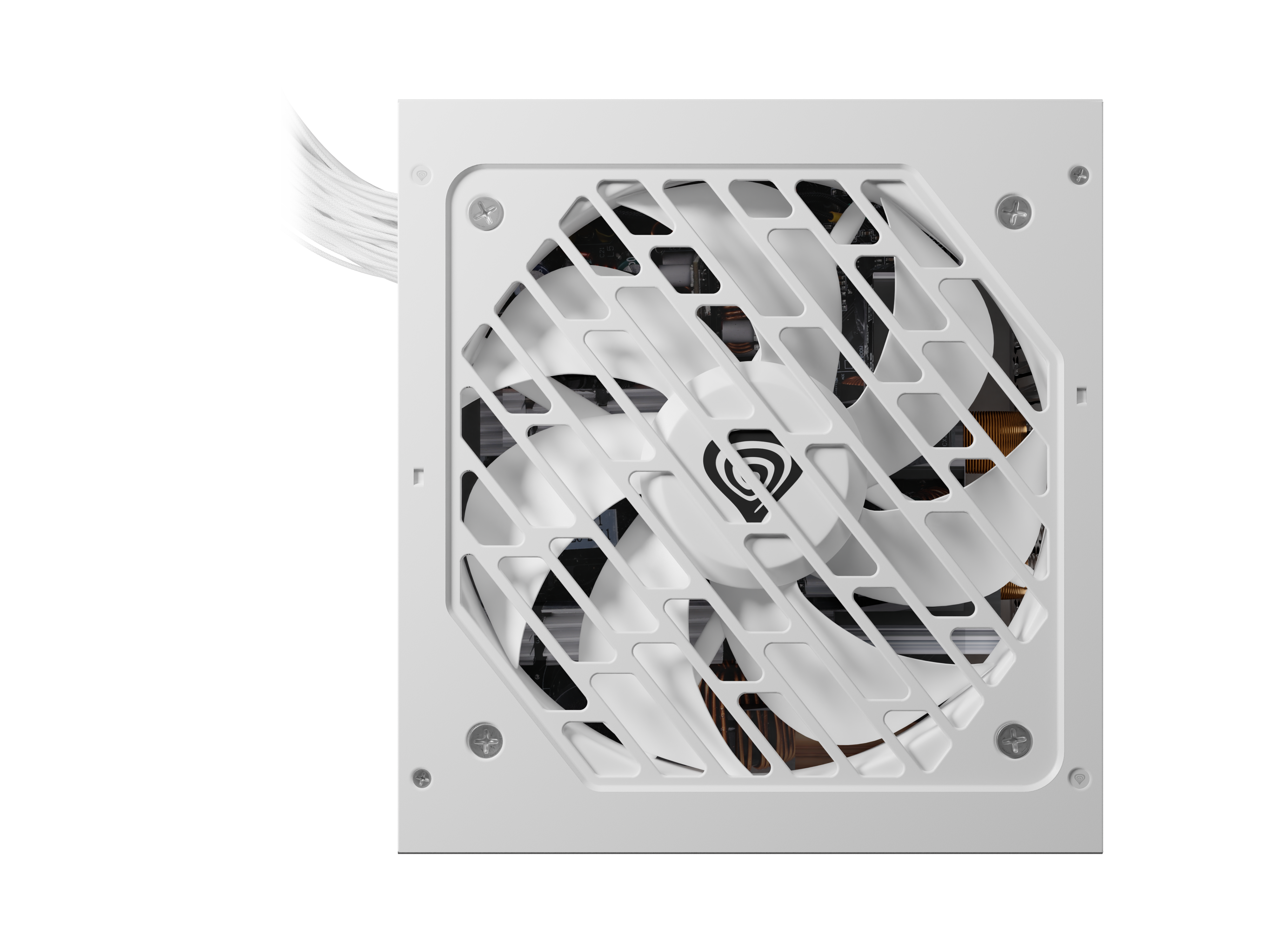

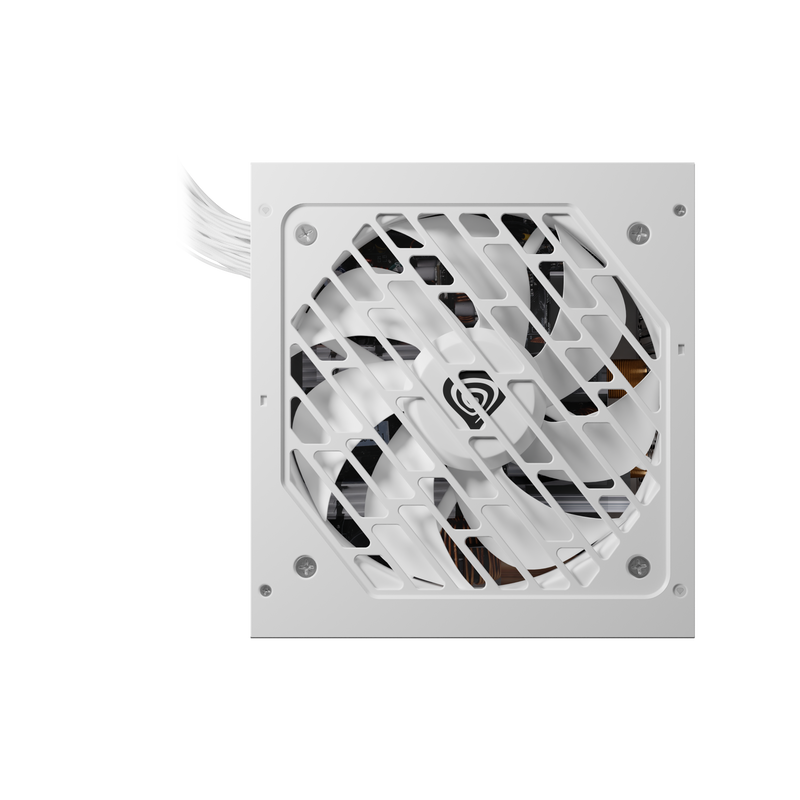

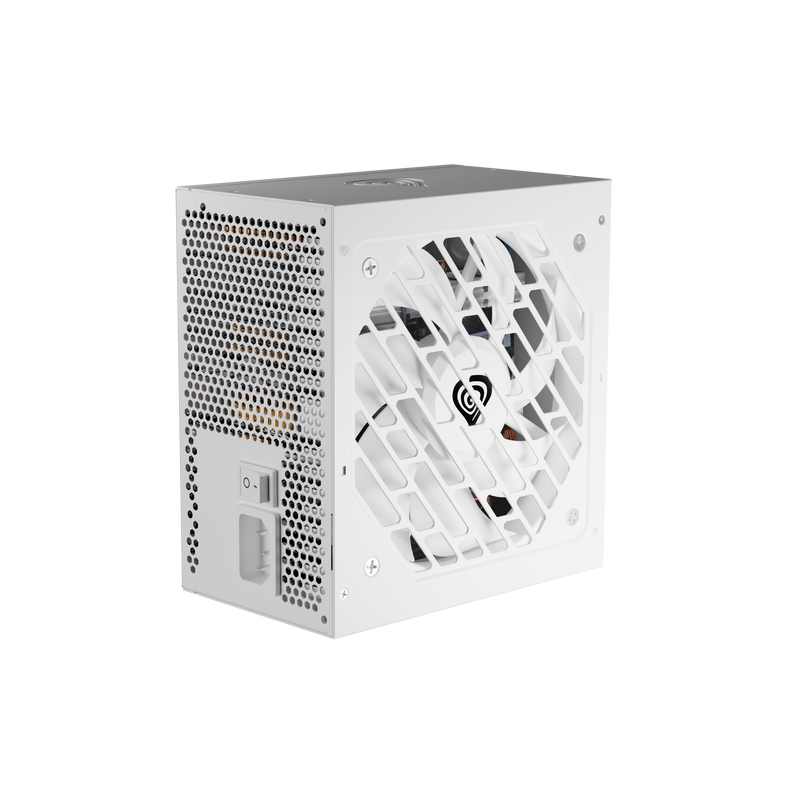

The Genesis Nihon 750NM is a power supply unit designed for PC components, offering reliable power delivery suitable for gaming and performance computing. With a solid output of 750 watts, it caters well to various system configurations.
- Active Power Factor Correction (PFC) helps improve energy efficiency.
- Multiple protection features safeguard your components from electrical issues.
- Support for multiple SATA devices with six connectors for expanded system storage.
- Efficient design ensures 88% efficiency, helping to reduce energy consumption.
- Includes a 20+4 pin ATX motherboard power connector for compatibility with most motherboards.
Design (1)
- Colour of product: White
Power (1)
- Nominal power: 750 W
Specifications (1)
- Warranty: 24 month(s)
Technical details (3)
- Net weight: 2.13 kg
- Producer product family: PSU
- Producer product name: Nihon 750NM
Additional specifications (55)

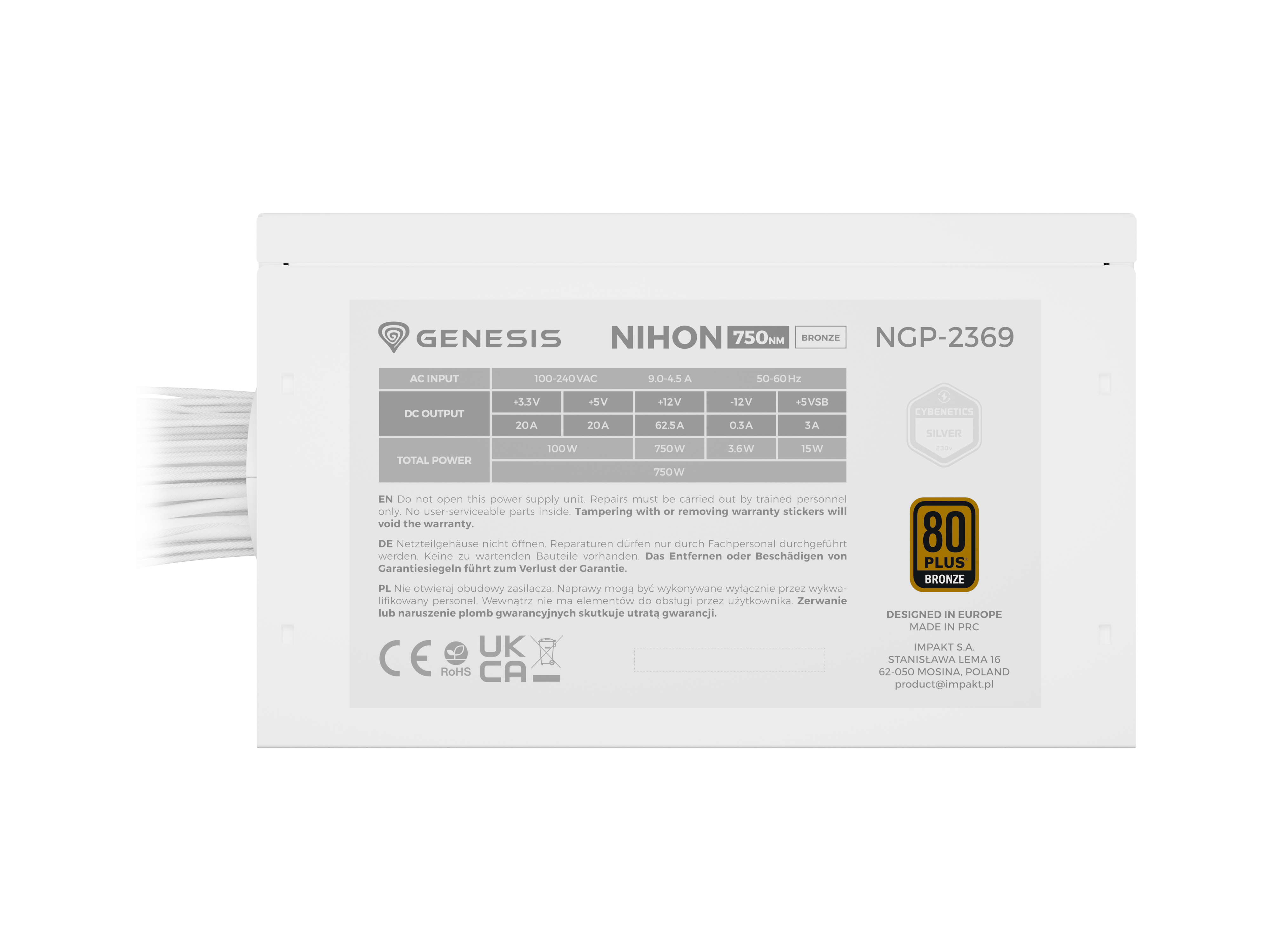

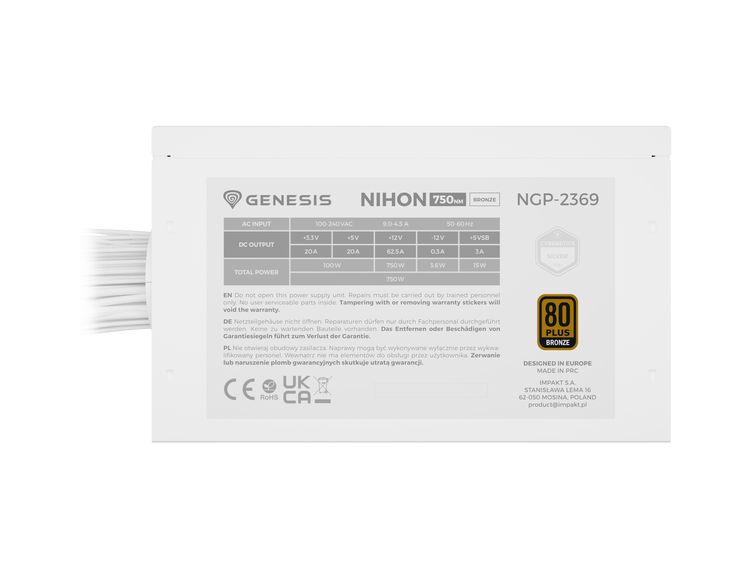

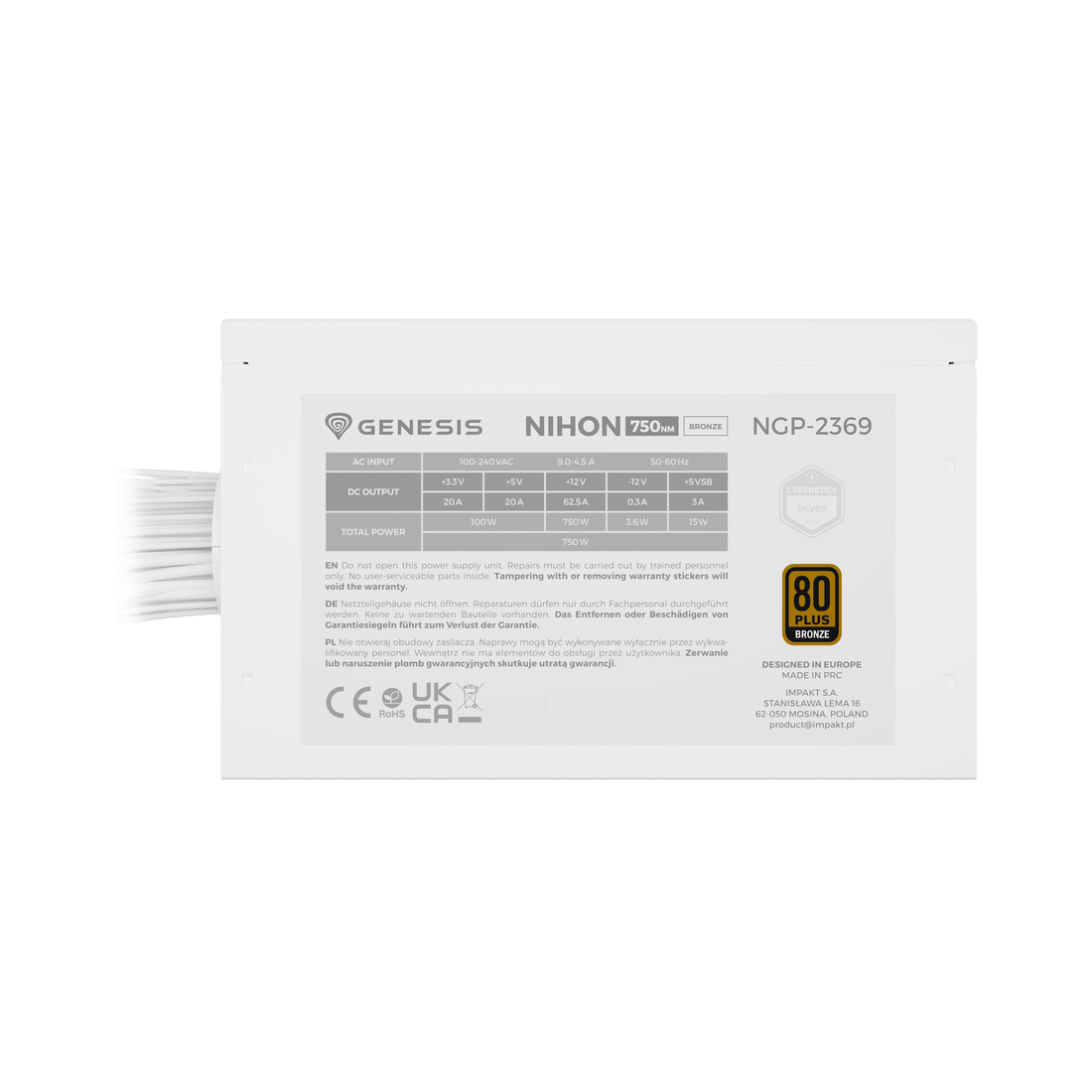

- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 9 - 4.5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 750 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 88%
- Power protection features: No load operation, Over current, Over power, Overheating, Short circuit, Surge & inrush protection (SIP), Surge & inrush, Surge and inrush, Under voltage
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- SATA power cable length: 450,550,650 mm
- Number of SATA power cables: 2
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 750 mm
- PCI Express power connectors (6+2 pin): 3
- PCI Express power cable length: 67 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 85 cm
- PCI Express connector: Yes
- Number of EPS connectors: 2
- Cabling type: Non-Modular
- 80 PLUS certification: 80 PLUS Bronze
- Cybenetics certification: Silver
- Cybenetics noise rating: Standard++
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Noise level: 24.7 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 80000 h
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Illumination: No
- On/off switch: Yes
- Operating temperature (T-T): 0 - 40 °C
- Cables included: AC
- Packaging content: User guide, Set of assembly elements, Velcro bands, Cable combs
- Compliance certificates: CE, RoHS, UKCA
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 2.13 kg
- Country of origin: China
