About

Description

The FSP VITA BD 850W Power Supply is designed for PC users looking for reliable performance and efficiency. Suitable for gaming rigs and demanding applications, it offers strong power delivery with a total output of 850W.

  • Achieves 90% efficiency for reduced energy consumption.
  • Includes multiple connectors for versatile compatibility with various components, such as 8 SATA and 4 PCI Express connectors.
  • Equipped with comprehensive protection features, including over current and short circuit protection.
  • Active Power Factor Correction ensures stable power delivery, enhancing overall system reliability.
  • The 60 cm motherboard power cable length facilitates easy installation in standard cases.
Power (1)
  • Nominal power: 850 W
Technical details (3)
  • Producer product family: Power Supply, 80 PLUS
  • Producer product name: VITA BD 850W
  • Net weight: 3.00 kg
Specifications (1)
  • Warranty: 60 month(s)
Additional specifications (41)
  • Total power: 850 W
  • AC input voltage: 200 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5.5 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 850 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 70.83 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 500 mm
  • Peripheral (Molex) power connectors (4-pin): 4
  • PCI Express power connectors (6+2 pin): 4
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 70 cm
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: HYB
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Cables included: CPU, Peripheral (Molex), SATA
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
Description

The FSP VITA BD 850W Power Supply is designed for PC users looking for reliable performance and efficiency. Suitable for gaming rigs and demanding applications, it offers strong power delivery with a total output of 850W.

  • Achieves 90% efficiency for reduced energy consumption.
  • Includes multiple connectors for versatile compatibility with various components, such as 8 SATA and 4 PCI Express connectors.
  • Equipped with comprehensive protection features, including over current and short circuit protection.
  • Active Power Factor Correction ensures stable power delivery, enhancing overall system reliability.
  • The 60 cm motherboard power cable length facilitates easy installation in standard cases.
Power (1)
  • Nominal power: 850 W
Technical details (3)
  • Producer product family: Power Supply, 80 PLUS
  • Producer product name: VITA BD 850W
  • Net weight: 3.00 kg
Specifications (1)
  • Warranty: 60 month(s)
Additional specifications (41)
  • Total power: 850 W
  • AC input voltage: 200 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5.5 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 850 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 70.83 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 500 mm
  • Peripheral (Molex) power connectors (4-pin): 4
  • PCI Express power connectors (6+2 pin): 4
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 70 cm
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: HYB
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Cables included: CPU, Peripheral (Molex), SATA
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm

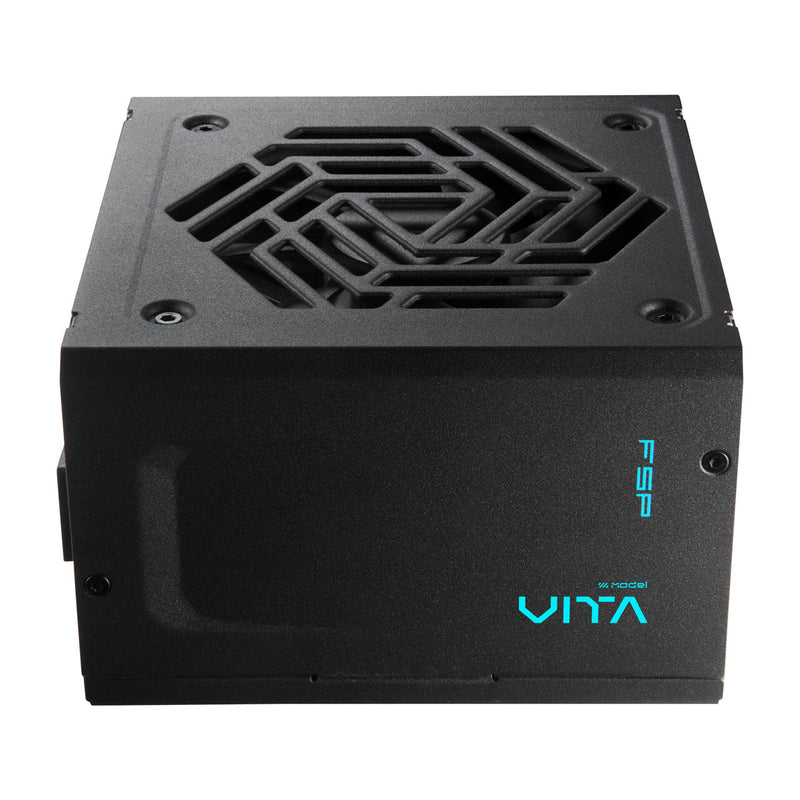

FSP VITA BD 850W — Power Supply, 80 PLUS, 850 W

€89,27
