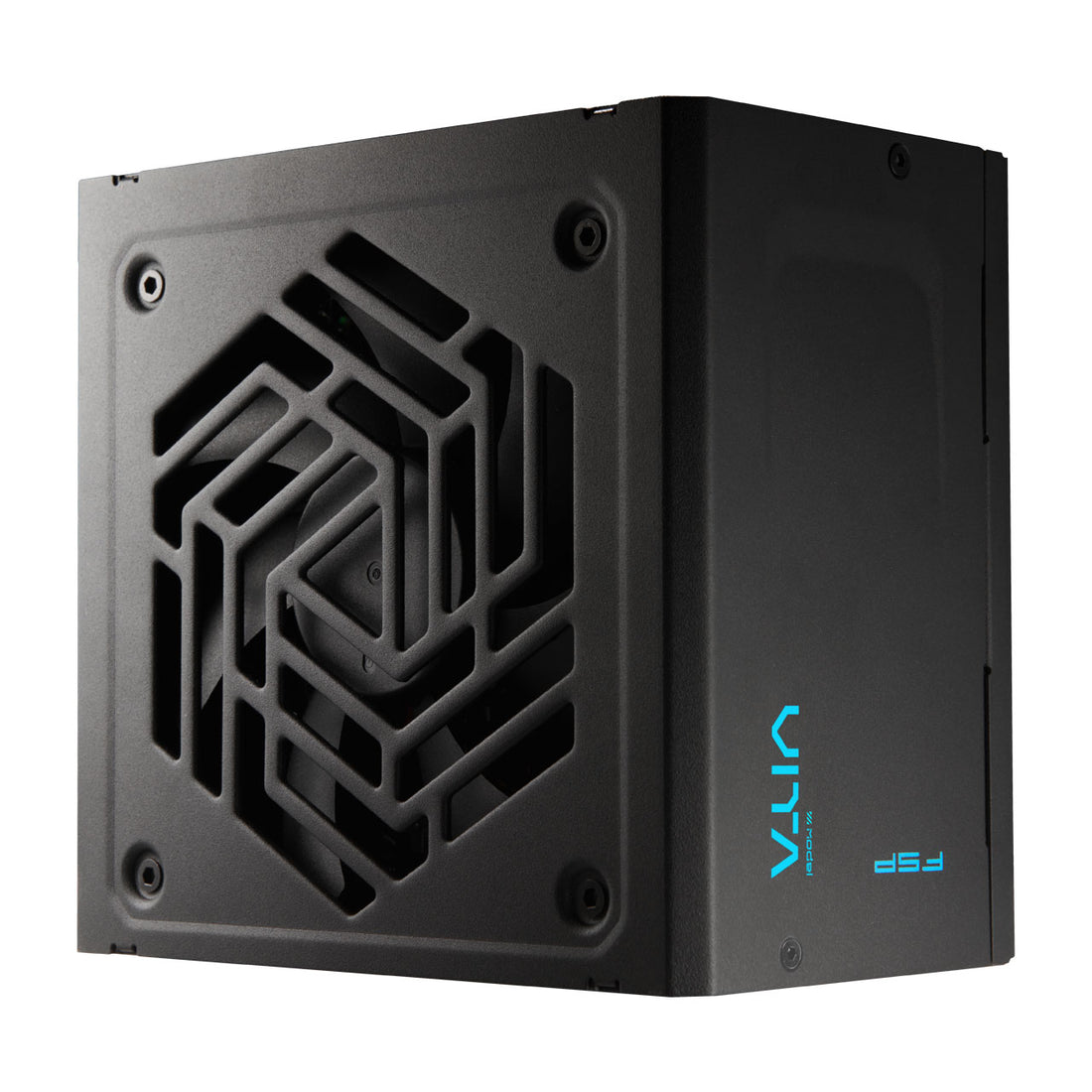

The FSP VITA BD 550W Power Supply is suitable for PC builders and gamers looking for a reliable power source with efficient performance. With a total power output of 550W and an 80 PLUS certification, it ensures stable operation for your components.
- Delivers a total power of 550W to support high-performance hardware.
- Features an efficiency rating of 90%, helping to reduce energy consumption.
- Equipped with multiple connectors, including 8 SATA and 4 PCI Express, for versatile build options.
- Includes advanced protection features against overcurrent, overheating, and short circuits for safe operation.
- Active Power Factor Correction for improved energy usage and reduced electricity costs.
Power (1)
- Nominal power: 550 W
Technical details (3)
- Producer product family: Power Supply, 80 PLUS
- Producer product name: VITA BD 550W
- Net weight: 3.00 kg
Specifications (1)
- Warranty: 60 month(s)
Additional specifications (41)
- Total power: 550 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 550 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 45.8 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 8
- SATA power cable length: 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- Cabling type: Non-Modular
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- EPS version: 2.92
- Bearing technology: HYB
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Cables included: CPU, Peripheral (Molex), SATA
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
