About

Description

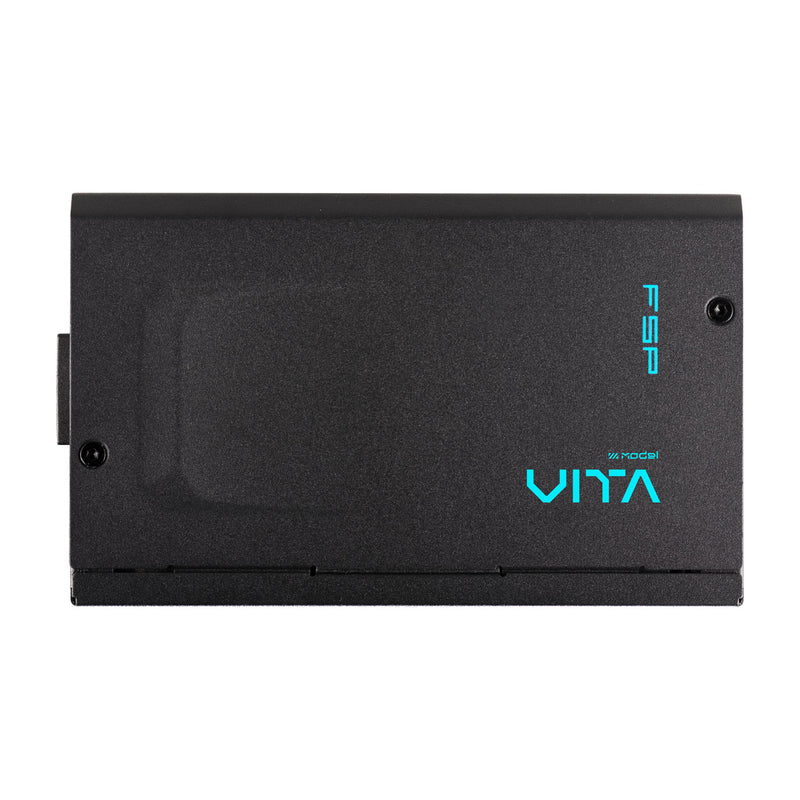

The FSP VITA-750BD is a 750 W power supply unit designed for PC builders and gamers. It provides stable power with multiple connectors suitable for various components, ensuring reliable performance even under load.

  • Delivers up to 750 W total power, ensuring robust performance for high-demand systems.
  • Includes multiple connectors such as 8 SATA and 4 PCI Express connectors for versatile component compatibility.
  • Features active Power Factor Correction (PFC) for efficient power usage, contributing to overall energy savings.
  • Built-in protection features guard against over current, over voltage, and overheating, enhancing system safety.
  • Achieves 90% efficiency, which helps minimize heat generation and power waste.
Power (1)
  • Nominal power: 750 W
Technical details (3)
  • Producer product family: 80 PLUS, ATX 3.1, Gen 5.1, Direct cable
  • Producer product name: VITA-750BD
  • Net weight: 3.00 kg
Specifications (1)
  • Warranty: 60 month(s)
Additional specifications (41)
  • Total power: 750 W
  • AC input voltage: 200 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 750 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 62.5 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 500 mm
  • Peripheral (Molex) power connectors (4-pin): 4
  • PCI Express power connectors (6+2 pin): 4
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 70 cm
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: HYB
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Cables included: CPU, Peripheral (Molex), SATA
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm
Description

The FSP VITA-750BD is a 750 W power supply unit designed for PC builders and gamers. It provides stable power with multiple connectors suitable for various components, ensuring reliable performance even under load.

  • Delivers up to 750 W total power, ensuring robust performance for high-demand systems.
  • Includes multiple connectors such as 8 SATA and 4 PCI Express connectors for versatile component compatibility.
  • Features active Power Factor Correction (PFC) for efficient power usage, contributing to overall energy savings.
  • Built-in protection features guard against over current, over voltage, and overheating, enhancing system safety.
  • Achieves 90% efficiency, which helps minimize heat generation and power waste.
Power (1)
  • Nominal power: 750 W
Technical details (3)
  • Producer product family: 80 PLUS, ATX 3.1, Gen 5.1, Direct cable
  • Producer product name: VITA-750BD
  • Net weight: 3.00 kg
Specifications (1)
  • Warranty: 60 month(s)
Additional specifications (41)
  • Total power: 750 W
  • AC input voltage: 200 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 750 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 62.5 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 90%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 60 cm
  • Number of SATA power connectors: 8
  • SATA power cable length: 500 mm
  • Peripheral (Molex) power connectors (4-pin): 4
  • PCI Express power connectors (6+2 pin): 4
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 70 cm
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: HYB
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Cables included: CPU, Peripheral (Molex), SATA
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 86 mm

FSP VITA-750BD — 80 PLUS, ATX 3.1, Gen 5.1, Direct cable, 750 W

€81,83
