Description

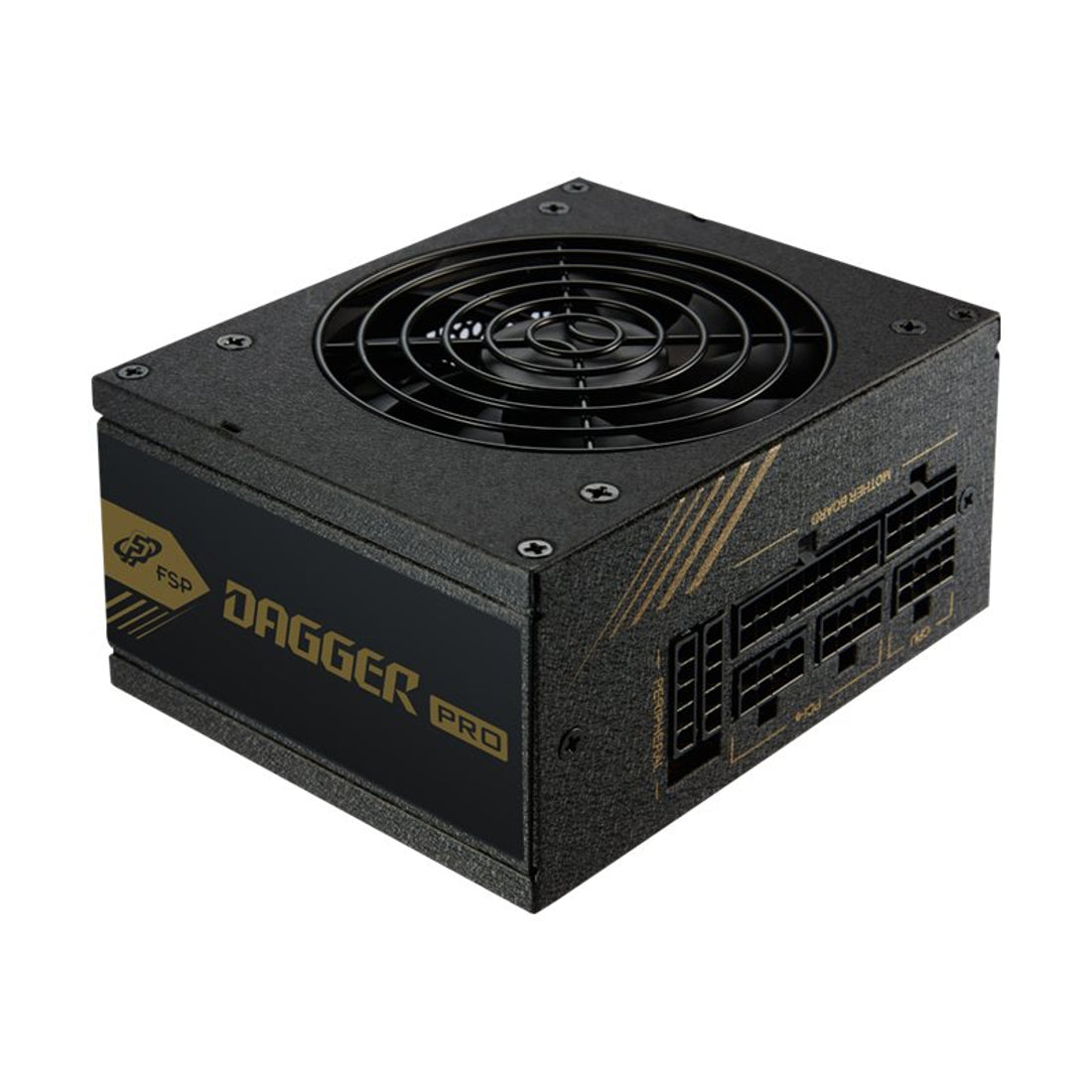

The FSP DAGGER PRO 650W is a power supply unit designed for PC builders and enthusiasts looking for reliable performance and efficiency. With its compact design and multiple protection features, it's suitable for a range of internal components.
- Delivers a stable 650W of total power, ensuring your system runs smoothly.
- Features a semi-fanless design for quiet operation, ideal for noise-sensitive environments.
- Complies with the latest SFX12V V3.3 standards, providing modern compatibility.
- Offers full protection features including over current, over voltage, and short circuit protection for added safety.
- Includes all-black ribbon cables for a clean and organized build aesthetic.
Power (2)
- Nominal power: 650 W
- Combined power (+12V): 648 W
Technical details (4)
- Producer product family: PSU
- Producer product name: DAGGER PRO 650W
- Net weight: 1.43 kg
- Other features: Compliant with latest SFX12V V3.3; Efficiency ≧ 90% at typical load; MIA IC (Multiple Intelligence Ability) chip set inside; Semi-fanless design for silent operation; Quiet and long-lasting 92mm ball bearing fan; All black ribbon cables; Powerful single +12V rail design; Full Japanese electrolytic capacitors; Intel Latest CPU ready; Full protections OCP, OVP, SCP, OPP, OTP
Specifications (1)
- Warranty: 24 month(s)
Additional specifications (44)
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Maximum input current (@110V): 10 A
- Maximum input current (@220V): 5 A
- Combined power (+3.3V): 120 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 5
- Peripheral (Molex) power connectors (4-pin): 2
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 85 cm
- Floppy drive power connector: 1
- Cabling type: Fully-Modular
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Silent mode: Yes
- Noise level: 40 dB
- Bearing technology: Ball bearing
- Mean time between failures (MTBF): 200000 h
- Product colour: Black
- Cooling type: Active
- Fan diameter: 9.2 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
- Cables included: CPU, PCIe, Peripheral (Molex), SATA
- Width: 100 mm
- Depth: 125 mm
- Height: 63.5 mm
- Warranty period: 7 year(s)
- Harmonized System (HS) code: 84733020
