About

Description

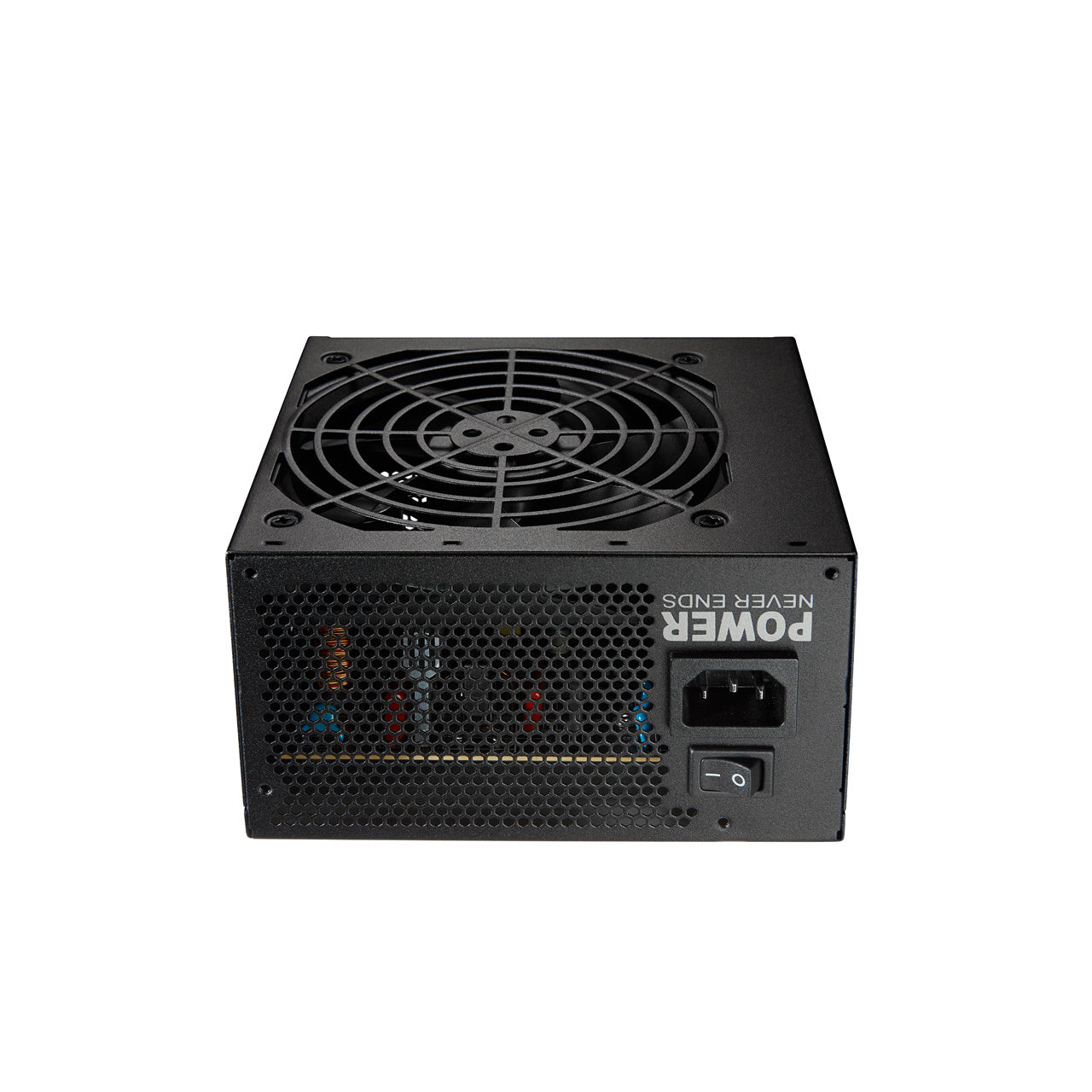

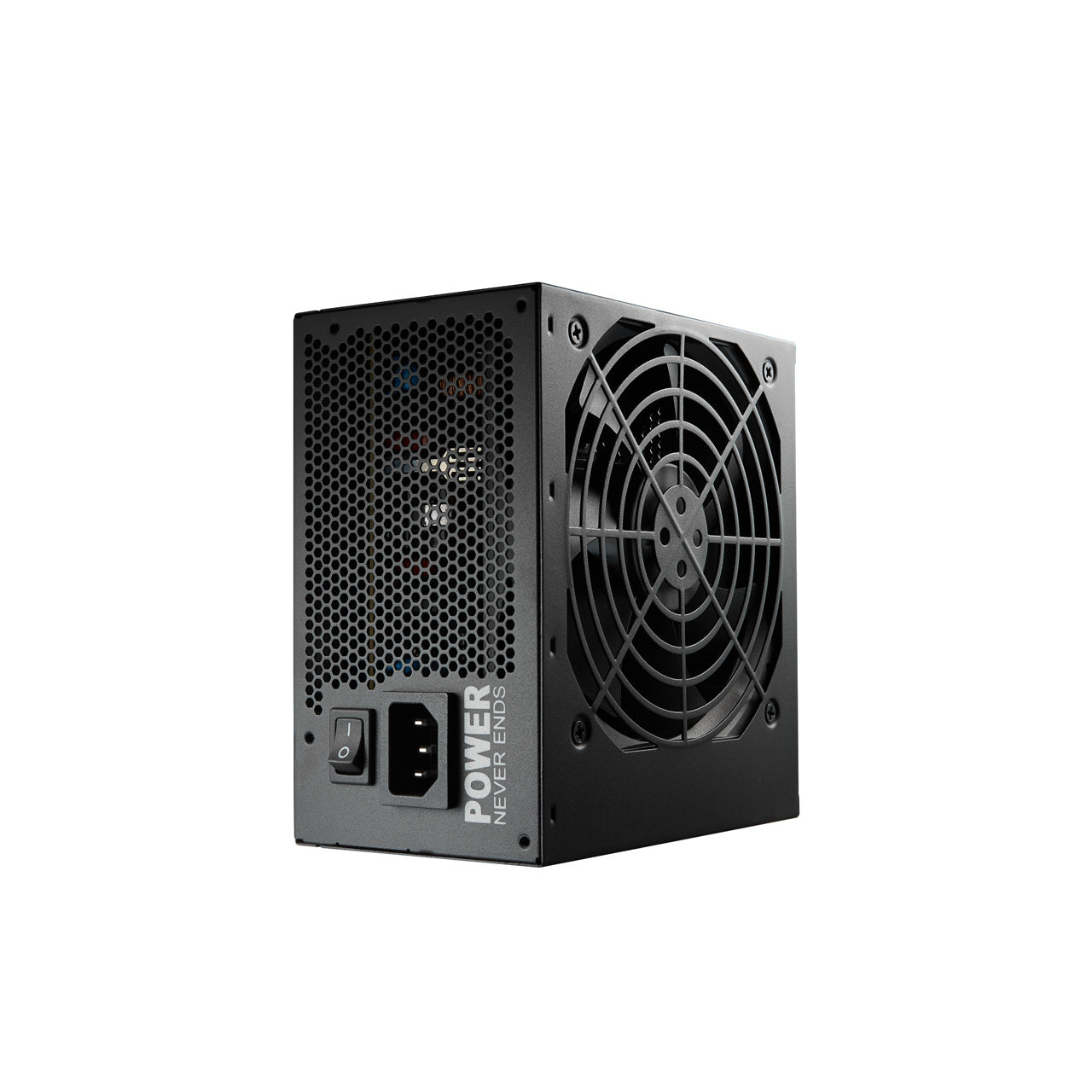

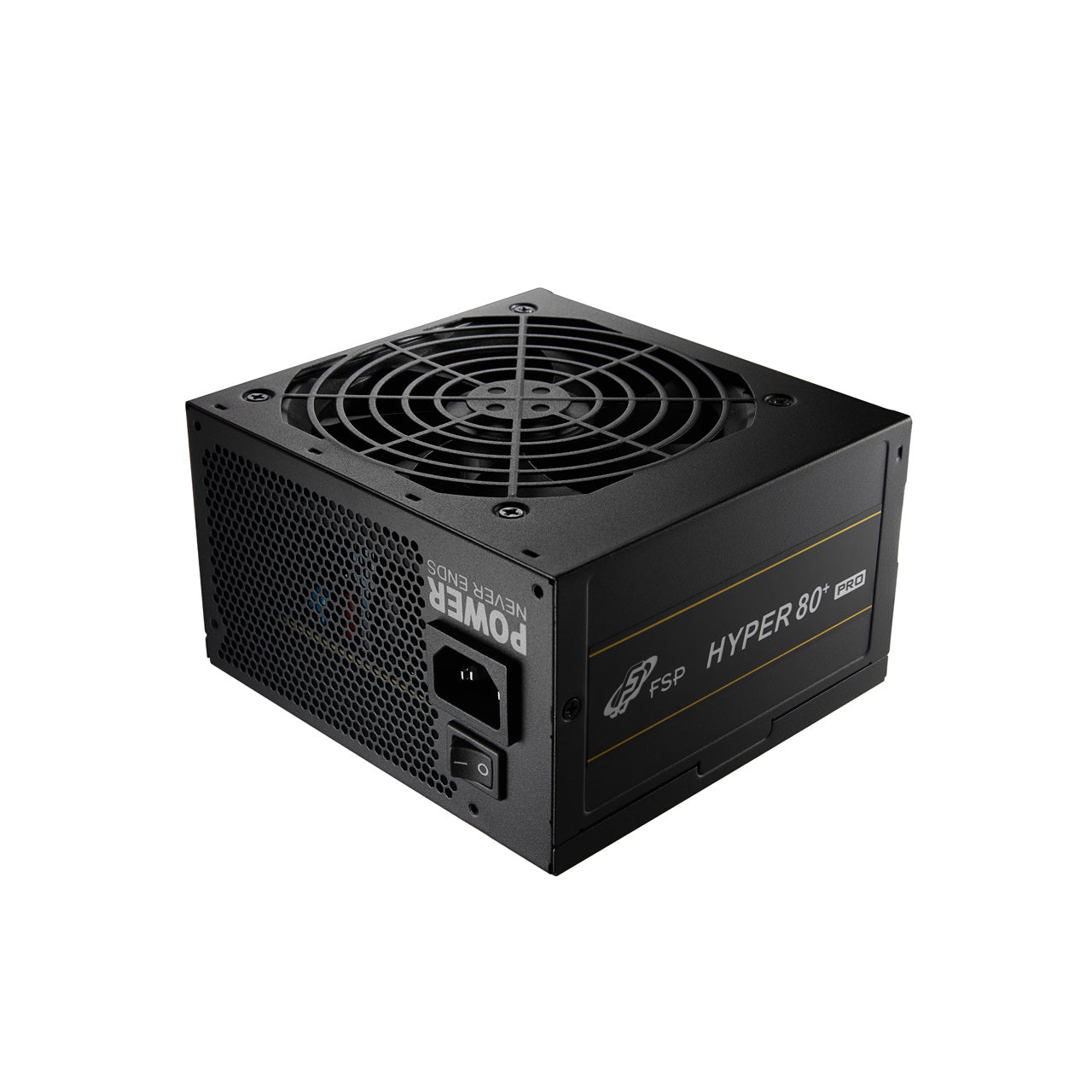

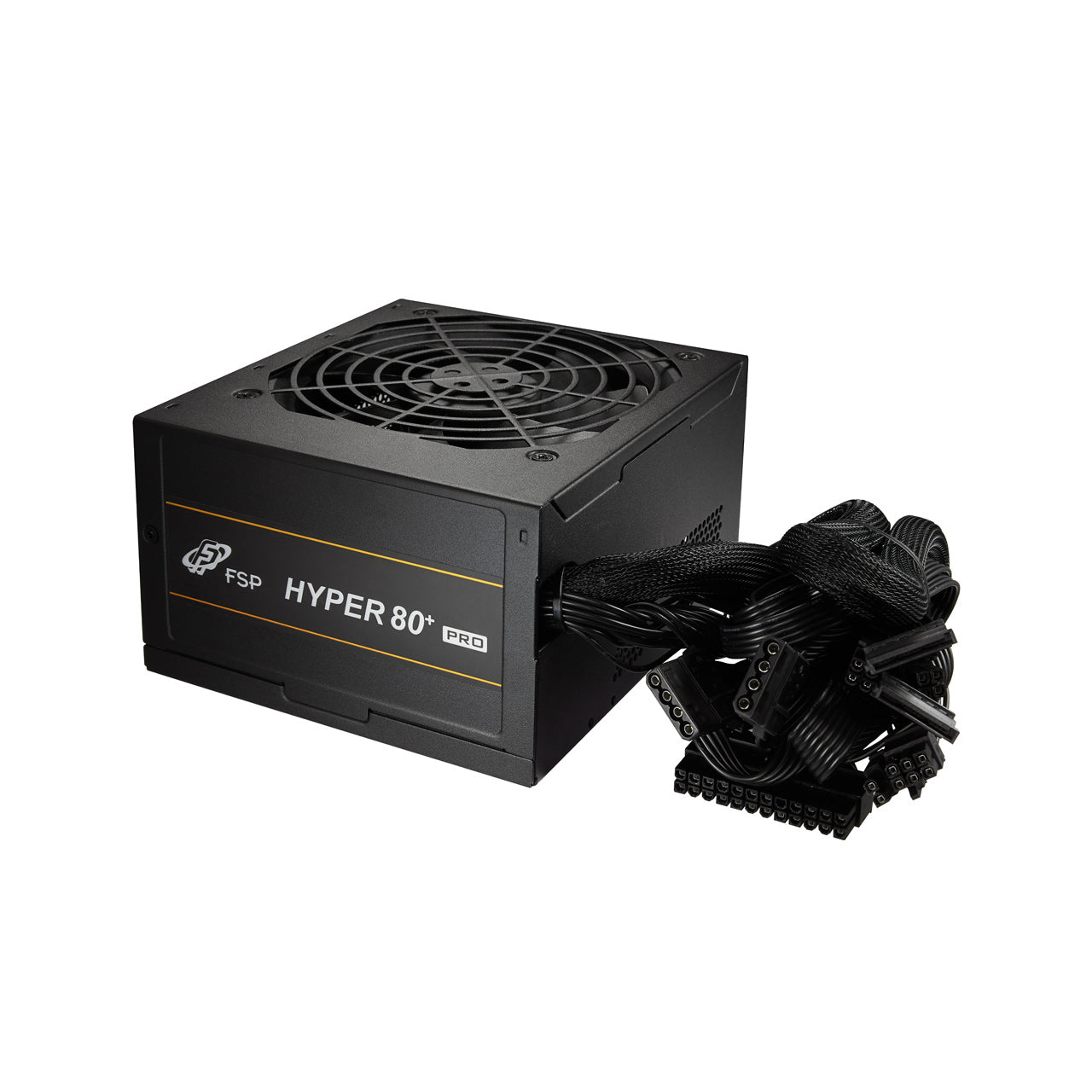

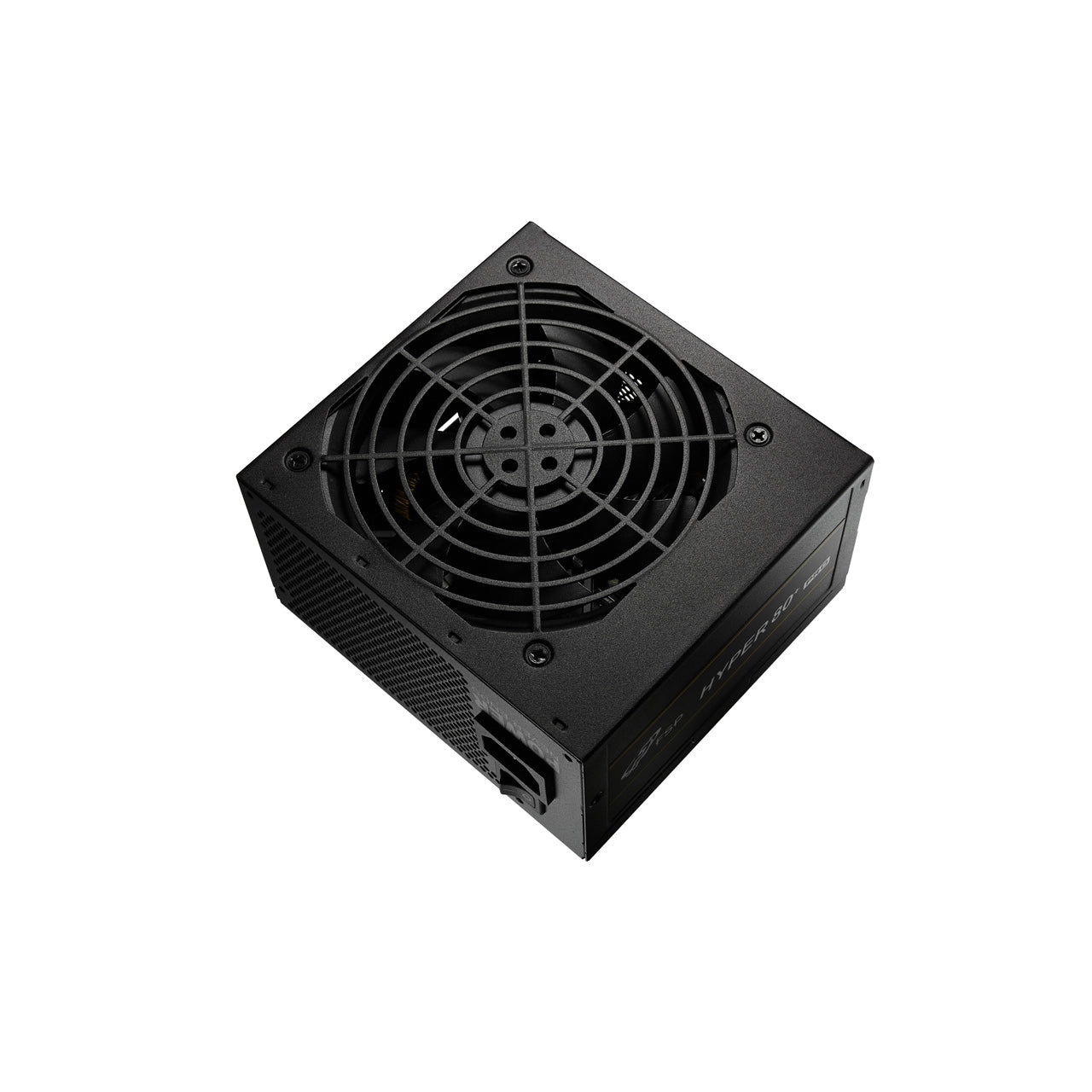

The FSP Power Supply HYPER 80+PRO650 G5.1 is designed for PC builders and gamers seeking reliable power distribution. With a robust 650 W output, it provides essential support for high-performance components.

  • Active power factor correction enhances energy efficiency, making it suitable for energy-conscious users.
  • Multiple power protection features safeguard your system against electrical issues, ensuring safe and stable operation.
  • Generous connector options, including 8 SATA and 2 Molex connectors, allow compatibility with a wide range of devices.
  • With an efficiency rating of 85%, it makes the most of the power drawn from the outlet, contributing to overall system performance.
  • The provision for a 24-pin ATX motherboard power connector simplifies installation in most setups.
Power (1)
  • Nominal power: 650 W
Technical details (3)
  • Producer product family: Power Supply
  • Producer product name: HYPER 80+PRO650 G5.1
  • Net weight: 1.43 kg
Specifications (1)
  • Warranty: 24 month(s)
Additional specifications (51)
  • Total power: 650 W
  • AC input voltage: 220 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5 A
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 649.2 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 12.5 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 54.1 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2.5 A
  • Hold time: 17 ms
  • Efficiency: 85%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
  • Motherboard power connector: 24-pin ATX
  • Number of SATA power connectors: 8
  • Peripheral (Molex) power connectors (4-pin): 2
  • EPS power connector (8-pin): Yes
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power connectors (8-pin): 1
  • CPU power connector (4+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC/Server
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: Sleeve
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Illumination: No
  • On/off switch: Yes
  • Cables included: CPU, PCIe, Peripheral (Molex), SATA
  • Certification: IEC 62368
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm
  • Weight: 1.46 kg
  • Sustainability compliance: Yes
  • Sustainability certificates: ErP
Description

The FSP Power Supply HYPER 80+PRO650 G5.1 is designed for PC builders and gamers seeking reliable power distribution. With a robust 650 W output, it provides essential support for high-performance components.

  • Active power factor correction enhances energy efficiency, making it suitable for energy-conscious users.
  • Multiple power protection features safeguard your system against electrical issues, ensuring safe and stable operation.
  • Generous connector options, including 8 SATA and 2 Molex connectors, allow compatibility with a wide range of devices.
  • With an efficiency rating of 85%, it makes the most of the power drawn from the outlet, contributing to overall system performance.
  • The provision for a 24-pin ATX motherboard power connector simplifies installation in most setups.
Power (1)
  • Nominal power: 650 W
Technical details (3)
  • Producer product family: Power Supply
  • Producer product name: HYPER 80+PRO650 G5.1
  • Net weight: 1.43 kg
Specifications (1)
  • Warranty: 24 month(s)
Additional specifications (51)
  • Total power: 650 W
  • AC input voltage: 220 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 5 A
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 649.2 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 12.5 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 54.1 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 2.5 A
  • Hold time: 17 ms
  • Efficiency: 85%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
  • Motherboard power connector: 24-pin ATX
  • Number of SATA power connectors: 8
  • Peripheral (Molex) power connectors (4-pin): 2
  • EPS power connector (8-pin): Yes
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power connectors (8-pin): 1
  • CPU power connector (4+4 pin): Yes
  • Floppy drive power connector: 1
  • Floppy disk drive connector: Yes
  • Cabling type: Non-Modular
  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC/Server
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 3.1
  • EPS version: 2.92
  • Bearing technology: Sleeve
  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Fan location: Top
  • Illumination: No
  • On/off switch: Yes
  • Cables included: CPU, PCIe, Peripheral (Molex), SATA
  • Certification: IEC 62368
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm
  • Weight: 1.46 kg
  • Sustainability compliance: Yes
  • Sustainability certificates: ErP

FSP HYPER 80+PRO650 G5.1 — Power Supply, 650 W

€61,99
€61,99
Tax included.
