Description

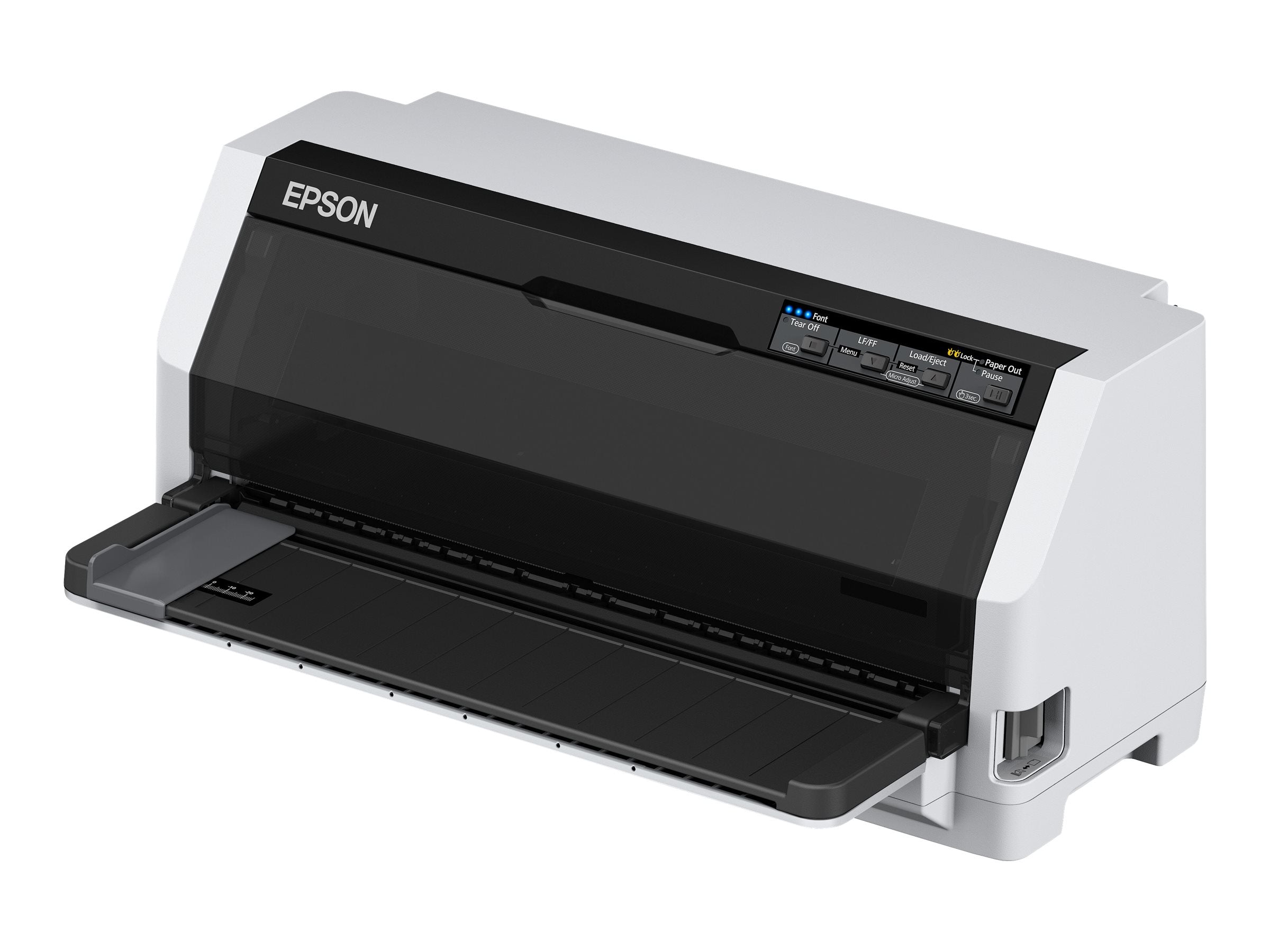

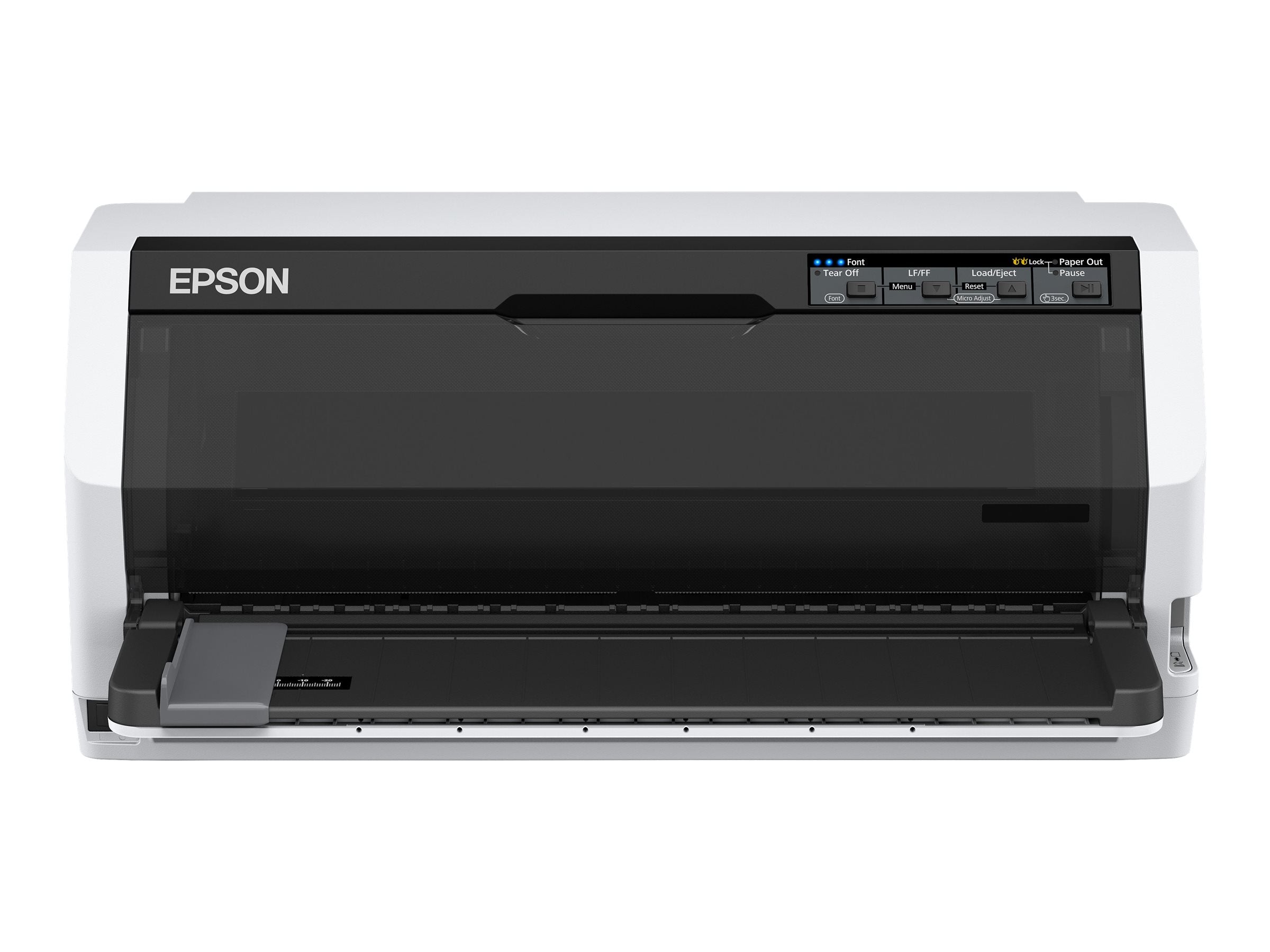

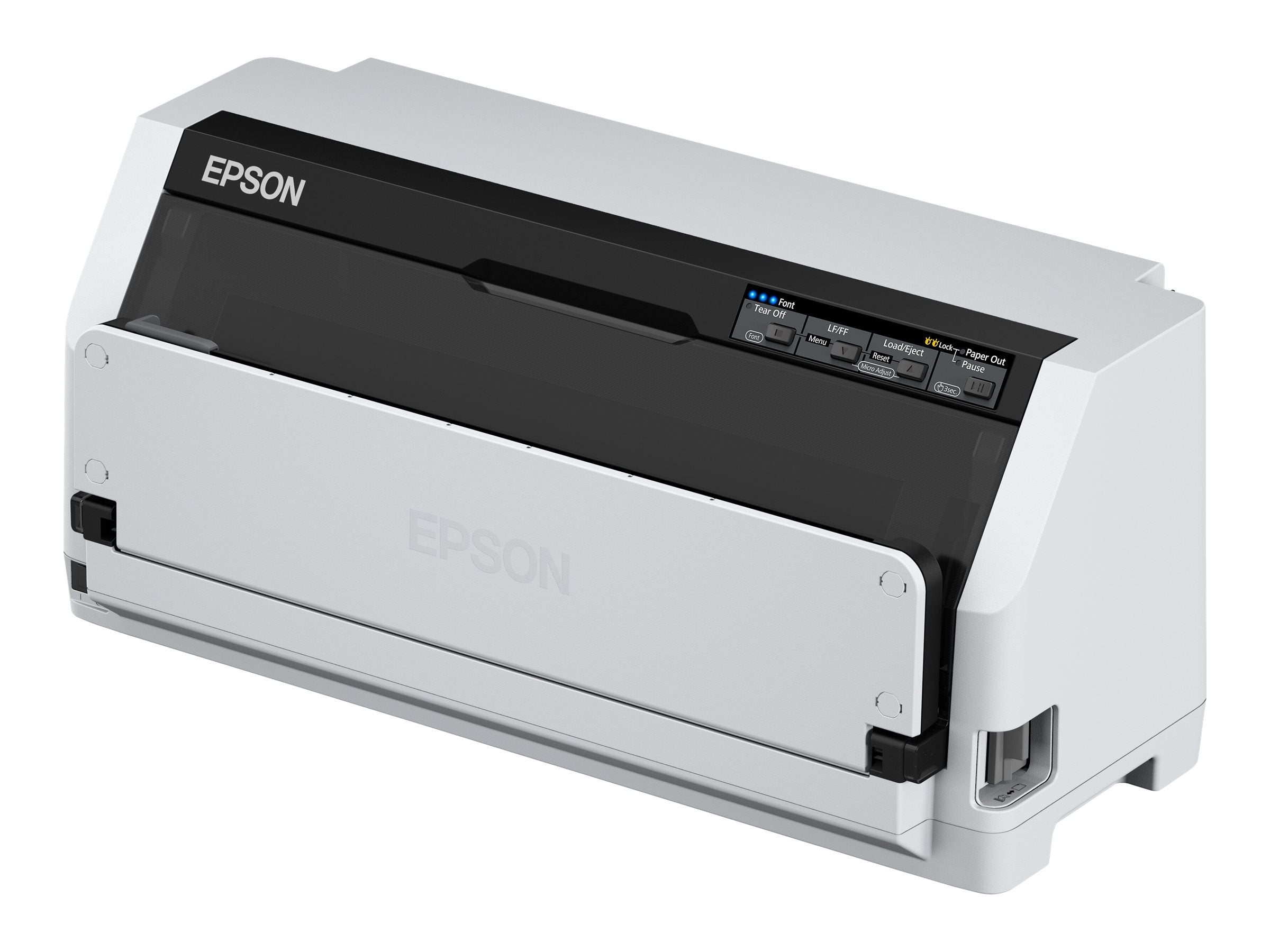

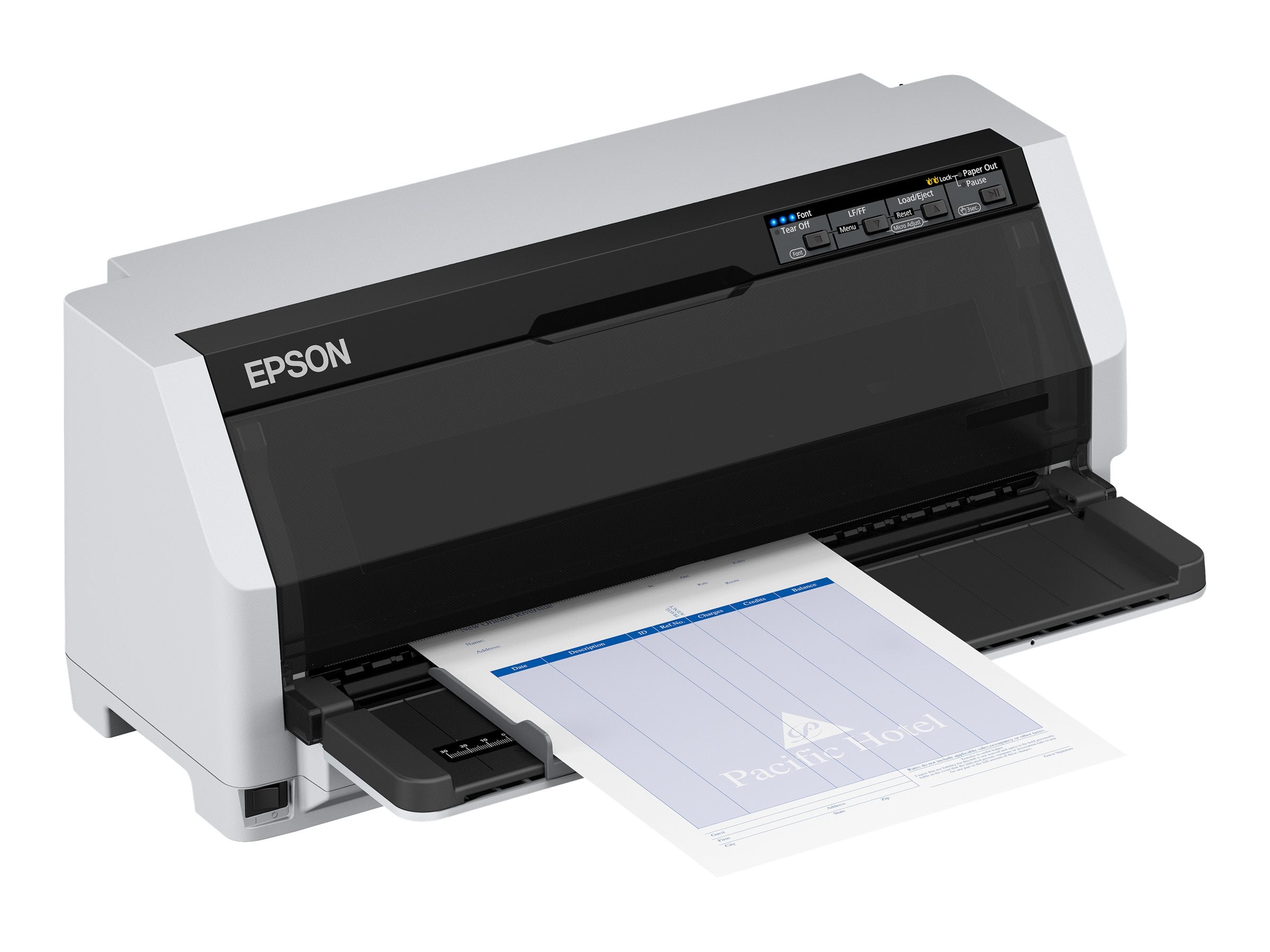

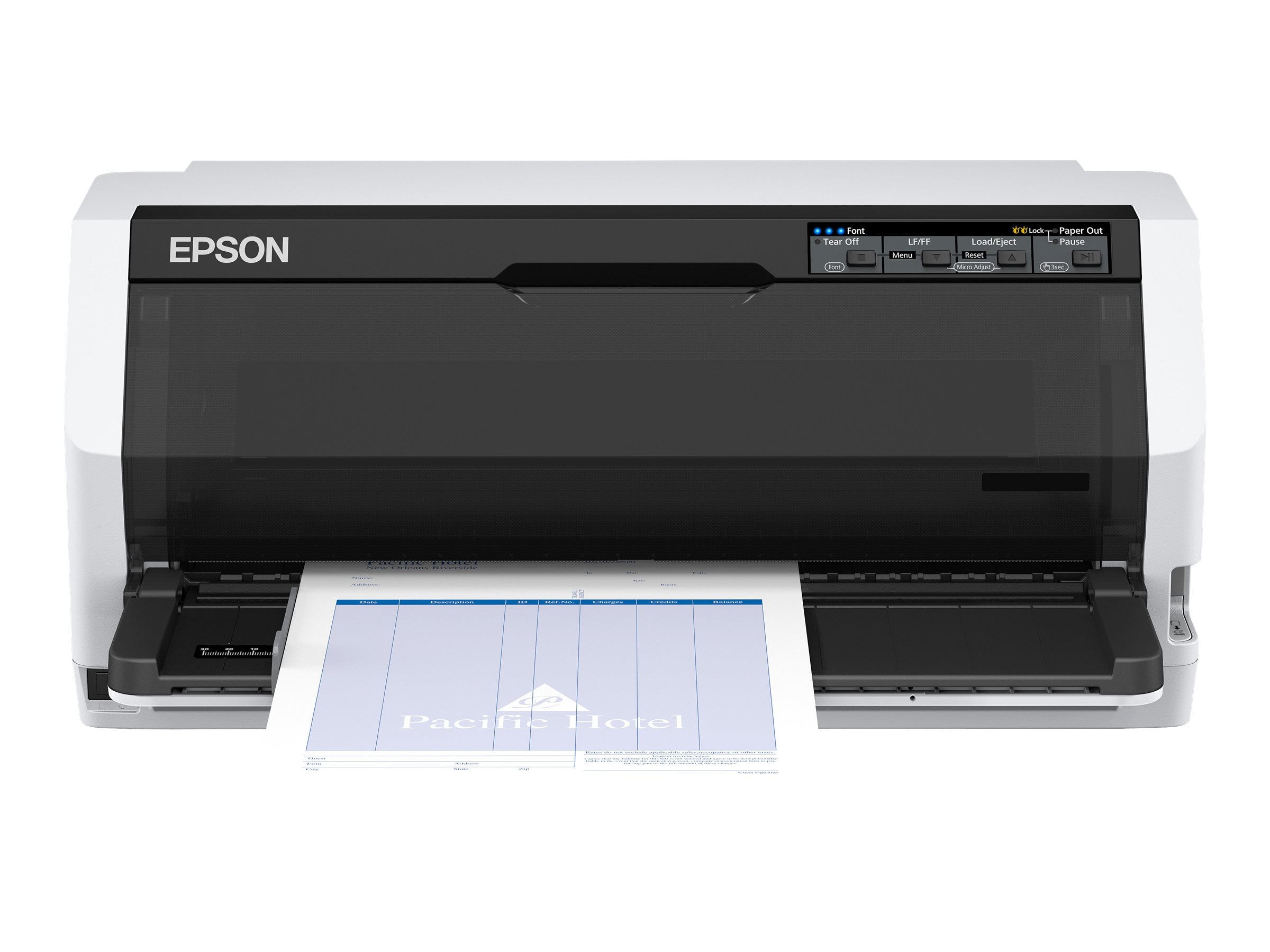

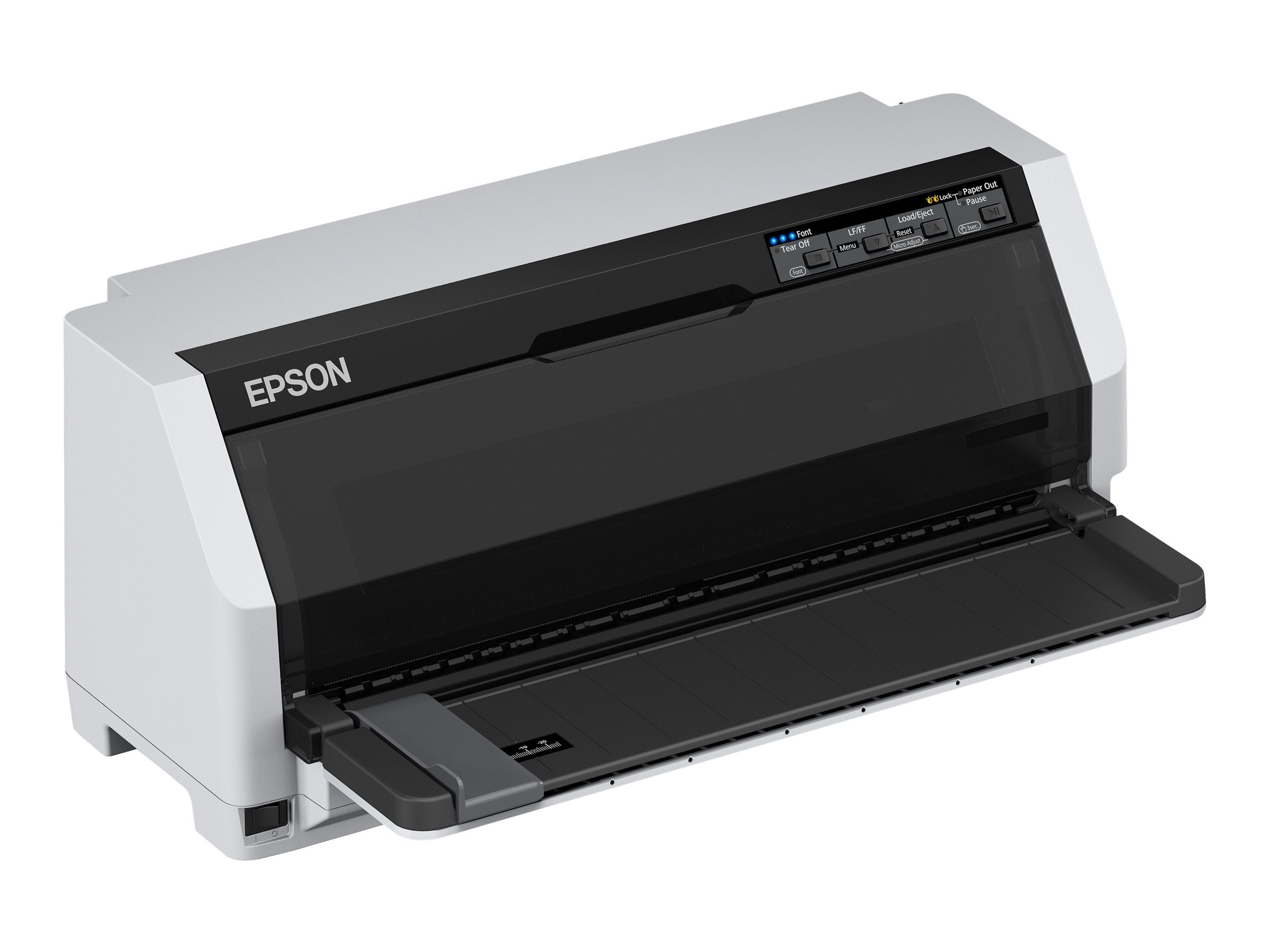

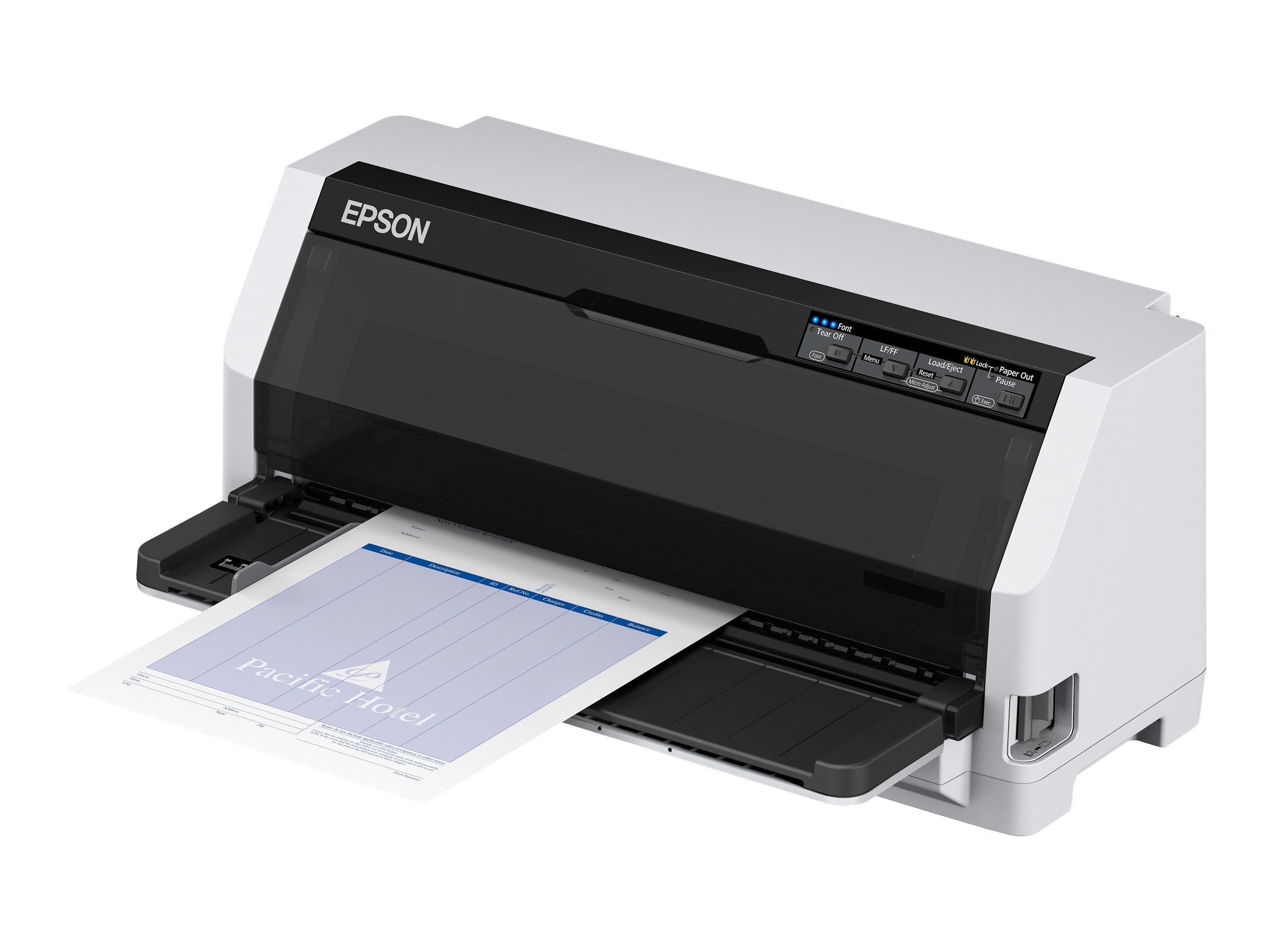

The Epson LQ-690II is a dot matrix printer designed for users needing reliable and efficient monochrome printing. Ideal for businesses or home offices requiring multi-part forms or labels, it provides robust functionality in a compact design.

  • Prints at speeds up to 487 characters per second, allowing for quick job completion.
  • Supports a wide range of continuous and multi-part paper thicknesses for versatile printing options.
  • Equipped with built-in barcodes, enhancing capabilities for inventory and logistics applications.
  • Offers a maximum printing width of 106 columns, making it suitable for various document formats.
  • Character set options ensure compatibility with multiple languages and formats.
Specifications (1)
  • Warranty: 24 month(s)
Features (2)
  • Colour of product: White/Black
  • Product type: Dot matrix printer
Networking (1)
  • Wi-Fi: No
Performance (2)
  • Print technology: Dot matrix
  • Printing: Mono
Technical details (3)
  • Net weight: 6.80 kg
  • Producer product family: Dot Matrix Printer
  • Producer product name: LQ-690II
Additional specifications (33)
  • Maximum resolution: 4800 x 1200 DPI
  • Maximum printing width (columns): 106
  • Colour: No
  • Maximum print speed: 487 cps
  • Maximum print speed (draft): 366 cps
  • Maximum print speed (LQ): 121 cps
  • Maximum number of copies: 7 copies
  • Built-in barcodes: CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
  • Character sets: ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8
  • Paper feed: Manual, Pull tractor
  • Paper tray media types: Envelopes, Labels, Plain paper, Roll
  • Continuous paper thickness range: 0.065 - 0.49 mm
  • Label thickness range: 0.16 - 0.19 mm
  • Multi-part paper thickness range: 0.12 - 0.49 mm
  • Single sheet thickness range: 0.065 - 0.15 mm
  • Product colour: Black, White
  • Buffer size: 128 KB
  • Sound pressure level (printing): 59 dB
  • Country of origin: Indonesia
  • Standard interfaces: Parallel, USB 2.0
  • Print head: 24-pin
  • Print head life: 400 million characters
  • Ribbon life: 10 million characters
  • Mean time between failures (MTBF): 20000 h
  • Power consumption (typical): 38 W
  • Power consumption (standby): 3 W
  • Operating temperature (T-T): 5 - 35 °C
  • Windows operating systems supported: Yes
  • Bundled software: Epson Status Monitor
  • Width: 480 mm
  • Depth: 301 mm
  • Height: 211 mm
  • Weight: 6.8 kg
Description

The Epson LQ-690II is a dot matrix printer designed for users needing reliable and efficient monochrome printing. Ideal for businesses or home offices requiring multi-part forms or labels, it provides robust functionality in a compact design.

  • Prints at speeds up to 487 characters per second, allowing for quick job completion.
  • Supports a wide range of continuous and multi-part paper thicknesses for versatile printing options.
  • Equipped with built-in barcodes, enhancing capabilities for inventory and logistics applications.
  • Offers a maximum printing width of 106 columns, making it suitable for various document formats.
  • Character set options ensure compatibility with multiple languages and formats.
Specifications (1)
  • Warranty: 24 month(s)
Features (2)
  • Colour of product: White/Black
  • Product type: Dot matrix printer
Networking (1)
  • Wi-Fi: No
Performance (2)
  • Print technology: Dot matrix
  • Printing: Mono
Technical details (3)
  • Net weight: 6.80 kg
  • Producer product family: Dot Matrix Printer
  • Producer product name: LQ-690II
Additional specifications (33)
  • Maximum resolution: 4800 x 1200 DPI
  • Maximum printing width (columns): 106
  • Colour: No
  • Maximum print speed: 487 cps
  • Maximum print speed (draft): 366 cps
  • Maximum print speed (LQ): 121 cps
  • Maximum number of copies: 7 copies
  • Built-in barcodes: CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
  • Character sets: ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8
  • Paper feed: Manual, Pull tractor
  • Paper tray media types: Envelopes, Labels, Plain paper, Roll
  • Continuous paper thickness range: 0.065 - 0.49 mm
  • Label thickness range: 0.16 - 0.19 mm
  • Multi-part paper thickness range: 0.12 - 0.49 mm
  • Single sheet thickness range: 0.065 - 0.15 mm
  • Product colour: Black, White
  • Buffer size: 128 KB
  • Sound pressure level (printing): 59 dB
  • Country of origin: Indonesia
  • Standard interfaces: Parallel, USB 2.0
  • Print head: 24-pin
  • Print head life: 400 million characters
  • Ribbon life: 10 million characters
  • Mean time between failures (MTBF): 20000 h
  • Power consumption (typical): 38 W
  • Power consumption (standby): 3 W
  • Operating temperature (T-T): 5 - 35 °C
  • Windows operating systems supported: Yes
  • Bundled software: Epson Status Monitor
  • Width: 480 mm
  • Depth: 301 mm
  • Height: 211 mm
  • Weight: 6.8 kg

Epson LQ-690II — Dot Matrix Printer, Mono, White/Black

€588,99
€588,99
Tax included.
