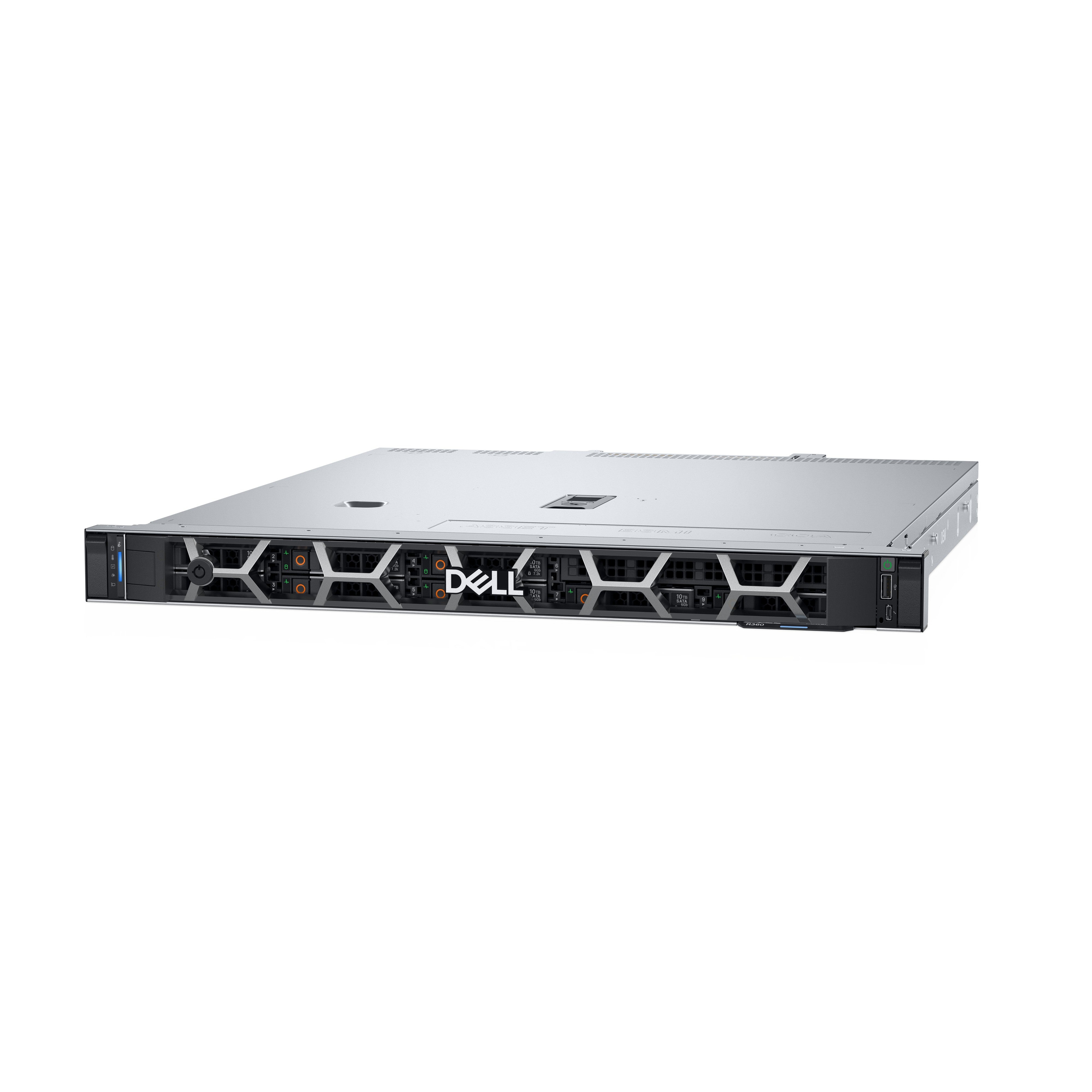

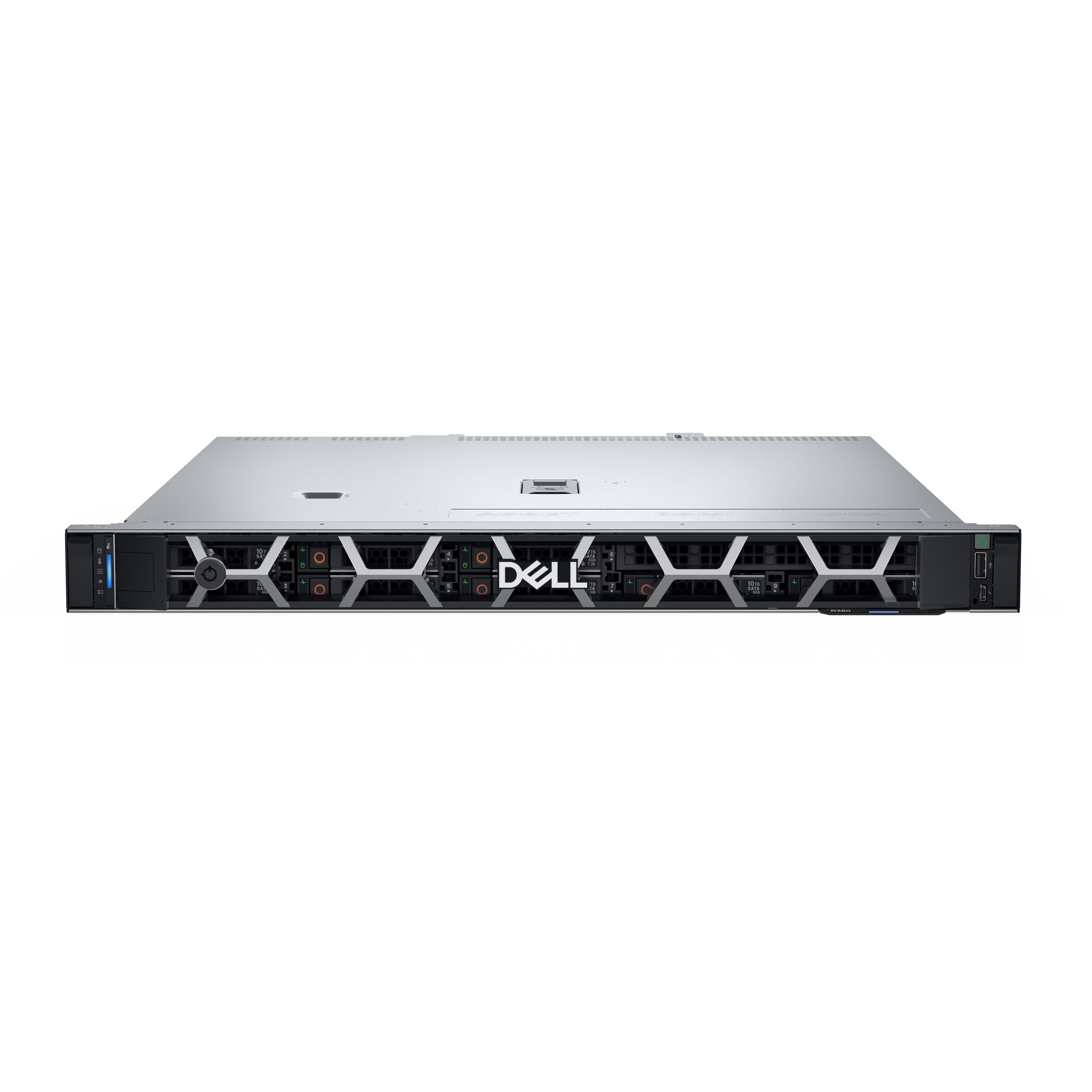

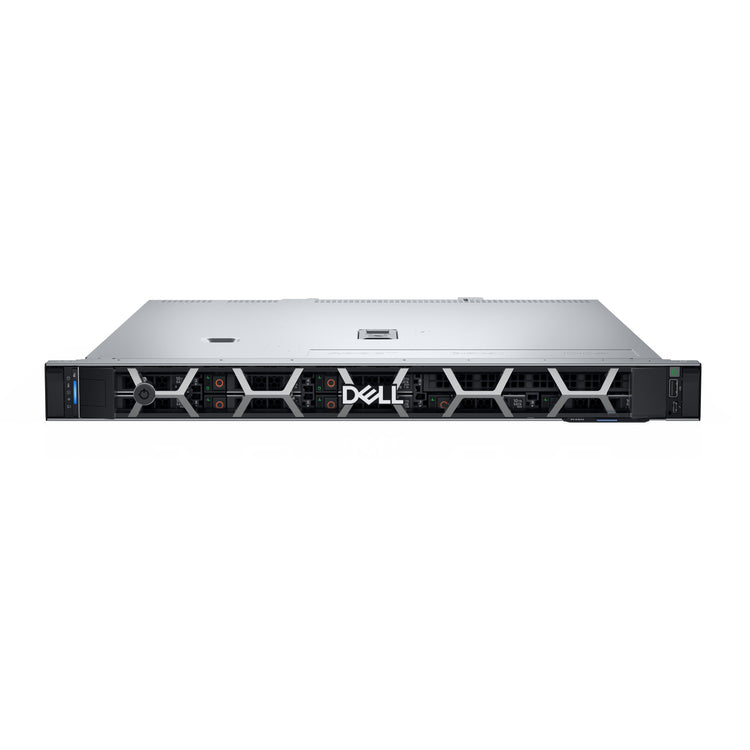

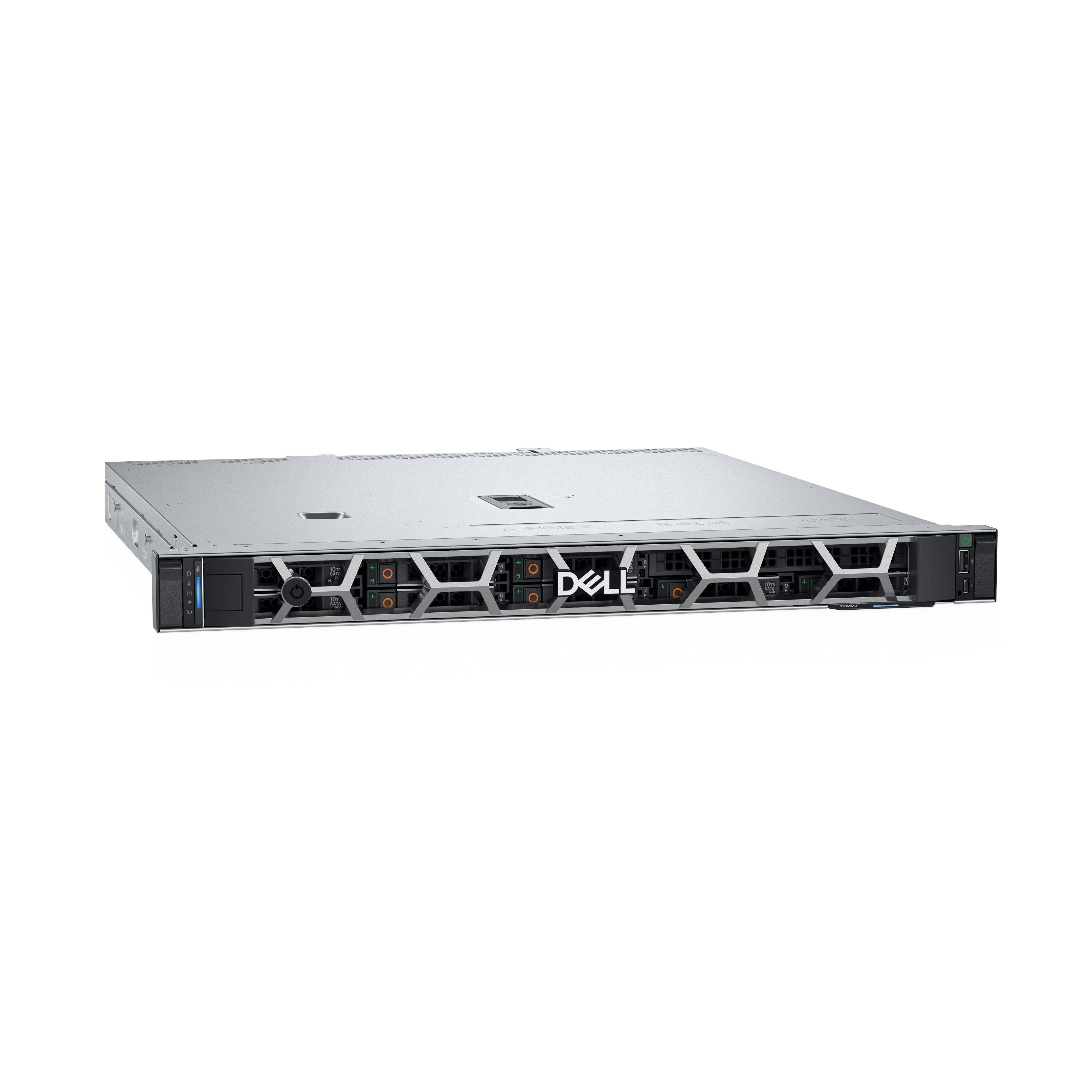

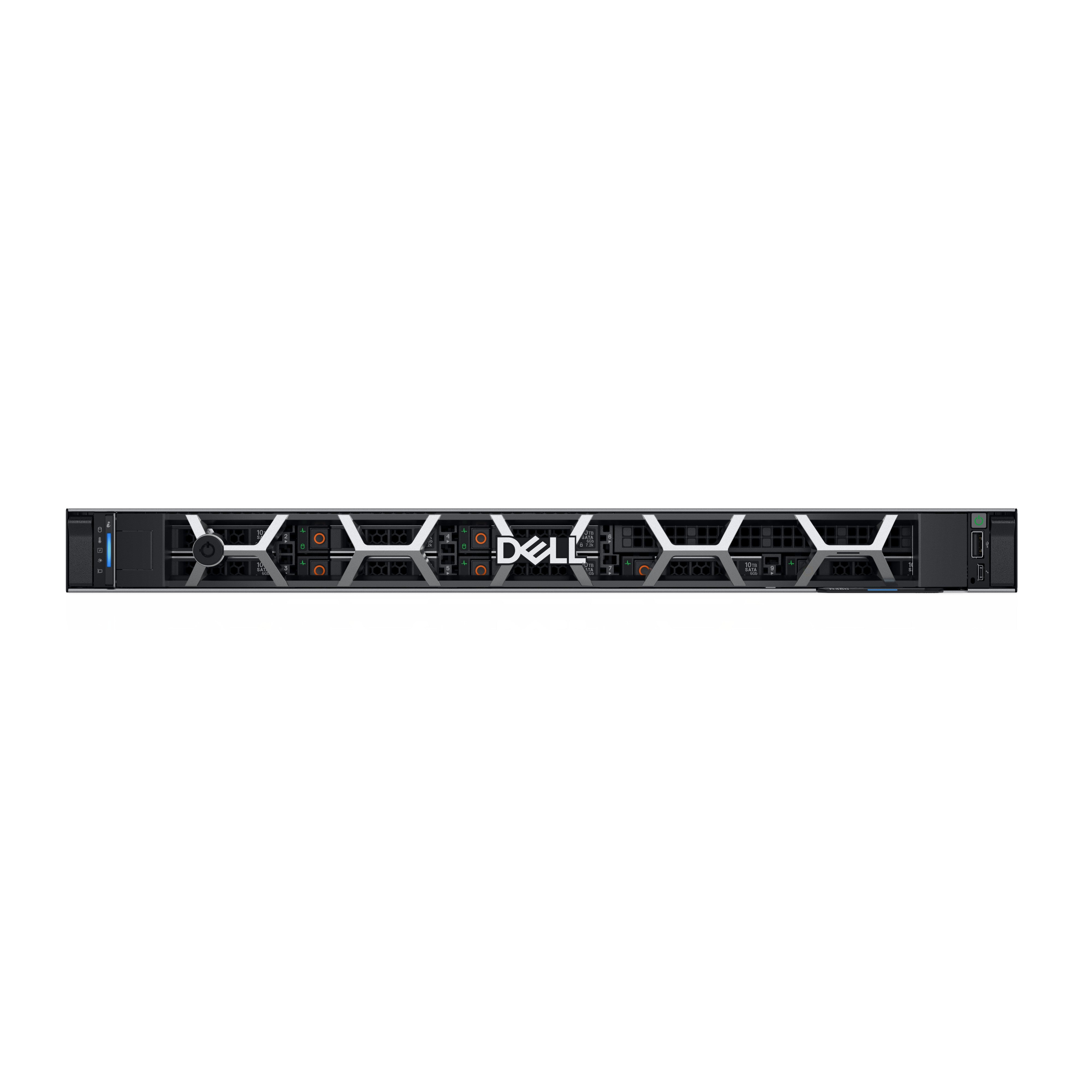

The Dell PowerEdge R360 server is powered by an Intel Xeon 6315P processor with a frequency of 2.8 GHz and a boost frequency of 5.2 GHz. It features 32 GB of DDR5 memory, a 480 GB SATA III SSD, and supports RAID configurations.

• Processor: Intel Xeon 6315P with 4 performance cores and 12 MB cache
• Memory: 32 GB DDR5-SDRAM, expandable up to 128 GB
• Storage: 480 GB SSD with 2.5" form factor and support for 8 SSDs
• Memory slots: 4 DIMM slots for additional memory expansion
• Thermal Design Power (TDP): 55 W

Specifications

• Warranty: 36 month(s)

Technical details

• Net weight: 14.02 kg

Additional specifications

• Processor manufacturer: Intel
• Processor family: Intel Xeon 6
• Processor model: 6315P
• Processor frequency: 2.8 GHz
• Processor boost frequency: 5.2 GHz
• Performance cores: 4
• Processor cores: 4
• Processor cache: 12 MB
• Number of processors installed: 1
• Thermal Design Power (TDP): 55 W
• System bus rate: 16 GT/s
• Processor threads: 4
• Memory types supported by processor: DDR5-SDRAM
• Memory clock speeds supported by processor: 4800 MHz
• Internal memory: 32 GB
• Internal memory type: DDR5-SDRAM
• Memory slots: 4x DIMM
• Maximum internal memory: 128 GB
• Total storage capacity: 480 GB
• Number of SSDs installed: 1
• SSD capacity: 480 GB
• SSD interface: SATA III
• SSD size: 2.5"
• Supported SSD sizes: 2.5"
• Number of SSDs supported: 8
• RAID support: Yes
• Supported RAID controllers: Front PERC 11, PERC H355 Front Load
• Hot-Plug support: Yes
• Optical drive type: No
• Drive writes per day (DWPD): 3
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN (RJ-45) ports: 2
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• Serial ports quantity: 1
• PCI Express x8 slots: 1
• PCI Express x16 slots: 1
• Chassis type: Rack (1U)
• Product colour: Black
• Rack rails: Yes
• Operating system installed: No
• Redundant power supply (RPS) support: Yes
• Power supply: 700 W
• Number of redundant power supplies supported: 2
• Number of redundant power supplies installed: 2
• Power supply input voltage: 200 - 240 V
• 80 PLUS certification: 80 PLUS Titanium
• Total carbon footprint (kg of CO2e): 1140
• Total carbon emissions, standard deviation (kg of CO2e): 943
• Carbon emissions, manufacturing (kg of CO2e): 307.8
• Carbon emissions, logistics (kg of CO2e): 102.6
• Carbon emissions, energy usage (kg of CO2e): 718.2
• Carbon emissions, end-of-life (kg of CO2e): 11.4
• PAIA version: PAIA 1.4.0, 2024
• Width: 482 mm
• Height: 42.8 mm
• Data transfer rate: 6 Gbit/s
• Bytes per sector: 512e
• Target workload: Read Intensive (RI)
