Description

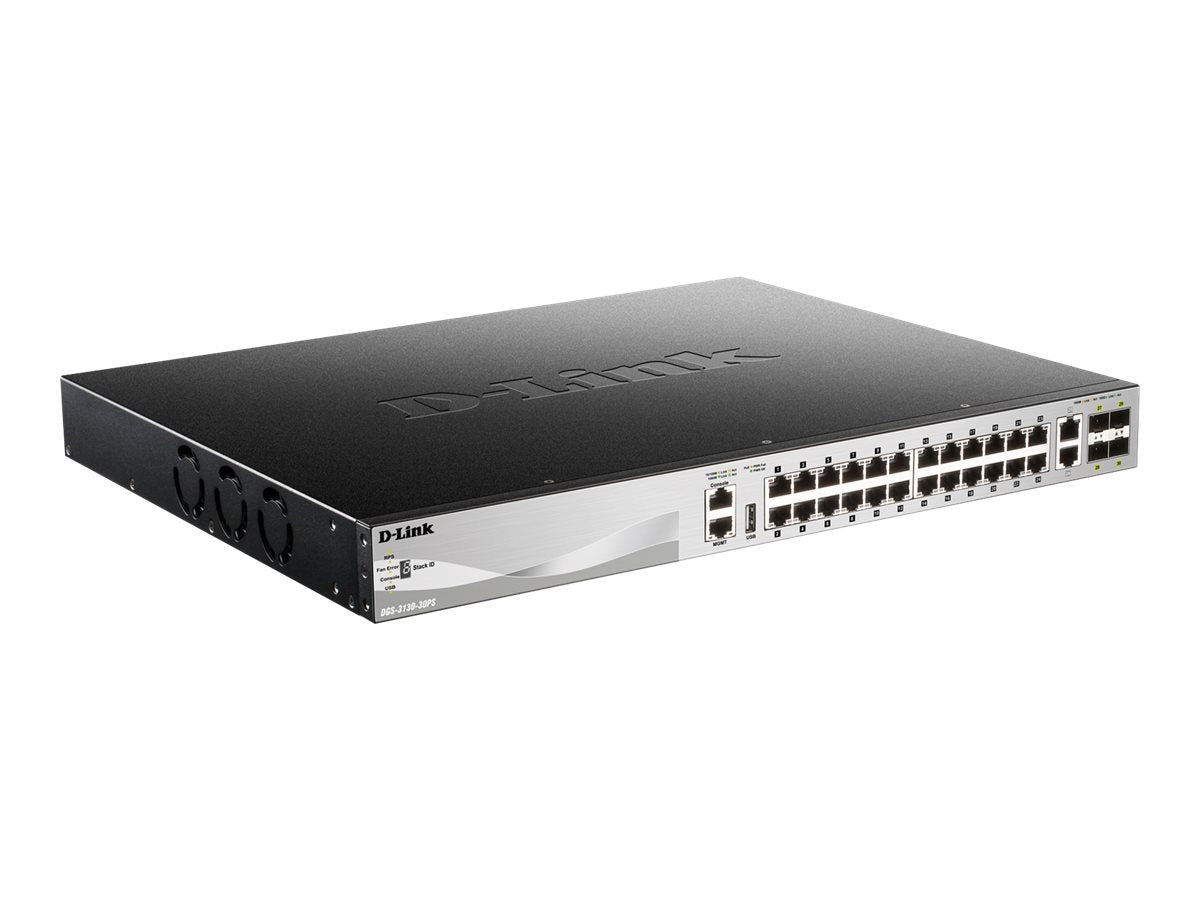

The D-Link DGS-3130-30PS is a managed L2+ switch designed for businesses needing robust network management and performance. Ideal for data centers or enterprise environments, it offers extensive connectivity options and Power over Ethernet support for powering devices directly through the network cables.

  • Equipped with 24 Gigabit Ethernet ports and 2 10 Gbps RJ-45 ports for enhanced data transmission.
  • Supports Power over Ethernet (PoE) on all 24 ports, allowing for easy installation of devices like IP cameras and phones without additional power lines.
  • Includes 4 SFP+ ports for flexible fiber optic connectivity, facilitating high-speed data links.
  • Web-based management interface enables user-friendly configuration and monitoring of switch performance.
  • Quality of Service (QoS) support ensures optimized network traffic for smoother performance during peak loads.
Specifications (3)
  • Producer product family: Switch
  • Producer product name: DGS-3130-30PS
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Rack mountable
Management features (1)
  • Switch type: Managed L2+
Other features (1)
  • Power supply type: Optional Redundant
Ports & interfaces (5)
  • 10 Gbps (RJ-45) ports quantity: 2
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP+ ports quantity: 4
  • POE: PoE 802.3 af
  • Predominant port type: 1 Gbps (RJ-45)
Power over Ethernet (PoE) (1)
  • Power over Ethernet (PoE) ports quantity: 24
Technical details (1)
  • Net weight: 5 kg
Additional specifications (74)
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • MIB support: RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure • RFC1212 Concise MIB Definitions • RFC1213 MIBII • RFC1215 MIB Traps Convention • RFC1493, RFC4188 Bridge MIB • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB • RFC271, RFC1757, RFC2819 RMON MIB • RFC2021 RMONv2 MIB • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Etherlike MIB • RFC2668 802.3 MAU MIB • RFC2674, RFC4363 802.1p MIB • Interface Group MIB • RFC2618 RADIUS Authentication Client MIB • RFC4022 MIB for TCP • RFC4113 MIB for UDP • RFC2389 MIB for Diffserv. • RFC2620 RADIUS Accounting Client MIB • RFC2925 Ping & TRACEROUTE MIB • TFTP uploads and downloads (D-Link MIB) • Trap MIB (D-Link MIB) • RFC4265 IPv6 MIB • RFC4266 ICMPv6 MIB • Entity MIB • VRRP MIB • RIPv2 MIB • RFC1850, RFC5643 OSPF MIB • RFC4293 IPv6 SNMP Mgmt Interface MIB • DDM MIB (D-Link MIB) • Private MIB • MIB for D-Link Zone Defense • RFC3621 Power Ethernet MIB • DDP MIB • LLDP-MED MIB
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Fiber optic connector: SFP+
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
  • 10G support: Yes
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 168 Gbit/s
  • Forwarding rate: 125 Mpps
  • MAC address table: 16384 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Packet buffer memory: 2 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) egress: 512
  • Access Control List (ACL) ingress: 2048
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv3, SSH-2, SSL/TLS
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Password protection: Yes
  • Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Multicast features: Controllable multicast
  • GARP VLAN Registration Protocol (GVRP): Yes
  • Routing protocols: RIP
  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Grey
  • LED indicators: Yes
  • Number of fans: 3 fan(s)
  • Physical stacking (units): 9
  • Virtual stacking (units): 32
  • Noise level: 53.4 dB
  • Mean time between failures (MTBF): 279418 h
  • Power source: DC
  • Redundant power supply (RPS) support: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 38.74 W
  • Power consumption (max): 454.55 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Total Power over Ethernet (PoE) budget: 370 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 1550.92 BTU/h
  • Width: 440 mm
  • Depth: 430 mm
  • Height: 44 mm
  • Weight: 5.6 kg
  • Certification: FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
Description

The D-Link DGS-3130-30PS is a managed L2+ switch designed for businesses needing robust network management and performance. Ideal for data centers or enterprise environments, it offers extensive connectivity options and Power over Ethernet support for powering devices directly through the network cables.

  • Equipped with 24 Gigabit Ethernet ports and 2 10 Gbps RJ-45 ports for enhanced data transmission.
  • Supports Power over Ethernet (PoE) on all 24 ports, allowing for easy installation of devices like IP cameras and phones without additional power lines.
  • Includes 4 SFP+ ports for flexible fiber optic connectivity, facilitating high-speed data links.
  • Web-based management interface enables user-friendly configuration and monitoring of switch performance.
  • Quality of Service (QoS) support ensures optimized network traffic for smoother performance during peak loads.
Specifications (3)
  • Producer product family: Switch
  • Producer product name: DGS-3130-30PS
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Rack mountable
Management features (1)
  • Switch type: Managed L2+
Other features (1)
  • Power supply type: Optional Redundant
Ports & interfaces (5)
  • 10 Gbps (RJ-45) ports quantity: 2
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP+ ports quantity: 4
  • POE: PoE 802.3 af
  • Predominant port type: 1 Gbps (RJ-45)
Power over Ethernet (PoE) (1)
  • Power over Ethernet (PoE) ports quantity: 24
Technical details (1)
  • Net weight: 5 kg
Additional specifications (74)
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • MIB support: RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure • RFC1212 Concise MIB Definitions • RFC1213 MIBII • RFC1215 MIB Traps Convention • RFC1493, RFC4188 Bridge MIB • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB • RFC271, RFC1757, RFC2819 RMON MIB • RFC2021 RMONv2 MIB • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Etherlike MIB • RFC2668 802.3 MAU MIB • RFC2674, RFC4363 802.1p MIB • Interface Group MIB • RFC2618 RADIUS Authentication Client MIB • RFC4022 MIB for TCP • RFC4113 MIB for UDP • RFC2389 MIB for Diffserv. • RFC2620 RADIUS Accounting Client MIB • RFC2925 Ping & TRACEROUTE MIB • TFTP uploads and downloads (D-Link MIB) • Trap MIB (D-Link MIB) • RFC4265 IPv6 MIB • RFC4266 ICMPv6 MIB • Entity MIB • VRRP MIB • RIPv2 MIB • RFC1850, RFC5643 OSPF MIB • RFC4293 IPv6 SNMP Mgmt Interface MIB • DDM MIB (D-Link MIB) • Private MIB • MIB for D-Link Zone Defense • RFC3621 Power Ethernet MIB • DDP MIB • LLDP-MED MIB
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Fiber optic connector: SFP+
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
  • 10G support: Yes
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000
  • Switching capacity: 168 Gbit/s
  • Forwarding rate: 125 Mpps
  • MAC address table: 16384 entries
  • Number of queues: 8
  • Jumbo frames support: Yes
  • Packet buffer memory: 2 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
  • Access Control List (ACL): Yes
  • Access Control List (ACL) egress: 512
  • Access Control List (ACL) ingress: 2048
  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv3, SSH-2, SSL/TLS
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
  • Password protection: Yes
  • Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
  • Multicast support: Yes
  • Multicast features: Controllable multicast
  • GARP VLAN Registration Protocol (GVRP): Yes
  • Routing protocols: RIP
  • Rack mounting: Yes
  • Stackable: Yes
  • Product colour: Grey
  • LED indicators: Yes
  • Number of fans: 3 fan(s)
  • Physical stacking (units): 9
  • Virtual stacking (units): 32
  • Noise level: 53.4 dB
  • Mean time between failures (MTBF): 279418 h
  • Power source: DC
  • Redundant power supply (RPS) support: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 38.74 W
  • Power consumption (max): 454.55 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Total Power over Ethernet (PoE) budget: 370 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 1550.92 BTU/h
  • Width: 440 mm
  • Depth: 430 mm
  • Height: 44 mm
  • Weight: 5.6 kg
  • Certification: FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI

D-Link Switch DGS-3130-30PS, Managed L2+, Rack mountable, 10 Gbps (RJ-45) ports quantity 2

€1.522,71
€1.522,71
Tax included.
