About

Description

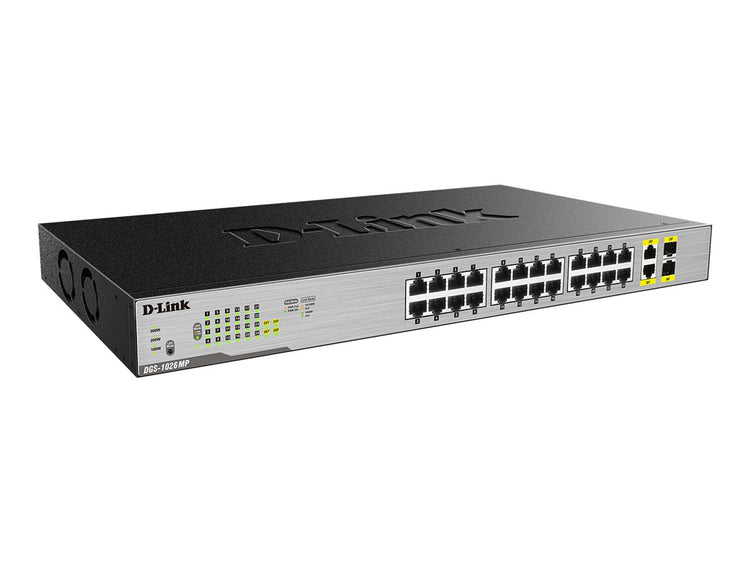

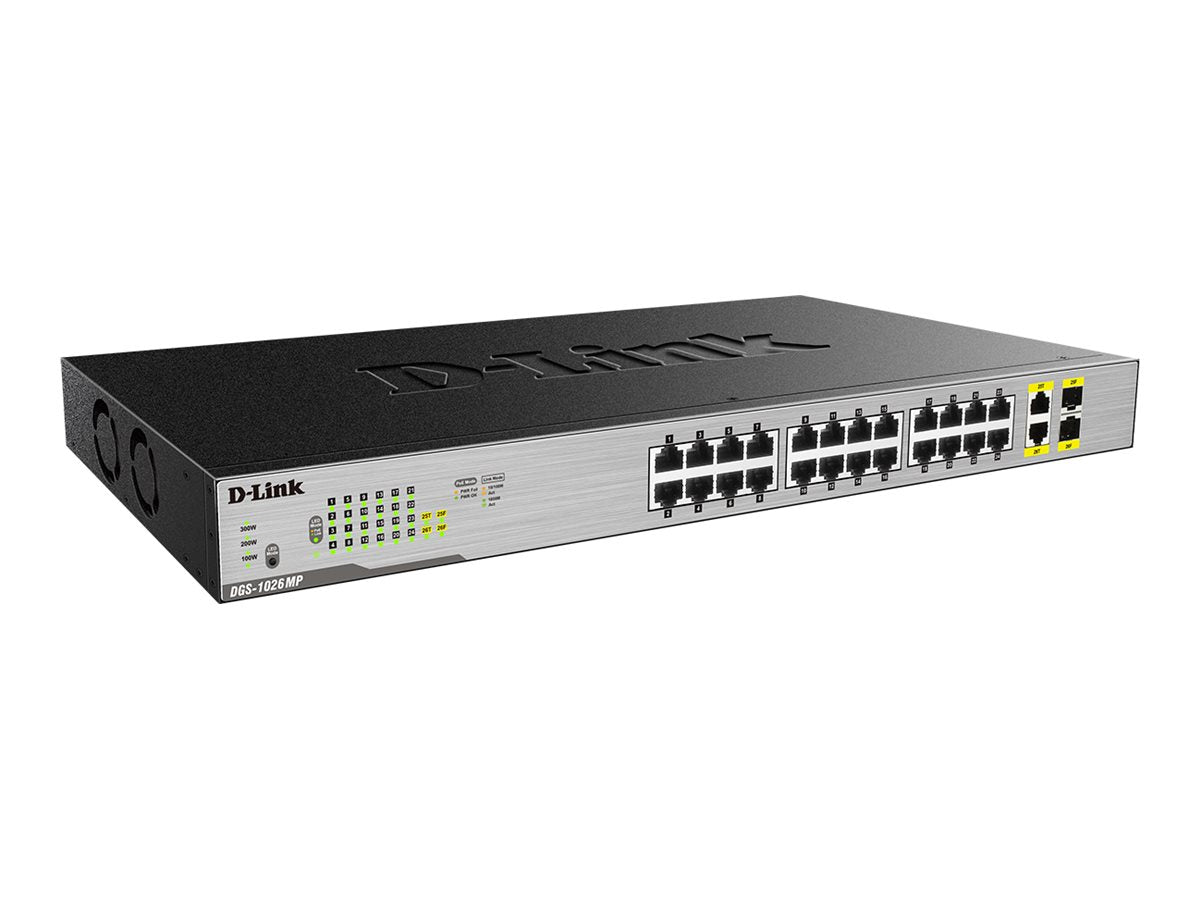

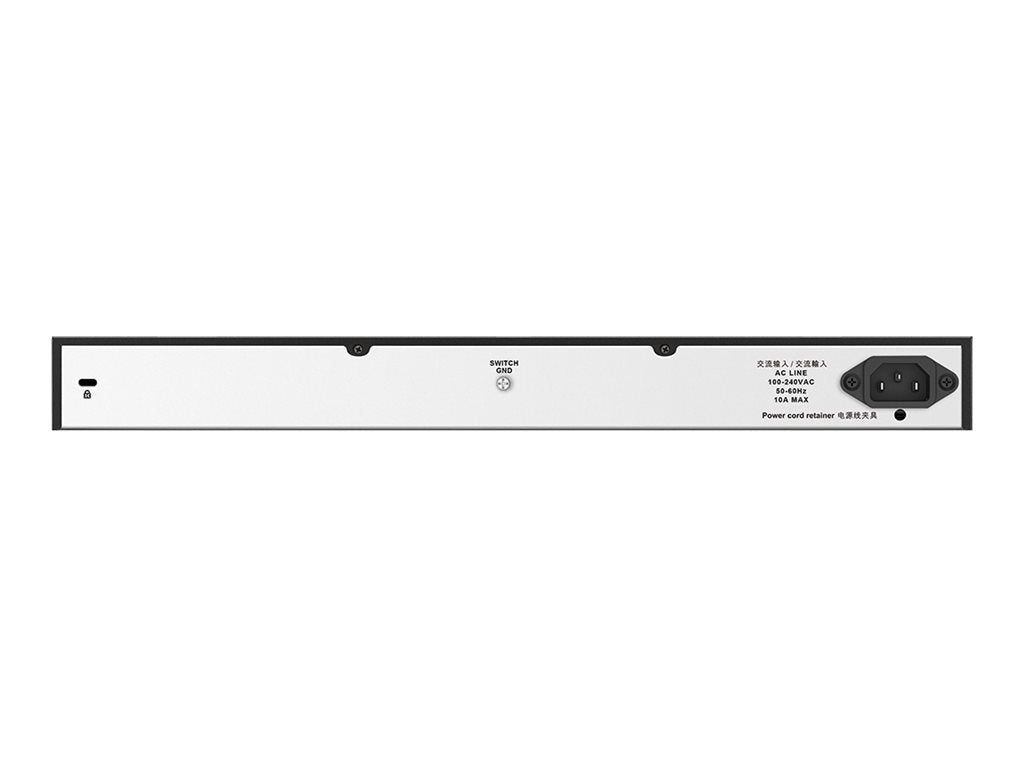

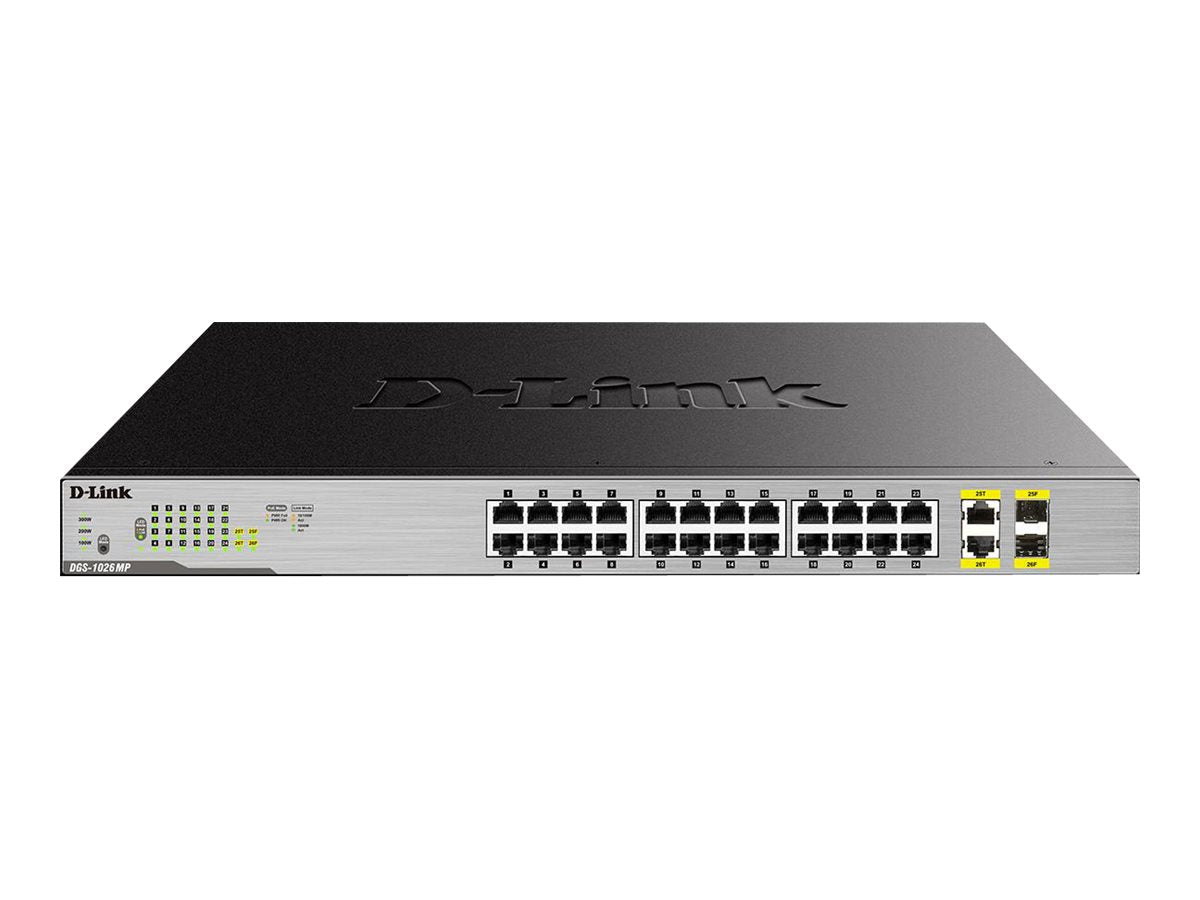

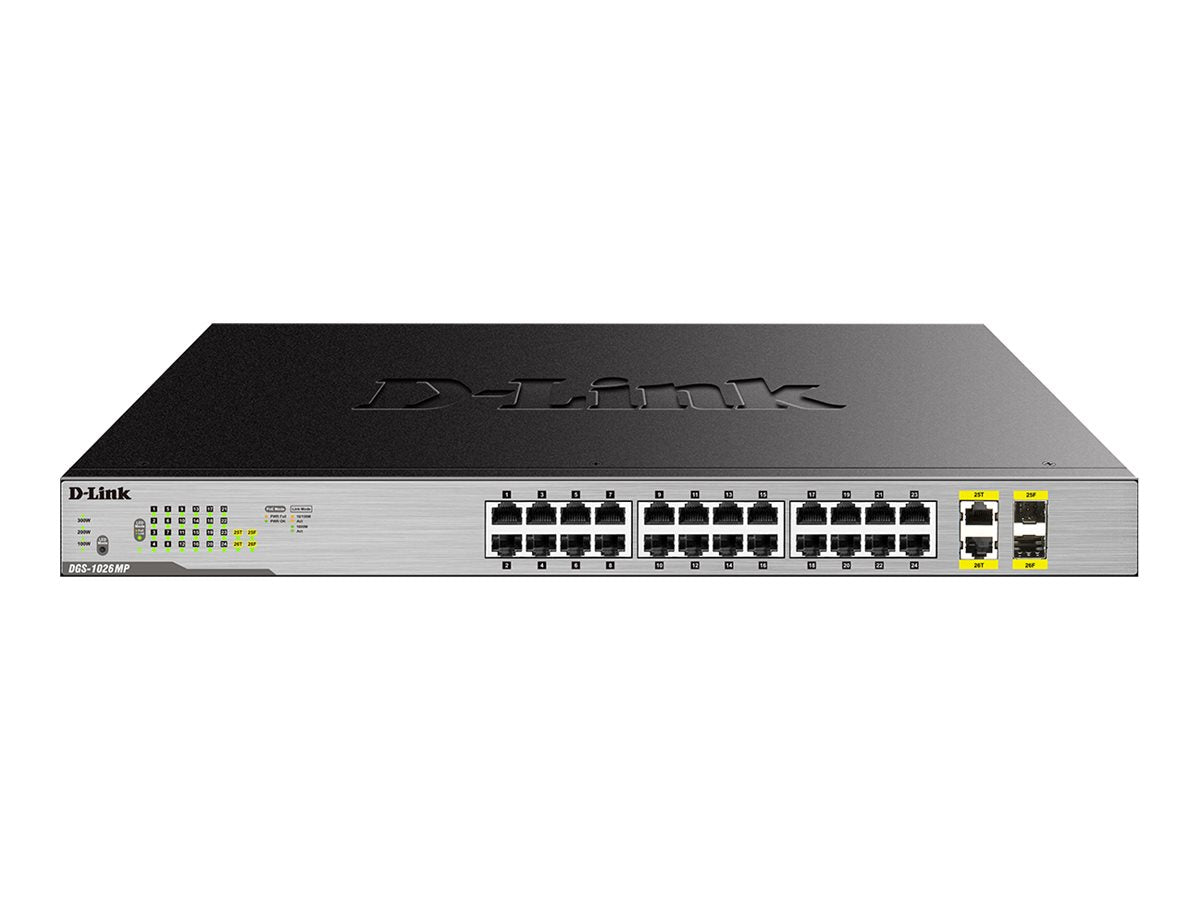

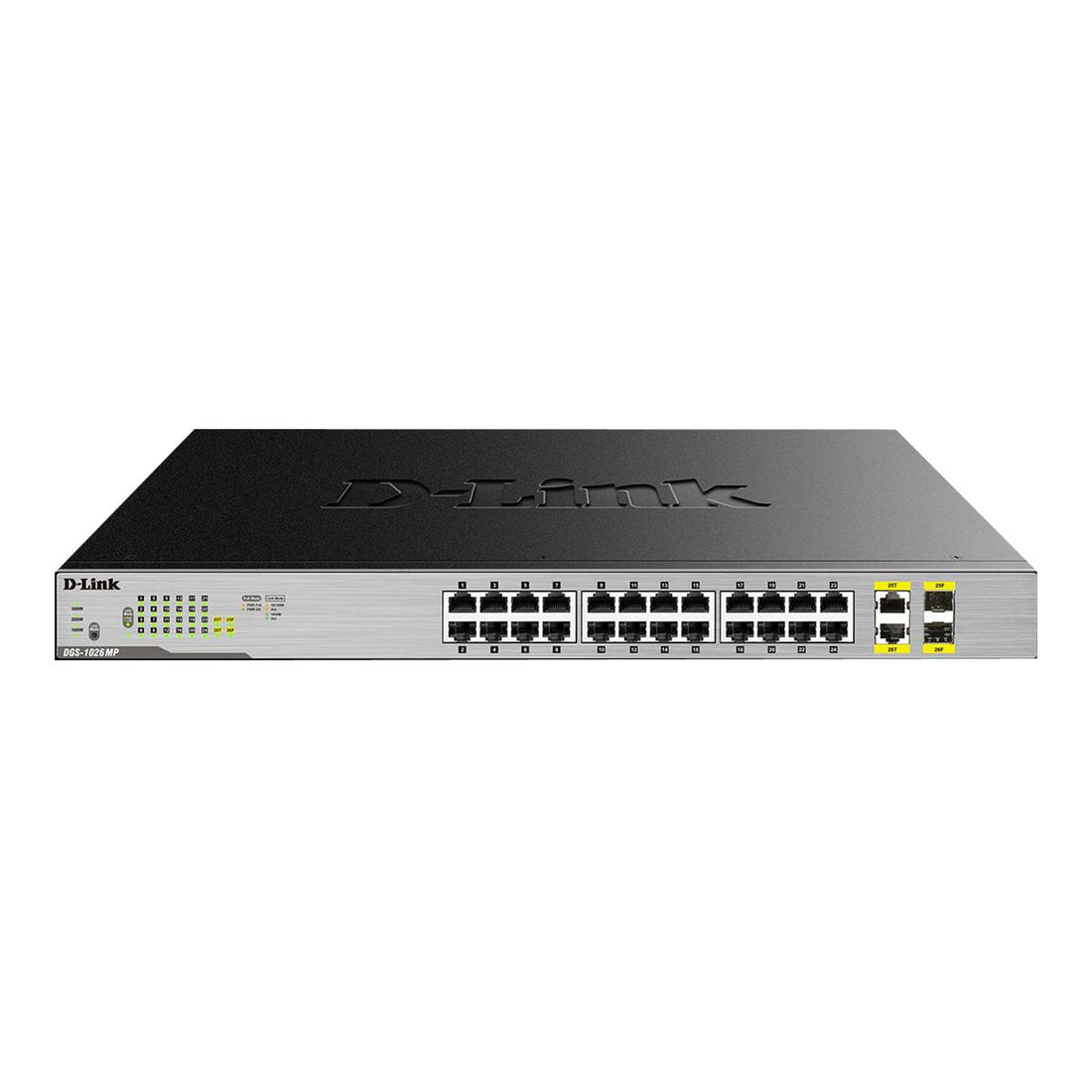

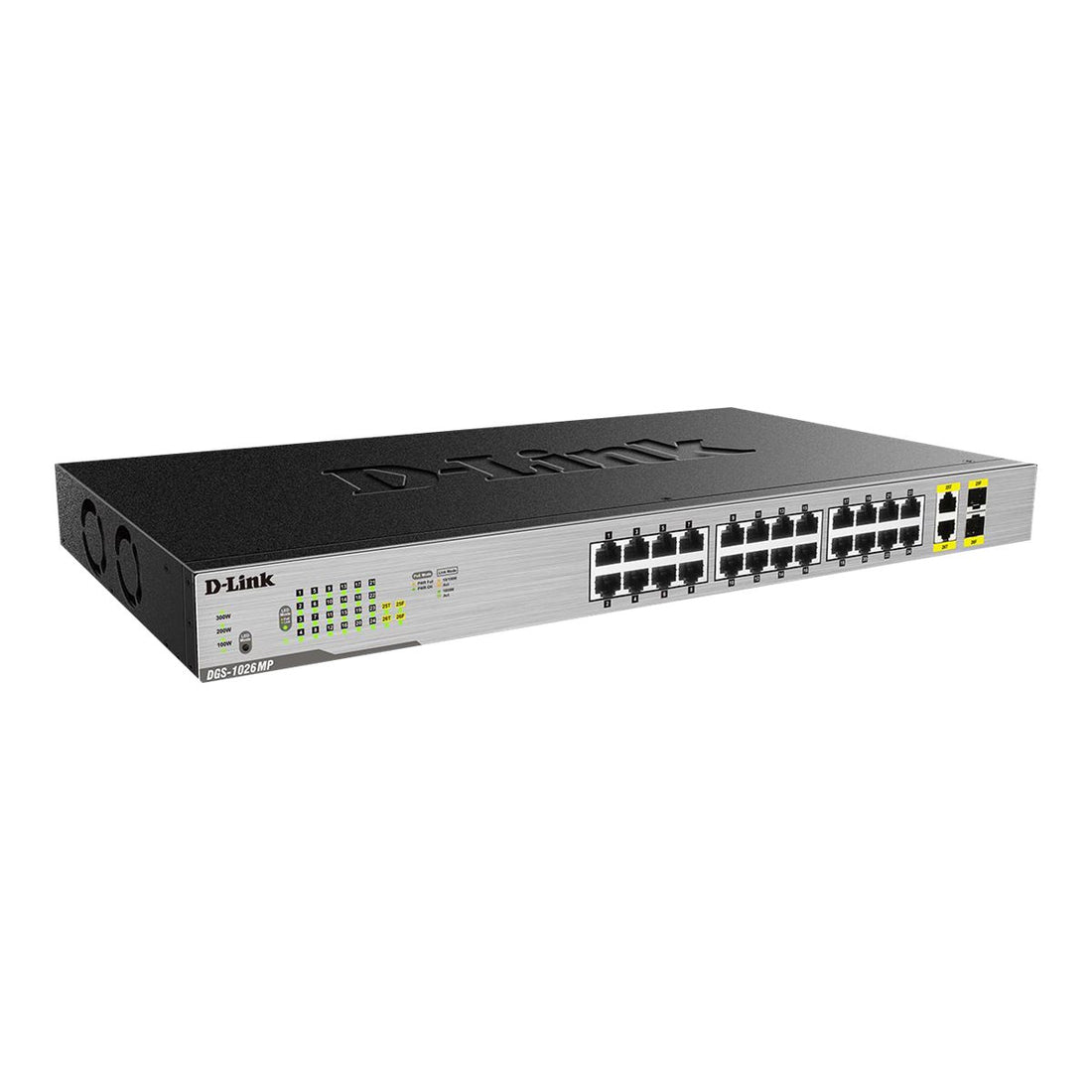

The D-Link DGS-1026MP is an unmanaged switch ideal for businesses needing efficient network connectivity. With 24 Gigabit Ethernet ports and Power over Ethernet capabilities, it simplifies network setups by allowing power and data to be transmitted over a single cable.

24 Gigabit Ethernet ports facilitate high-speed data transfer for multiple devices.
Power over Ethernet (PoE) capability allows for easy connection of powered devices like IP cameras and access points without extra power lines.
Rack mountable design helps save space and organizes network equipment effectively.
LED indicators provide real-time status updates, making it easy to monitor network health.
With a 52 Gbit/s switching capacity, the device efficiently manages heavy data loads without performance loss.

Specifications (2)

Producer product family: Switch
Producer product name: DGS-1026MP

Design (1)

Form factor: Rack mountable

Management features (1)

Switch type: Unmanaged

Other features (1)

Power supply type: Single

Ports & interfaces (5)

Gigabit Ethernet (copper) ports quantity: 24
PoE/Poe+ ports quantity: 24
SFP ports quantity: 2
POE: PoE 802.3 af and PoE+ 802.3 at
Predominant port type: 1 Gbps (RJ-45)

Technical details (2)

Warranty: 24 month(s)
Net weight: 3.90 kg

Additional specifications (45)

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Auto MDI/MDI-X: Yes
Switching capacity: 52 Gbit/s
Throughput: 38.69 Mpps
Forwarding rate: 38.69 Mpps
MAC address table: 8192 entries
Store-and-forward: Yes
Packet buffer memory: 0.512 MB
Rack mounting: Yes
Product colour: Black, Grey
LED indicators: Activity, Link, PoE, Power, Power fail, Speed
Number of fans: 2 fan(s)
Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Buffer size: 512 KB
Mean time between failures (MTBF): 205975 h
Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 444.1 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1515 BTU/h
Width: 440 mm
Depth: 250.4 mm
Height: 44 mm
Weight: 3.1 kg
Shipping (inner) case height: 41 cm
Shipping (inner) case width: 20.5 cm
Shipping (inner) case length: 52 cm
Shipping (inner) case net weight: 8.39 kg
Products per shipping (inner) case: 2 pc(s)
Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification: FCC Class A CE CCC RoHS VCCI BSMI RCM
Harmonized System (HS) code: 85176990
